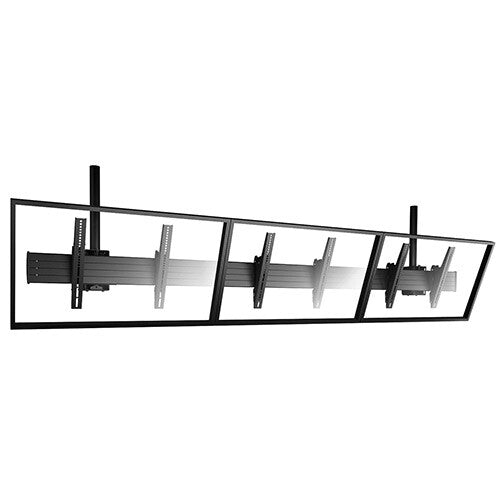

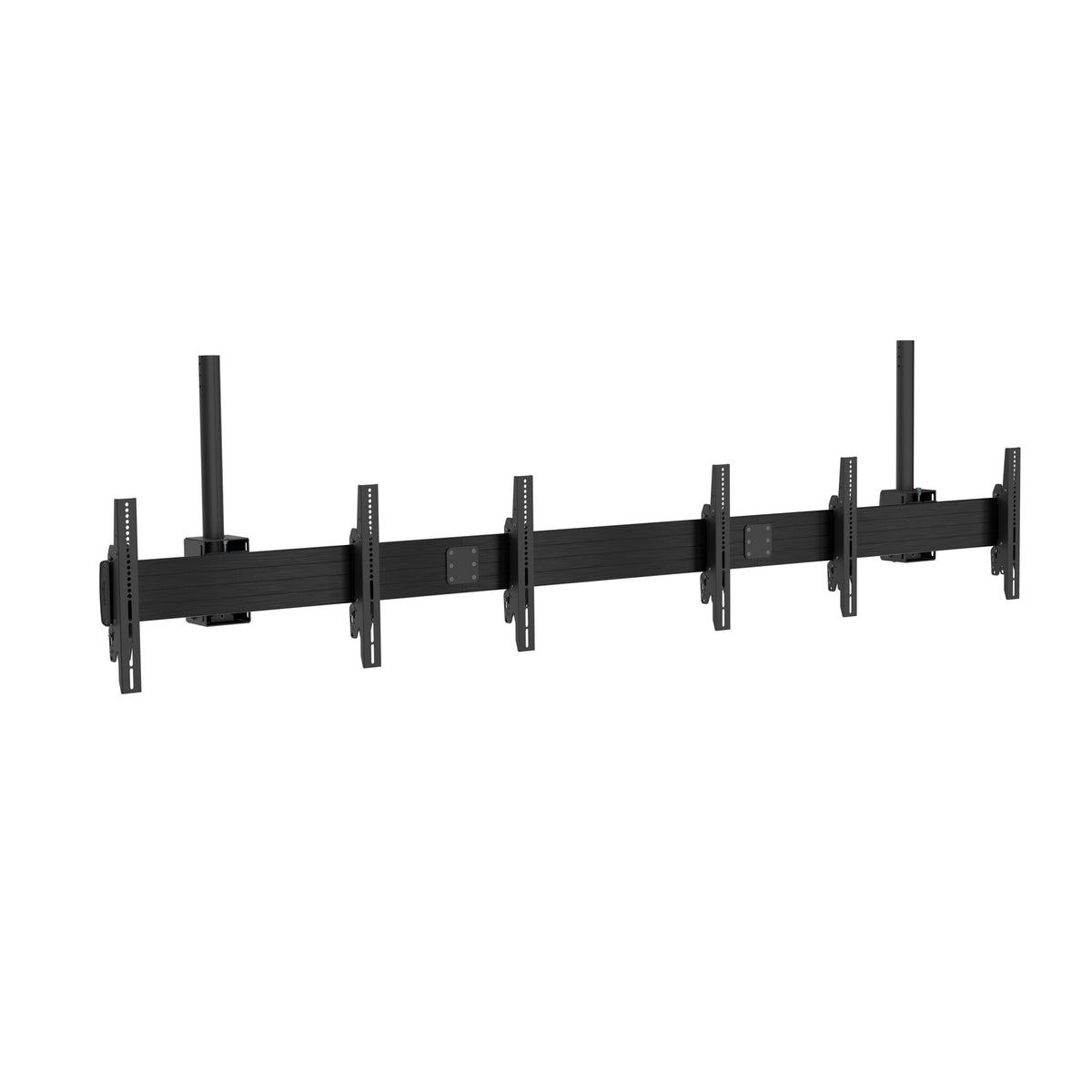

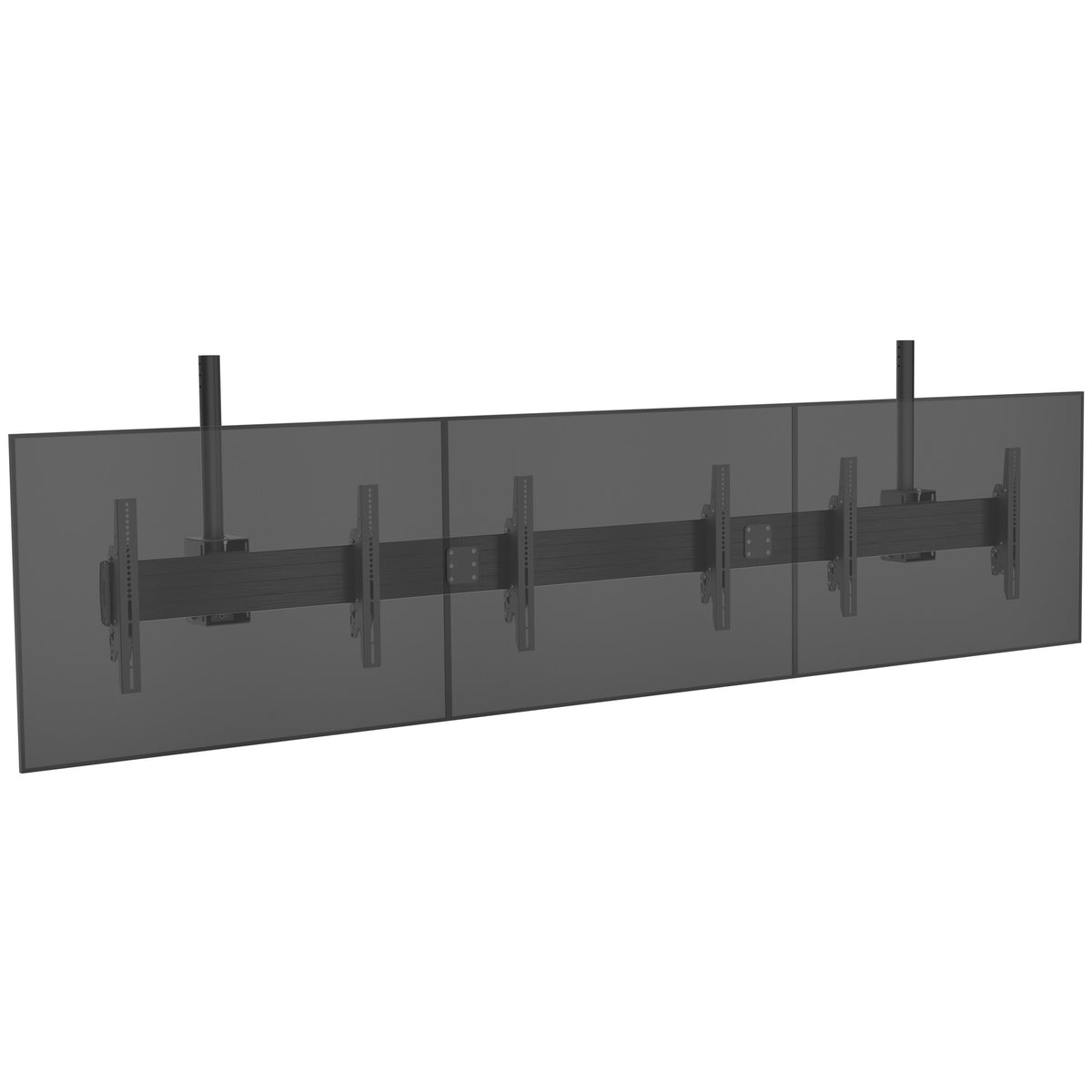

Chief Fusion Large Ceiling 3X1 Modular Menu Board Mount

Chief Fusion Large Ceiling 3X1 Modular Menu Board Mount

Fusion Large Ceiling 3X1 Modular Menu Board Mount

  • Screen array configuration: screens wide x screens high.
  • Confirm screen compatibility with MountFinder™
  • Tilting interfaces makes for easy adjustment for +5 / -20 degrees
  • Tool-free screen engagement
  • Fits most screens 40-55" diagonals, add FCAX extension brackets for larger screens up to 65"; check compatibility for accessory needs
  • Micro adjustable roll for perfect leveling +/- 3 degrees
  • Secure displays with optional pad-lock security
  • CEILING PLATE and EXTENSION COLUMN are required and must be ordered separately
  • Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
  • Wall Stud Compatibility: Double 2" x 4" wood framework ceiling, 8" concrete ceiling, suspended metal framing channel ceiling. Check accessory compatibility.
  • SKU:841872178943
  • GTIN/EAN:841872178943
  • MPN:LCM3X1UM

You need to login to view the price.

View full details

Chief Fusion Large Ceiling 3X1 Modular Menu Board Mount. Maximum weight capacity: 170.1 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 139.7 cm (55"). Tilt angle range: -20 - 5°. Product colour: Black

Designed for fast food restaurants, delis, and campus dining halls, Fusion® Modular Menu Board Ceiling Mounts deliver precise screen alignment and flexible positioning for digital menu board displays. The horizontal extrusion with depth adjustment ensures a clean, uniform look—even on irregular mounting surfaces—while allowing easy access behind the displays for quick servicing. Compact modular components ship efficiently and install easily, making setup and stocking hassle-free. Supports most 40”-55” displays.

Mounting
Maximum weight capacity
170.1 kg
Maximum weight capacity (per display)
56.7 kg
Minimum screen size
101.6 cm (40")
Maximum screen size
139.7 cm (55")
Mounting type
Ceiling
Number of displays supported
3
Ergonomics
Tilt angle range
-20 - 5°
Tilt adjustment
Yes
Design
Type
Modular
Product colour
Black
Weight & dimensions
Depth
198.1 mm
Packaging data
Package width
915 mm
Package depth
458 mm
Package height
229 mm
Package weight
21.8 kg
Technical details
Orientation
Landscape
