Vaddio RoboFLIP 4K HDBT OneLINK Bridge System

Vaddio RoboFLIP 4K HDBT OneLINK Bridge System

RoboFLIP® 30 HDBT + OneLINK Bridge, 8.51 Megapixel, 1080p, 60 fps, PTZ, PoE++, RS232, white

  • Modern and minimalistic design
  • 30x zoom, 70.2 degree FOV with 1080p/60 resolution
  • Simultaneous HDBaseT and IP H.264 streaming
  • SKU:0840077506261
  • GTIN/EAN:0840077506261
  • MPN:999-99800-201

You need to login to view the price.

View full details

Vaddio RoboFLIP 4K HDBT OneLINK Bridge System. Megapixel (approx.): 8.5 MP, Sensor type: CMOS. HD type: 4K Ultra HD, Maximum video resolution: 1920 x 1080 pixels, Maximum frame rate: 30 fps. Optical zoom: 20x, Digital zoom: 30x. Mounting type: Table/Ceiling, Product colour: White

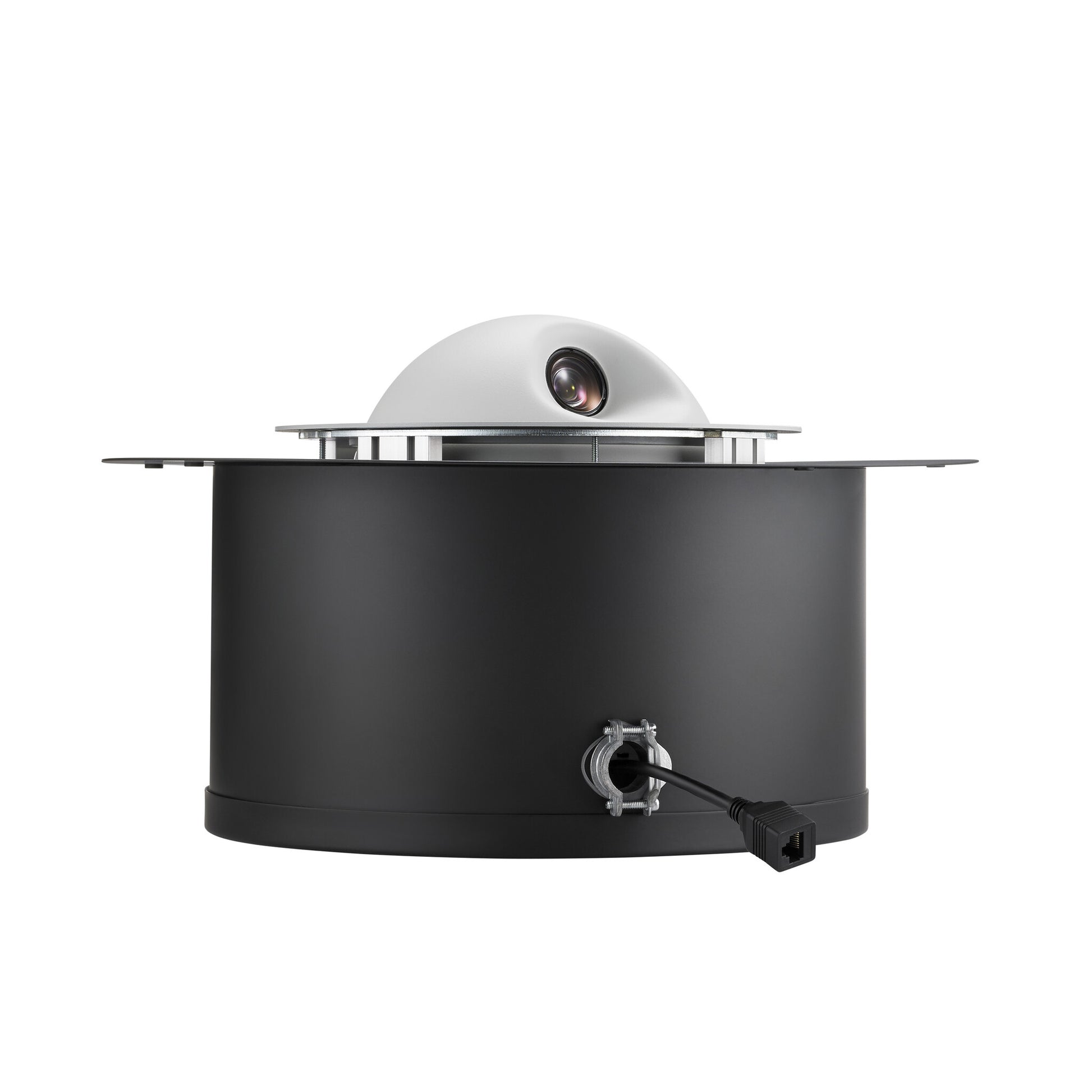

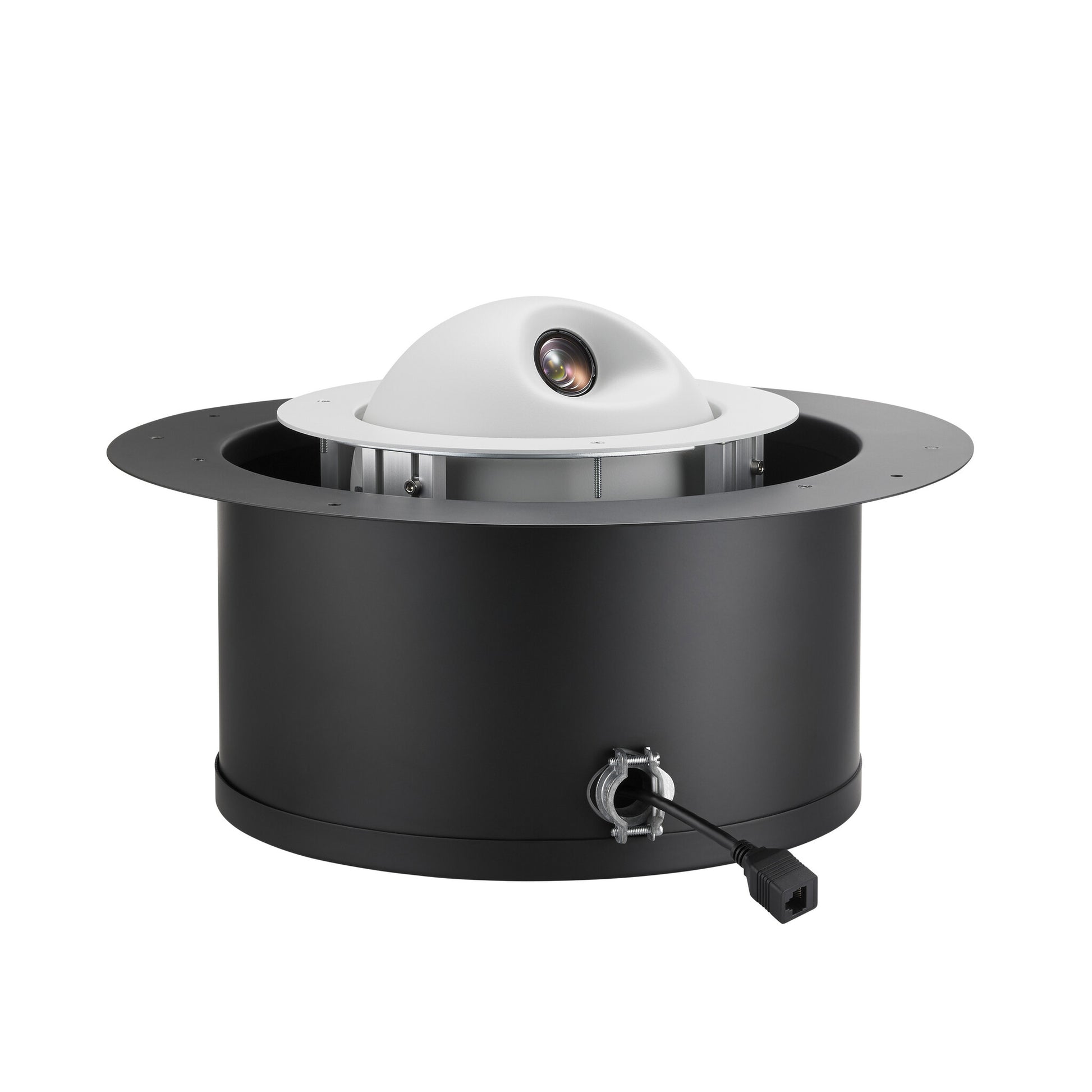

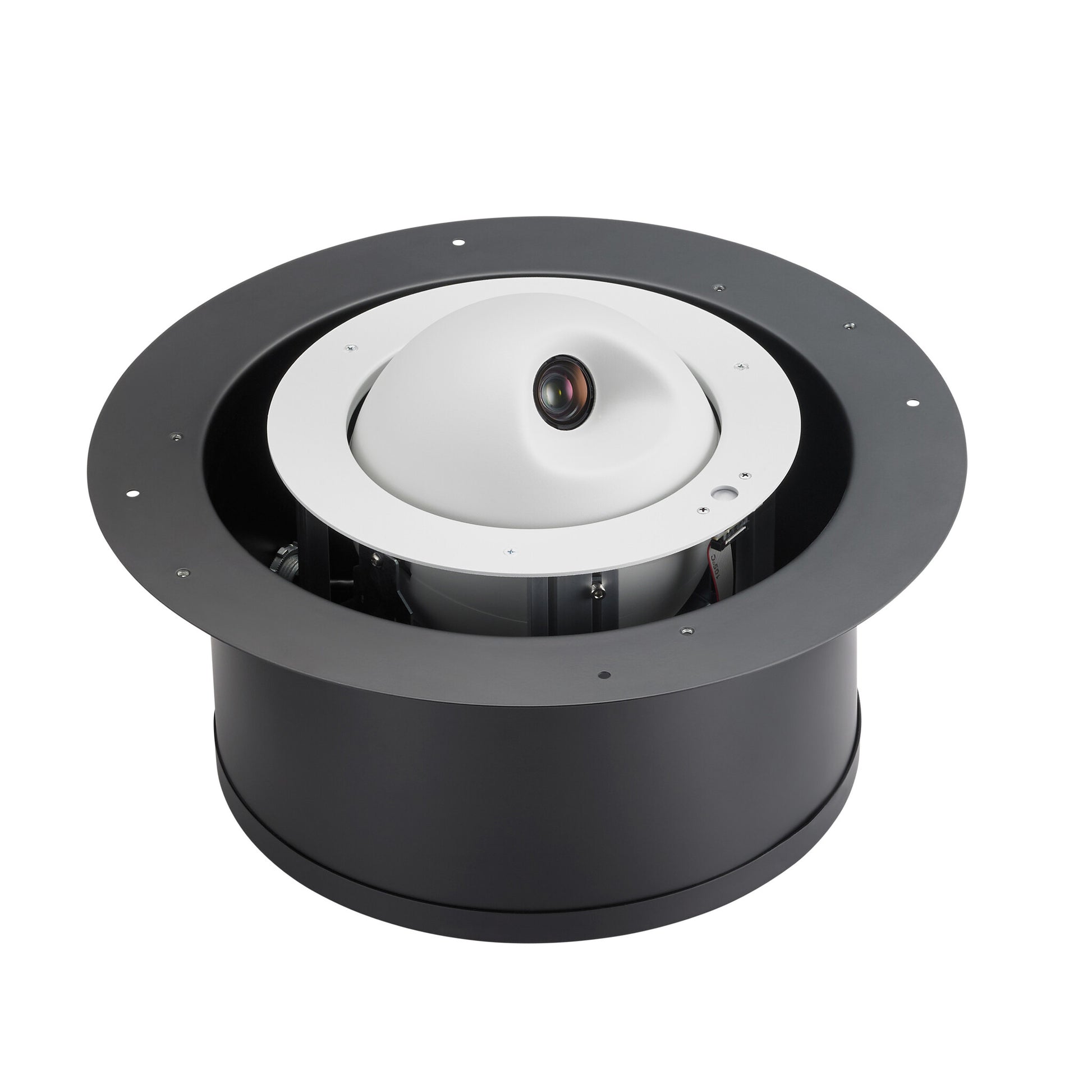

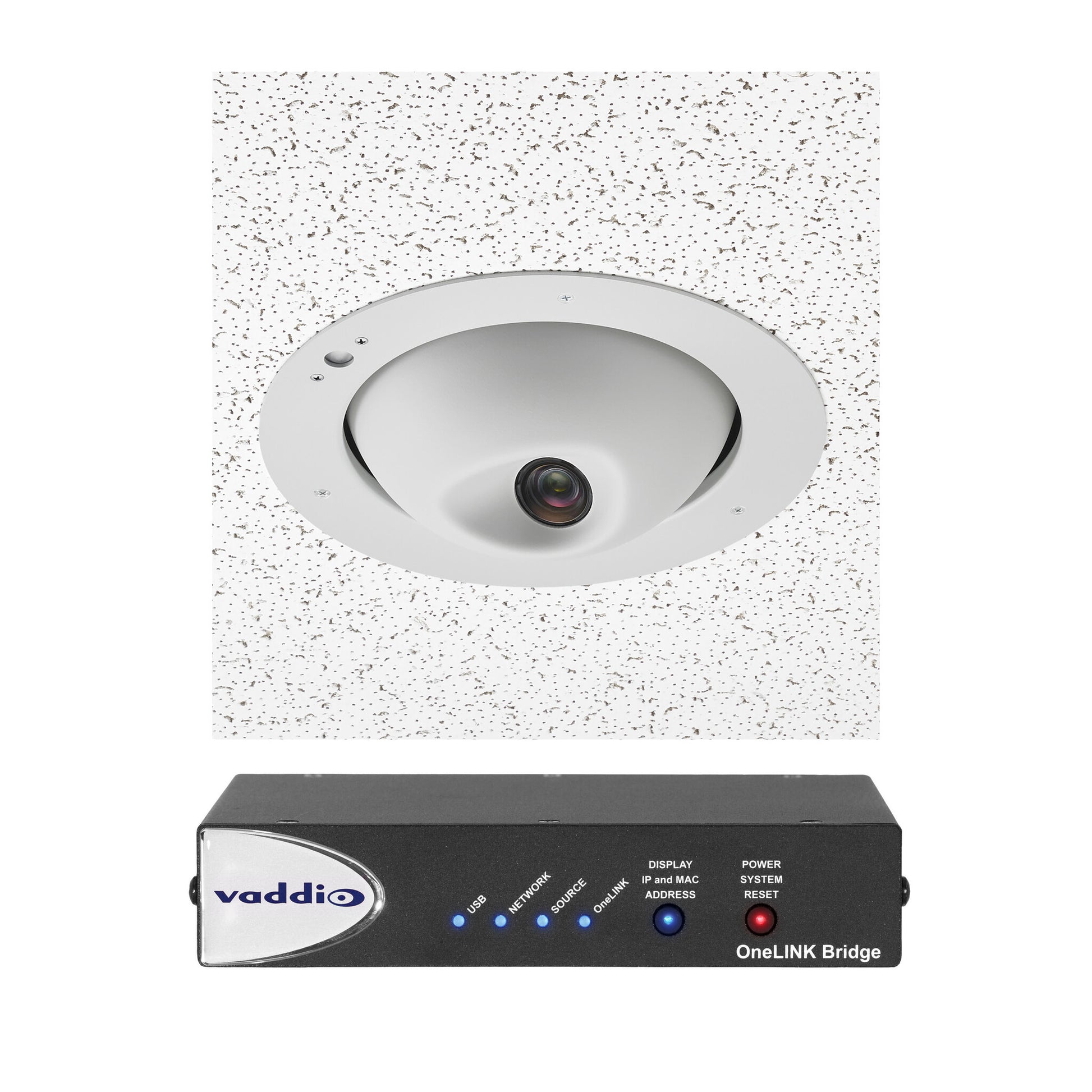

This system combines the RoboFLIP® 30 HDBT Camera with the OneLINK Bridge for HDBaseT Cameras to extend power, video and control over a single cable for simple, tidy installation. Enclosed within its recessed ceiling mounting case, the RoboFLIP 30 HDBT In-Ceiling HD PTZ Camera is ideal for capturing events or videoconferencing where being aware of active video status is of critical importance.

3 years

Camera
Megapixel (approx.)
8.5 MP
Camera type
Single camera
Sensor type
CMOS
Optical sensor size
25.4 / 2.5 mm (1 / 2.5")
Zoom capability
Yes
Optical zoom
20x
Digital zoom
30x
Minimum illumination
1.6 lx
Signal-to-Noise Ratio (SNR)
50 dB
Aperture number of steps
16
White balance
ATW, Auto, Indoor, Manual, One push, Outdoor
Auto focusing (AF) modes
Auto, Manual, One Push Trigger
Number of camera presets
16
Aspect ratio
3:2, 4:3, 16:9
Maximum working distance (tele)
80 cm
Minimum working distance (wide)
8 cm
Video
Maximum video resolution
1920 x 1080 pixels
Maximum frame rate
30 fps
HD type
4K Ultra HD
Design
Product colour
White
Mounting type
Table/Ceiling
Tilt angle range
-30 - 90°
Pan range
-160 - 160°
Tilt speed (min)
0.35 °/sec
Tilt speed (max)
120 °/sec
Pan speed (min)
0.35 °/sec
Pan speed (max)
120 °/sec
Country of origin
United States
Power
Power source type
PoE
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Packaging content
Remote control included
Yes
Weight & dimensions
Width
406 mm
Depth
406 mm
Height
235 mm
Weight
6.8 kg
Packaging data
Package weight
11.3 kg
