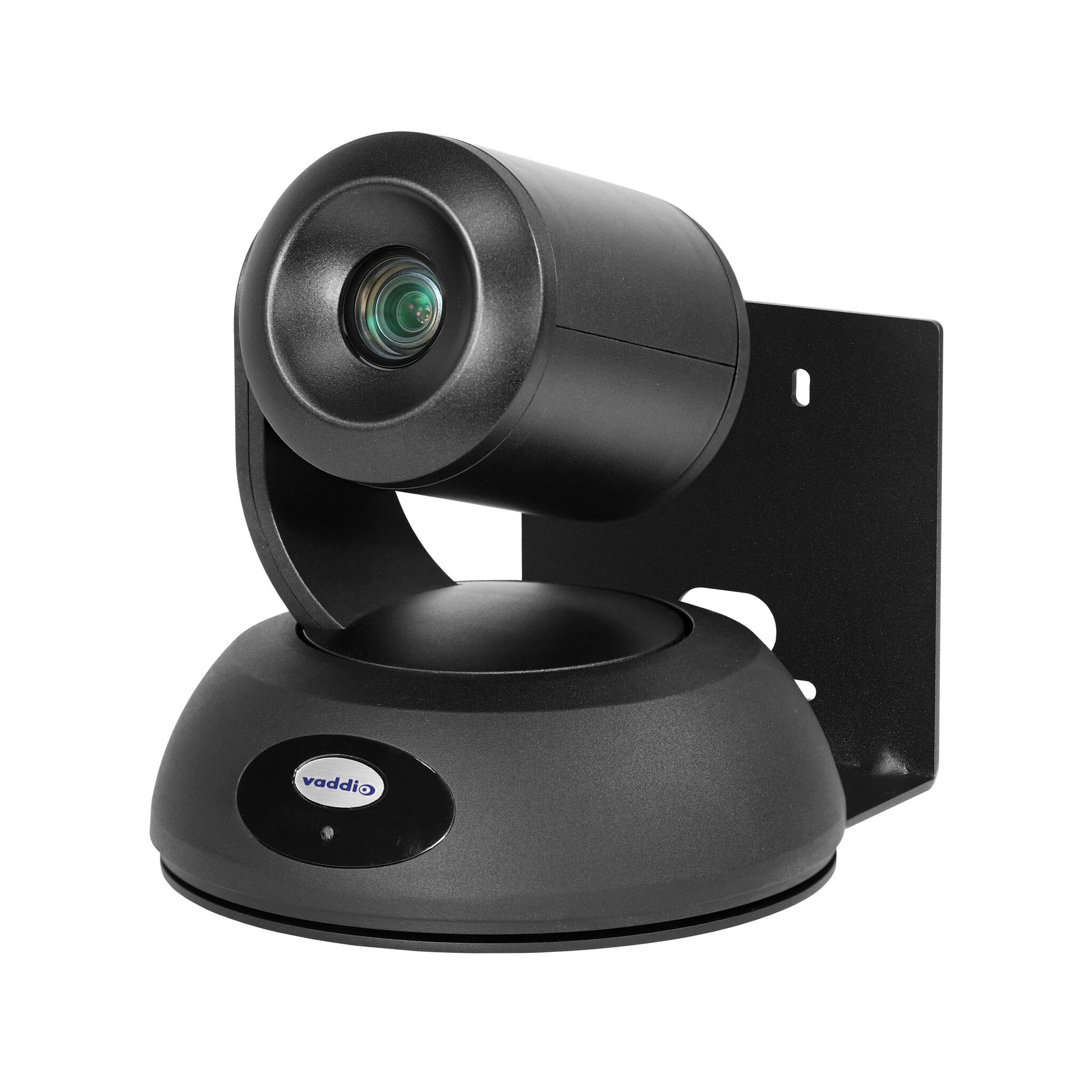

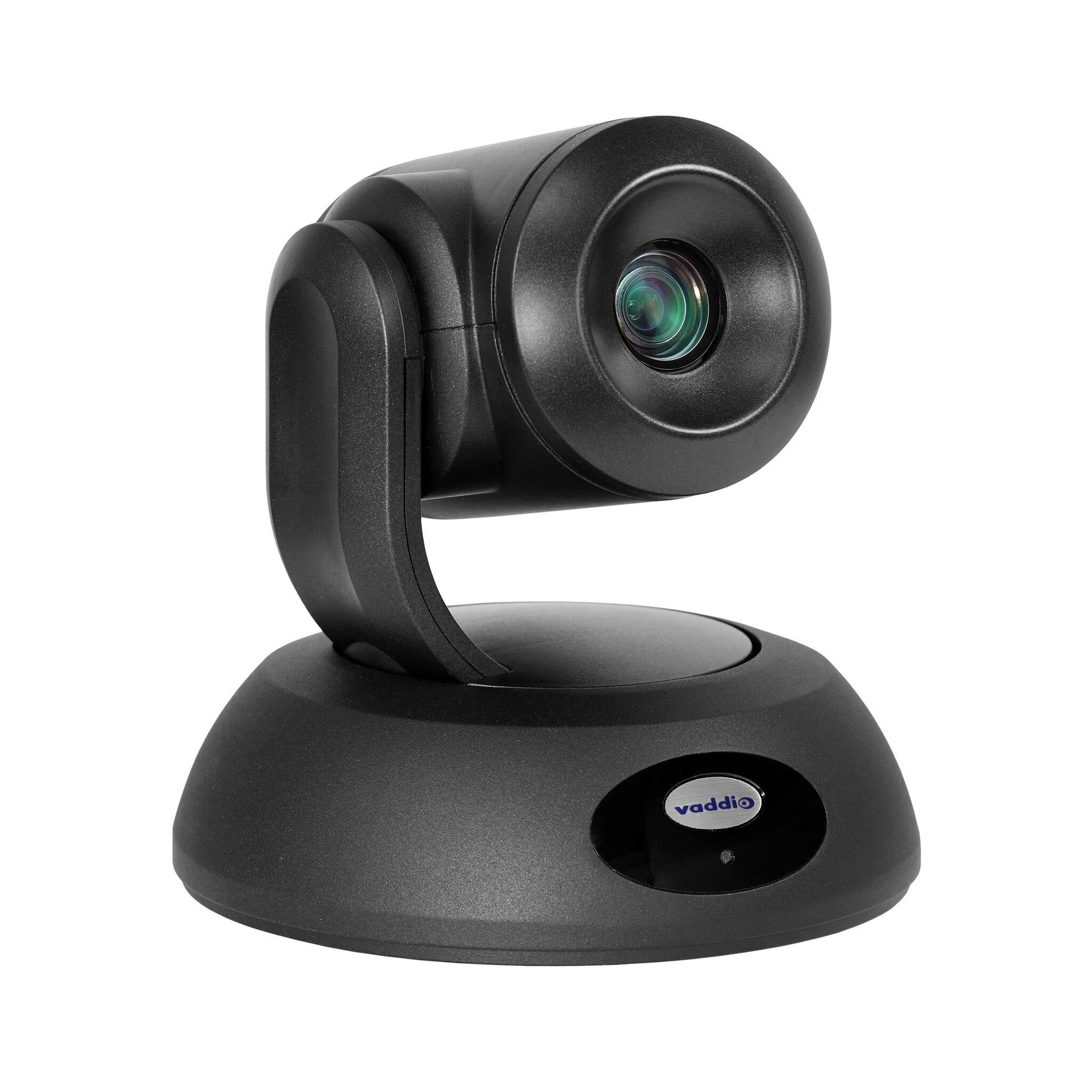

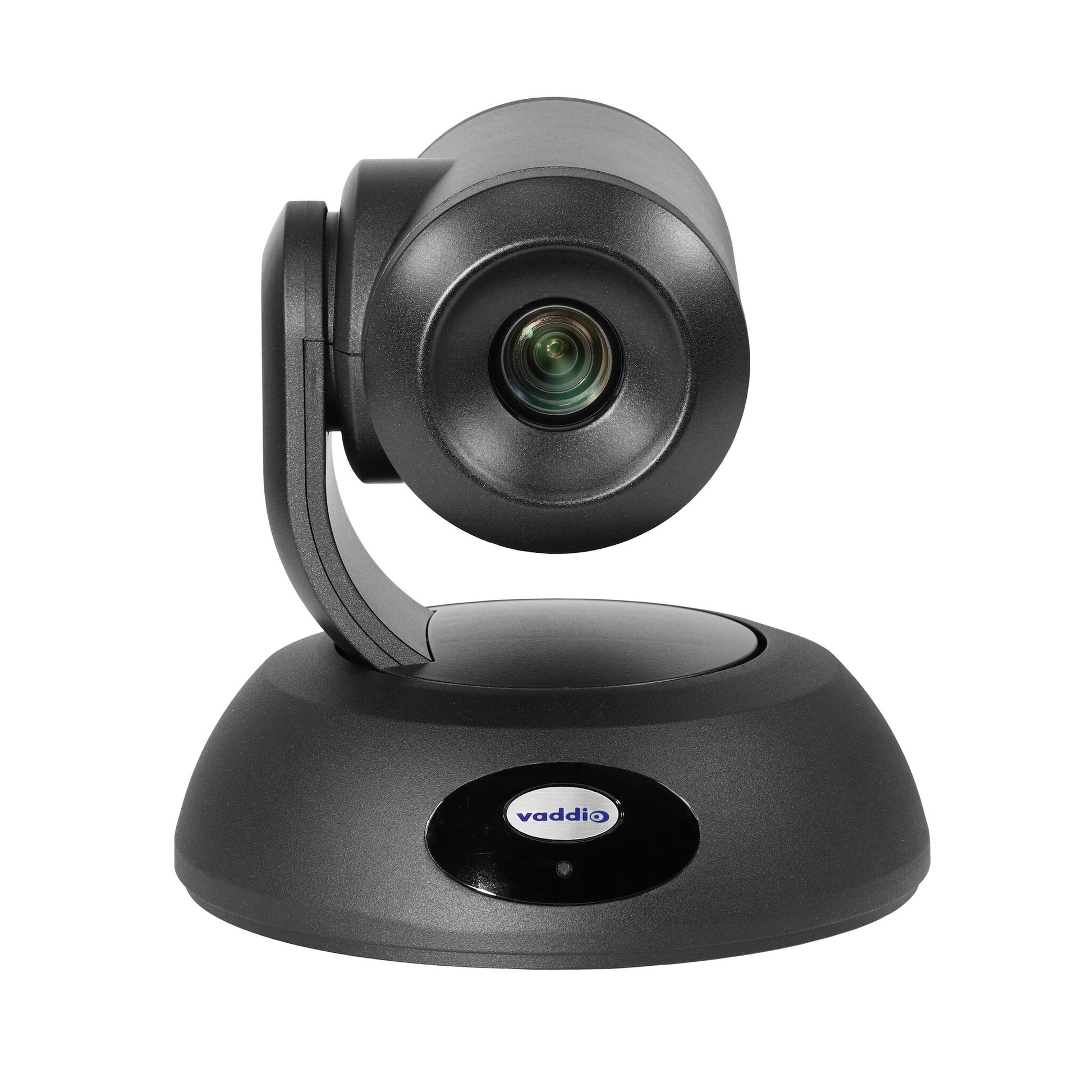

Vaddio RoboSHOT 12E NDI

Vaddio RoboSHOT 12E NDI

8.51 MP, 12x, 1080p, 60, HDMI, RS-232, NDI, PoE+, 179.1 x 171.5 x 176.3 mm, 2.2 kg, Black

  • 12x Zoom
  • 1/2.5-type Exmor R CMOS sensor
  • 70.2° horizontal field of view
  • Simultaneous HDMI and native NDI® streaming
  • SKU:0840077506094
  • GTIN/EAN:0840077506094
  • MPN:999-99407-001

You need to login to view the price.

View full details

Vaddio RoboSHOT 12E NDI. Megapixel (approx.): 8.57 MP, Sensor type: CMOS. HD type: Full HD, Maximum video resolution: 1920 x 1080 pixels, Supported video modes: 720p, 1080i, 1080p, Maximum frame rate: 60 fps. Optical zoom: 12x. Product colour: Black

Professional A/V presentation NDI camera. Simultaneous HDMI and native NewTek NDI® streaming, with one of the lowest signal latencies in the industry. Recommended for broadcast applications, conference rooms, and classrooms.

New! Vaddio Deployment Tool

Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà! – remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.

For PTZ video installations that require an NDI® signal, there is no better option than the RoboSHOT® 12E NDI® camera. This Elite Series camera complies with the most rigorous NDI standards to deliver the lowest latency for live, on-air camera control, switching and streaming. Achieve plug and play simplicity by connecting the camera to the network and opening your NewTek control software. This IP-based NDI video camera is instantly available for NDI control and streaming – without installing any additional drivers.

Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.

RoboSHOT Elite cameras offer enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.

The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio’s industry-leading Tri-Synchronous Motion technology, allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.

The RoboSHOT 12E cameras are ideal for small to medium spaces such as conference rooms, training rooms, and classrooms that require a wide angle of view.

The RoboSHOT 12E NDI camera complies with the most rigorous NDI standards to deliver the lowest latency for live, on-air camera control, switching and streaming.

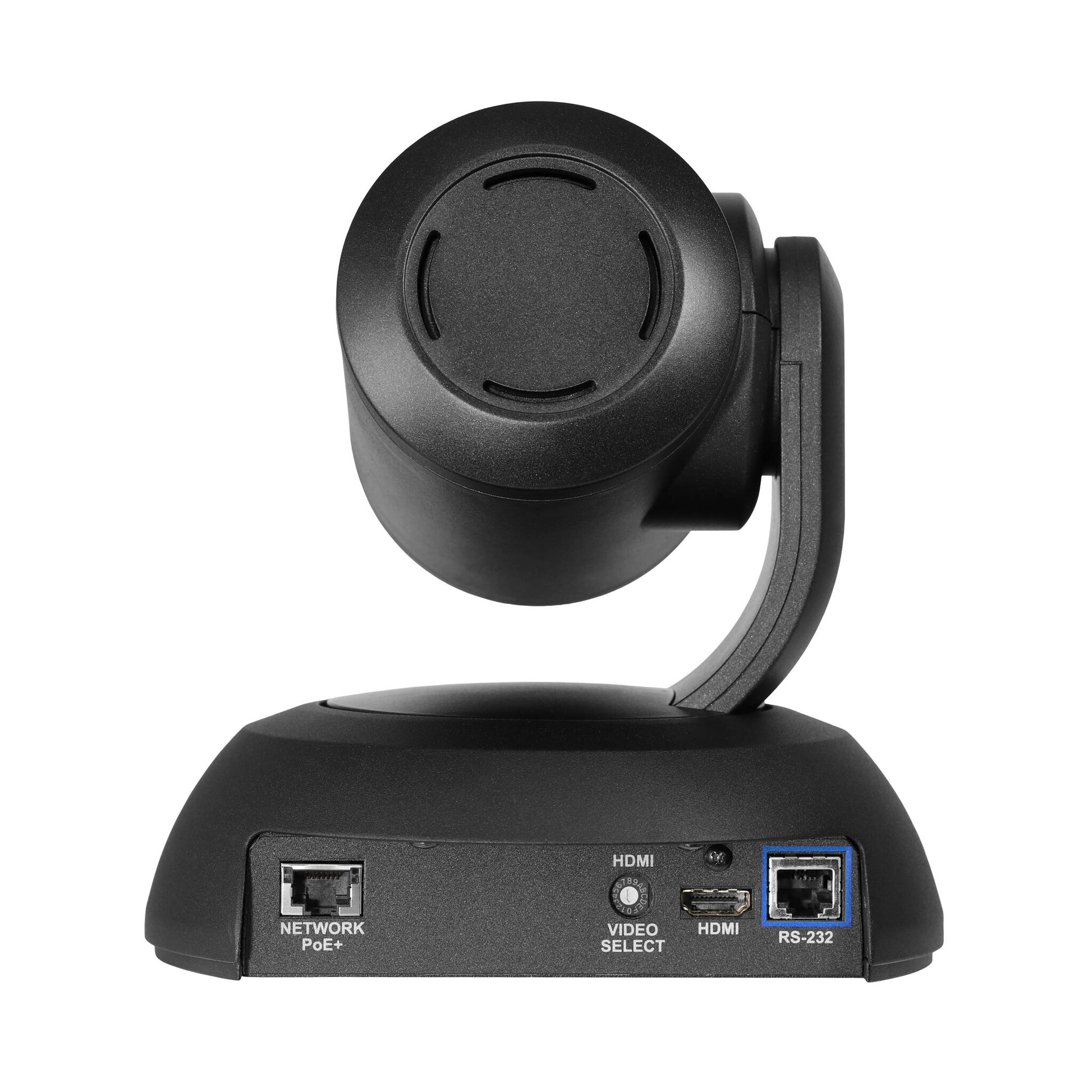

Video outputs include simultaneous HDMI and NewTek NDI streaming.

This Package Includes:

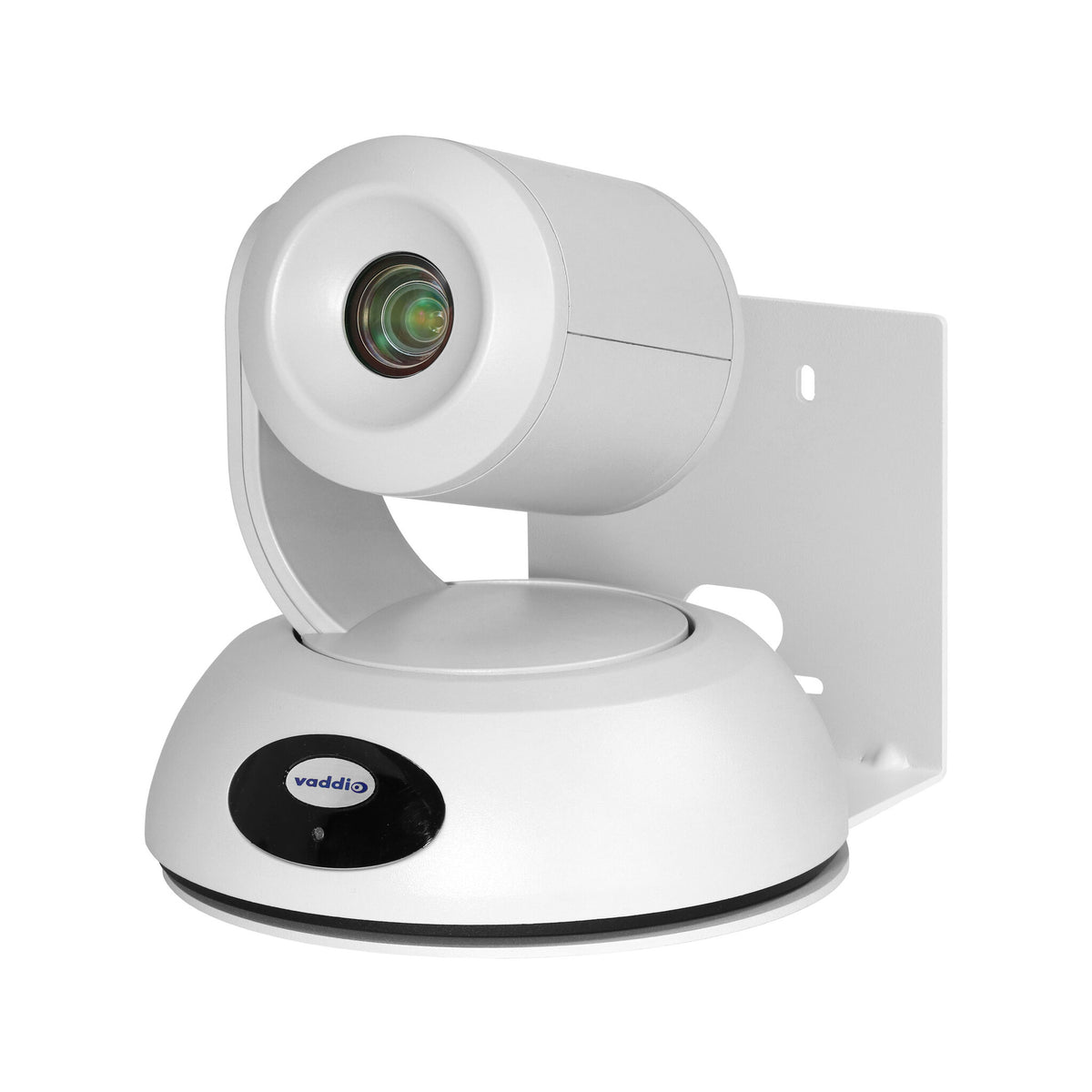

- RoboSHOT 12E NDI camera (white or black)
- Quick-Start Guide
- PoE+ Midspan Power Injector
- Thin Profile Wall Mount (white or black) with mounting hardware and installation manual
- Vaddio IR Remote Commander

2 years

Camera
Megapixel (approx.)
8.57 MP
Sensor type
CMOS
Optical sensor size
25.4 / 2.5 mm (1 / 2.5")
Effective sensor resolution
8.51 MP
Optical zoom
12x
Focal length range
4.4 - 88.4 mm
Horizontal field of view (tele)
6.8°
Horizontal field of view (wide)
70.2°
Minimum illumination
1.6 lx
Signal-to-Noise Ratio (SNR)
50 dB
Aperture number of steps
16
Aperture range (F-F)
2 - 3.8
White balance
ATW, Auto, Indoor, Manual, One push, Outdoor
Focus adjustment
Auto/Manual
Auto focusing (AF) modes
Auto, Manual, One Push Trigger
Wide Dynamic Range (WDR)
Yes
Number of camera presets
16
Back Light Compensation (BLC)
Yes
Gain control type
Auto/Manual
PTZ control
Yes
Fastest camera shutter speed
1/10000 s
Slowest camera shutter speed
1 s
Aspect ratio
16:9
Minimum working distance (wide)
22.9 cm
Video
Maximum video resolution
1920 x 1080 pixels
Maximum frame rate
60 fps
HD type
Full HD
Resolution at capture speed
1920x1080@60fps
Supported video modes
720p, 1080i, 1080p
Design
Product colour
Black
Tilt angle range
-30 - 90°
Pan range
-160 - 160°
Web-based management
Yes
Tilt speed (min)
0.35 °/sec
Tilt speed (max)
120 °/sec
Pan speed (min)
0.35 °/sec
Pan speed (max)
120 °/sec
Ports & interfaces
HDMI ports quantity
1
Power over Ethernet plus (PoE+) ports quantity
1
RS-232 ports
1
Power
Power source type
PoE
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Network
Network streaming
Yes
Packaging content
Mounting kit
Yes
Quick start guide
Yes
Technical details
Harmonized System (HS) code
85258900
Audio
Noise reduction
Yes
Performance
Remote control function
Yes
Weight & dimensions
Width
179.1 mm
Depth
171.5 mm
Height
176.3 mm
Weight
2.2 kg
