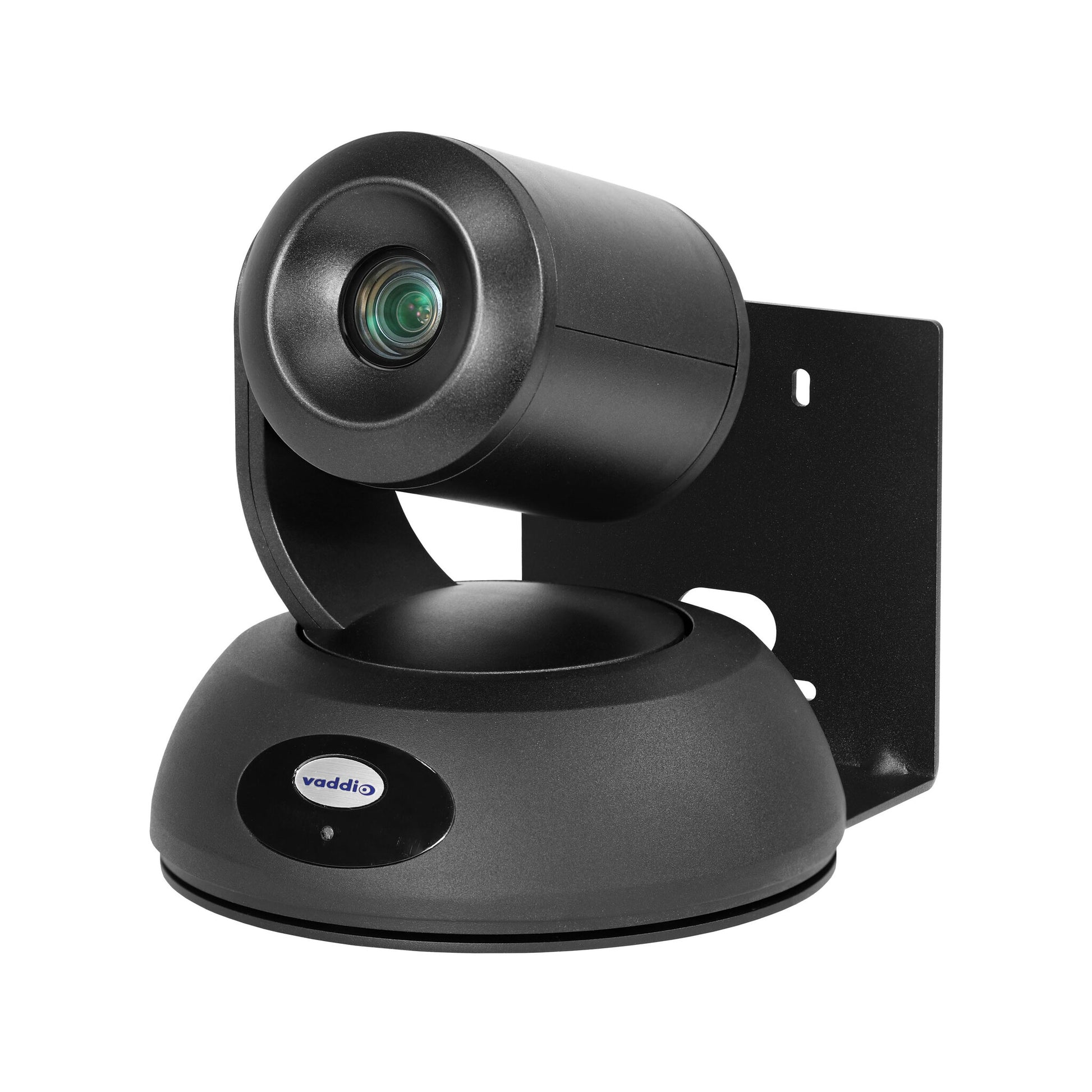

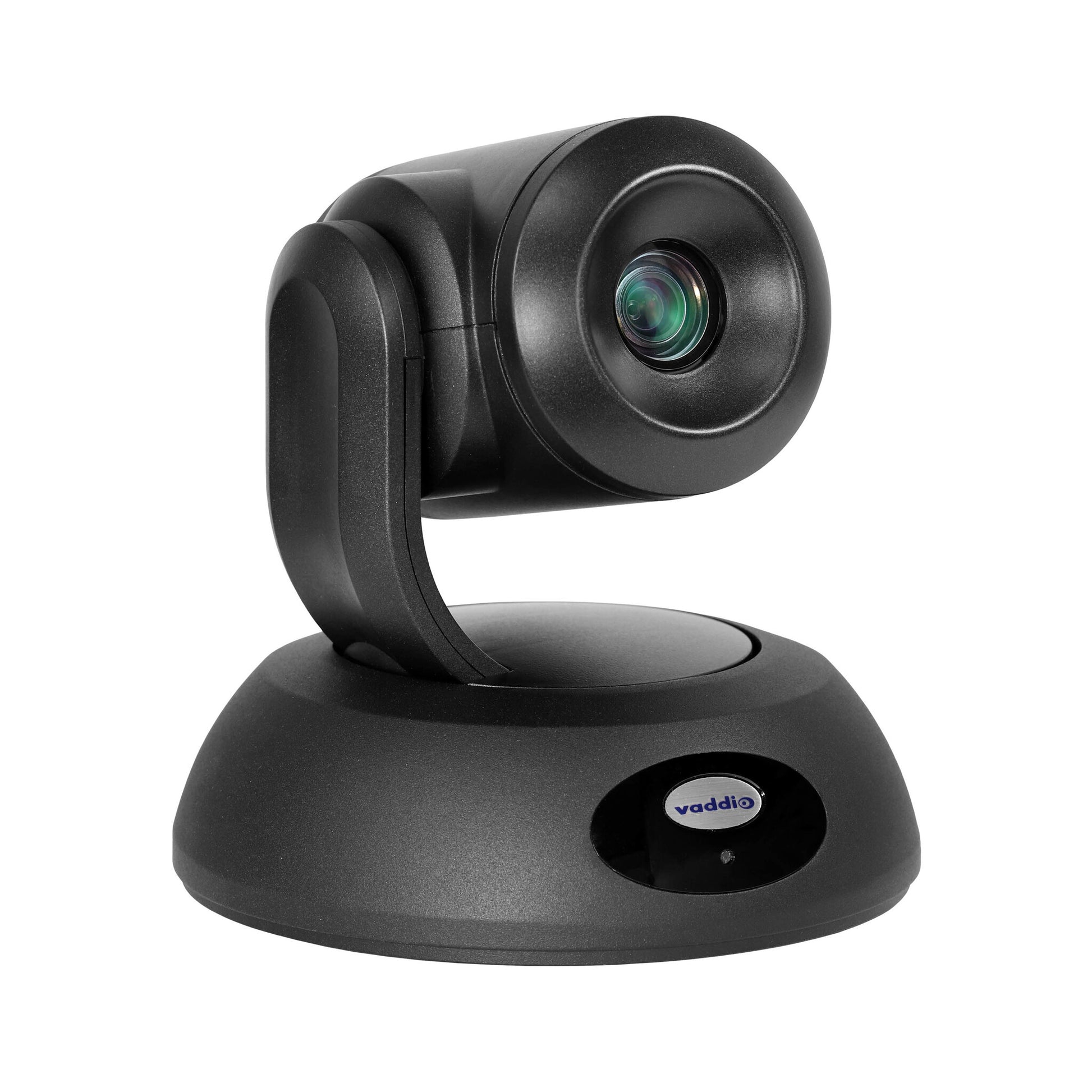

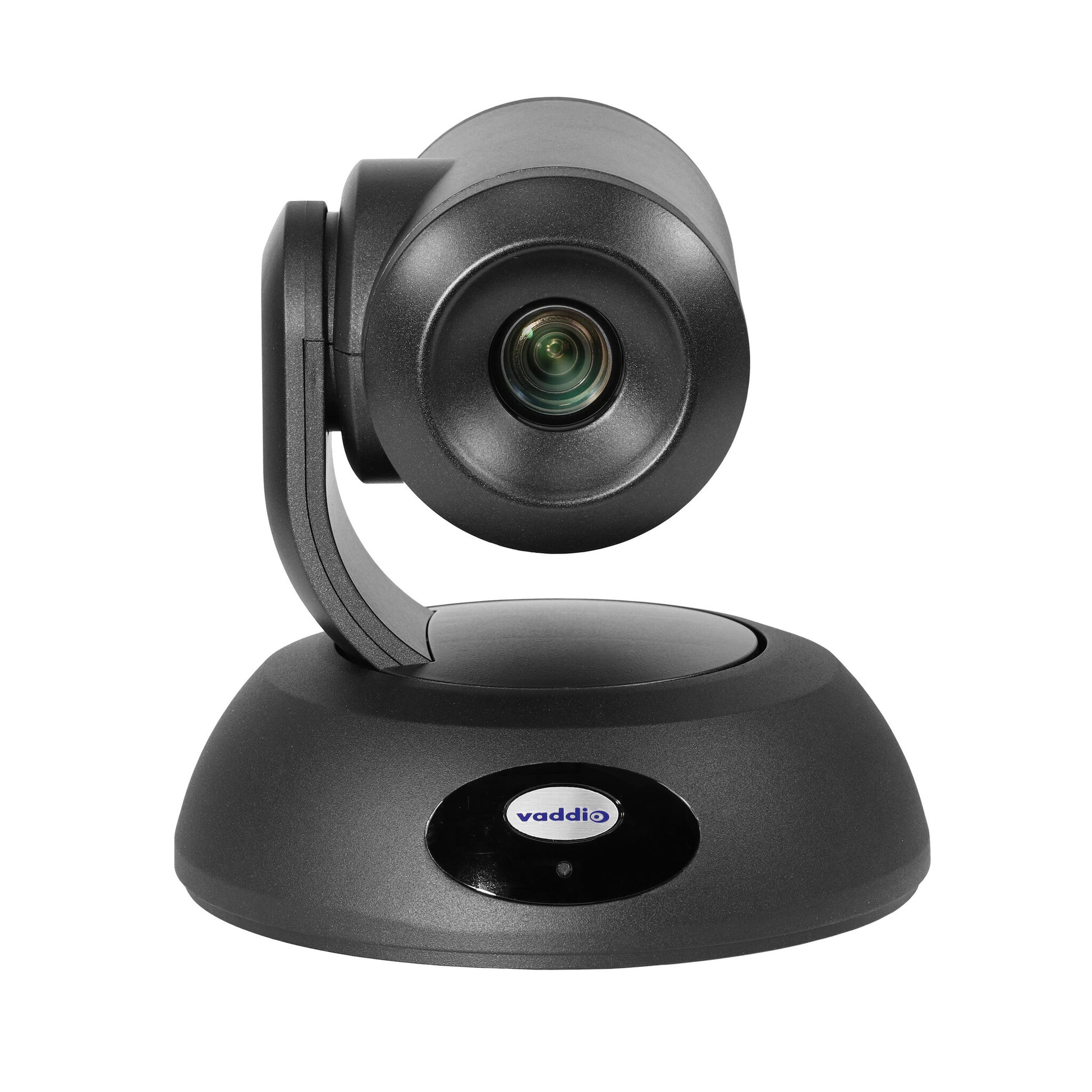

Vaddio RoboSHOT 12E SDI

Vaddio RoboSHOT 12E SDI

8.57 MP, 12x, 1080p, 60, HDMI, 3G-SDI, IP-Streaming, PoE+, 179.1 x 171.5 x 176.3 mm, 2.2 kg

  • 12x optical zoom
  • 1/2.5-type Exmor R CMOS sensor
  • Simultaneous HDbaseT, HDMI and IP H.264 streaming
  • Remote IP Management
  • SKU:0840077503338
  • GTIN/EAN:0840077503338
  • MPN:999-99300-001

You need to login to view the price.

View full details

Vaddio RoboSHOT 12E SDI. Megapixel (approx.): 8.57 MP, Sensor type: CMOS. HD type: Full HD, Maximum video resolution: 1920 x 1080 pixels, Supported video modes: 1080p, Maximum frame rate: 60 fps. Mounting type: Stand, Product colour: Black

Professional A/V presentation camera. Simultaneous HDMI, 3Gb/s HD-SDI, and IP (H.264) streaming. Recommended for conference rooms, training rooms, and classrooms that require a wide angle of view.

Introducing the RoboSHOT Elite Series – Vaddio’s next generation of professional cameras. Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.

RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.

Enjoy IP streaming (RTSP or RTMP format with H.264 compression) to share live events like church services, lectures, or meetings over popular applications like YouTube, Livestream and Facebook.

A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. To watch the IP stream, simply enter the camera’s streaming URL into any standards based (H.264, RTSP format) media player. Perfect for remote management, network operating centers and overall IT control.

The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio’s industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.

The RoboSHOT 12E cameras are recommended for small to medium spaces such as conference rooms, training rooms, and classrooms that require a wide angle of view.

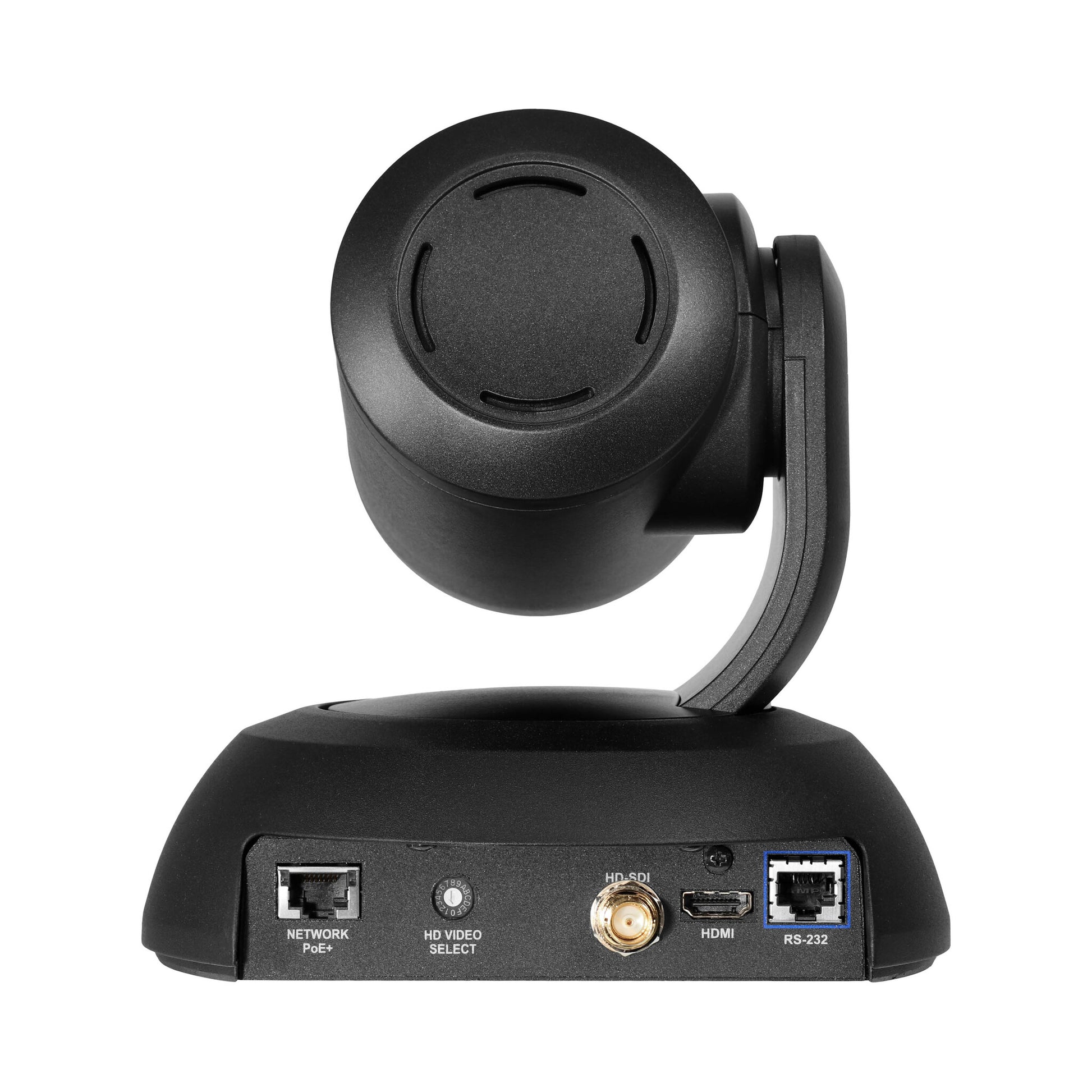

Video outputs include simultaneous 3G-SDI, HDMI and IP (H.264) streaming.

This Package Includes:
- RoboSHOT 12E SDI camera (black or white)
- Quick-Start Guide
- PoE+ Midspan Power Injector
- Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
- Vaddio IR Remote Commander
- EZCamera RS-232 Control Adapter

2 years

Camera
Megapixel (approx.)
8.57 MP
Sensor type
CMOS
Optical sensor size
25.4 / 2.5 mm (1 / 2.5")
Effective sensor resolution
8.51 MP
Combined zoom
12x
Horizontal field of view (tele)
4.1°
Horizontal field of view (wide)
70.2°
Minimum illumination
1 lx
White balance
Auto, Manual, One push
Focus adjustment
Auto/Manual
Number of camera presets
16
Gain control type
Auto/Manual
PTZ control
Yes
Video
Maximum video resolution
1920 x 1080 pixels
Maximum frame rate
60 fps
HD type
Full HD
Supported video modes
1080p
Video formats supported
H.264
Design
Product colour
Black
Mounting type
Stand
Tilt angle range
-30 - 90°
Pan range
-160 - 160°
Web-based management
Yes
Tilt speed (min)
0.35 °/sec
Tilt speed (max)
120 °/sec
Pan speed (min)
0.35 °/sec
Pan speed (max)
120 °/sec
Ports & interfaces
HDMI ports quantity
1
RS-232 ports
1
Ethernet LAN (RJ-45) ports
1
3G-SDI output
Yes
Power
Power source type
PoE
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Network
Network streaming
Yes
Packaging content
Mounting kit
Yes
Quick start guide
Yes
Technical details
Harmonized System (HS) code
85258900
Weight & dimensions
Width
179.1 mm
Depth
171.5 mm
Height
176.3 mm
Weight
2.2 kg
