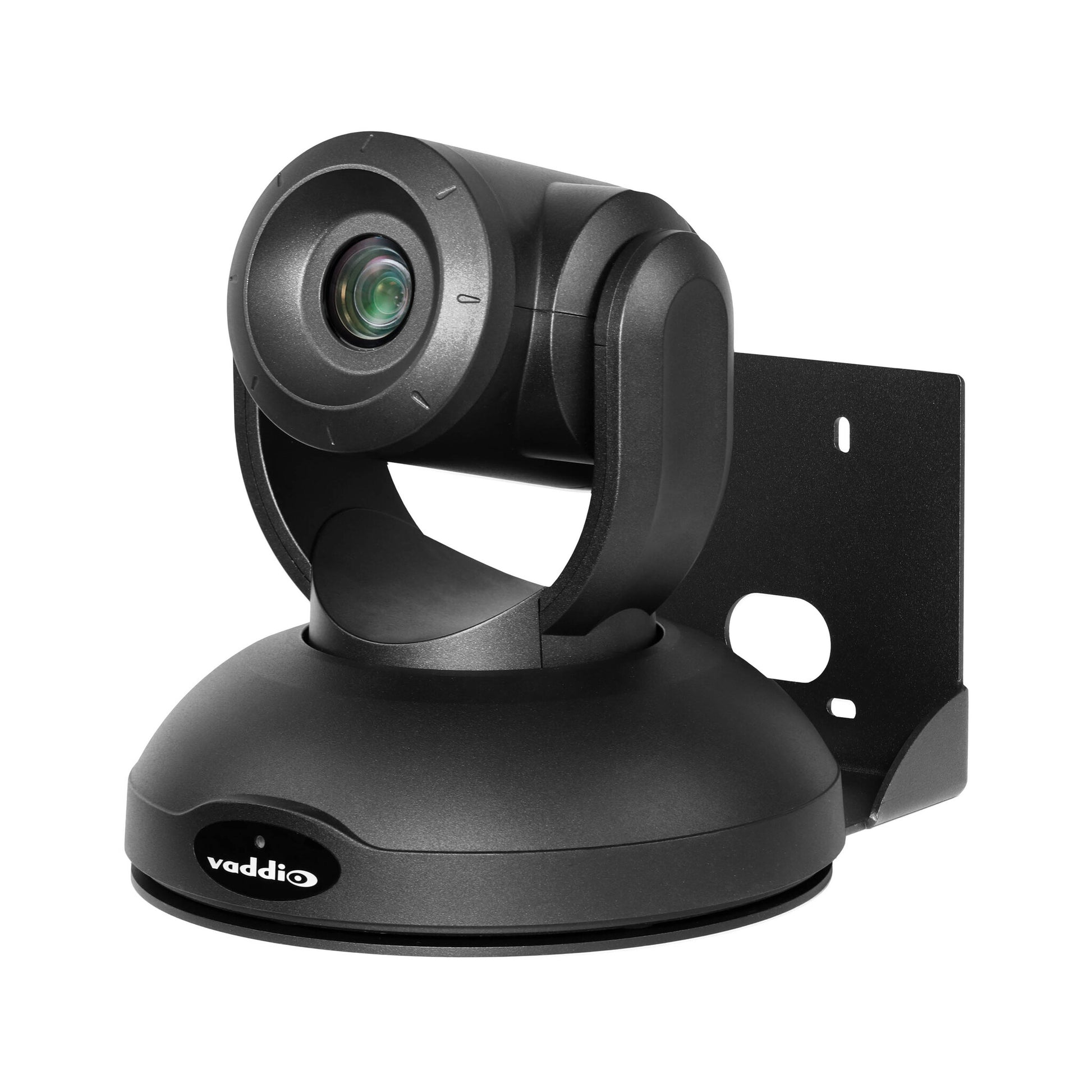

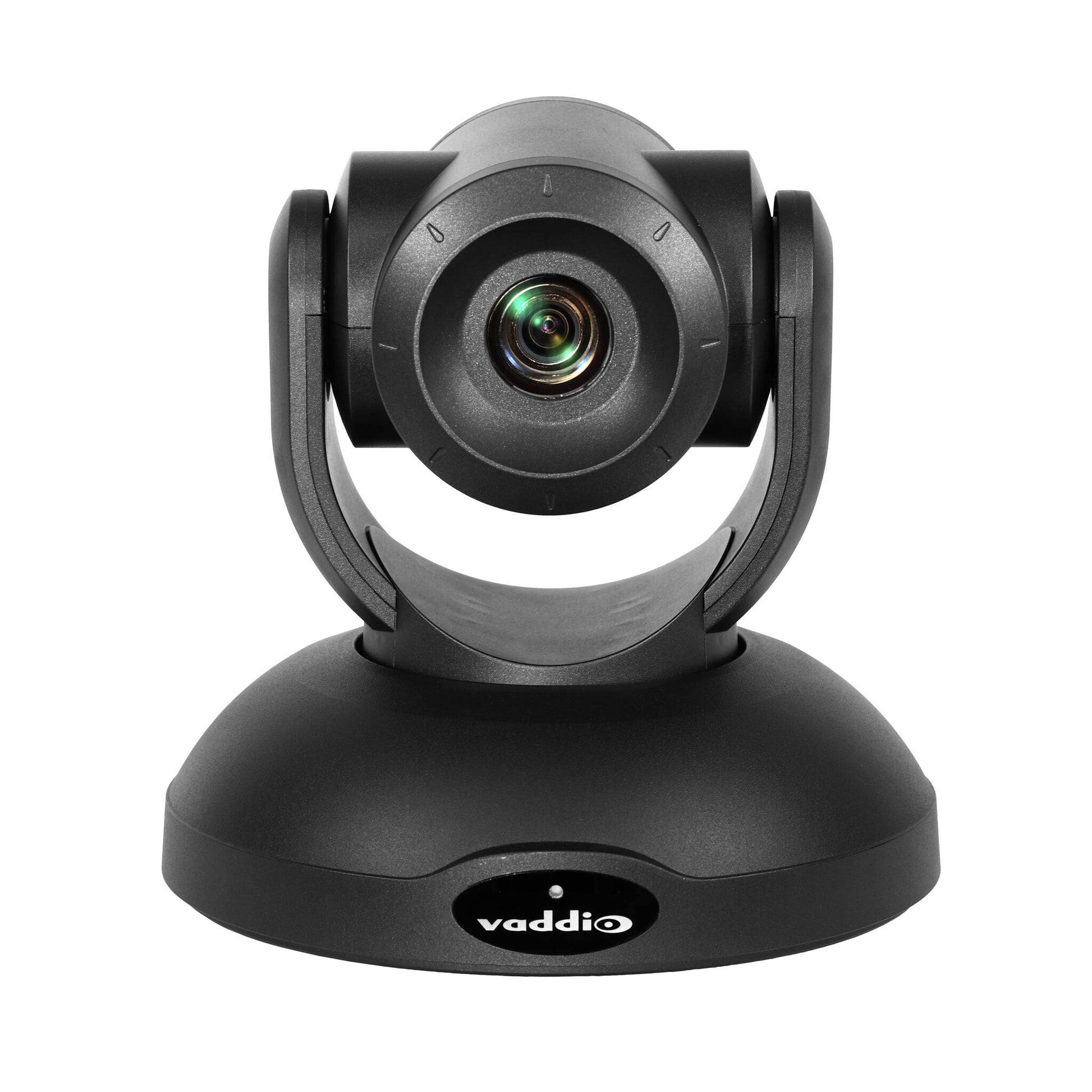

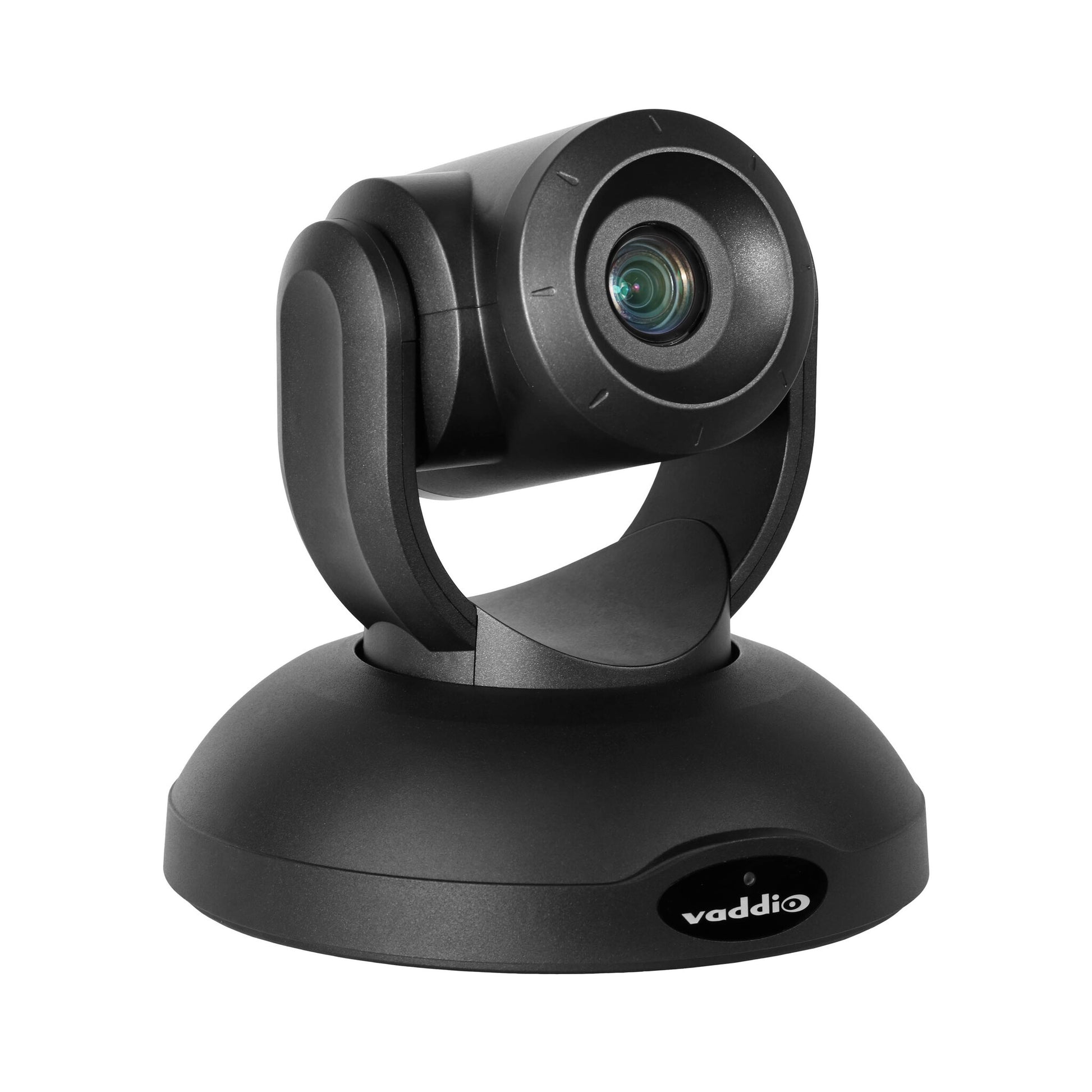

Vaddio RoboSHOT 20 UHD PTZ Camera

Vaddio RoboSHOT 20 UHD PTZ Camera

1/2.3" CMOS, 9.03MP, 2160p/1080p, HDMI, HDBT, HD-SDI, IP, 2.7 kg, EU/UK

  • Back-illuminated 9.03 Megapixel, ultra high definition 1/2.3-type sensor delivers native 2160p/30 (3840 x 2160) video
  • Horizontal field of view 74° (wide) to 4.8° (tele) at 20x
  • Imaging and performance comparable to 3-chip cameras
  • Precise pan and tilt movements from 0.35° to 120° per second
  • Simultaneous HDMI, HDBT, HD-SDI and IP streaming outputs
  • Presenter-friendly IR remote control
  • Administrative control via web interface
  • SKU:0840077507787
  • GTIN/EAN:0840077507787
  • MPN:999-9950-001B

You need to login to view the price.

View full details

Vaddio RoboSHOT 20 UHD PTZ Camera. Megapixel (approx.): 9.03 MP, Sensor type: CMOS. HD type: 4K Ultra HD, Maximum video resolution: 3840 x 2160 pixels, Supported video modes: 1080p, 2160p, Maximum frame rate: 59.94 fps. Optical zoom: 12x, Digital zoom: 1.67x. Product colour: Black

Professional A/V presentation and conferencing UHD (ultra high definition) camera with pristine image quality. Simultaneous 3 Gb/s HD-SDI, HDMI, HDBaseT, and IP (H.264) streaming. Recommended for large meeting rooms, lecture halls, and houses of worship.

Ultra HD (4K) PTZ camera with pristine image quality and outstanding low-light performance. Enterprise-class features include administrative control and remote operation via web interface and IP streaming. Designed for use in medium to large spaces this powerful UHD camera is perfect for higher education classrooms, corporate broadcasting and houses of worship.

Total zoom range of 20x: 12x optical zoom lens with seamless transition to 1.67x digital zoom. 1/2.3-type, high-speed, low noise, back-illuminated CMOS sensor with 9.03 total megapixels yields native UHD 2160p/30 (3840 x 2160) video images without scaling.

With a 74-degree wide horizontal field of view and built in CCU with browser configuration, the RoboSHOT 20 UHD provides great flexibility in a variety of applications including video production, live events, lecture capture, and conferencing.

This Package Includes:
- RoboSHOT 20 UHD PTZ camera (in silver/black, black or white)
- Quick-Start Guide
- 12V power supply with AC cord set(s)
- Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
- Vaddio IR Remote Commander
- EZCamera RS-232 Control Adapter

3 Years

Camera
Megapixel (approx.)
9.03 MP
Camera type
Single camera
Sensor type
CMOS
Optical sensor size
25.4 / 2.3 mm (1 / 2.3")
Effective sensor resolution
8.93 MP
Zoom capability
Yes
Optical zoom
12x
Digital zoom
1.67x
Combined zoom
20x
Field of view (tele)
4.8°
Field of view (wide)
74°
Recommended illumination range
3 - 100 lx
Signal-to-Noise Ratio (SNR)
50 dB
Aperture number of steps
16
White balance
ATW, Auto, Indoor, Manual, One push, Outdoor
Focus adjustment
Auto/Manual
Back Light Compensation (BLC)
Yes
Gain control type
Auto/Manual
Aspect ratio
3:2, 4:3, 16:9
Maximum working distance (tele)
150 cm
Minimum working distance (wide)
1 cm
Video
Maximum video resolution
3840 x 2160 pixels
Maximum frame rate
59.94 fps
HD type
4K Ultra HD
Supported video modes
1080p, 2160p
Video formats supported
H.264
Design
Product colour
Black
Tilt angle range
-30 - 90°
Pan range
-160 - 160°
Web-based management
Yes
Tilt speed (min)
0.35 °/sec
Tilt speed (max)
120 °/sec
Pan speed (min)
0.35 °/sec
Pan speed (max)
120 °/sec

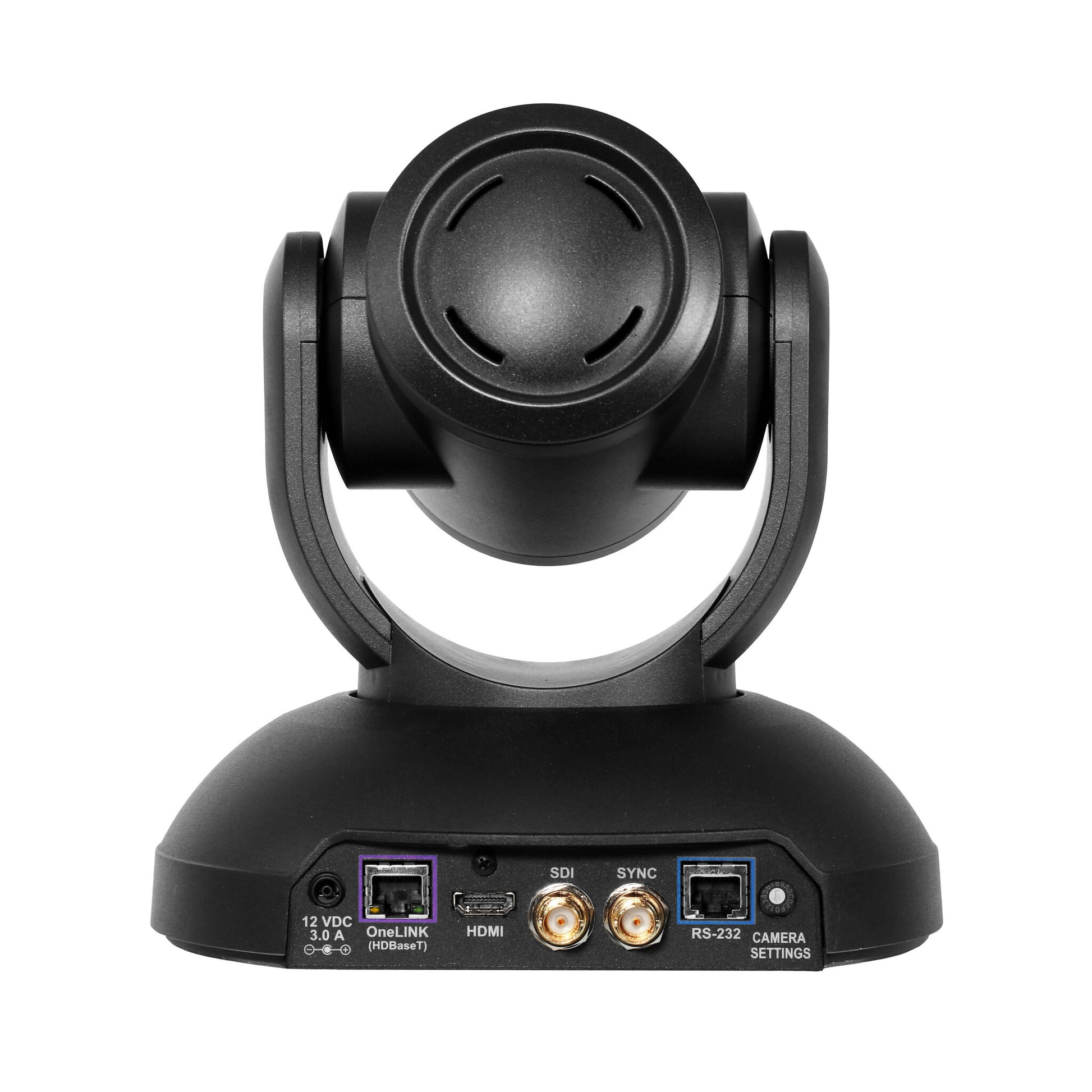

Ports & interfaces
HDMI ports quantity
1
RS-232 ports
1
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
HD-SDI output
Yes
Power
Power source type
DC, PoE
DC input voltage
12 V
Input current
3 A
Operational conditions
Operating temperature (T-T)
-5 - 60 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
20 - 95%
Network
Streaming capability
Yes
Supported network protocols
Telnet
Packaging content
Power supply included
Yes
Remote control included
Yes
Cables included
AC
Control adapter
Yes
Mounting kit
Yes
Quick start guide
Yes
Technical details
Compliance certificates
CE
Sustainability compliance
Yes
Audio
Noise reduction
Yes
Performance
Remote control function
Yes
Remote control type
IR
Certification
FCC, cULus, TAA
Weight & dimensions
Width
203 mm
Depth
196 mm
Height
200 mm
Weight
2.7 kg
