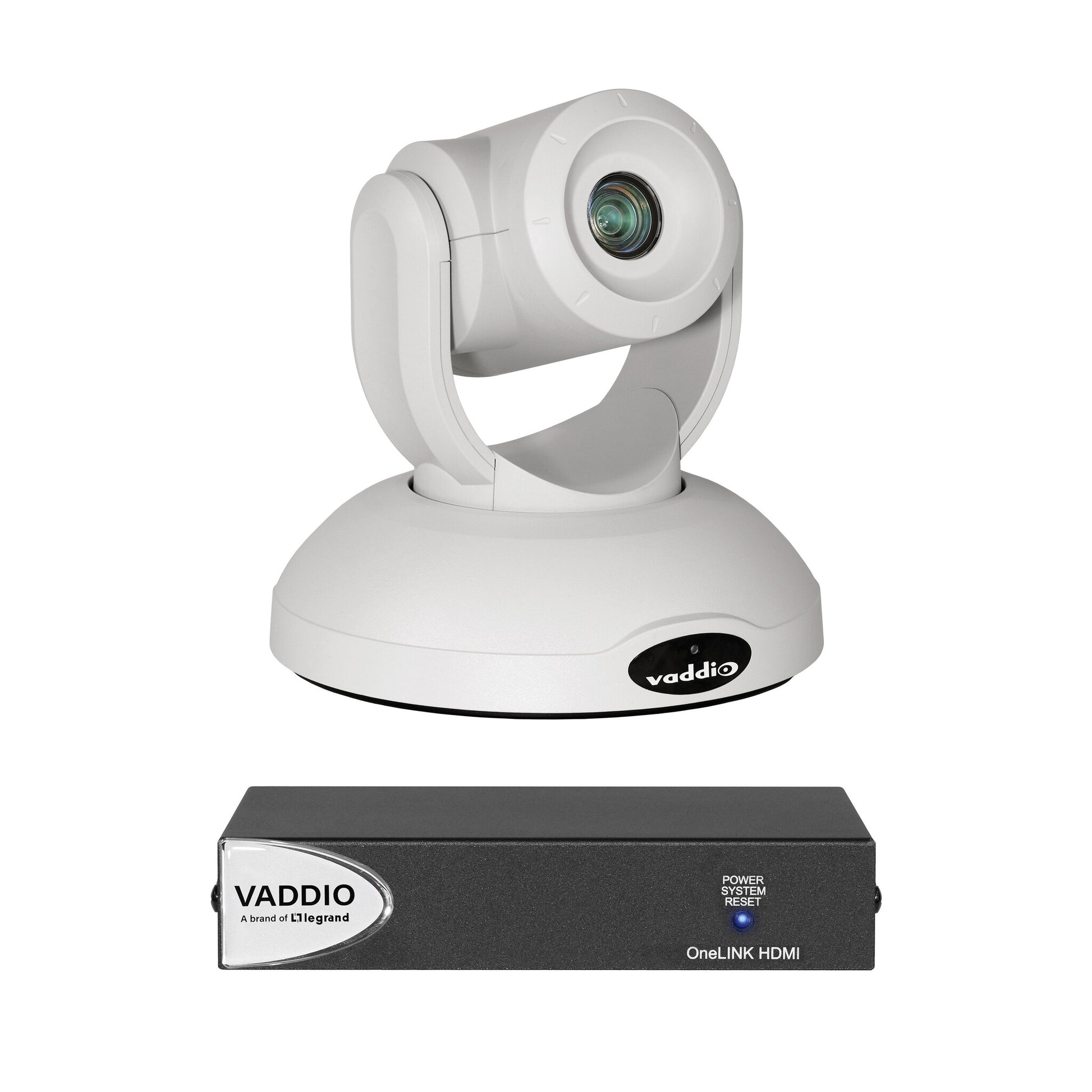

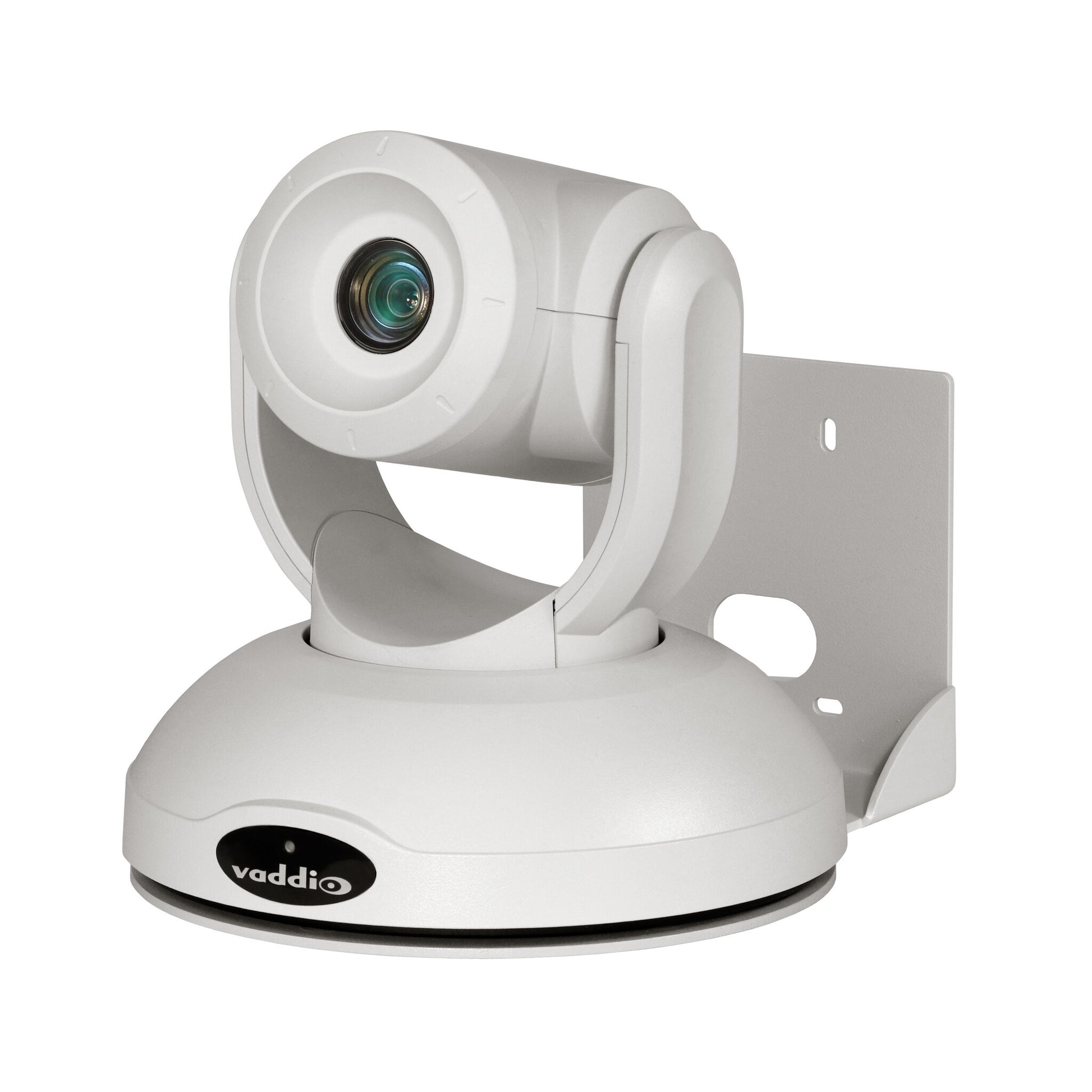

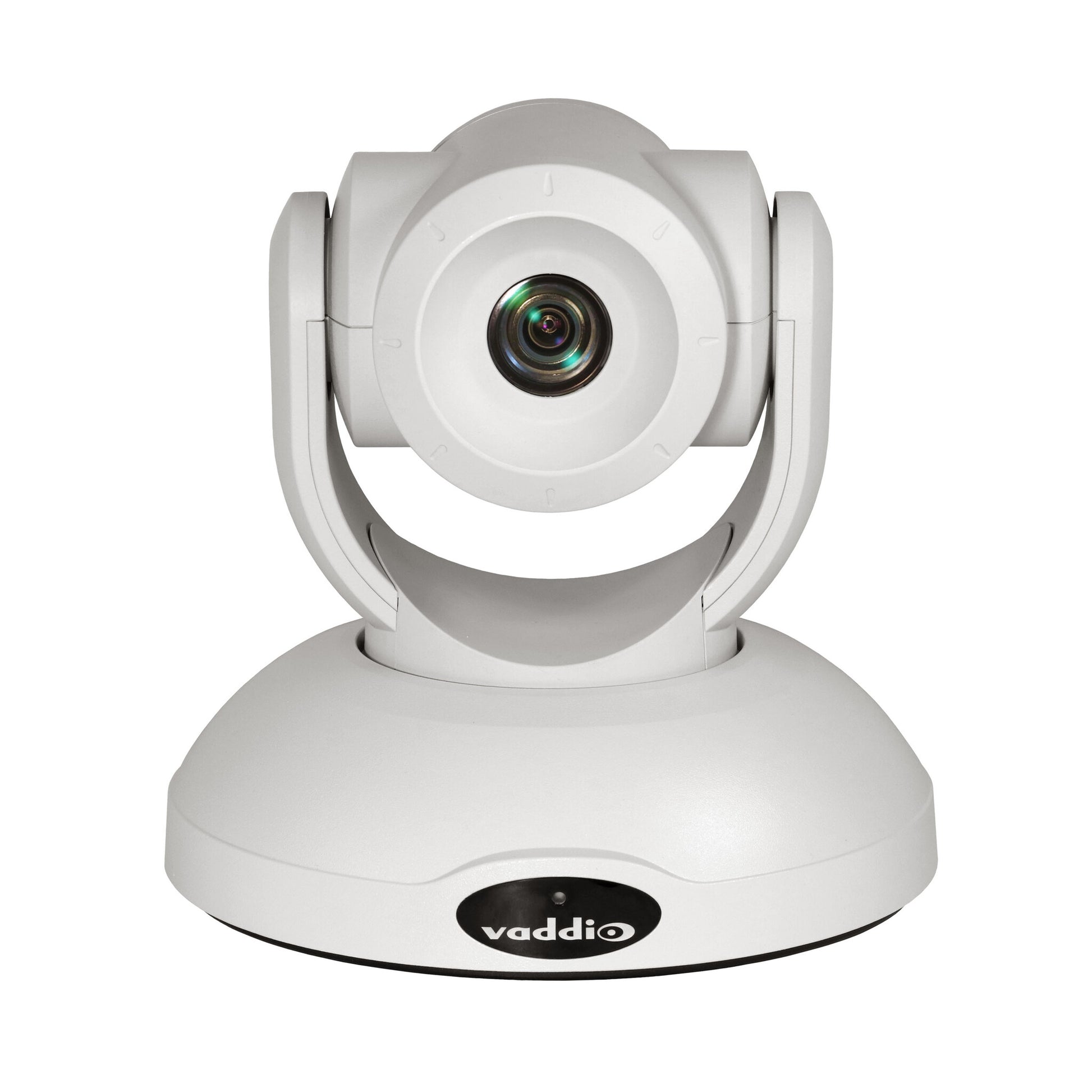

Vaddio RoboSHOT 20 UHD OneLINK HDMI PTZ Camera System

Vaddio RoboSHOT 20 UHD OneLINK HDMI PTZ Camera System

PTZ, 1/2.3 Exmor R CMOS, 20X, 9.03 MP, 3.0 lx, BNC, HDMI, RJ-45, RS-232 API, HD-SDI, 12 VDC, LTPoE++, 2.7 kg, White, OneLINK HDMI, Europe/UK

  • Signal-to-Noise Ratio (SNR): 50 dB
  • 4K Ultra HD 30 fps
  • DC-in jack Ethernet LAN
  • 9.03 MP CMOS 1/2.3"
  • White
  • SKU:0840077503833
  • GTIN/EAN:0840077503833
  • MPN:999-9950-101W

You need to login to view the price.

View full details

Vaddio RoboSHOT 20 UHD OneLINK HDMI PTZ Camera System. Sensor type: CMOS. HD type: 4K Ultra HD, Supported video modes: 720p, 1080i, 1080p, 2160p, Maximum frame rate: 30 fps. Ethernet LAN. Product colour: White

Combines a powerful Ultra HD PTZ camera with Vaddio's robust OneLINK HDMI for clean camera extension.

The RoboSHOT 20 UHD has pristine image quality and outstanding low-light performance. Enterprise-class features include administrative control and remote operation via web interface and IP streaming. Designed for use in medium to large spaces for applications such as higher education, corporate broadcast and houses of worship.

Total zoom range of 20x: 12x optical zoom lens with seamless transition to 1.67x digital zoom. 1/2.3-type, high-speed, low noise, back-illuminated CMOS sensor with 9.03 total megapixels yields native UHD 2160p/30 (3840 x 2160) video images without scaling.

With a 74-degree wide horizontal field of view and built in CCU with browser configuration, the RoboSHOT 20 UHD provides great flexibility in a variety of applications including video production, live events, lecture capture, and conferencing.

Performance
Product colour
White
Signal-to-Noise Ratio (SNR)
50 dB
Pan range
-160 - 160°
Pan speed range
0.35 - 120 °/sec
Tilt speed range
0.35 - 120 °/sec
Tilt angle range
-30 - 90°
PTZ control
Yes
Video
HD type
4K Ultra HD
Supported video modes
720p, 1080i, 1080p, 2160p
Supported graphics resolutions
3840 x 2160
Maximum frame rate
30 fps
Video formats supported
H.264
Audio
Noise reduction
Yes

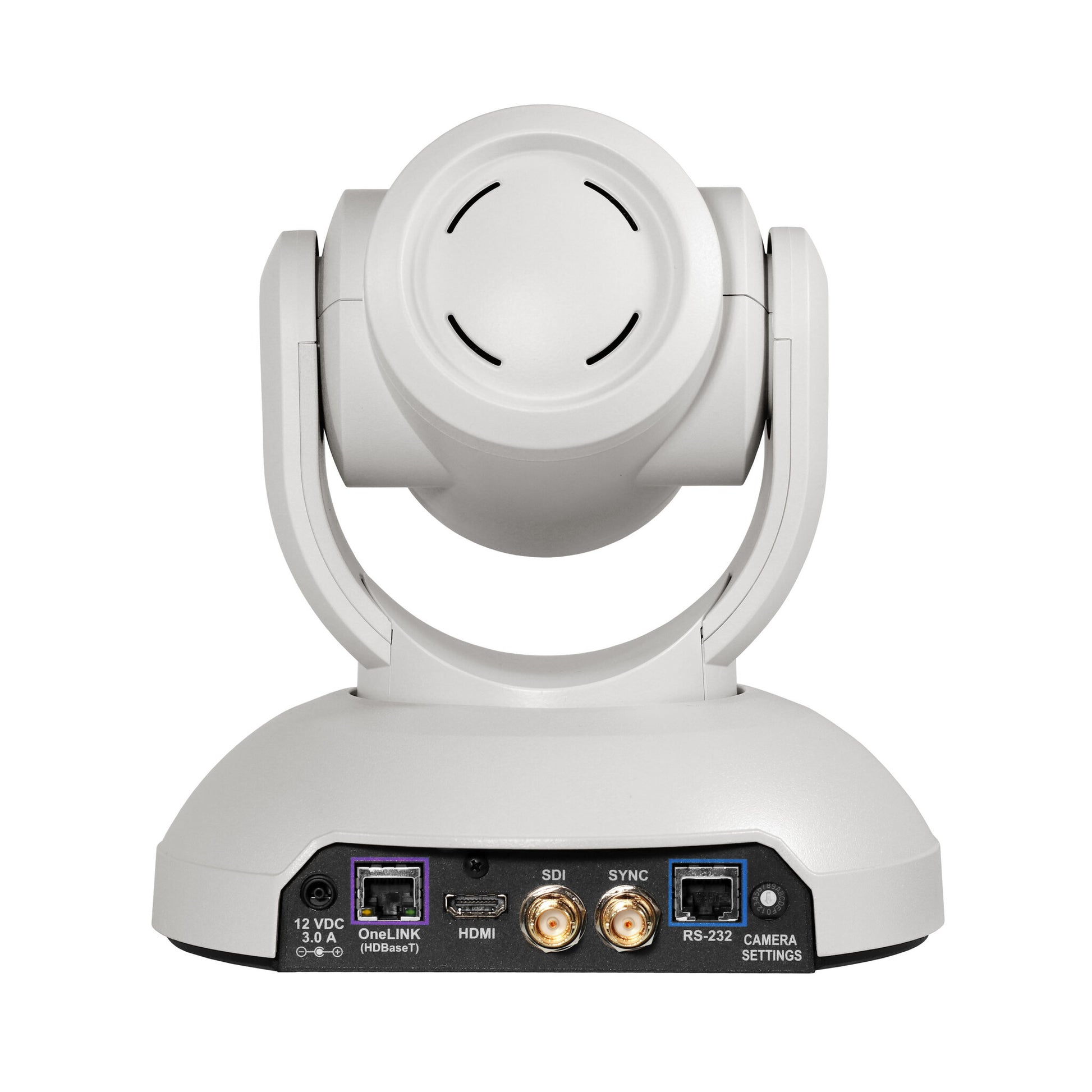

Ports & interfaces
HDMI ports quantity
1
Power over Ethernet (PoE) ports quantity
1
Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes

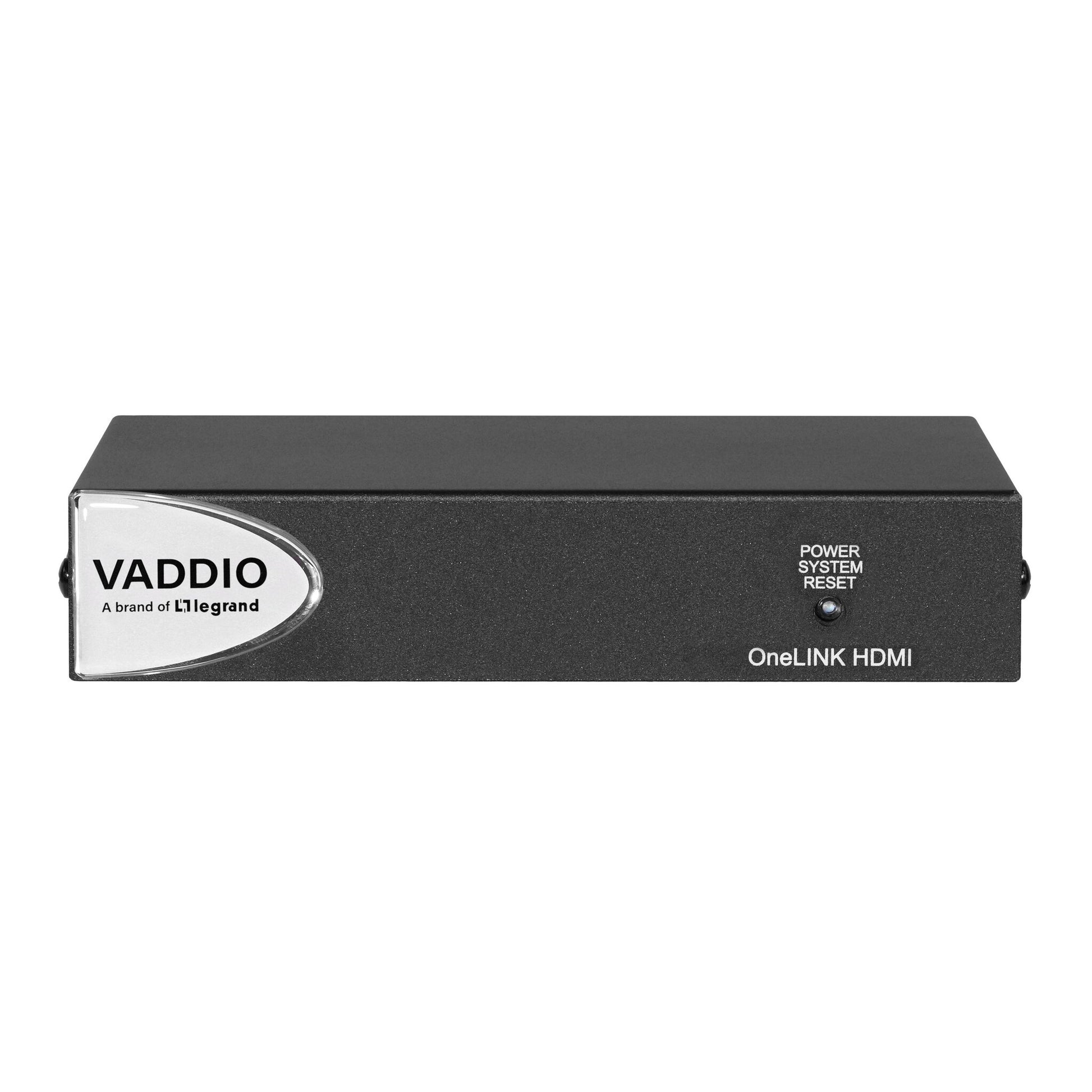

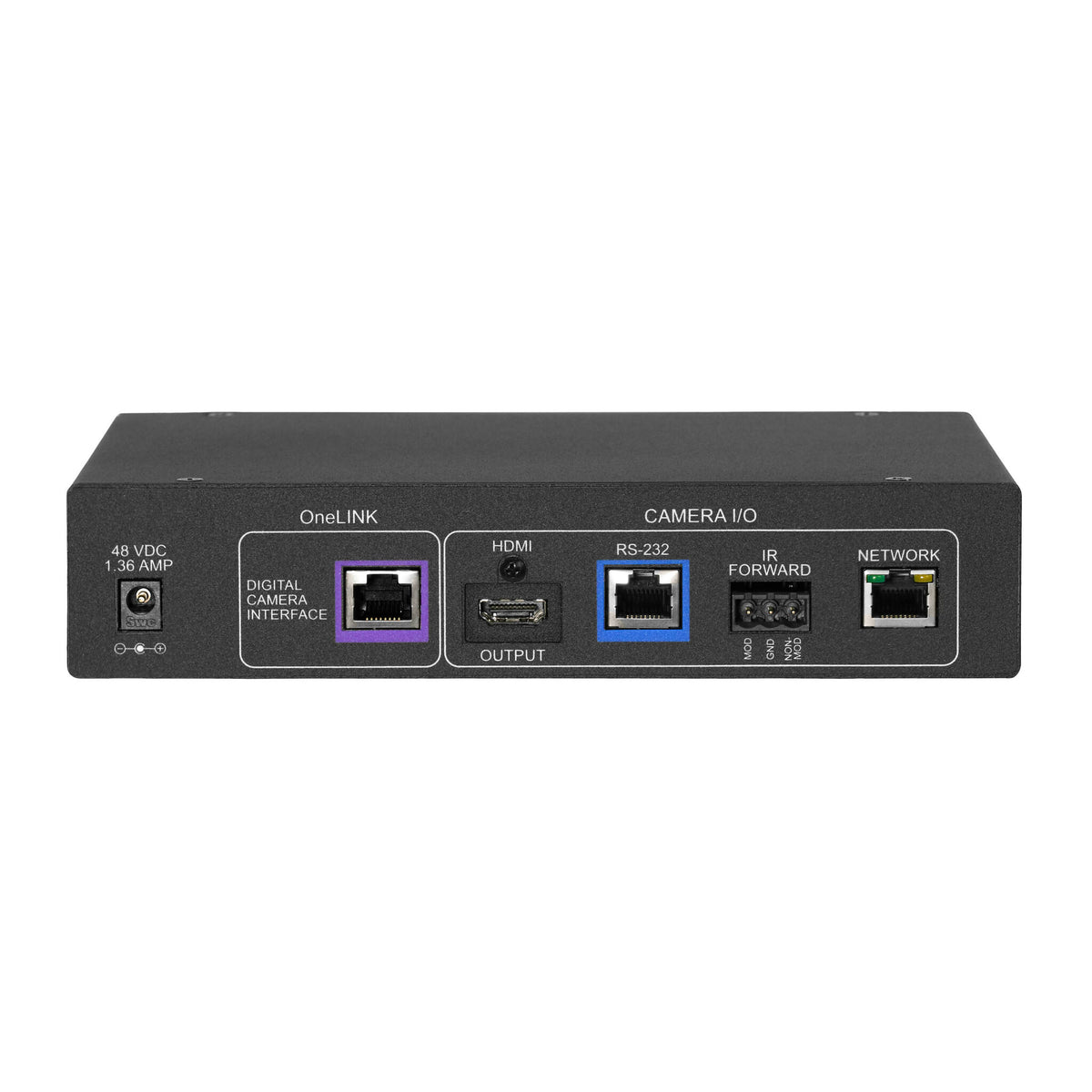

Interface module
Interface module HDMI ports quantity
1
Interface module HDMI output ports quantity
1
Interface module RS-232 ports quantity
1
Interface module RJ-45 ports quantity
3
Interface module Ethernet LAN (RJ-45) ports
1
Interface module IR output port
Yes
Interface module DC input port
Yes
Network
Ethernet LAN
Yes
Web-based management
Yes
Camera
Megapixel (approx.)
9.03 MP
Effective sensor resolution
8.93 MP
Sensor type
CMOS
Image sensor size
1/2.3"
Optical zoom (normal mode)
12x
Horizontal field of view
72°
Focus adjustment
Auto/Manual
Minimum illumination
3 lx
Aperture number of steps
16
White balance
ATW, Auto, Indoor, Manual, One push, Outdoor
Sync system
Internal
Back Light Compensation (BLC)
Yes
Gain control type
Auto/Manual
Display
Built-in display
Yes
Logistics data
Harmonized System (HS) code
85176990
Operational conditions
Storage relative humidity (H-H)
20 - 95%
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Operating temperature (T-T)
-5 - 60 °C
Power
Current
3 A
DC input voltage
12 V
Weight & dimensions
Interface module dimensions (W x D x H)
212.7 x 152.4 x 43.7 mm
Camera dimensions (WxDxH)
203 x 196 x 200 mm
Weight
2.7 kg
