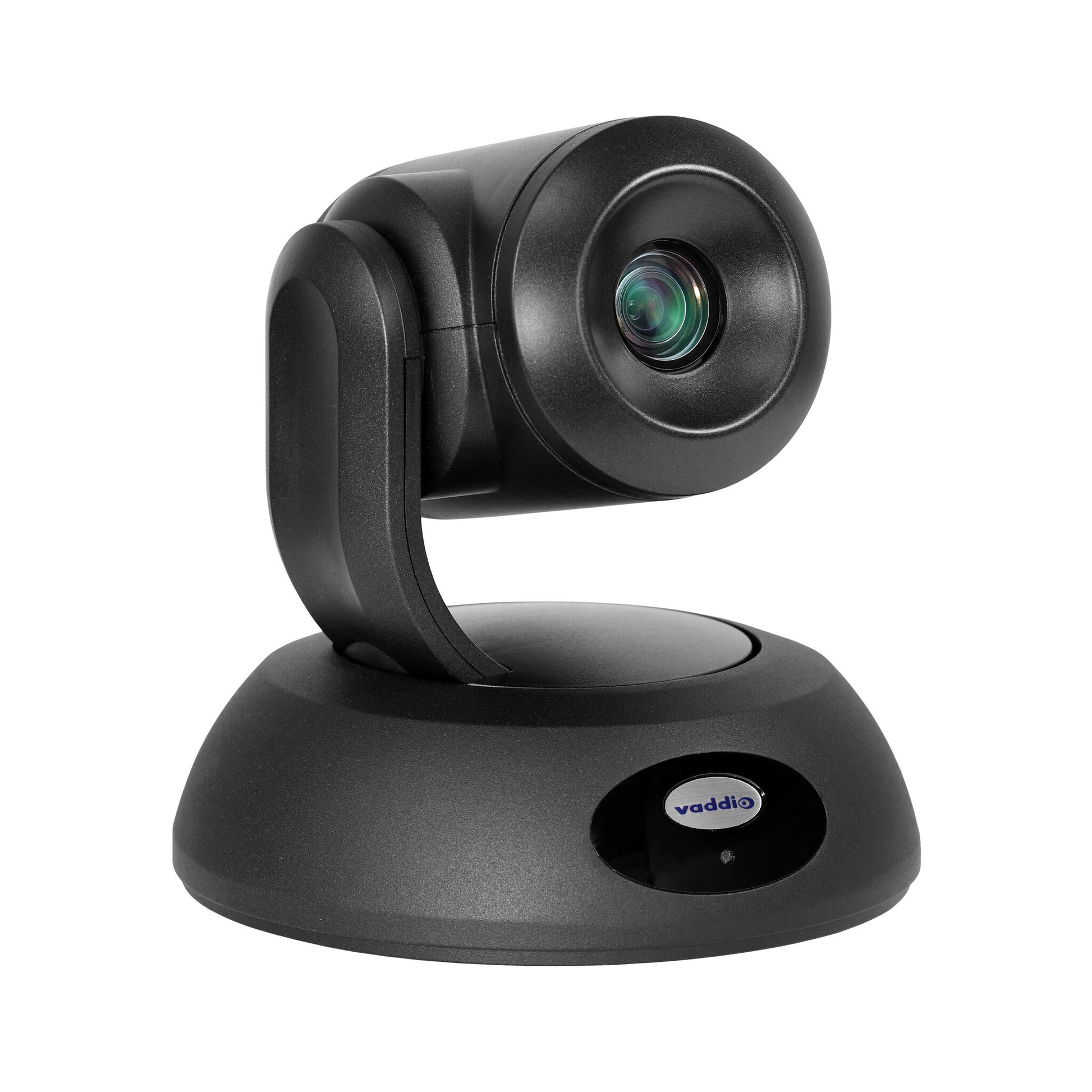

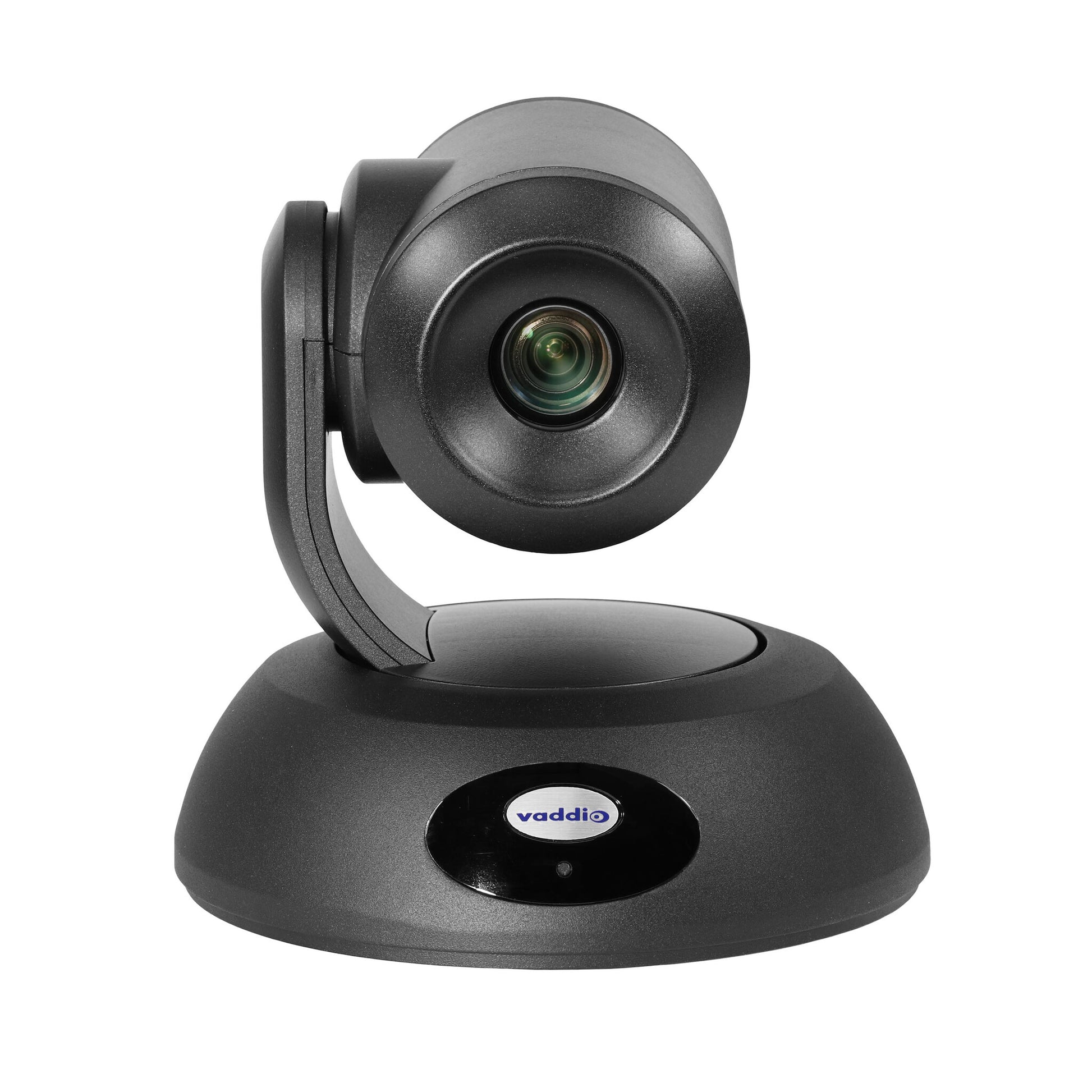

Vaddio RoboSHOT 30E USB PTZ Camera

Vaddio RoboSHOT 30E USB PTZ Camera

8.57 MP, 30x, 1080p, 60, HDMI, RS-232, IP-Streaming, USB 3.0, PoE+, 179.1 x 171.5 x 176.3 mm, 2.2 kg

  • 30x zoom
  • 1/2.5-type Exmor R CMOS sensor
  • 70.2° horizontal field of view
  • Simultaneous USB 3.0, HDMI and IP H.264 streaming
  • Remote IP Management
  • SKU:0840077503260
  • GTIN/EAN:0840077503260
  • MPN:999-99230-001

You need to login to view the price.

View full details

Vaddio RoboSHOT 30E USB PTZ Camera. Megapixel (approx.): 8.57 MP, Sensor type: CMOS. HD type: Full HD, Maximum video resolution: 1920 x 1080 pixels, Supported video modes: 1080p, Maximum frame rate: 60 fps. Mounting type: Stand, Product colour: Black

Professional conferencing camera. Simultaneous HDMI, IP (H.264) streaming, uncompressed USB 3.0 streaming. Recommended for conference rooms, training rooms, and classrooms that require a wide angle of view.

Introducing the RoboSHOT Elite Series – Vaddio’s next generation of professional cameras. Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.

RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.

Enjoy IP streaming (RTSP or RTMP format with H.264 compression) to share live events like church services, lectures, or meetings over popular applications like YouTube, Livestream and Facebook.

A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. To watch the IP stream, simply enter the camera’s streaming URL into any standards based (H.264, RTSP format) media player. Perfect for remote management, network operating centers and overall IT control.

The RoboSHOT 30E cameras have a 20x optical zoom and have an additional 10x of IntelliZoomTM Image Processing. IntelliZoom image processing technology lets you zoom greater distances without compromising any resolution quality of the image. Most digital zooms use electronic cropping to get closer to the subject, resulting in fuzzy images. The RoboSHOT 30E camera’s powerful processor compares patterns found in adjacent pixels and creates new pixels to match selected patterns, resulting in more realistic, higher-quality images.

The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio’s industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.

The RoboSHOT 30E cameras are ideal for larger spaces such as large meeting rooms, lecture halls, conference centers, and houses of worship.

Video outputs include simultaneous USB 3.0, HDMI and IP (H.264) streaming. Connect directly to a PC or Mac and use any software application on any operating system that supports USB 3.0 devices.

This Package Includes:
- RoboSHOT 30E USB camera
- Quick-Start Guide
- PoE+ Midspan Power Injector

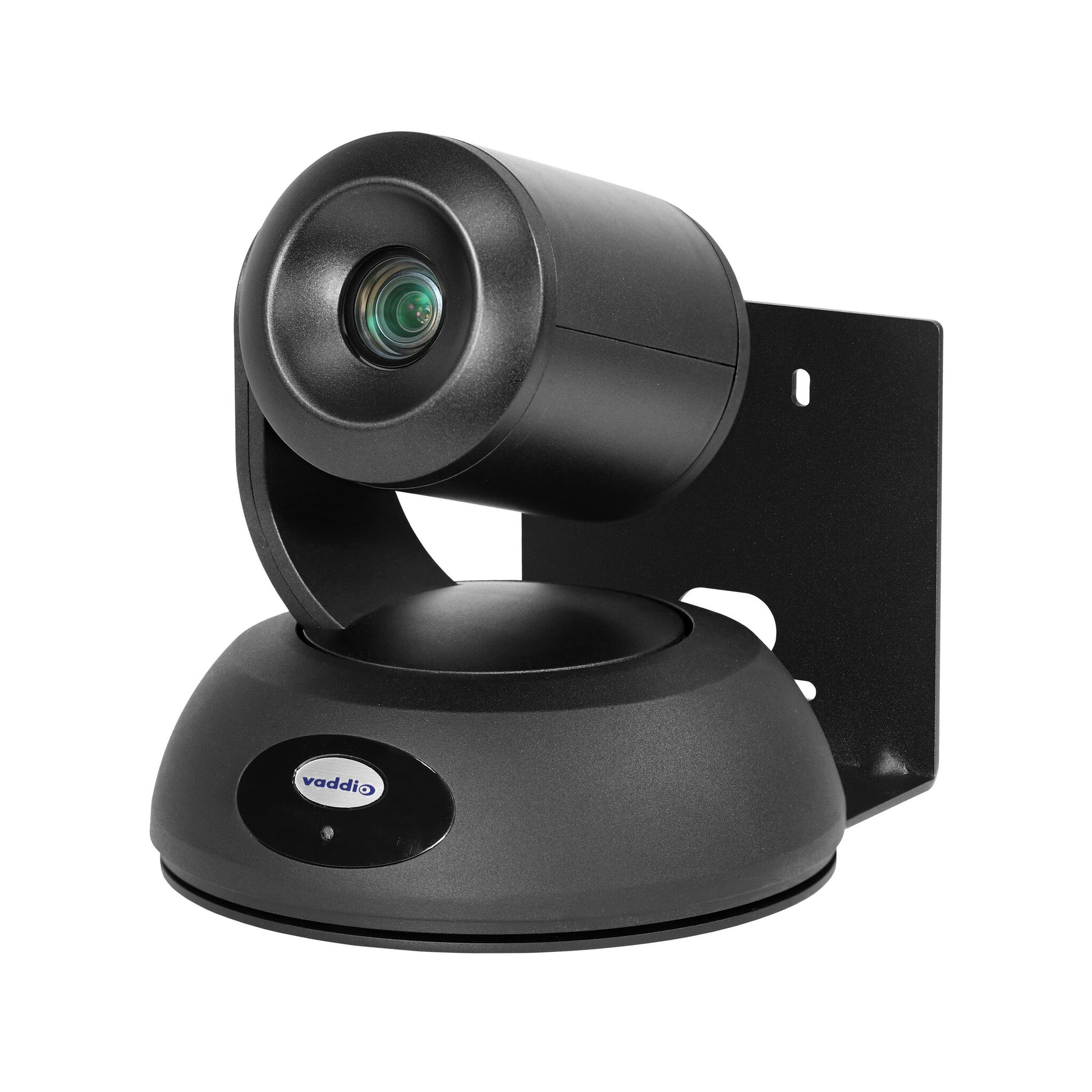

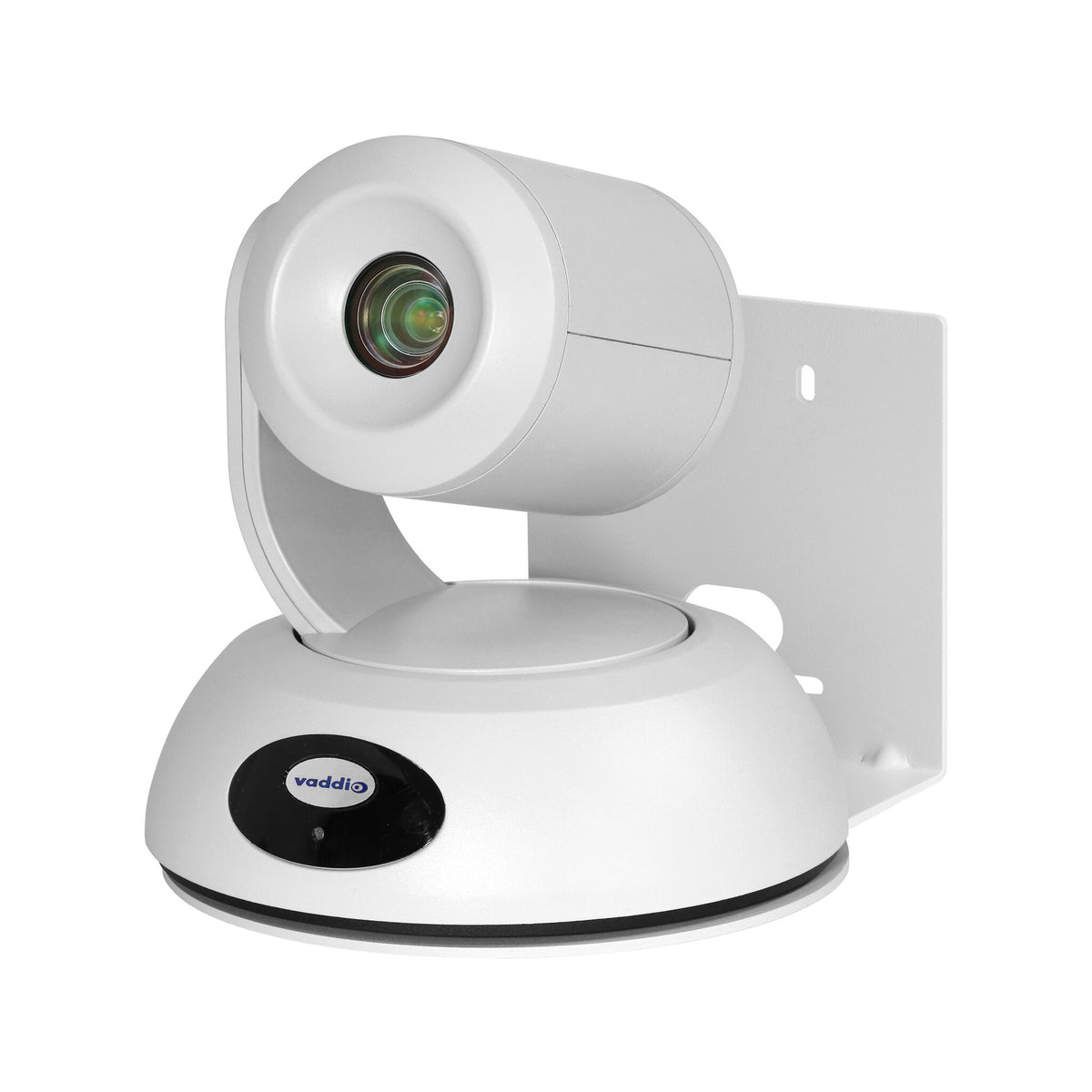

- Thin Profile Wall Mount (black) with mounting hardware and installation manual
- Vaddio IR Remote Commander
- 6' (1.8m) USB 3.0 cable, type A to B
- EZCamera RS-232 Control Adapter

2 years

Camera
Megapixel (approx.)
8.57 MP
Sensor type
CMOS
Optical sensor size
25.4 / 2.5 mm (1 / 2.5")
Effective sensor resolution
8.51 MP
Combined zoom
30x
Horizontal field of view (tele)
4.1°
Horizontal field of view (wide)
70.2°
Minimum illumination
1 lx
White balance
Auto, Manual, One push
Focus adjustment
Auto/Manual
Number of camera presets
16
Gain control type
Auto/Manual
PTZ control
Yes
Video
Maximum video resolution
1920 x 1080 pixels
Maximum frame rate
60 fps
HD type
Full HD
Supported video modes
1080p
Video formats supported
H.264
Design
Product colour
Black
Mounting type
Stand
Tilt angle range
-30 - 90°
Pan range
-160 - 160°
Web-based management
Yes
Tilt speed (min)
0.35 °/sec
Tilt speed (max)
120 °/sec
Pan speed (min)
0.35 °/sec
Pan speed (max)
120 °/sec

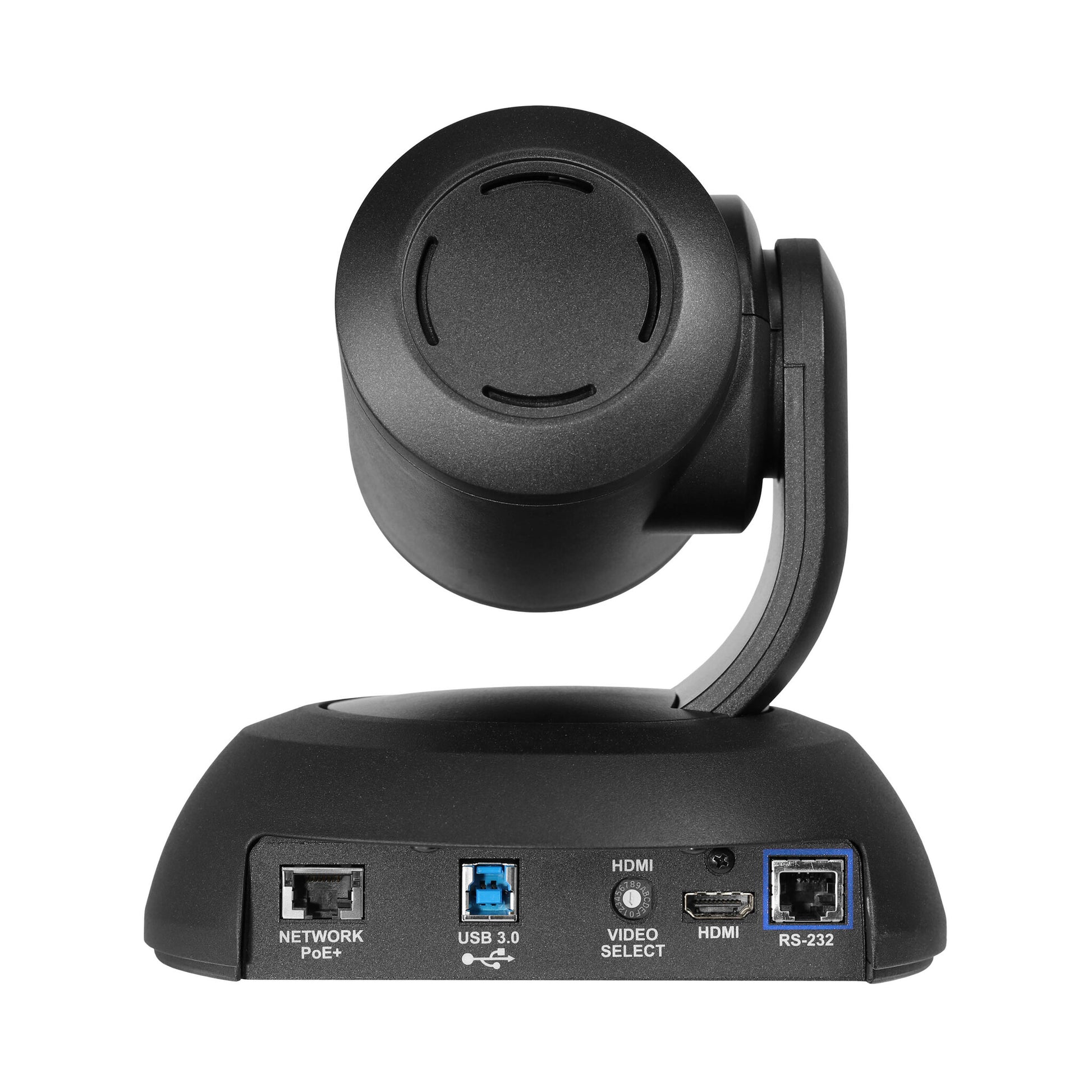

Ports & interfaces
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
1
RS-232 ports
1
RS-232 input ports
1
Ethernet LAN (RJ-45) ports
1
Power
Power source type
PoE
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Network
Network streaming
Yes
Packaging content
Cables included
USB
Mounting kit
Yes
Quick start guide
Yes
Technical details
Harmonized System (HS) code
85258900
Weight & dimensions
Width
179.1 mm
Depth
171.5 mm
Height
176.3 mm
Weight
2.2 kg
