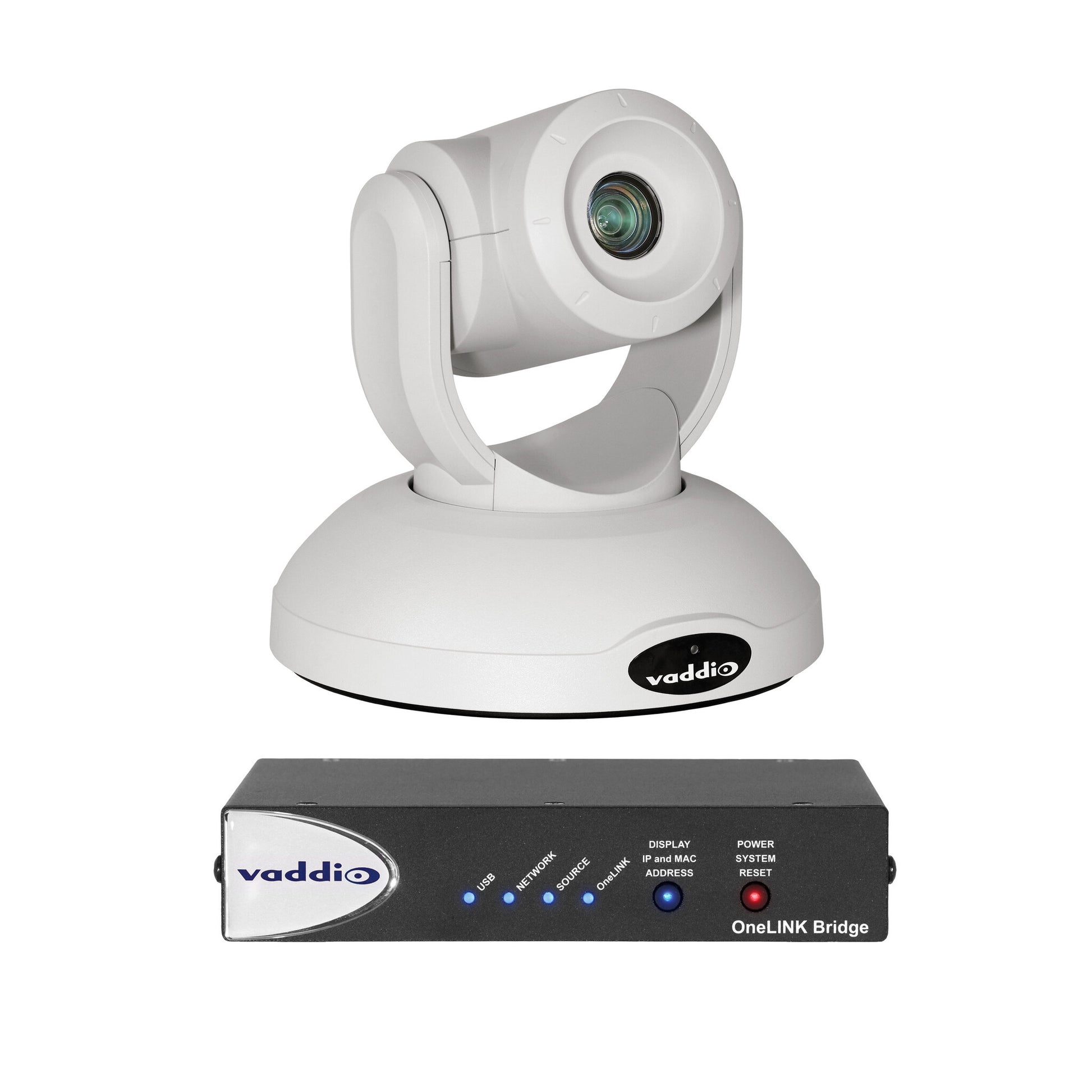

Vaddio RoboSHOT 40 UHD OneLINK Bridge System

Vaddio RoboSHOT 40 UHD OneLINK Bridge System

RoboSHOT 40 UHD camera + OneLINK Bridge, 2160p, 30 fps, PTZ, PoE++, white

  • Back-illuminated 8.51 Megapixel, ultra-high-definition 1/2.5-type CMOS sensor delivers native 2160p/30 (3840 x 2160) video
  • 20x optical zoom with 30x lossless zoom at 3840 x 2160. Achieve 40x zoom at full HD resolution
  • Genlock signal for multi-camera synchronization
  • Simple, clutter-free camera extension with HDBaseT technology
  • Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
  • Bridges audio and video for easy soft-client conferencing
  • Simultaneous HDMI, USB 3.0, IP Streaming, and 3G-SDI outputs
  • Configurable audio matrix with AEC
  • Up to 1080p/60 resolution available over uncompressed USB
  • SKU:0840077506834
  • GTIN/EAN:0840077506834
  • MPN:999-9952-201W

You need to login to view the price.

View full details

Vaddio RoboSHOT 40 UHD OneLINK Bridge System. Megapixel (approx.): 8.5 MP, Sensor type: CMOS. HD type: 4K Ultra HD, Maximum video resolution: 3840 x 2160 pixels, Maximum frame rate: 59.94 fps. Field of view (FOV) angle: 70.2°, Optical zoom: 20x, Digital zoom: 40x. Product colour: White

This system combines the RoboSHOT 40 UHD camera with the OneLINK Bridge to extend power, video and control over a single cable for simple, tidy installation. Production-quality RoboSHOT 40 UHD provides brilliant 4K video footage for broadcasting or live streaming applications.

3 years

Camera
Megapixel (approx.)
8.5 MP
Camera type
Single camera
Sensor type
CMOS
Optical sensor size
25.4 / 2.5 mm (1 / 2.5")
Zoom capability
Yes
Optical zoom
20x
Digital zoom
40x
Focal length range
4.4 mm
Field of view (FOV) angle
70.2°
Minimum illumination
1.6 lx
Signal-to-Noise Ratio (SNR)
50 dB
Aperture number of steps
16
White balance
ATW, Auto, Indoor, Manual, One push
Auto focusing (AF) modes
Auto, Manual, One Push Trigger
Aspect ratio
3:2, 4:3, 16:9
Maximum working distance (tele)
80 cm
Minimum working distance (wide)
8 cm
Video
Maximum video resolution
3840 x 2160 pixels
Maximum frame rate
59.94 fps
HD type
4K Ultra HD
Resolution at capture speed
1280x720@50fps, 1280x720@59.94fps, 1920x1080@25fps, 1920x1080@50fps, 1920x1080@59.94fps, 3840x2160@25fps, 3840x2160@29.97fps
Design
Product colour
White
Tilt speed (min)
0.35 °/sec
Tilt speed (max)
120 °/sec
Pan speed (min)
0.35 °/sec
Pan speed (max)
120 °/sec
Country of origin
United States
Ports & interfaces
HDMI ports quantity
1
RS-232 ports
1
Power
Power source type
PoE
Power over Ethernet (PoE) voltage
12 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Performance
Certification
CE
FCC
HDBaseT
TAA
Weight & dimensions
Width
203 mm
Depth
145 mm
Height
200 mm
Weight
2.7 kg
Packaging data
Package width
380 mm
Package depth
480 mm
Package height
660 mm
Package weight
6.8 kg
