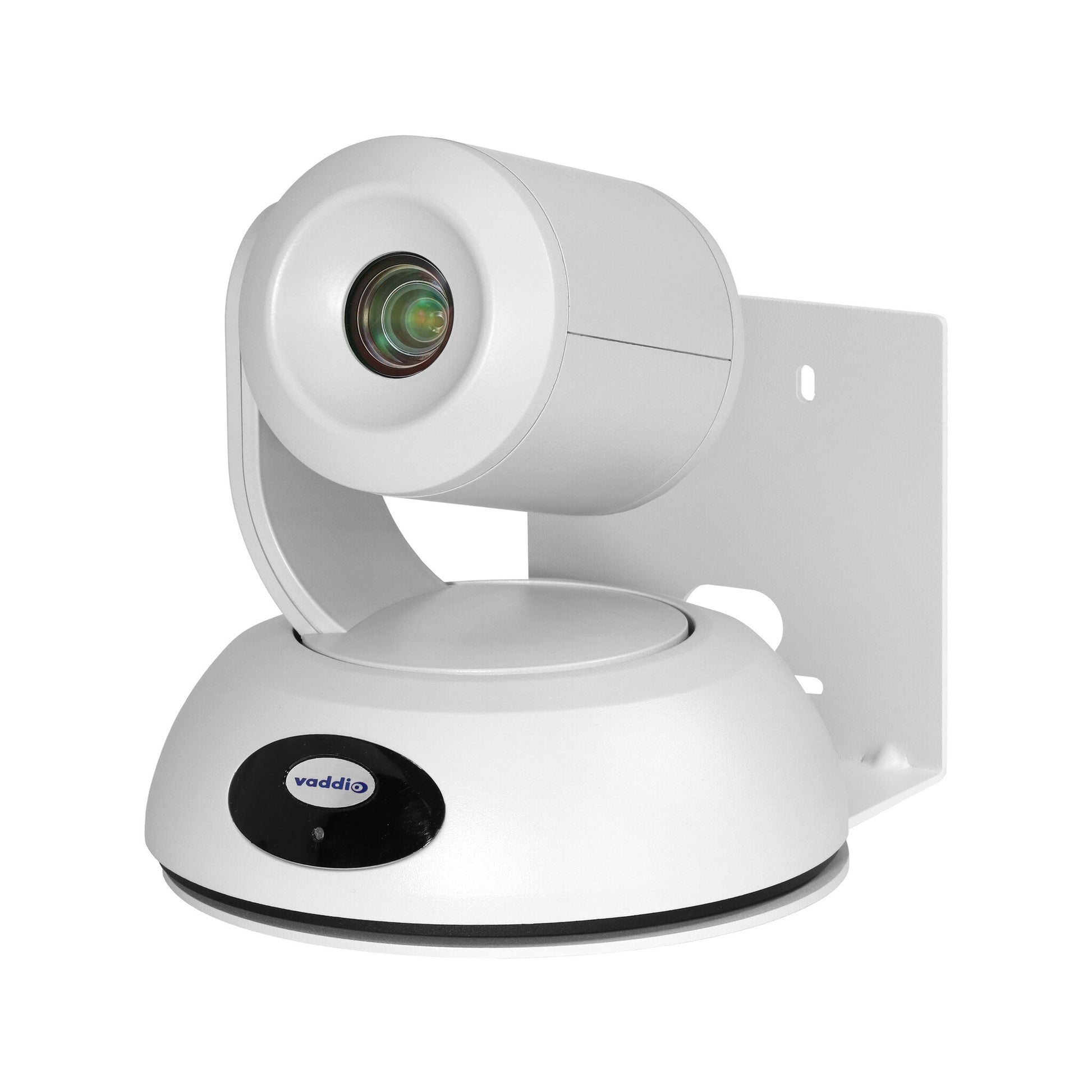

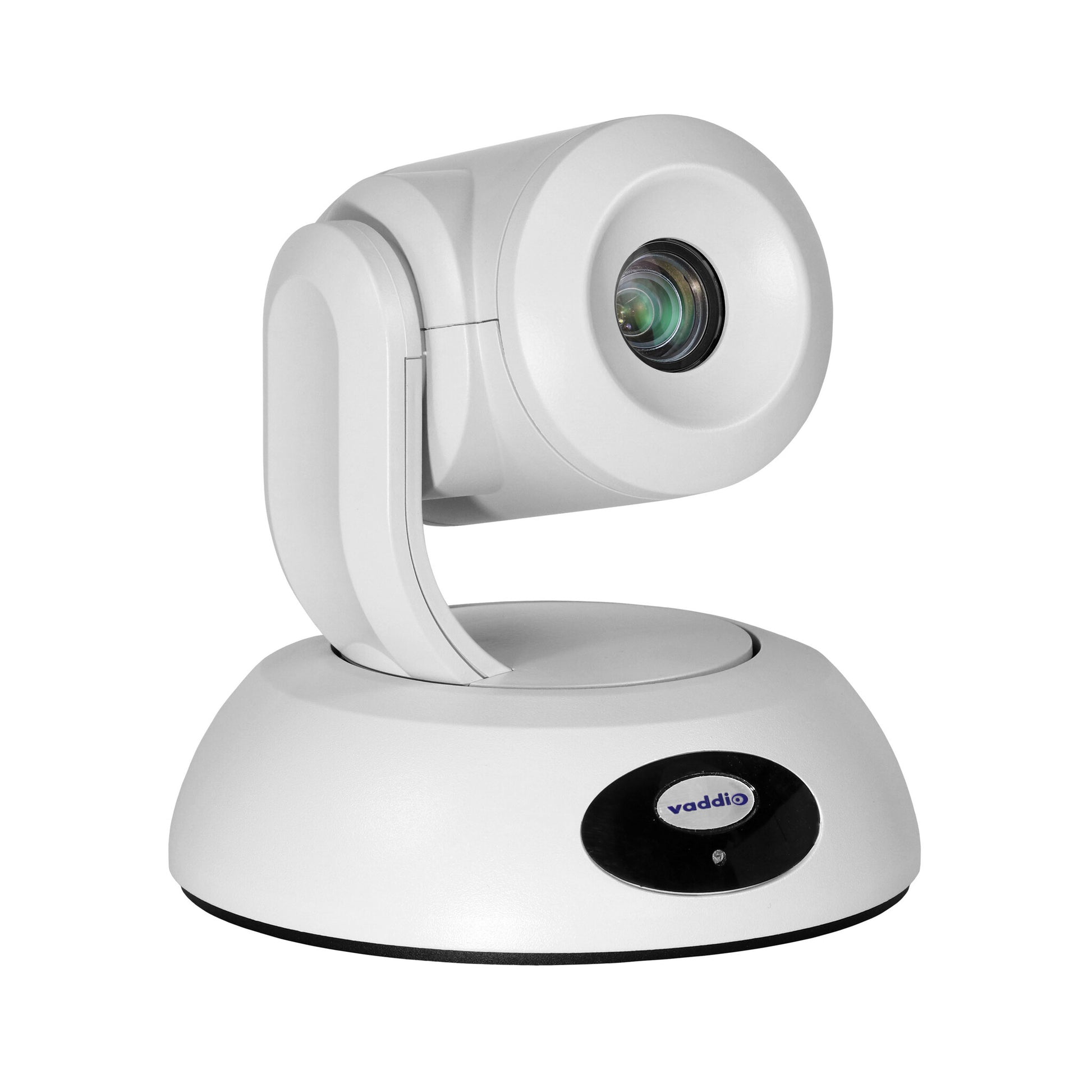

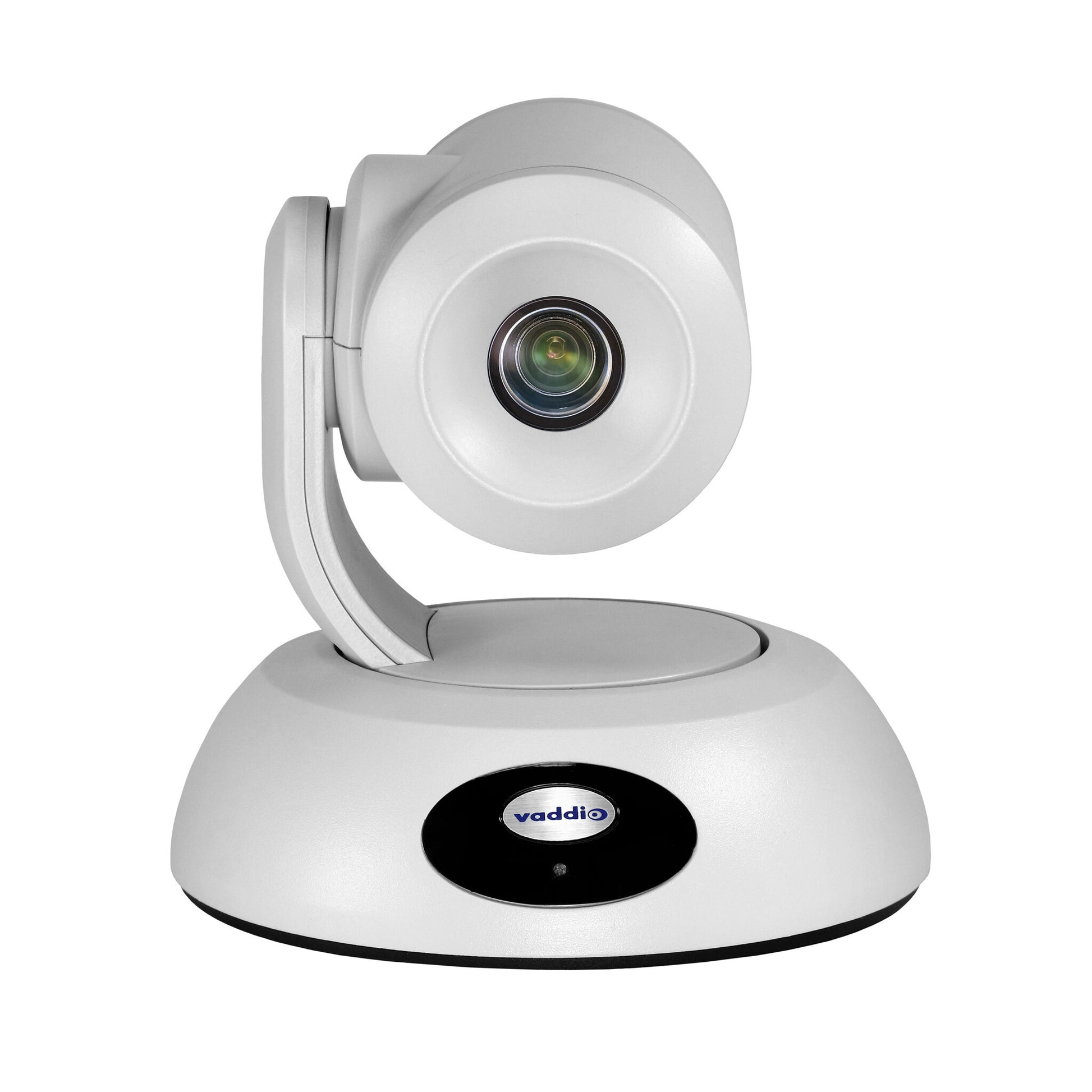

Vaddio RoboSHOT 4K 12E HDBT

Vaddio RoboSHOT 4K 12E HDBT

8.57 MP, 4K UHD, 1/2.5" Exmor R CMOS, 12x optical zoom, PTZ, RJ-45 Fast Ethernet, HDMI, PoE+, 179.1 x 171.5 x 176.3 mm, EU Cord, White

  • 4K30 Video Resolution
  • 12x optical zoom
  • 1/2.5-type Exmor R CMOS sensor
  • Simultaneous HDbaseT and HDMI Outputs
  • Remote IP Management
  • Kensington Lock Capable
  • SKU:0840077508876
  • GTIN/EAN:0840077508876
  • MPN:999-99605-001W

You need to login to view the price.

View full details

Vaddio RoboSHOT 4K 12E HDBT. Megapixel (approx.): 8.57 MP, Sensor type: Exmor CMOS. HD type: 4K Ultra HD, Maximum video resolution: 3840 x 2160 pixels, Supported video modes: 1080p, 1080i, 720p, Maximum frame rate: 59.94 fps. Optical zoom: 12x. Mounting type: Stand/Wall mounting, Product colour: White

RoboSHOT Elite Series cameras are professional A/V presentation cameras. Simultaneous HDBaseT and HDMI Outputs. Recommended for conference rooms, training rooms, and classrooms that require a wide angle of view. Available with OneLINK HDMI and OneLINK Bridge Extension Systems.

Introducing the RoboSHOT Elite Series – Vaddio’s next generation of professional cameras. Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 2160p/30 video, even in dim lighting conditions.

RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.

A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. Perfect for remote management, network operating centers and overall IT control.

The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio’s industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.

The RoboSHOT 12E cameras are recommended for small to medium spaces such as conference rooms, training rooms, and classrooms that require a wide angle of view.

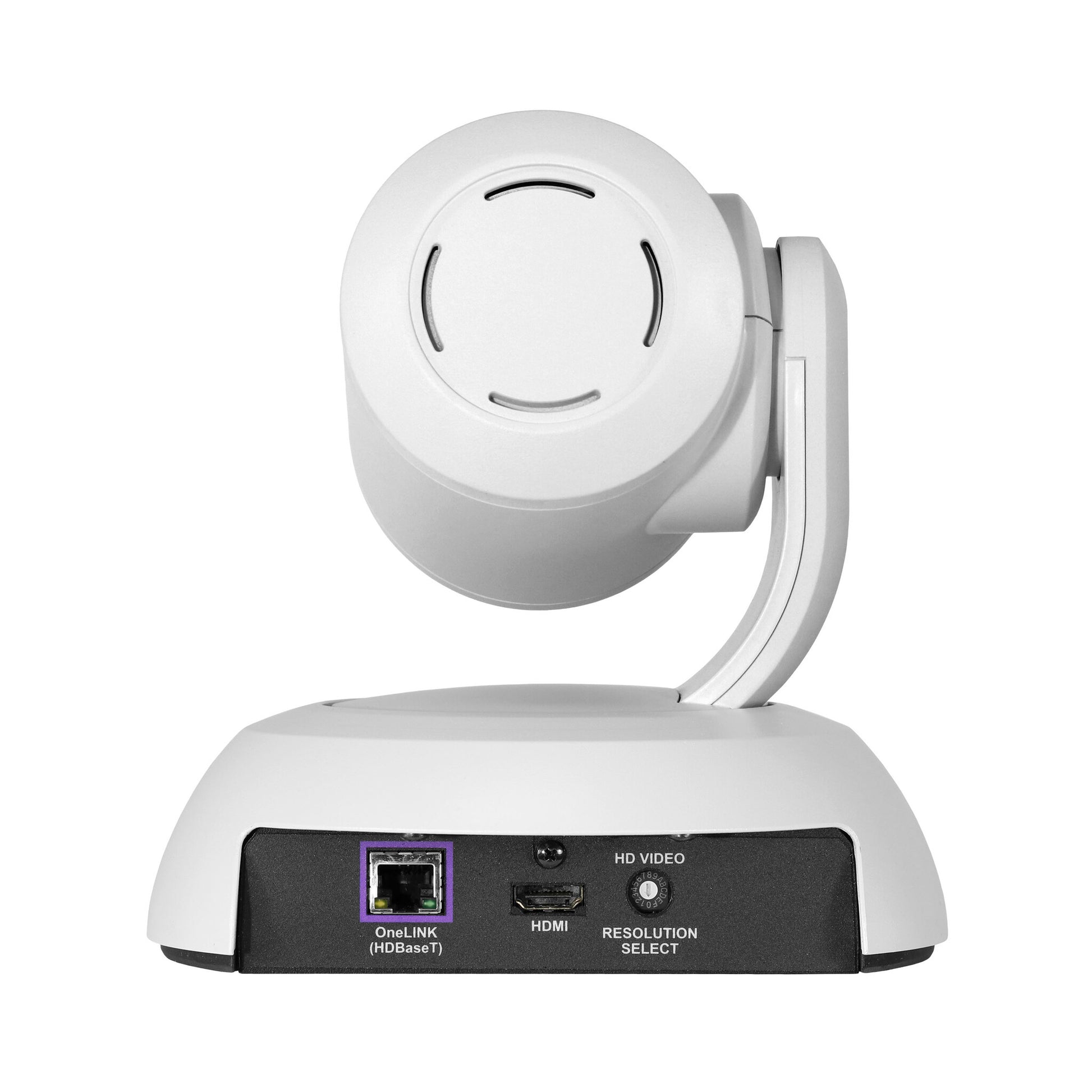

Video outputs include simultaneous HDBaseT and HDMI. Connect directly to HDBaseT-compatible devices or pair with Vaddio OneLINK HDMI or OneLINK Bridge receivers to simplify cabling and extend installation distance.

3 years

Camera
Megapixel (approx.)
8.57 MP
Camera type
Single camera
Sensor type
Exmor CMOS
Optical sensor size
25.4 / 2.5 mm (1 / 2.5")
Effective sensor resolution
8.51 MP
Zoom capability
Yes
Optical zoom
12x
Focal length range
4.4 - 88.4 mm
Horizontal field of view (tele)
6.8°
Horizontal field of view (wide)
70.2°
Minimum illumination
1.6 lx
Signal-to-Noise Ratio (SNR)
50 dB
Flip & mirror
Yes
Aperture number of steps
16
Aperture range (F-F)
2 - 3.8
White balance
Auto, Manual, One push, Indoor, ATW
Focus adjustment
Auto/Manual
Closest focusing distance
0.08 m
Wide Dynamic Range (WDR)
Yes
Number of camera presets
256
Gain control type
Auto/Manual
PTZ control
Yes
Fastest camera shutter speed
1/10000 s
Slowest camera shutter speed
1 s
Video
Maximum video resolution
3840 x 2160 pixels
Maximum frame rate
59.94 fps
HD type
4K Ultra HD
Resolution at capture speed
3840x2160@30fps, 3840x2160@25fps, 1920x1080@25fps, 1920x1080@60fps, 1920x1080@50fps, 1920x1080@29.97fps, 1920x1080@30fps, 1280x720@50fps, 1280x720@59.94fps, 1280x720@60fps
Supported video modes
1080p, 1080i, 720p
Design
Product colour
White
Mounting type
Stand/Wall mounting
Tilt angle range
-30 - 90°
Pan range
-150 - 150°
Web-based management
Yes
Tilt speed (min)
0.35 °/sec
Tilt speed (max)
120 °/sec
Pan speed (min)
0.35 °/sec
Pan speed (max)
120 °/sec
Ports & interfaces
HDMI ports quantity
1
Power over Ethernet plus (PoE+) ports quantity
1
Ethernet LAN (RJ-45) ports
1
Power
Power source type
PoE
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
20 - 80%
Network
Ethernet LAN data rates
10,100 Mbit/s
Packaging content
Packaging content
RoboSHOT 4K 12E HDBT camera (black or white)
Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
Vaddio IR Remote Master
Technical details
Compliance certificates
Trade Agreements Act (TAA), CE, Federal Communications Commission (FCC)
Warranty period
3 year(s)
Audio
Noise reduction
Yes
Performance
Remote control type
IR
Cable lock slot
Yes
Cable lock slot type
Kensington
Weight & dimensions
Width
179.1 mm
Depth
171.5 mm
Height
176.3 mm
Weight
2.2 kg
