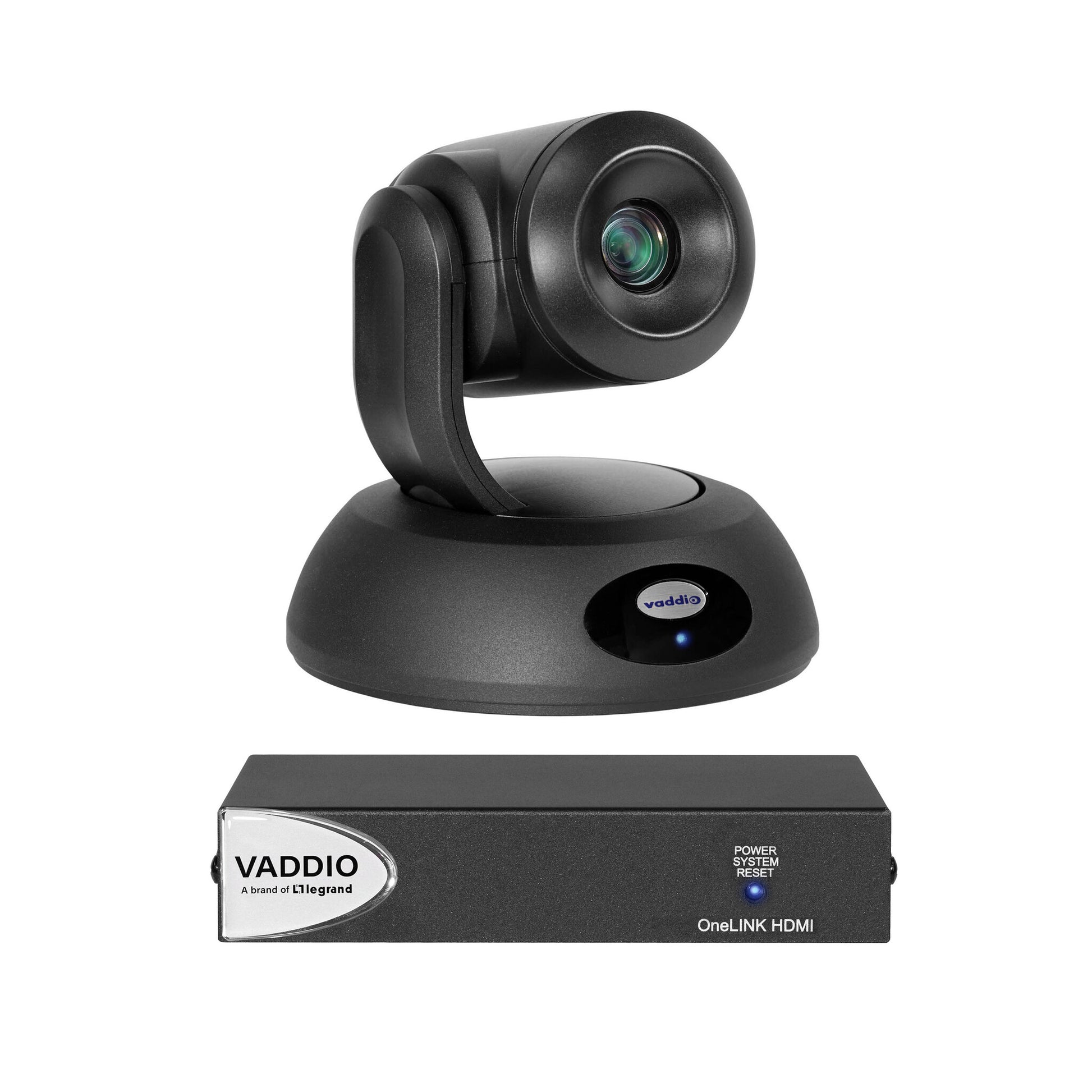

Vaddio RoboSHOT 4K 12E HDBT OneLINK HDMI System

Vaddio RoboSHOT 4K 12E HDBT OneLINK HDMI System

8.57 MP, 4K UHD, 1/2.5" Exmor R CMOS, 12x optical zoom, PTZ, RJ-45 Fast Ethernet, HDMI, PoE+, 179.1 x 171.5 x 176.3 mm, OneLINK HDMI Interface, EU Cord, Black

  • 4K30 Video Resolution
  • 12x Optical Zoom
  • 1/2.5-type Exmor R CMOS sensor
  • 70.2° horizontal field of view
  • Simultaneous HDbaseT and HDMI Outputs
  • Remote IP Management
  • Simple, clutter-free camera extension with HDBaseT technology
  • Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
  • Simultaneous HDMI
  • Kensington Lock Capable
  • SKU:0840077508838
  • GTIN/EAN:0840077508838
  • MPN:999-99605-201B

You need to login to view the price.

View full details

Vaddio RoboSHOT 4K 12E HDBT OneLINK HDMI System. Megapixel (approx.): 8.57 MP, Sensor type: Exmor CMOS. HD type: 4K Ultra HD, Maximum video resolution: 3840 x 2160 pixels, Supported video modes: 1080p, 1080i, 720p, Maximum frame rate: 59.94 fps. Optical zoom: 12x. Mounting type: Stand/Wall mounting, Product colour: Black

The RoboSHOT 4K 12E HDBaseT camera paired with Vaddio's OneLINK HDMI extension system allows for ultimate flexibility when installing your professional PTZ camera. The improved HD quality image is perfect for capturing events in both small and medium sized spaces. The OneLINK HDMI system is our most popular extension system with single cable extension that powers and controls your camera from up to 328 feet away.

Vaddio Deployment Tool

Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà! – remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.

Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 2160p/30 video, even in dim lighting conditions.

RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.

A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. Perfect for remote management, network operating centers and overall IT control.

The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio’s industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.

The RoboSHOT 12E HDBT OneLINK HDMI System is recommended for small to medium spaces such as conference rooms, training rooms, and classrooms that require a wide angle of view.

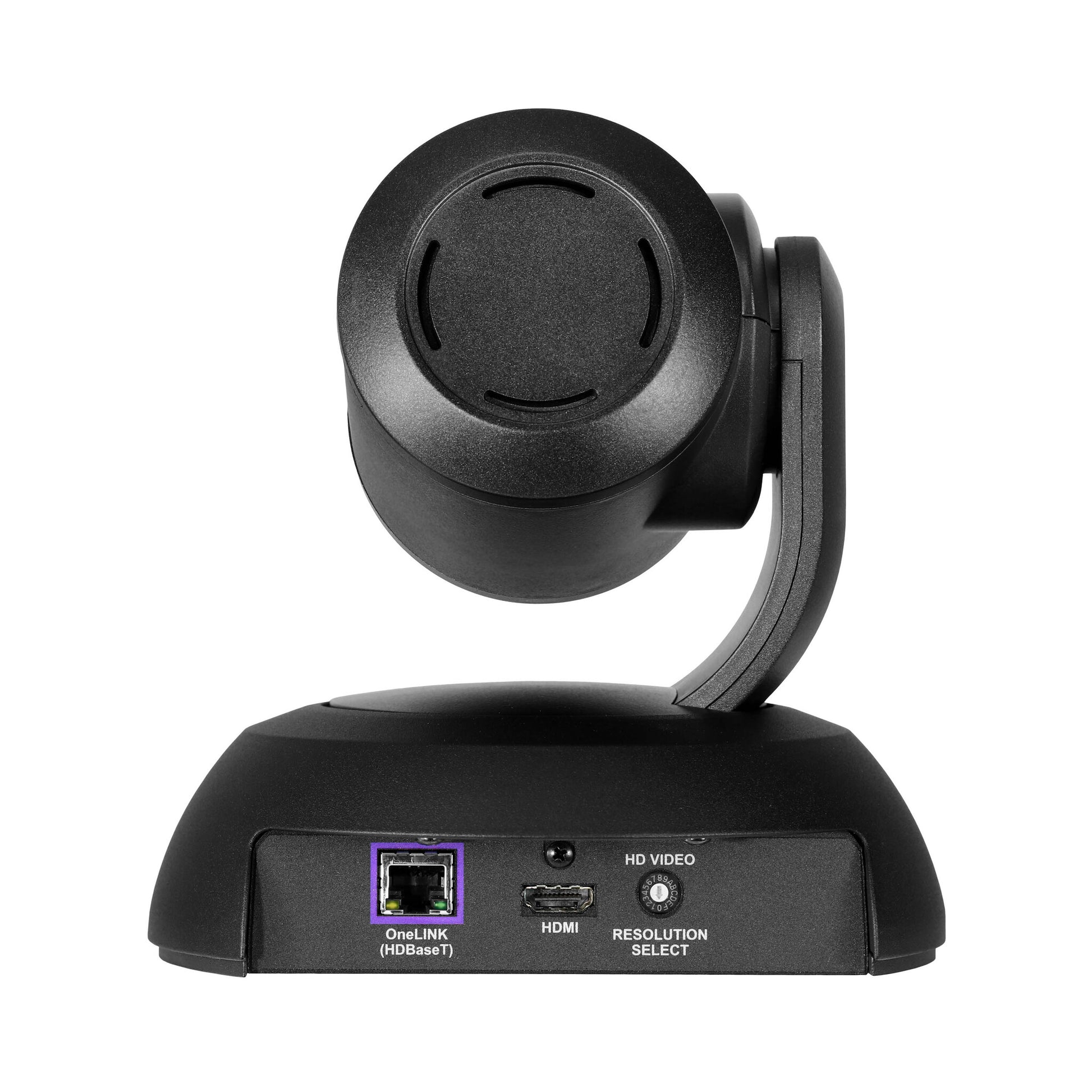

Video outputs include simultaneous HDBaseT and HDMI. The system's OneLINK HDMI Bridge receiver for HDBaseT Cameras extends HD video, 100BaseT Ethernet, RS-232, and power up to 328 ft (100 m) on a single Cat-5e/6

3 years

Camera
Megapixel (approx.)
8.57 MP
Camera type
Single camera
Sensor type
Exmor CMOS
Optical sensor size
25.4 / 2.5 mm (1 / 2.5")
Effective sensor resolution
8.51 MP
Zoom capability
Yes
Optical zoom
12x
Focal length range
4.4 - 88.4 mm
Horizontal field of view (tele)
6.8°
Horizontal field of view (wide)
70.2°
Minimum illumination
1.6 lx
Signal-to-Noise Ratio (SNR)
50 dB
Flip & mirror
Yes
Aperture number of steps
16
Aperture range (F-F)
2 - 3.8
White balance
Auto, Manual, One push, Indoor, ATW
Focus adjustment
Auto/Manual
Closest focusing distance
0.08 m
Wide Dynamic Range (WDR)
Yes
Number of camera presets
256
Gain control type
Auto/Manual
PTZ control
Yes
Fastest camera shutter speed
1/10000 s
Slowest camera shutter speed
1 s
Video
Maximum video resolution
3840 x 2160 pixels
Maximum frame rate
59.94 fps
HD type
4K Ultra HD
Resolution at capture speed
3840x2160@30fps, 3840x2160@25fps, 1920x1080@25fps, 1920x1080@60fps, 1920x1080@50fps, 1920x1080@29.97fps, 1920x1080@30fps, 1280x720@50fps, 1280x720@59.94fps, 1280x720@60fps
Supported video modes
1080p, 1080i, 720p
Design
Product colour
Black
Mounting type
Stand/Wall mounting
Tilt angle range
-30 - 90°
Pan range
-150 - 150°
Web-based management
Yes
Tilt speed (min)
0.35 °/sec
Tilt speed (max)
120 °/sec
Pan speed (min)
0.35 °/sec
Pan speed (max)
120 °/sec
Ports & interfaces
HDMI ports quantity
1
Power over Ethernet plus (PoE+) ports quantity
1
Ethernet LAN (RJ-45) ports
1
Power
Power source type
PoE
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
20 - 80%
Network
Ethernet LAN data rates
10,100 Mbit/s
Packaging content
Packaging content
RoboSHOT 4K 12E HDBT PYZ camera (in black or white)

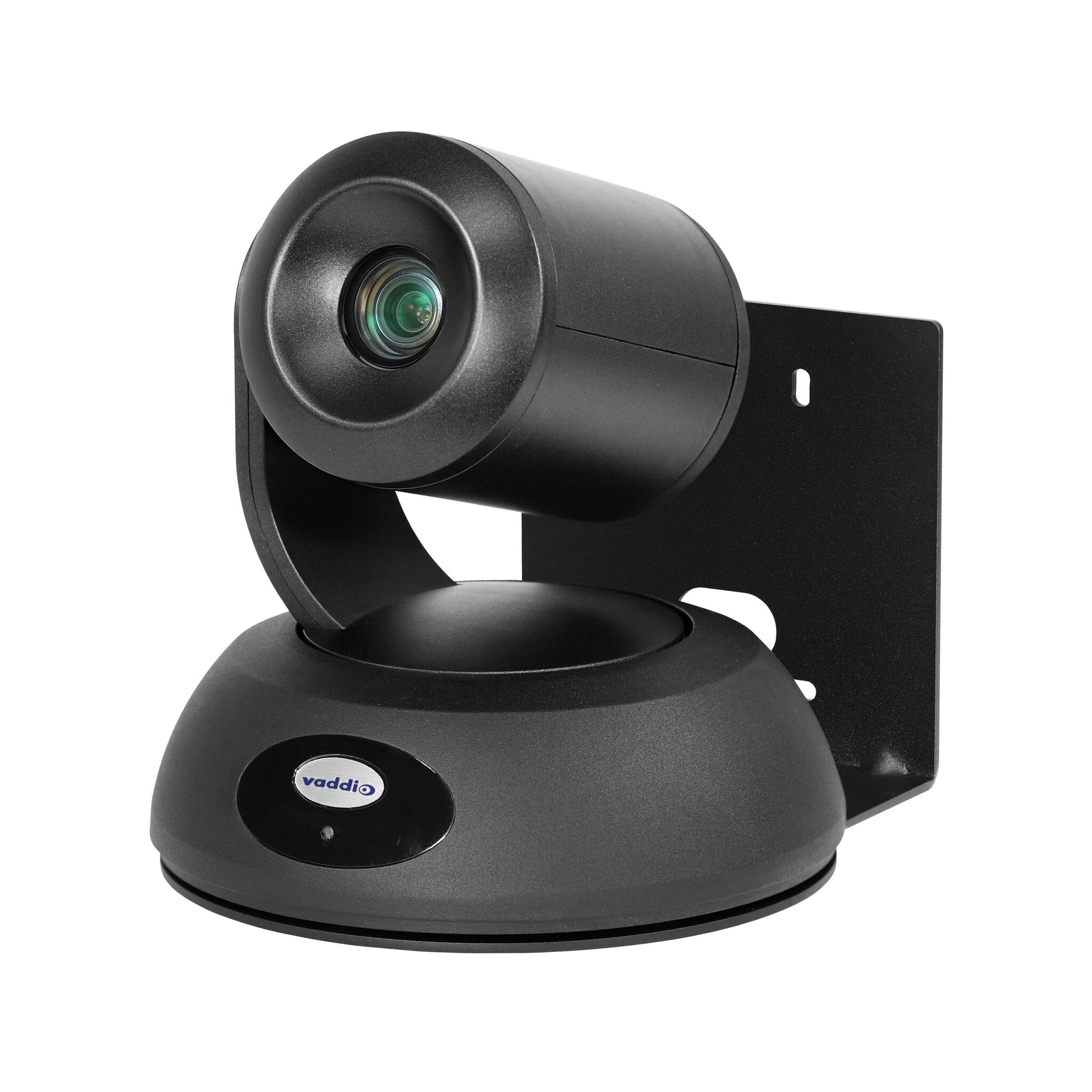

Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
Vaddio IR Remote Commander

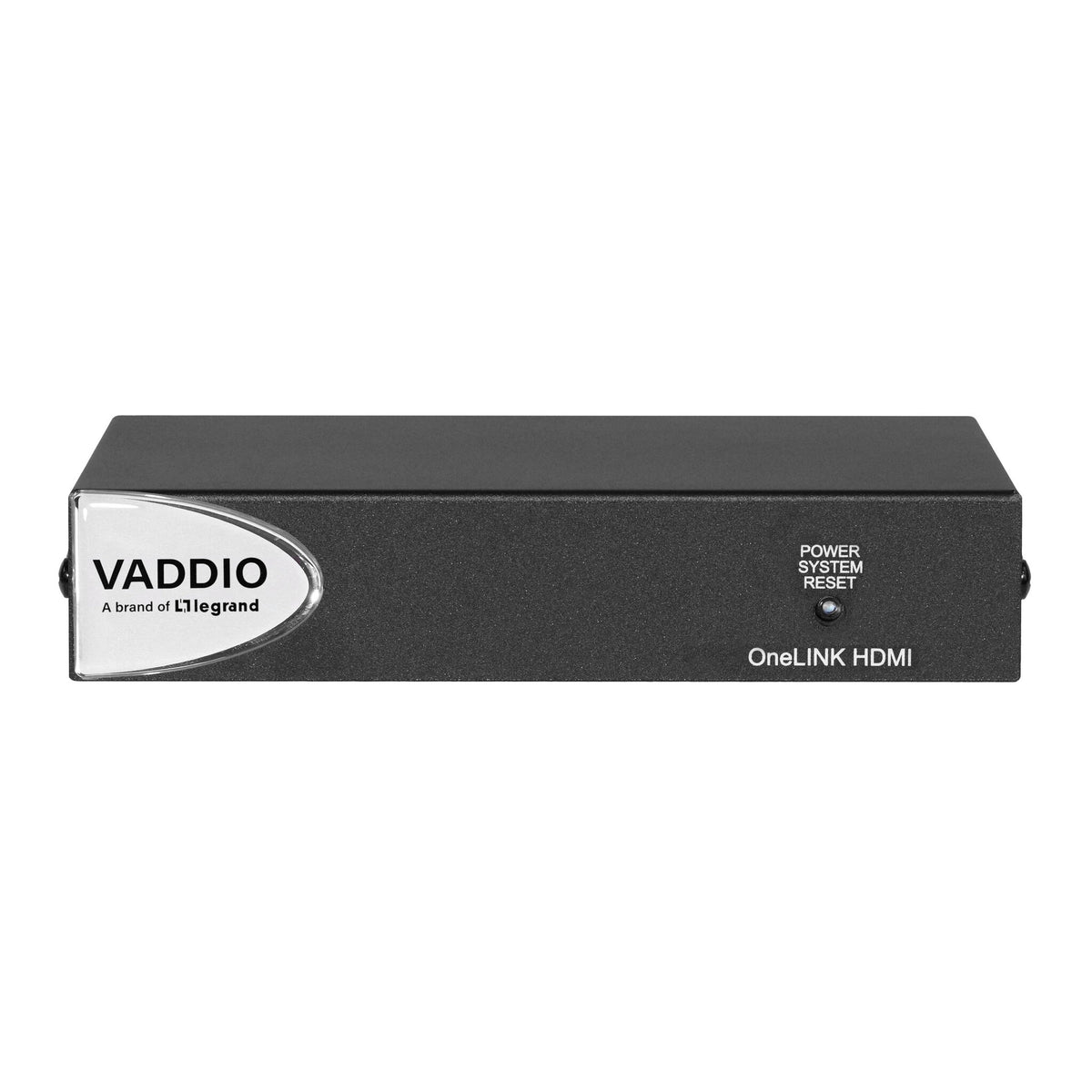

OneLINK HDMI Interface
48V power supply with AC cord set(s)
EZCamera RS-232 Control Adapter
Technical details
Compliance certificates
Trade Agreements Act (TAA), CE, Federal Communications Commission (FCC)
Warranty period
3 year(s)
Audio
Noise reduction
Yes
Performance
Remote control type
IR
Cable lock slot
Yes
Cable lock slot type
Kensington
Weight & dimensions
Width
179.1 mm
Depth
171.5 mm
Height
176.3 mm
Weight
2.2 kg
