SoundTube Entertainment RS42-EZ-WH

SoundTube Entertainment RS42-EZ-WH

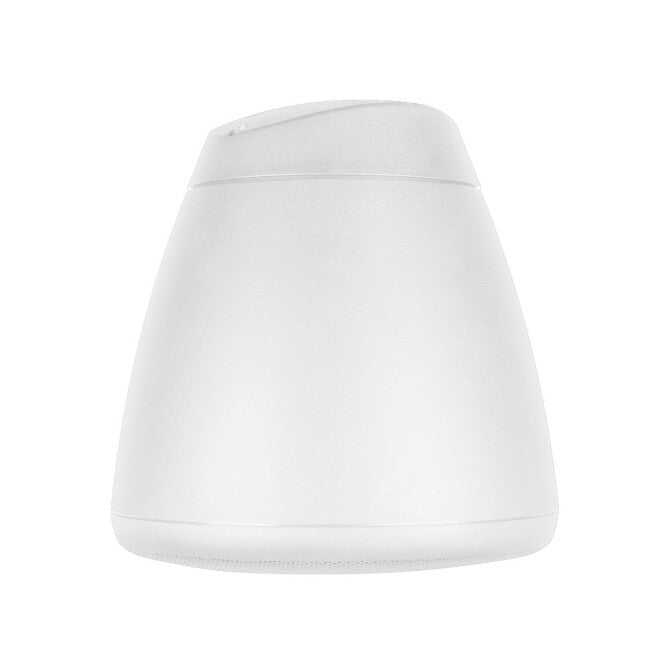

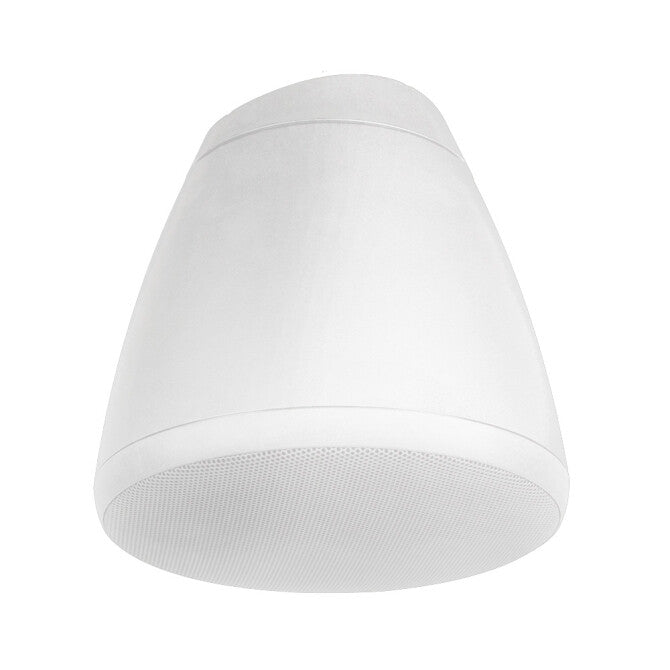

SoundTube 4" Hanging Speaker in White

  • 20 W
  • 140 - 22000 Hz 16 Ω
  • Acrylonitrile butadiene styrene (ABS)
  • White
  • SKU:RS42-EZ-WH
  • GTIN/EAN:
  • MPN:RS42-EZ-WH
Add To Favorite

You need to login to view the price.

View full details

SoundTube Entertainment RS42-EZ-WH. Recommended usage: Universal. Connectivity technology: Wired. RMS rated power: 20 W, Frequency range: 140 - 22000 Hz, Impedance: 16 Ω, Sensitivity: 85.4 dB. Product colour: White

The RS42-EZ is a 4-inch, coaxial speaker with BroadBeam Ring™ technology for consistently smooth high frequency sound, designed for open-ceiling applications. Hanging hardware includes galvanized steel cables and a built in hanging bracket with a screw on cover plate for fast, easy and secure installation. Unit may be hung or mounted direct-to-conduit via locking cover plate. The enclosure is constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications. The RS42-EZ speaker utilizes a 4 position ceramic terminal block input connector and a 6 position tap switch with transformer bypass position and has a 16 ohm impedance for easy daisy chaining in low voltage systems. The ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. The RS42-EZ is suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. Hanging hardware, weather plug, cover plate, and AC-RSEZ-HH-10 are included.

Loudspeakers
Woofer diameter (imperial)
10.2 cm (4")
Woofer diameter
10.2 cm
Woofer
Yes
Tweeter diameter (imperial)
2.54 cm (1")
Tweeter
Yes
Speaker placement
Wall-mountable
Audio
Crossover frequency
4500 Hz
Sensitivity
85.4 dB
Impedance
16 Ω
Frequency range
140 - 22000 Hz
RMS rated power
20 W
Performance
Certification
CE, EN54, RoHS, UL1480A
Housing material
Acrylonitrile butadiene styrene (ABS)
Recommended usage
Universal
Product colour
White
Amplifier
Amplifier
No
Ports & interfaces
Bluetooth
No
Connectivity technology
Wired
Weight & dimensions
Diameter
18.9 cm
Height
199.6 mm
Packaging data
Package weight
2.77 kg
Package height
279.4 mm
Package type
Box
Packaging data
Package depth
241.3 mm
Package width
241.3 mm
Packaging content
Quantity per pack
1 pc(s)
Sustainability
Sustainability certificates
CE, RoHS
