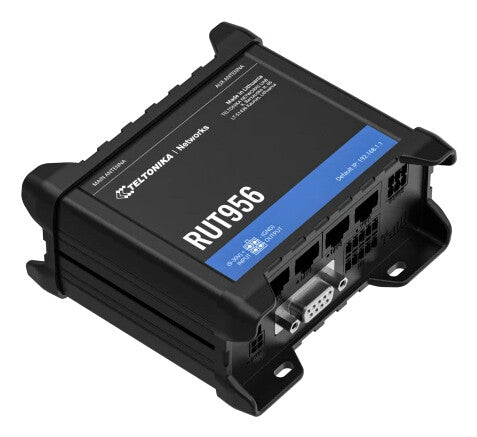

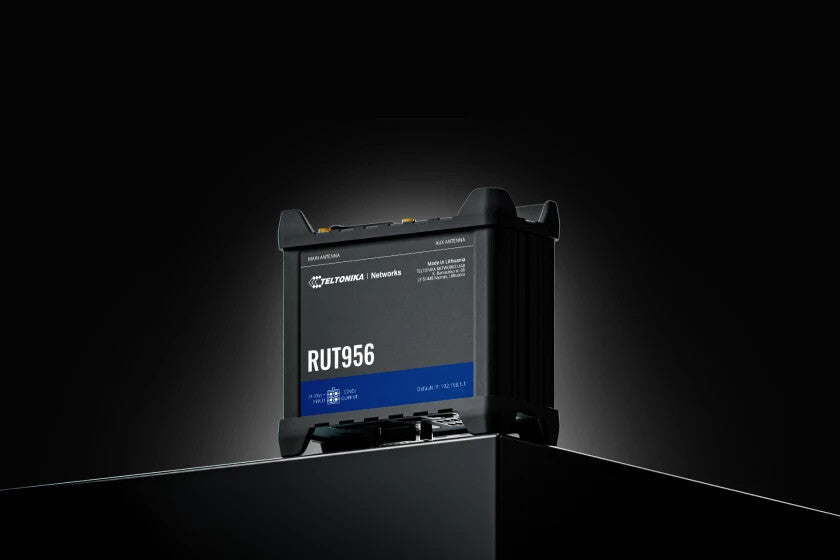

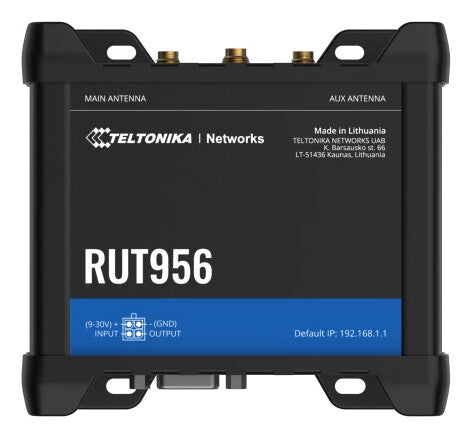

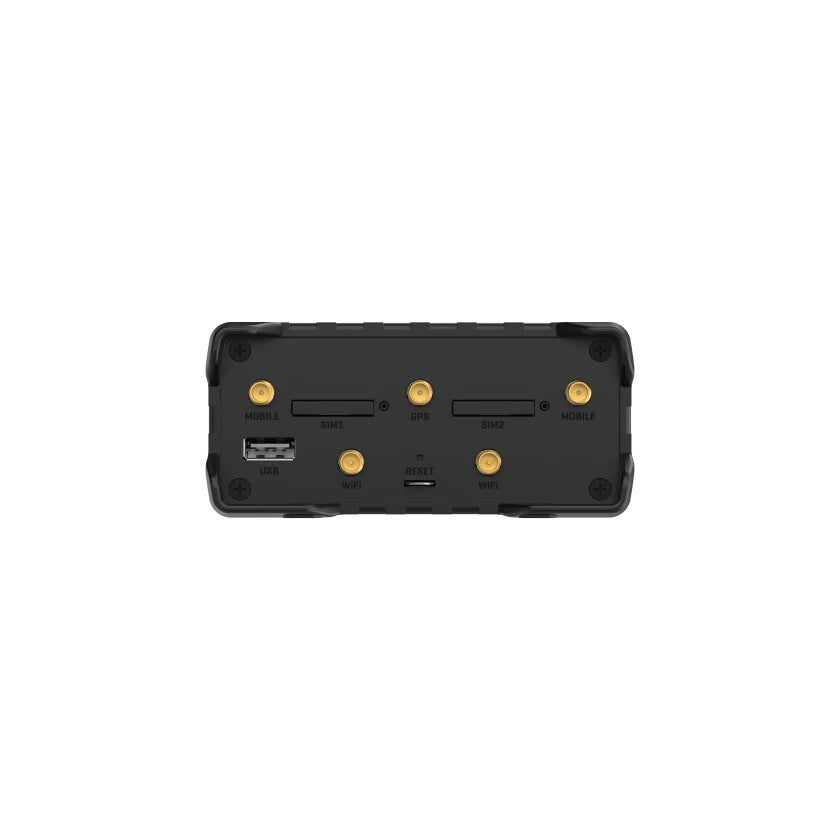

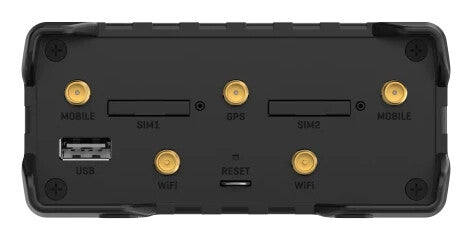

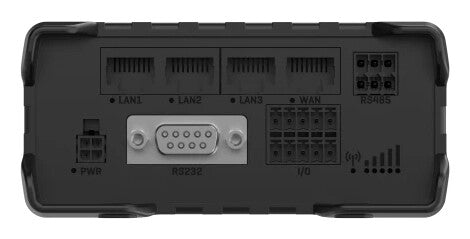

Teltonika RUT956 Cellular network router

Teltonika RUT956 Cellular network router

4G/LTE (Cat 4), 3G, 2G, 2 SIM cards, IEEE 802.11b/g/n, Access Point (AP), Station (STA), 1 x WAN port , 3 x LAN ports, Europe, the Middle East, Africa, Korea, Thailand

  • 4G (LTE-FDD): B1, B3, B5, B7, B8, B20
  • 4G (LTE-TDD): B40
  • 3G: B1, B5, B8
  • 2G: B3, B8
  • SKU:RUT956100000
  • GTIN/EAN:
  • MPN:RUT956100000

You need to login to view the price.

View full details

Teltonika RUT956. Device type: Cellular network router, Product colour: Black, Housing material: Aluminium, Plastic. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n). Data network: 2G, 3G, 4G. Serial interface type: RS-232, RS-485

// RUT956 is an industrial router that combines dual-SIM cellular 4G LTE, Wi-Fi, and wired connectivity options and additionally offers GNSS capabilities.

// Automatic WAN failover ensures solution uptime even if the primary connection is lost.

// Serial communication interfaces enable integrating more varied devices to the solution ecosystem, even legacy equipment.

// Digital and analog Inputs/Outputs with advanced RutOS software features facilitate equipment control, automation, and event notifications.

// Packed with advanced industrial software features, including Modbus, SNMP, TR-069, NTRIP, MQTT, and multiple VPNs.

Design
Device type
Cellular network router
Product colour
Black
Housing material
Aluminium, Plastic
Mounting
DIN-rail
Market positioning
Industrial
Reset button
Yes
LED indicators
Yes
Ethernet LAN features
Ethernet LAN
Yes
Ethernet LAN interface type
Fast Ethernet
Ethernet LAN data rates
100 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3u
Auto MDI/MDI-X
Yes
Wireless LAN features
Wi-Fi
Yes
Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)
Mobile network
Data network
2G, 3G, 4G
Number of SIM cards
2
Short Message Service (SMS)
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
3
USB port
Yes
USB 2.0 ports quantity
1
Serial ports quantity
2
Serial interface type
RS-232, RS-485
Security
Security algorithms
HTTPS, SSH, SSL/TLS, TLS, WEP, WPA-EAP, WPA-PSK, WPA2-Enterprise, WPA2-PSK
Network address translation (NAT)
Yes
Firewall
Yes
DMZ support
Yes
Port forwarding
Yes
GPS Performance
Embedded GNSS
Yes
BeiDou
Yes
GLONASS
Yes
Galileo
Yes
Quasi-Zenith Satellite System (QZSS)
Yes
Performance
Built-in processor
Yes
Processor frequency
0.58 GHz
RAM capacity
0.128 GB
Operating system installed
RutOS
GPS (satellite)
Yes
Web-based management
Yes
Antenna type
External
Antennas quantity
5
Power
Power source type
DC
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-40 - 75 °C
Weight & dimensions
Width
220 mm
Depth
100 mm
Height
50 mm
Weight
287 g
