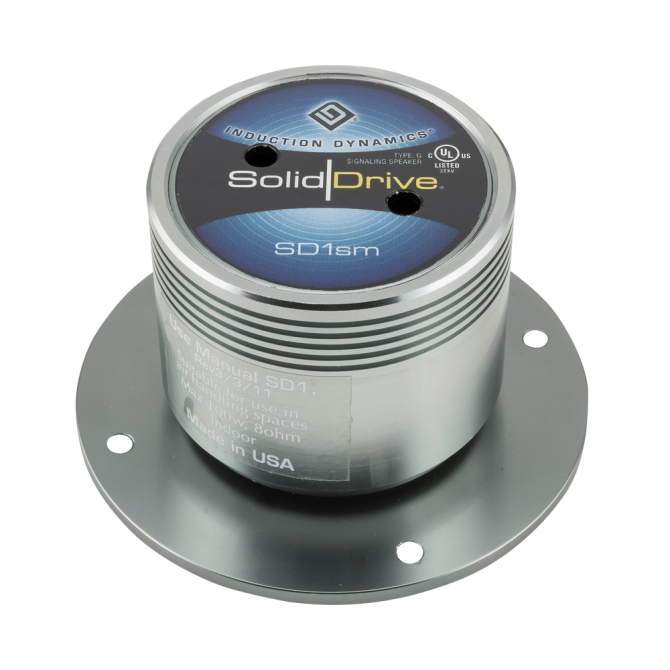

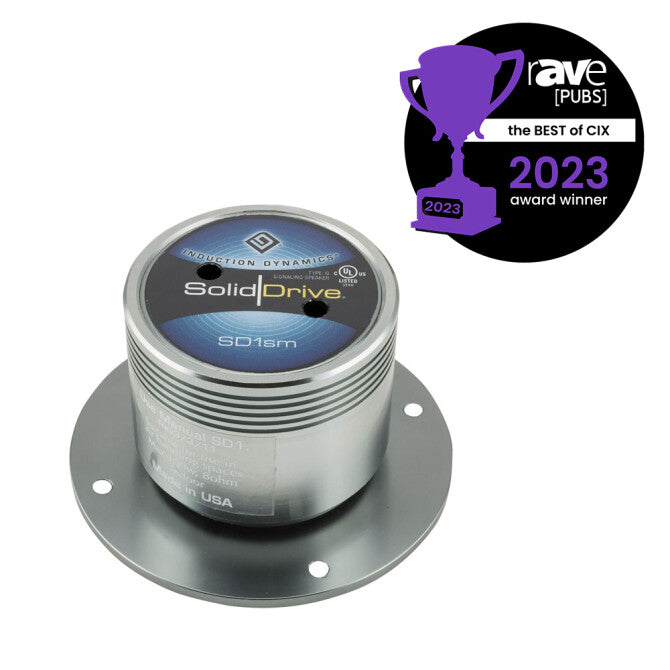

SolidDrive SD-1 Surface Mount Actuator in Titanium for Wood Surfaces

SolidDrive SD-1 Surface Mount Actuator in Titanium for Wood Surfaces

SolidDrive SD-1 Wood Surface Mount Actuator in Titanium

  • SolidDrive is a patent-pending technology that utilizes neodymium magnets and dual symmetrically opposed motors to convert audio signals into acoustical energy in a wide variety of substrates.
  • With direct contact to glass, drywall and tabletops, SolidDrive units radiate full-range sound across the entire surface
  • Full-frequency sound can be delivered from 60 Hz – 15 kHz with a max SPL of 88.8 dB and a coverage angle greater than 120o (60 Hz – 3 kHz).
  • Capable of handling 5 – 100 Watts, SolidDrive units can deliver single to multi-channel audio for home theater, home audio and commercial audio applications
  • Patent pending balanced cantilever spring bracket for behind-wall mounting allows for a completely hidden speaker system in drywall applications.
  • SolidDrives operate in a virtually friction-free environment and are engineered for infinite life. Induction Dynamics SolidDrives come with a 7- year warranty
  • SKU:SD-1SM
  • GTIN/EAN:644216214907
  • MPN:SD-1SM
Add To Favorite

You need to login to view the price.

View full details

SolidDrive SD-1 Surface Mount Actuator in Titanium for Wood Surfaces

The SD1sm attatches to wood and similar surfaces using included wood screws. Each SD1sm is designed for one channel of audio. An optional equilization module optimizes the SD1sm for use on wood surfaces. The SolidDrive utilizes patent-pending dual-voice coil technology in an aluminum enclosure to transfer acoustic energy to any substrate with very high-powered neodymium magnets and dual symmetrically opposed motors to convert audio signals into powerful vibrations. Those vibrations are transferred into solid surfaces through direct contact. High-quality, full-range sound is then radiated from the entire surface with a frequency response of 60 Hz to 15 kHz. The symmetrically opposed neodymium magnets and specifically engineered mounting hardware results in hidden planar-source acoustics. The result is acoustical uniformity throughout the listening space.

Owners Manual | Tech Sheet | Mechanical Drawing 1 | Mechanical Drawing 2 | CE Certification | UL Certificate

Color Titanium
UPC 644216214907
Manufacturer SolidDrive
Manufacturer's Category The Original SolidDrive
Height 2.06 in / 52.32 mm
Width/Diameter 2.3 in / 58.42 mm
Shipping Weight 1.45 lbs / 0.66 kg
Carton Height 5.5 in / 139.7 mm
Carton Length 5.25 in / 133.35 mm
Carton Width 5.25 in / 133.35 mm
Certifications CE, RoHS, UL1480A, UL2043
Enclosure Properties Anodized Aluminum
Optional Accessories Titanium Heat Sink (SD1-HS-TI)|Passive Equalization Module - Wood/Surface Mount (PEM-W)|Junction Box (AC-JB10-XFMR or AC-JB20-XFMR)
Source Inputs Wire Leads
TAA Compliant (Trade America) Yes
BAA Compliant (Made in USA) Yes
Coverage Angle (±6dB @ 2kHz) 120°
Frequency Response (± 10 dB) 60 Hz - 15 kHz Nominal w/o EQ
Frequency Response (± 3 dB) 80 Hz - 10 kHz Nominal w/o EQ
Max. Continuous Power RMS 30 W
Max. Program Power 100 W w/ 100 Hz 12 dB octave high-pass
Minimum Impedance (Ω Ohms) 8 Ω
Nominal Impedance (Ω Ohms) 8 Ω
Sensitivity dB @ 1W/1M 73.5 dB
Sensitivity dB @ 2.83V/1M 70 - 75 dB
Audio
Impedance
8 Ω
RMS rated power
30 W
