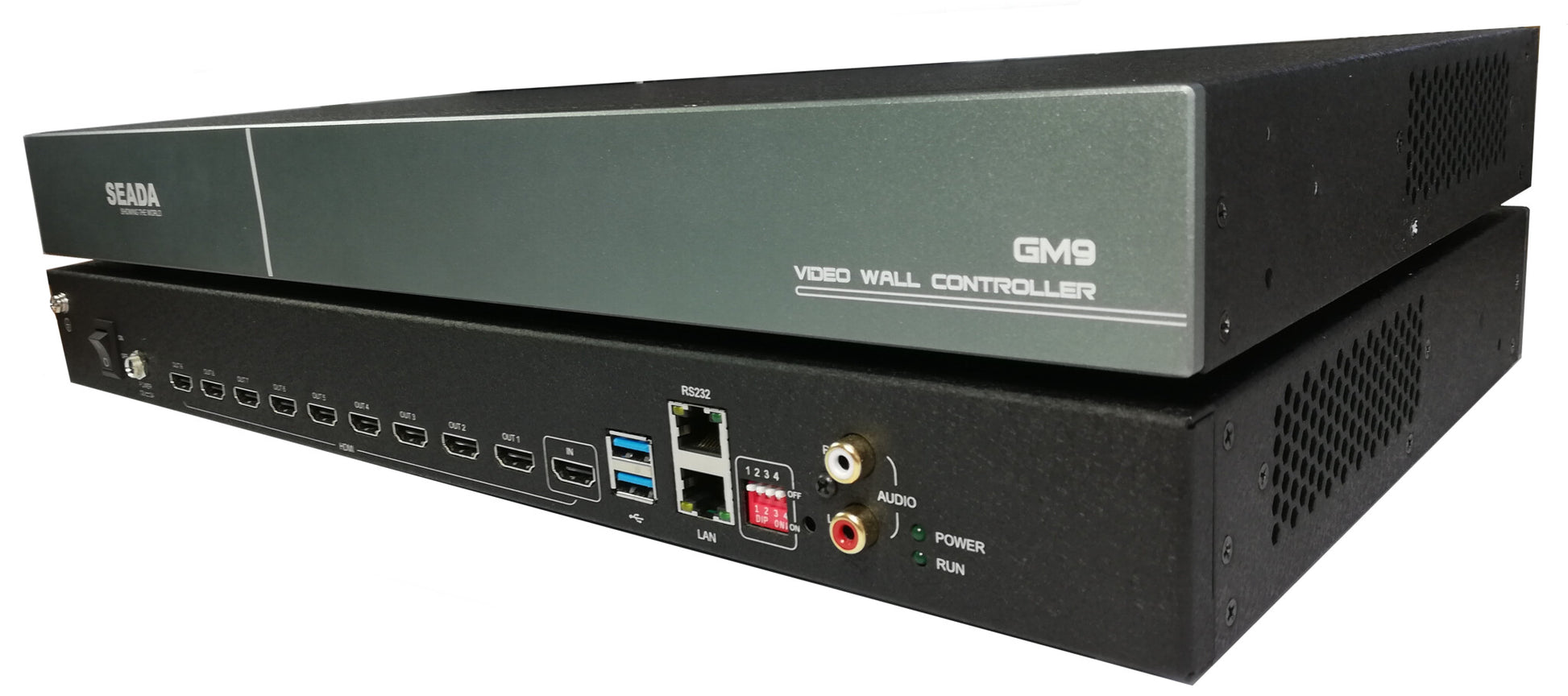

GM9 Creative Video Wall Controller, 64GB, HDMI1.3, 1920×1200

  • Any degree rotation on each output to form eye catching video wall layout
  • Built in 4K media player with 64G on board storage
  • One HDMI capture channel
  • Support picture in picture with HDMI capture source
  • Up to 9 HDMI outputs
  • Custom pre-set layouts
  • Supports audio
  • MPN:GM9

You need to login to view the price.

Add To Favorite
View full details

SEADA GM9. Product colour: Black. Scaled resolutions: 1920 x 1200, Internal storage capacity: 64 GB. Power consumption (max): 25 W, Input voltage: 110 - 250 V, Input frequency: 50/60 Hz. Width: 440 mm, Depth: 200 mm, Height: 45 mm

The GM9 standalone series video wall controllers consist of a 64GB on board 4K Media Player for playing both videos and photos, one HDMI capture channel, scrolling text, two USB ports and one Cloud messenger for sending the photos and greetings onto video wall, which means it can display multi contents onto the video wall with Picture in Picture ability.

GM9 supports any degree rotation on each output with the ability to upscale and downscale the resolution freely for all sorts of applications. This makes the GM9 the ideal solution for eye catching creative video walls, where the screens are in irregularly layout.

GM9 controller supports alpha composition on its HDMI capture channel which means users can display the HDMI input content in windows on video wall with customised shapes besides standard rectangle shapes. This feature makes the video wall more fun and interesting.

GM9 controllers support all popular outputs, including LCD, DLP and LED displays with its perfect frame lock on all output channels, along with projectors for edge blending applications.

Warranty: 2 YEARS

Product colour
Internal storage capacity
64 GB
Scaled resolutions
1920 x 1200
Ports & interfaces
RS-232/422 connector
USB 2.0 Type-A ports quantity
RJ-45 ports quantity
HDMI version
HDMI output ports quantity
HDMI input ports quantity
Input frequency
50/60 Hz
Input voltage
110 - 250 V
Power consumption (max)
25 W
Operational conditions
Storage relative humidity (H-H)
10 - 90%
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
45 mm
200 mm
440 mm
