SEADA SD-MV-CM41

SEADA SD-MV-CM41

SD-MV-CM41 4K 4X1 Multiviewer

  • 4 HDMI inputs, 1 HDMI output
  • Supports 4K@30Hz 4:4:4
  • Supports HDCP 2.2
  • Seamless switch between 4 input ports
  • Auto Scaler in each source input
  • Supports audio embedding and mixing
  • Supports audio de-embedding
  • supports customized layouts
  • supports 3rd party controller recall layout
  • SKU:PC/SE/CM41
  • GTIN/EAN:5055309630286
  • MPN:SD-MW-CM41
Add To Favorite

You need to login to view the price.

View full details

SEADA SD-MV-CM41. HD type: 4K Ultra HD, Video resolutions: 3840 x 2160 pixels, Supported video modes: 2160p. Channels quantity: 4 channels, Video formats supported: DIVX HD, DIVX WEBM, DV, DVR-MS, FLV, H.239, H.261, H.262, H.263, H.263+, H.264, H.264 BP, H.264+,.... Cabling technology: 10/100/1000Base-T(X). Power source type: DC, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Product colour: Black, Housing material: Metal, LED indicators: Activity, Network, Operation

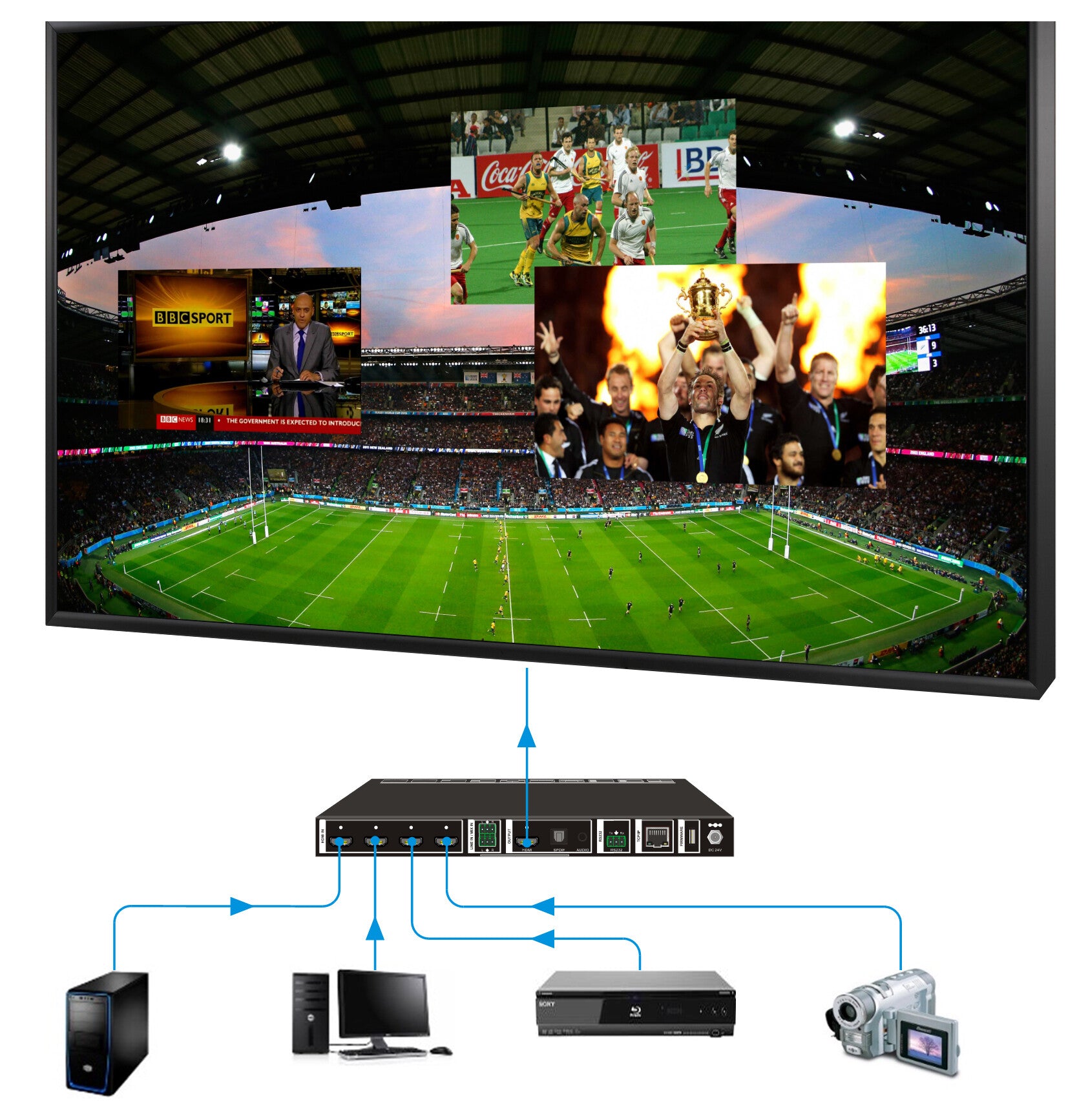

The SD-MV-CM41 multiviewer is designed to display multi video inputs onto one display. It features four HDMI inputs supporting up to 4K and one HDMI output with resolution up to 4K as well. It also provides a line input, 1 mix input, 1 SPDIF output and 1 analog output for audio processing. It is extremely flexible and seamless switching capable multiviewer making it perfect for applications such as broadcasting, security, boardroom, TV studio and so on.

SD-MV-CM41 multiviewer supports auto scaling to enable images to be sized and positioned anywhere on screen. They support a wide range of creative layouts, including split, side-by-side, picture-in-picture, overlapping windows and even in a solo view for full screen viewing of any single source. It supports up to 16 pre-defined layouts and up to 4 pre-set customized layouts making the system management extremely easy.

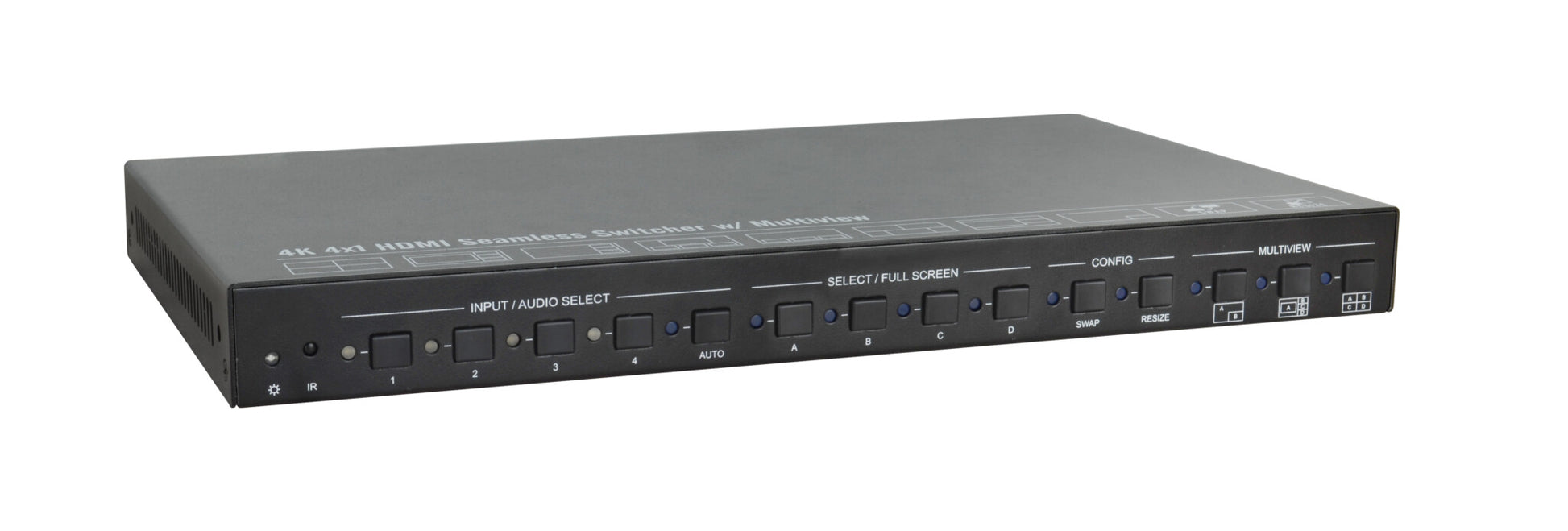

Control is quick and comprehensive on SD-MV-CM41, it can be controlled using buttons at the front panel, the remote control, RS232 commands, or the fully featured intuitive web GUI.

Warranty: 2 YEARS

Video
Compression ratio
4:4:4
Supported video modes
2160p
Video resolutions
3840 x 2160 pixels
Analog signal format system
Not supported
HD type
4K Ultra HD
Performance
Video formats supported
DIVX HD, DIVX WEBM, DV, DVR-MS, FLV, H.239, H.261, H.262, H.263, H.263+, H.264, H.264 BP, H.264+, H.264B, H.265, H.265+, HEVC, HEVC/H.265, IFO, INSV, ISO, ISO (Blu-ray), M-JPEG, M2P, M2T, M2TS, M4V, MJPG, MKV, MOD, MOV, MP4, MP43
Number of layers
20
Conversion function
Y
Channels quantity
4 channels
Network
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN
Y
Display
Built-in display
N

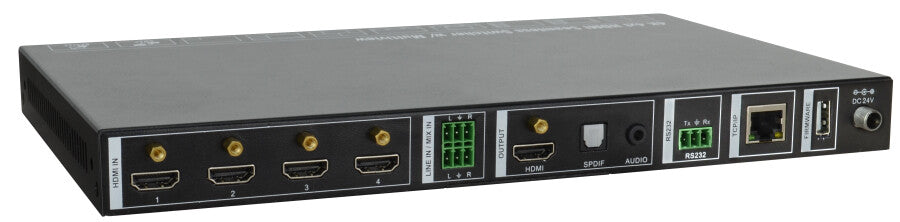

Ports & interfaces
AC (power) in
N
Ethernet LAN (RJ-45) ports
1
Audio (L/R) out
1
Audio (L/R) in
1
Number of HDMI outputs
1
HDMI in
4
Power
Power consumption (max)
13 W
Output current
1.25 A
Output voltage
24 V
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power source type
DC
Design
On/off switch
N
LED indicators
Activity, Network, Operation
Reset button
N
Housing material
Metal
Product colour
Black
Operational conditions
Storage relative humidity (H-H)
10 - 90%
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
System requirements
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 7, Windows 8
Weight & dimensions
Weight
1.24 kg
Height
27 mm
Depth
172.5 mm
Width
285 mm
Packaging content
Manual
Y
AC adapter included
Y
Cables included
RS-232
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
Y
