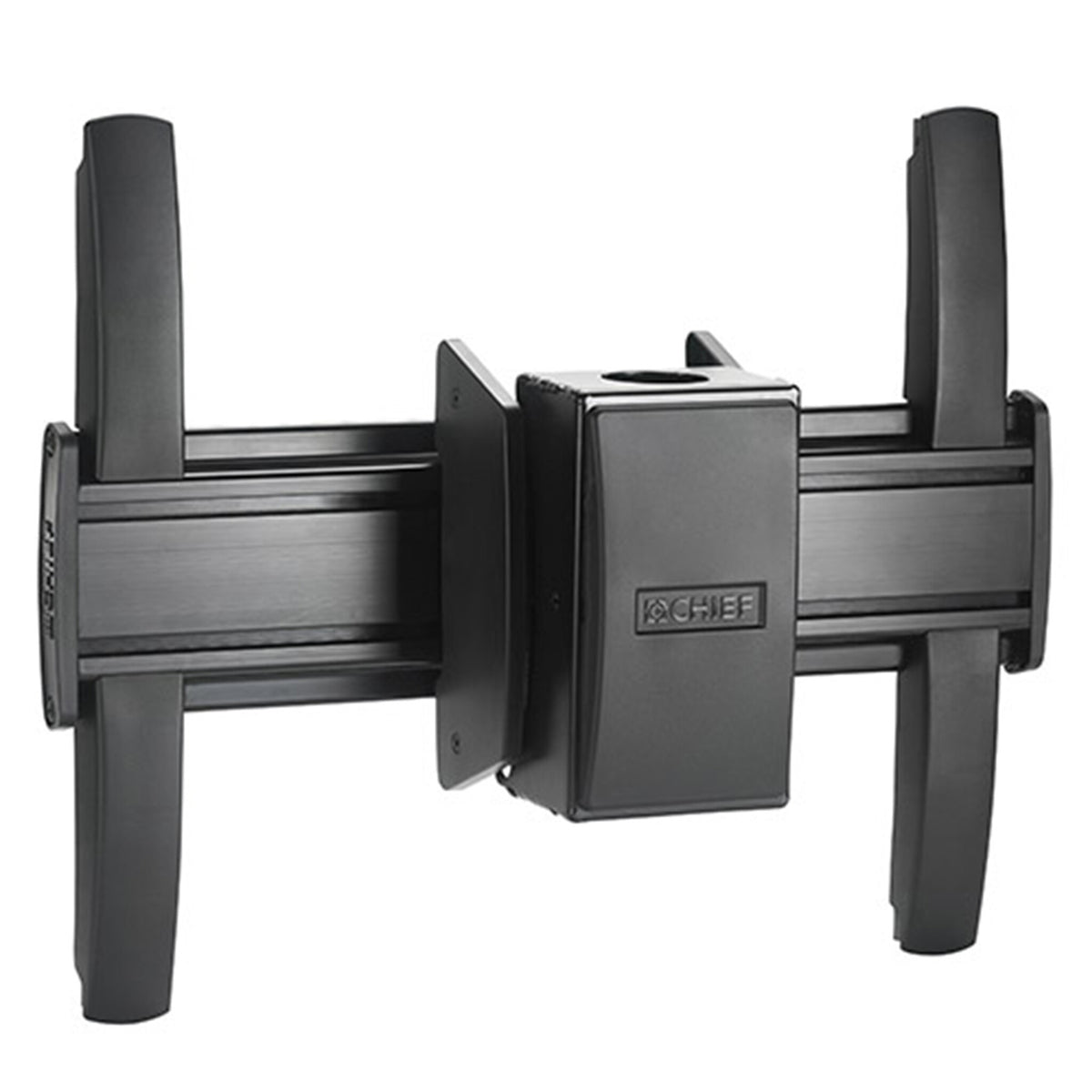

Chief MCM1U

The Chief MCM1U is part of the Fusion® flat panel ceiling mount family, purpose-built for professional AV installers who need reliable, repeatable results when hanging medium-sized displays from the ceiling. Designed for screens from 32 to 65 inches and a load capacity of 56.7 kg, it suits digital signage, retail environments, corporate lobbies, restaurants, bars and transportation hubs. The modular Fusion architecture means the mount head is ordered separately from the ceiling plate and extension column, giving integrators the flexibility to configure the right drop height and ceiling connection for each unique installation. Integrated cable management keeps cabling concealed for a clean, professional finish.

Fusion Modular Architecture

The MCM1U uses Chief's Fusion® modular system, meaning the mount head, ceiling plate and extension column are separate, interchangeable components. This is not just a design choice — it directly affects project planning and inventory. Installers can stock one mount head and pair it with any compatible Fusion ceiling plate or column to match the structural requirements of each ceiling type (concrete, T-bar, structural steel) and the required drop height. For the end user, this means the display arrives at exactly the right angle and height for the space, without compromise, and any component can be serviced or replaced without disturbing the rest of the installation.

Repeatability Across Multi-Screen Installs

The MCM1U features a continuous tilt mechanism with four discrete locking points, which is specifically engineered for video wall and multi-display environments where every screen must match its neighbours. Instead of visually estimating tilt angles for each display — which introduces inconsistency and costs time — the installer sets the locking position once and repeats it identically on every subsequent mount. For the end user operating a row of ceiling-hung screens (e.g. in an airport, retail gallery or corporate showroom), this translates to a perfectly aligned array without visual step-errors between panels.

Precision ceiling mounting. Portrait or landscape. 56.7 kg rated.

UL Listed · 10-year limited manufacturer warranty

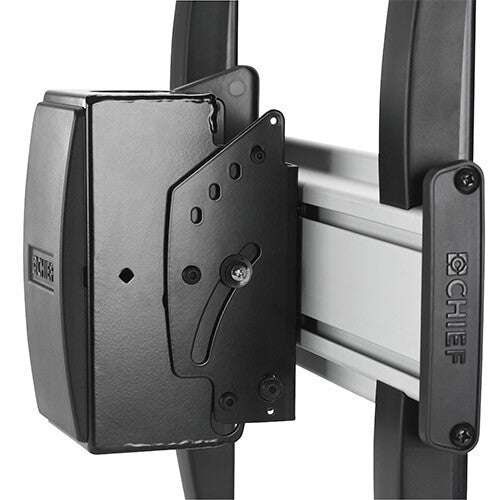

Centris Fingertip Tilt Technology

Chief's Centris fingertip tilt mechanism allows the display angle to be adjusted smoothly with minimal force, even after the mount is fully installed and loaded. This makes post-installation fine-tuning — a common requirement when the actual viewing position differs slightly from the design drawings — quick and tool-free in most cases. For the end user, it means the screen can be repositioned to eliminate glare from a new lighting fixture or to better serve seating rearranged in a conference room, without scheduling a full maintenance visit.

Landscape and Portrait Orientation

The MCM1U is rated for both landscape and portrait mounting, a specification that many ceiling mounts in this class do not offer. Portrait orientation is increasingly standard for digital menu boards, retail totems and wayfinding displays. Being able to order a single mount SKU that handles both orientations simplifies procurement and reduces the risk of ordering the wrong product. For the end user, a portrait-hung 65" display hung from the MCM1U delivers a tall, narrow content canvas ideal for queuing systems, menu boards or directory listings without requiring a specialist portrait-only mount.

Broad VESA Compatibility (200×100 to 460×400 mm)

The MCM1U accommodates any VESA mounting pattern between 200×100 mm and 460×400 mm, covering virtually every commercial flat panel in the 32–65" range currently on the market. This removes the need to verify VESA pattern compatibility on a model-by-model basis for most standard display purchases, simplifying system design and reducing the risk of a mis-match on site. For the end user, it also means that when a display is replaced after several years with a newer model from a different manufacturer, the existing MCM1U ceiling mount can typically be reused rather than replaced.

Tool-Free Screen Engagement with Optional Security

The simple on-off connection system allows the display bracket to be engaged and disengaged from the ceiling arm without tools, which dramatically shortens the installation sequence and makes it safer to work at height — the display can be prepared at floor level and clicked into place from a ladder rather than balanced while bolts are tightened overhead. An optional padlock point adds physical security for installations in public-access environments such as retail floors, hotel lobbies and transport hubs, where tampering or theft is a risk.
