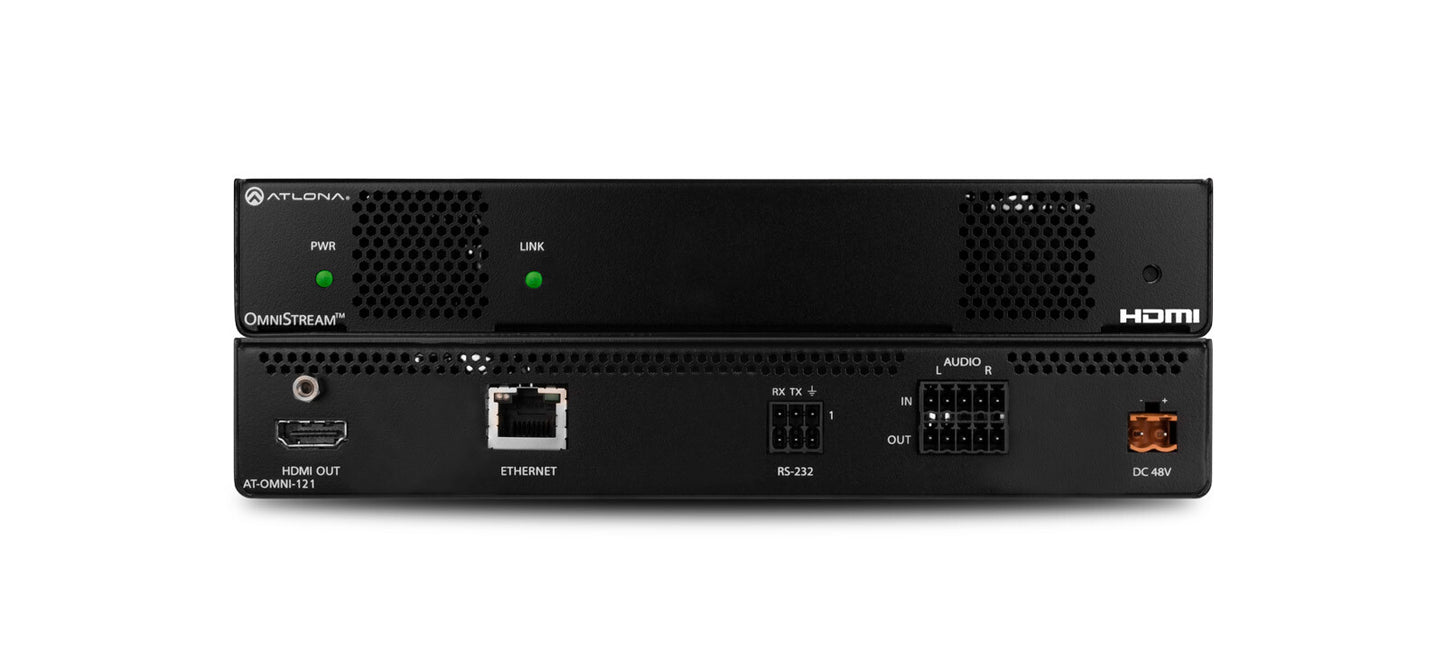

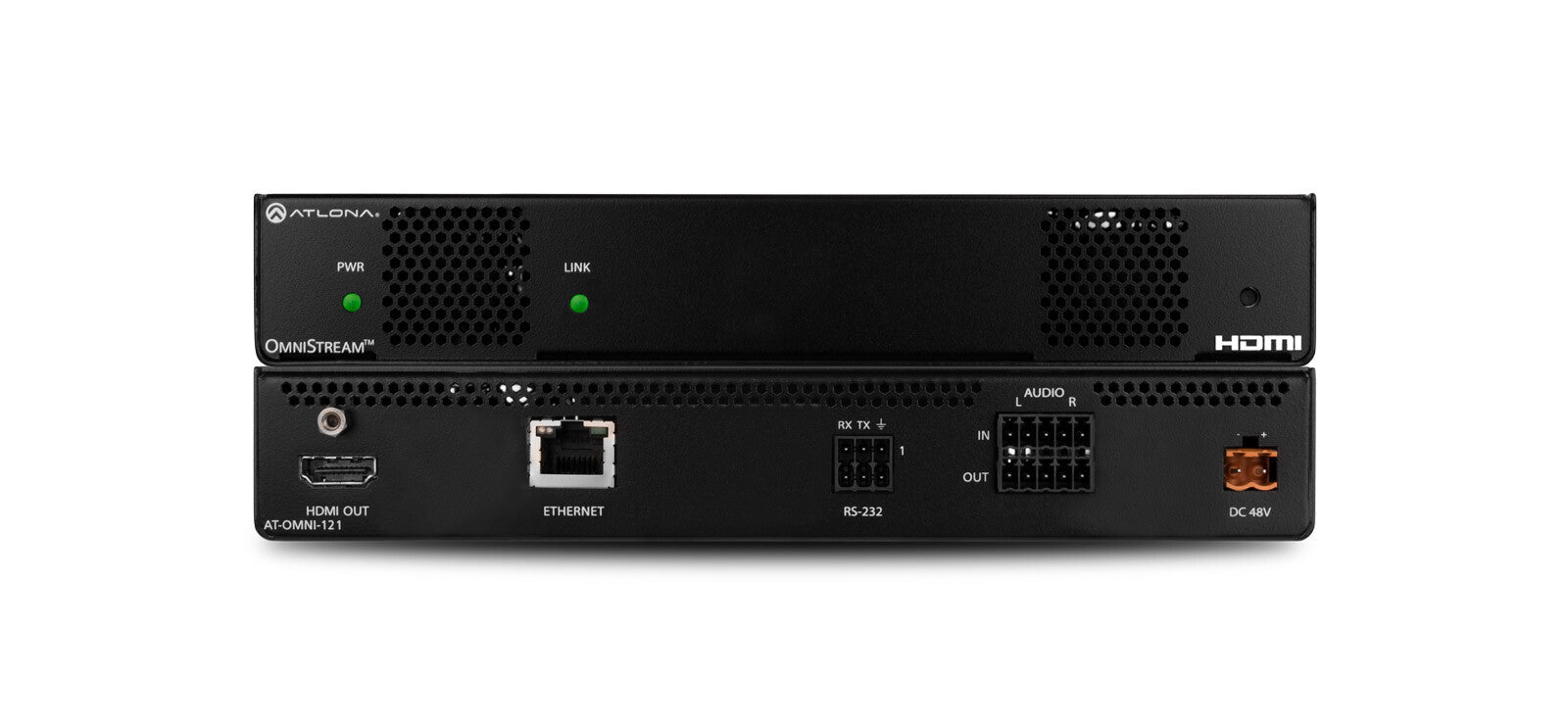

Atlona AT-OMNI-121

Atlona AT-OMNI-121. Maximum video resolution: 4096 x 2160 pixels, Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160, Supported video modes: 720p, 1080i, 1080p. Product colour: Black, LED indicators: Link, Power, Certification: CE, FCC, cULus, RoHS, RCM. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000BaseE-T(X). HDMI version: 2.0b. AC adapter input voltage: 110 - 220 V, AC adapter frequency: 50 - 60 Hz, AC adapter output voltage: 48 V

Single-Channel Networked AV Decoder
The Atlona OmniStream™ 121 (AT-OMNI-121) is a single-channel networked AV decoder for HDMI / HDCP 2.2 output supporting resolutions up to UHD @ 60 Hz and HDR (High Dynamic Range), plus audio embedding and de-embedding, and RS-232 or IR control pass-through. It is part of the OmniStream Pro Series, designed for high performance, flexible distribution of AV over standard, off-the-shelf Gigabit Ethernet switches in commercial audiovisual applications. It features advanced high-quality, VC-2 visually lossless video decoding technology with user-selectable, video quality optimization engines designed for computer-generated imaging, or motion video content. The Atlona OmniStream 121 achieves extremely low, sub-frame latency when paired with OmniStream AV encoders. This single-channel decoder is housed in a half-width rack enclosure with front-to-back air flow, and is ideal for high-density, compact installation in distributed, multi-display installations.

Easy to Configure, Simple to Manage
OmniStream AV over IP systems are remarkably easy to set up and manage – whether for a meeting room, residence, divisible room, or an entire university campus. Atlona Management System (AMS) 2.0 features automatic network device discovery, plus an intuitive web-based GUI that lets you configure virtual routing for AV, control, and data over the network – just as easily as you would with conventional AV matrix switching. AMS also streamlines and simplifies management of OmniStream systems through continuous system monitoring, notifications and alerts, event logging, multi-device configuration and backup, automated firmware updates, remote device control, and more.

Ethernet Link Testing (Coming Soon)
OmniStream AV over IP systems feature Ethernet link testing, a convenient feature for integrators and technicians to test integrity of the network infrastructure. Testing is initiated from the encoder web GUI, and performed between an encoder and decoders joined to it in a multicast group. Test results can be monitored from the encoder and decoder web GUI, avoiding the need to visually check for an image at each display location.
