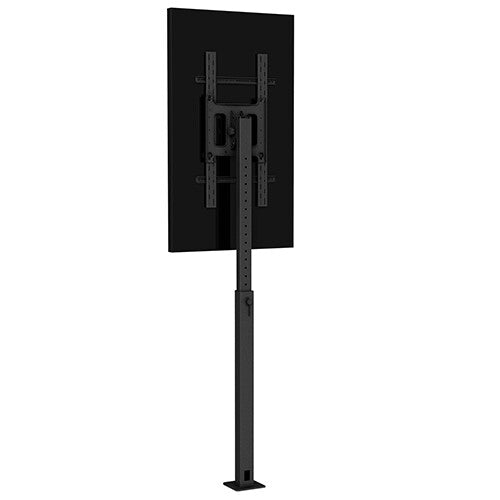

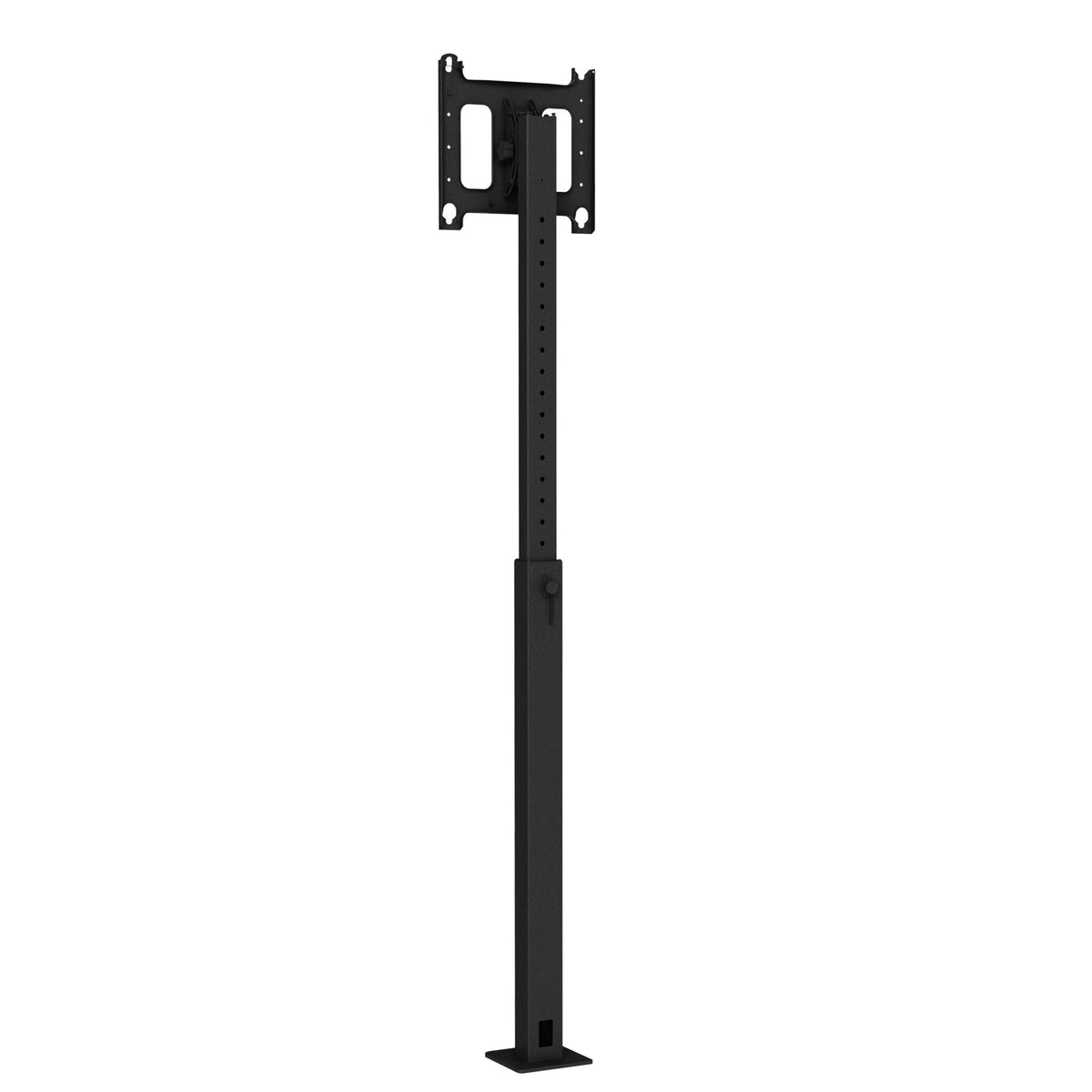

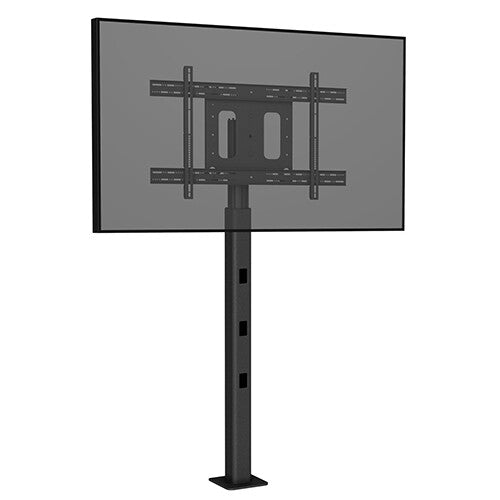

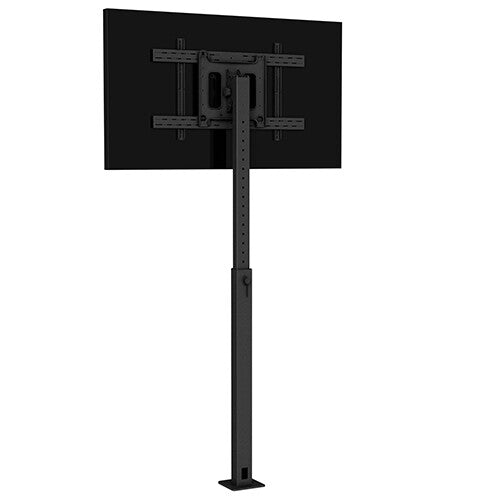

Chief Single Flat Panel Bolt-Down Mount

Single Flat Panel Bolt-Down Mount, 42-75", max 68 kg, Black

  • Small 8 x 8” (203 x 203 mm) footprint
  • Centris Technology provides effortless, fingertip tilt of +/- 15
  • Screen angle stays set in place until you decide to re-adjust
  • Height adjustment without tools between 51.38 to 85.38” (1305 – 2169 mm) from the floor
  • ClickConnect Technology provides an audible click to confirm that the flat panel is locked in place
  • Offers quick connect/disconnect wtih no tools necessary
  • Includes integrated security with the addition of a padlock
  • Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
  • Integrated cable management to hide cables out of sight
  • Supports both portrait and landscape orientations
  • SKU:841872172415
  • GTIN:841872172415
  • MPN:PFB1UB

You need to login to view the price.

View full details

Chief Single Flat Panel Bolt-Down Mount. Maximum weight capacity: 68.04 kg, Minimum screen size: 106.7 cm (42"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 860 x 515 mm. Height adjustment range: 1305 - 2169 mm, Tilt angle range: -15 - 15°. Product colour: Black

This small-profile bolt-down solution for displays is great for storefront, digital signage applications. The Q-Latch mount allows for quick changes between portrait and landscape, post installation leveling roll and tilt. The center of the display can be placed between 51.38 to 85.38” (1305 – 2169 mm) from the floor.

Mounting
Maximum weight capacity
68.04 kg
Minimum screen size
106.7 cm (42")
Maximum screen size
190.5 cm (75")
Mounting type
Floor
Minimum VESA mount
200 x 200 mm
Maximum VESA mount
860 x 515 mm
Number of displays supported
1
Ergonomics
Height adjustment
Yes
Height adjustment range
1305 - 2169 mm
Tilt angle range
-15 - 15°
Design
Type
Fixed floor stand
Product colour
Black
Certification
ULCERT
Weight & dimensions
Width
413.3 mm
Depth
222.2 mm
Height
2385.4 mm
Packaging data
Package weight
36.7 kg
Logistics data
Harmonized System (HS) code
85299097
