Atlona AT-OME-SW21-TX-WPC

Atlona AT-OME-SW21-TX-WPC

Wallplate HDBaseT Transmitter for HDMI and USB-C with USB Hub

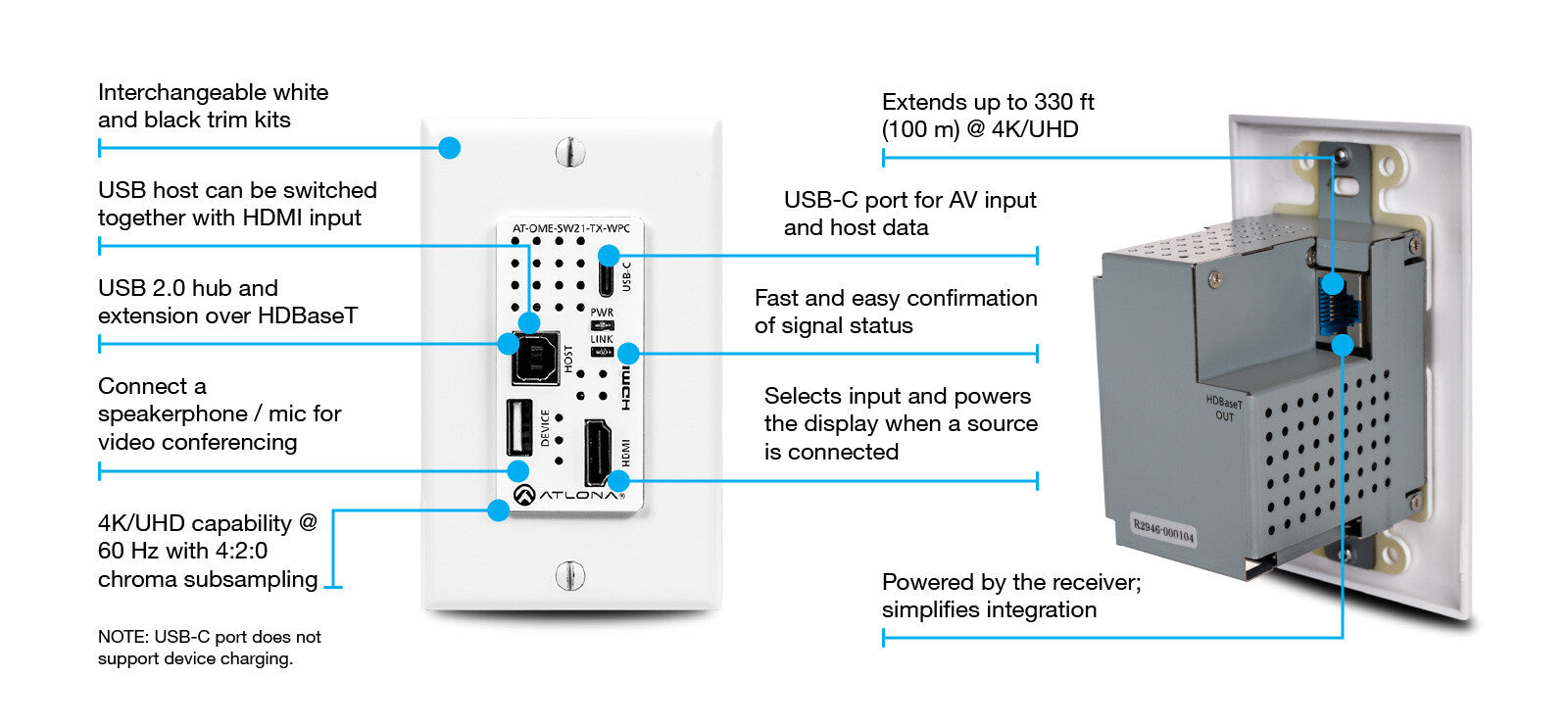

  • 2×1 HDBaseTTM switcher with HDMI® and USB-C® inputs
  • HDBaseT transmitter for AV and USB (host and peripheral)
  • USB 2.0 interfacing and extension up to 330 feet (100 meters)

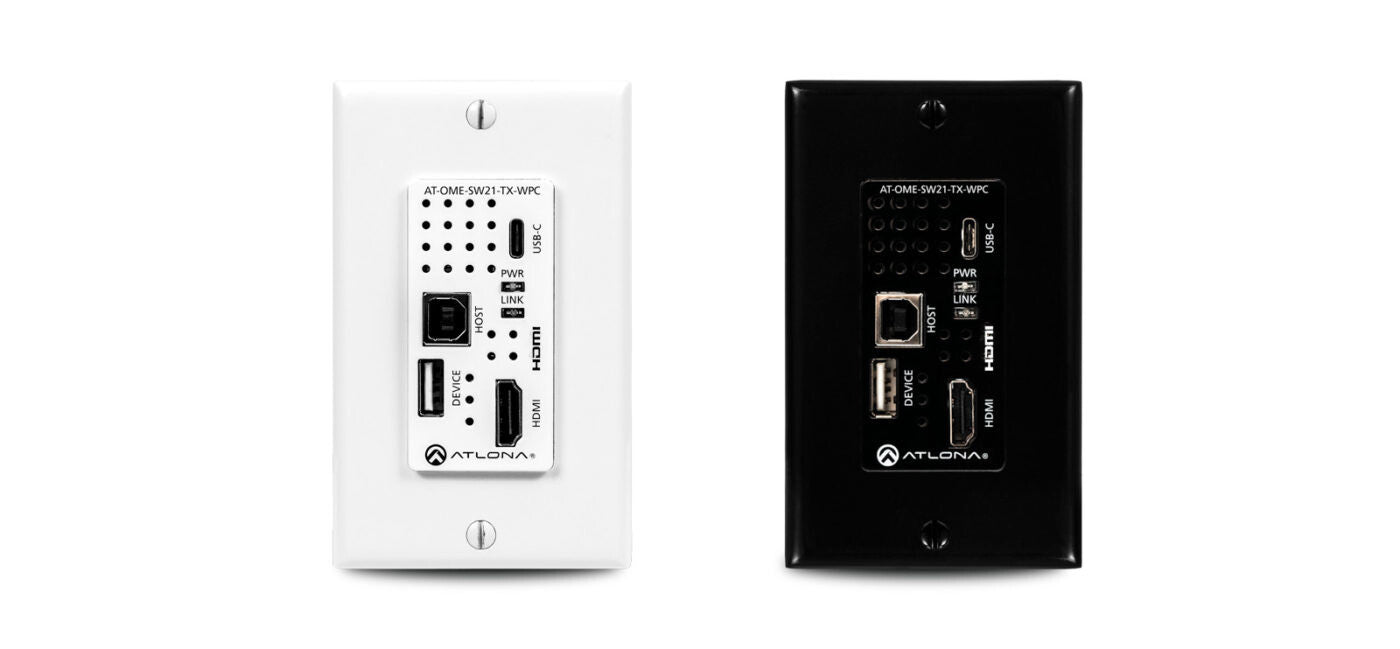

  • US one-gang enclosure for wallplate openings – interchangeable black or white trim kits
  • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
  • HDCP 2.2 compliant
  • Remote powering over HDBaseT
  • SKU:846352007027
  • GTIN/EAN:846352007027
  • MPN:AT-OME-SW21-TX-WPC

You need to login to view the price.

View full details

Atlona AT-OME-SW21-TX-WPC. Type: AV transmitter, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a, Cat7. Connectivity technology: Wired, USB connector type: USB Type-A, USB Type-B, USB Type-C. Power source type: DC, Power consumption (typical): 12.5 W. Width: 45 mm, Depth: 67 mm, Height: 103 mm

Made for meeting spaces.
The OME-SW21-TX-WPC can be discreetly installed into a table box, hidden away from view, while providing the convenience of connecting a speakerphone and a laptop for video conferencing.

Great for classrooms too.
The wallplate enclosure allows flush mounting onto an instructor’s desk or lectern. HDBaseT extension links with a receiver that’s connected into a display and camera – for hybrid and distance learning applications.

Connect and present (or video conference).
Just connect into the switcher and you’re good to go. Watch the display automatically fire up with your content visible on-screen. With a single USB-C connection, you’ll simultaneously deliver AV and interface with video conferencing peripherals.

Features
Type
AV transmitter
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6, Cat6a, Cat7
Maximum transfer distance
100 m
Maximum refresh rate
192000 Hz
HDCP version
1.4/2.2
Colour depth
24 bit
HDCP
Yes
Audio formats supported
LPCM, PCM
Supported graphics resolutions
2048 x 1080, 3840 x 2160, 4096 x 2160
Supported video modes
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
LED indicators
Yes
Product colour
Black, White
HDBaseT certified
Yes
Certification
CE, FCC
Ports & interfaces
Connectivity technology
Wired
HDMI in
1
USB ports quantity
3
USB connector type
USB Type-A, USB Type-B, USB Type-C
Power
Power source type
DC
Power consumption (typical)
12.5 W
Operational conditions
Operating relative humidity (H-H)
20 - 90%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Width
45 mm
Depth
67 mm
Height
103 mm
Weight
340 g
