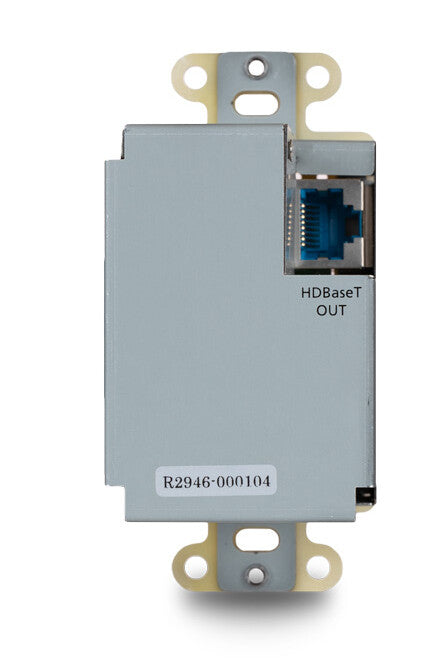

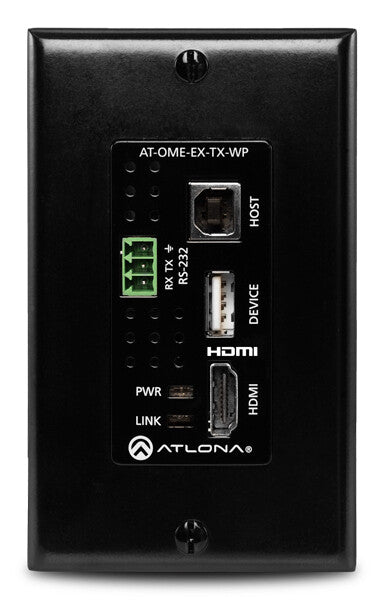

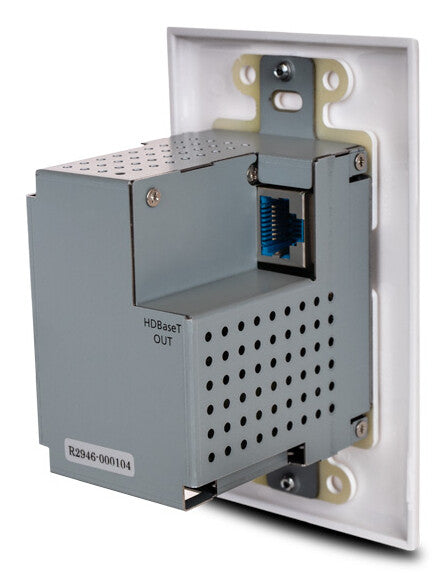

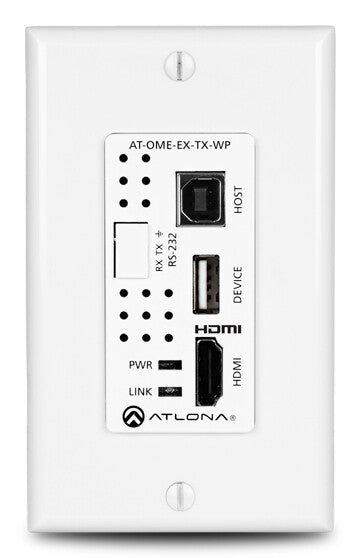

Atlona AT-OME-EX-TX-WP

Atlona AT-OME-EX-TX-WP. Type: AV transmitter, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5, Cat6, Cat6a, Cat7. Connectivity technology: Wired, USB version: 3.2 Gen 1 (3.1 Gen 1), USB connector type: USB Type-A, USB Type-C. Width: 45.8 mm, Depth: 67 mm, Height: 103.5 mm

Wallplate HDBaseT Transmitter with HDMI Input and USB Hub

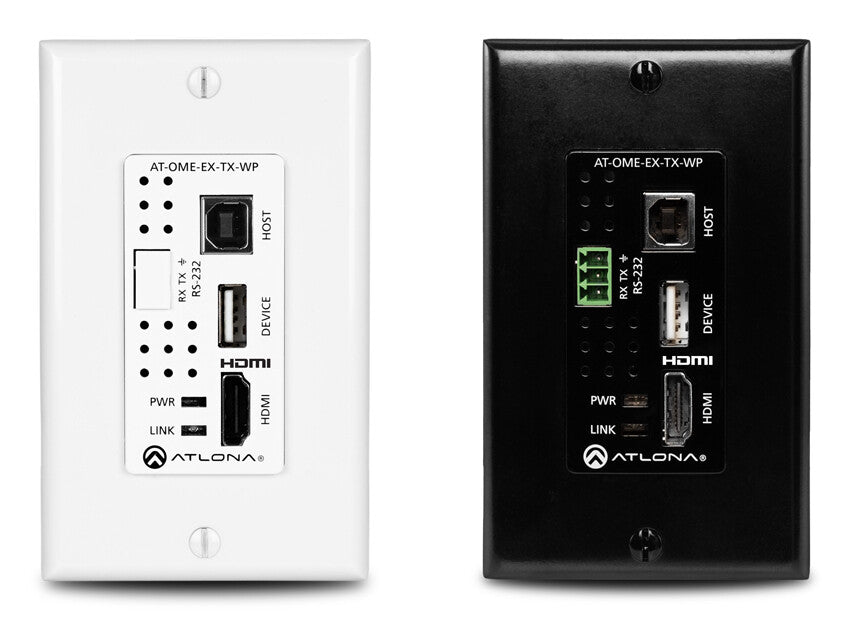

The Atlona AT-OME-EX-TX-WP is an HDBaseT transmitter for video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 330 feet (100 meters). It features a US one-gang, wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-EX-TX-WP is HDCP 2.2 compliant and transmits RS-232 control signals. With a matching HDBaseT receiver, the integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-EX-TX-WP includes a USB 2.0 host interface for a PC, plus a peripheral device such as a speakerphone, microphone, or keyboard and mouse. This transmitter is ideal for use with Omega Series receivers as well as switchers with HDBaseT inputs. It is available with the OME-EX-RX receiver as the OME-EX-WP-KIT.

The OME-EX-TX-WP incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The OME-EX-TX-WP can be remotely powered by the OME-EX-RX, OME-SR21, OME-PS62, or other Omega Series receiver or switcher.

Applications
- Complete system integration – The OME-EX-TX-WP and OME-SR21 together provide a compact, yet comprehensive and cost-effective integration solution, with 4K scaling, display control, HDBaseT link testing, and audio system interfacing provided by the receiver.
- Lecture hall and training room applications – This transmitter is ideal for extending AV connectivity from an OME-PS62 in a central equipment rack to lecterns as well as remote wall and floor box locations, where presenters can easily access the system.
- Video conferencing – The OME-EX-TX-WP and a compatible Omega Series receiver or switcher are ideal for soft codec and web-based conferencing applications, with the ability to integrate with PCs, cameras, speakerphones, and microphones.

Product compatibility
The OME-EX-TX-WP is not compatible with the Atlona HDVS-300 system for USB extension.
