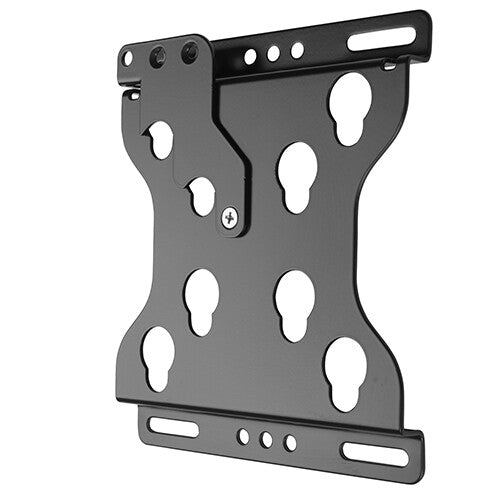

Chief FSR1U, Small Flat Panel Fixed Wall Display Mount

Fixed, low-profile wall mount for small flat-panel displays, with universal VESA support and Q-Latch quick installation for indoor signage.

  • Sits about 2,2 cm off the wall for a flush, tidy look
  • Q-Latch system speeds up hanging the display
  • Portrait or landscape mounting with universal VESA patterns
  • Rated 20,4 kg for all attached components combined
  • Includes interface bracket, flag extension and hardware
  • Indoor use only, backed by a 10-year limited warranty
  • SKU:841872168593
  • GTIN:841872168593
  • MPN:FSR1U

You need to login to view the price.

View full details

Low-profile fixed wall mount for small flat-panel displays

Chief FSR1U, 2.2 cm, Fixed

The Chief FSR1U is a fixed, ultra-low-profile wall mount for small flat-panel digital signage and hospitality displays. It is aimed at integrators fitting menu boards, wayfinding screens and meeting-room displays in indoor public spaces. Its universal VESA pattern range and portrait or landscape mounting let one bracket serve several panel types, while the Q-Latch system speeds up the hang-on step. Backed by a 10-year limited warranty, it suits projects that need a clean, shallow installation close to the wall.

Ultra-Low Profile Wall Mounting

Ultra-Low Profile Wall Mounting

The FSR1U holds the display only about 2,2 cm off the wall. The Chief installation manual gives a depth of 21,8 mm (0,86 in), while Legrand's own marketing copy quotes a slightly shallower installation depth, so the exact figure should be checked on the drawing for tight recesses. For the end user, the shallow profile keeps a screen flush and tidy in shop windows, reception areas and corridors, and reduces the chance of passers-by knocking the display. Where a bulky bracket would look out of place, this is the practical choice.

Q-Latch Quick Installation

Q-Latch Quick Installation

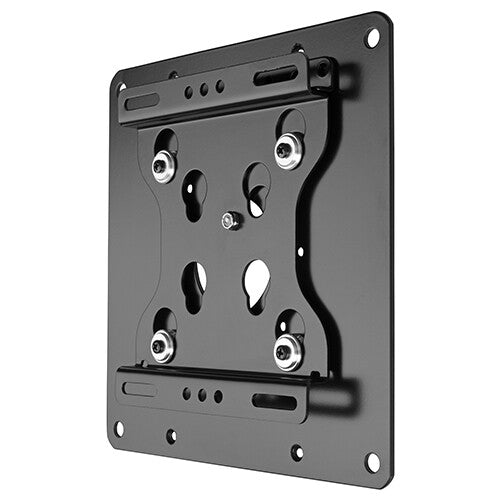

Chief's Q-Latch system lets the installer seat the display's mounting buttons into the fixed plate and then close a latching flag, instead of holding a heavy screen in place while fastening it. A flag extension is supplied for displays of 81,3 cm or larger, where the latch would otherwise be hard to reach. For the installer this shortens the hang-on step; for the end user it means a display that is seated and locked on the bracket. An optional padlock can be fitted to the latching flag, which helps deter removal of a screen in an unattended public area.

2,2 cm off the wall. 20,4 kg capacity. Indoor use only.

Limited 10-year manufacturer warranty · Interface bracket included

Portrait or Landscape, Universal VESA Range

Portrait or Landscape, Universal VESA Range

The bracket supports 5 x 5 cm, 7,5 x 7,5 cm, 10 x 10 cm, 20 x 10 cm and 20 x 20 cm VESA patterns and can be mounted in either portrait or landscape orientation. Its mounting holes are spaced for 5 cm and 10 cm patterns, and the bracket allows about ±1,27 cm of lateral shift for centring on a stud. A single SKU therefore covers a wide mix of small panels, which reduces the number of brackets a reseller needs to stock and lets the same product be used for vertical menu boards and horizontal screens.

20,4 kg Rating With Structural Requirements

20,4 kg Rating With Structural Requirements

The FSR1U is rated for a combined weight of 20,4 kg across all attached components. The manual makes the installer responsible for confirming that the structure can carry five times the combined equipment weight, and it allows a single 2 x 4 wood stud or a stud plus drywall between 1,27 cm and 1,6 cm thick, using the supplied anchors. This means a pre-install check of the wall construction is part of the job. Done correctly, the display stays firmly fixed for its whole service life rather than sagging or shifting over time.

Indoor Use Only

Indoor Use Only

The manual explicitly states that this mounting system must not be used outdoors. This is a limitation to flag when quoting, since exposed sites such as building façades or outdoor totems need a different product. Within indoor public spaces, including shop interiors, lobbies and meeting rooms, the FSR1U fits the intended use and the 10-year limited warranty applies to that use.

Design5 specifications
Product colourBlack
AdjustabilityFixed
Solution typeUniversal
OrientationLandscape, Portrait
CertificationULCERT
Weight & dimensions4 specifications
Shipping weight1,36 kg
Minimum depth2,18 cm
Height17,8 cm
Weight1.36 kg
Packaging data1 specification
Package weight1.5 kg
Packaging content1 specification

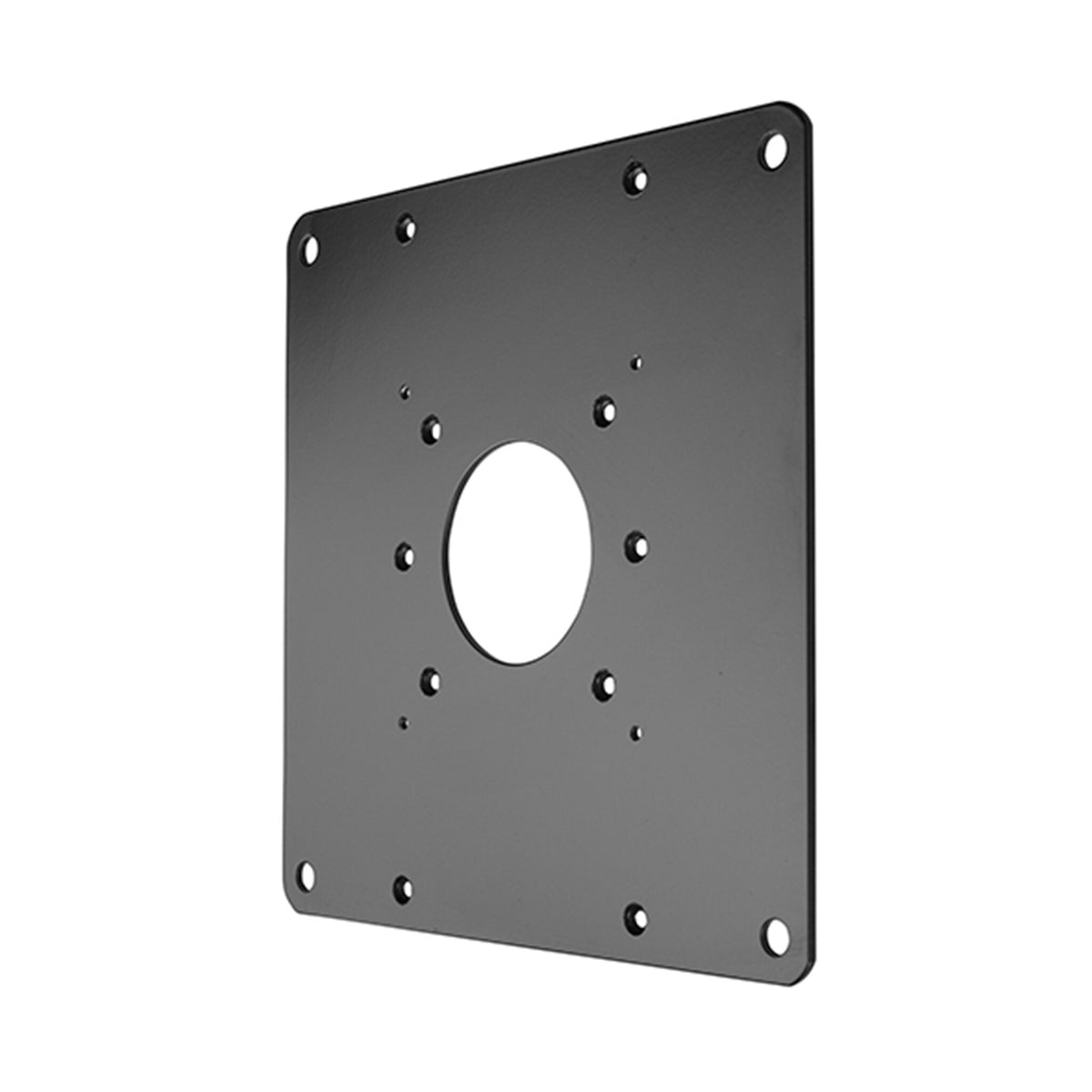

Included itemsChief FSB1U interface bracket, mounting assembly, flag extension, hollow wall anchors, screws and washers, installation instructions
Operational conditions3 specifications
Installation environmentIndoor only; do not use outdoors
Drywall thickness1,27 cm to 1,6 cm
Structural load requirementStructure must support five times the combined weight of all equipment
Mounting16 specifications
Mounting typeWall
Wall stud compatibilitySingle stud
Maximum weight capacity20,4 kg
Minimum screen size25,4 cm
Maximum screen size81,3 cm
VESA mounting pattern compatibility5 x 5 cm; 7,5 x 7,5 cm; 10 x 10 cm; 20 x 10 cm; 20 x 20 cm
Mounting hole spacing, 50 mm pattern5 cm
Mounting hole spacing, 100 mm pattern10 cm
Lateral shift±1,27 cm
Drill pilot holes0,32 cm (1/8 in drill bit)
Drill 3/8” anchor holes0,95 cm (3/8 in drill bit)
Fasten assembly to wood stud usingTwo #10 x 6,35 cm (2-1/2 in) Phillips head screws
Minimum VESA mount50 x 50 mm
Maximum VESA mount200 x 200 mm
Panel mounting interface50 x 50,75 x 75,100 x 100,200 x 100,200 x 200
Number of displays supported1
Logistics data1 specification
Harmonized System (HS) code85299097
Other features5 specifications
Quick-install systemQ-Latch mounting system
Flag extensionIncluded; attach for displays of 81,3 cm or larger
Security optionPadlock point on latching flag (optional padlock)
Warranty10-year limited manufacturer warranty
EAN841872168593

Specifications are checked against the manufacturer's documentation where available.
