AUDAC SMQ350 quad-channel power amplifier 4 x 350W

AUDAC SMQ350 quad-channel power amplifier 4 x 350W

350/500/750 W, WaveDynamics DSP, 20 Hz - 20 kHz, SNR 95 dB, XLR, RS-232, 482 x 88 x 420 mm, 8100 g, black

  • Lightweight class-D amplifier

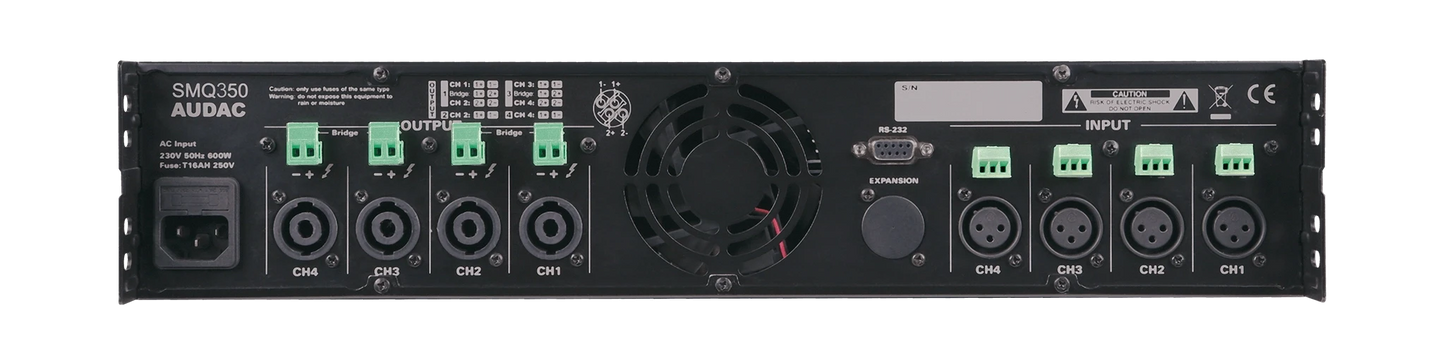

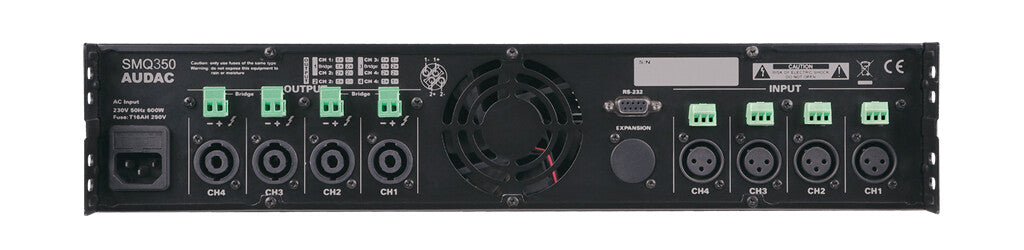

  • Speakon compatible & terminal block output connections
  • RS232 control
  • Dante™/AES67 expansion port
  • XLR & terminal block input & linkthrough connections
  • Advanced DSP and loudspeaker management

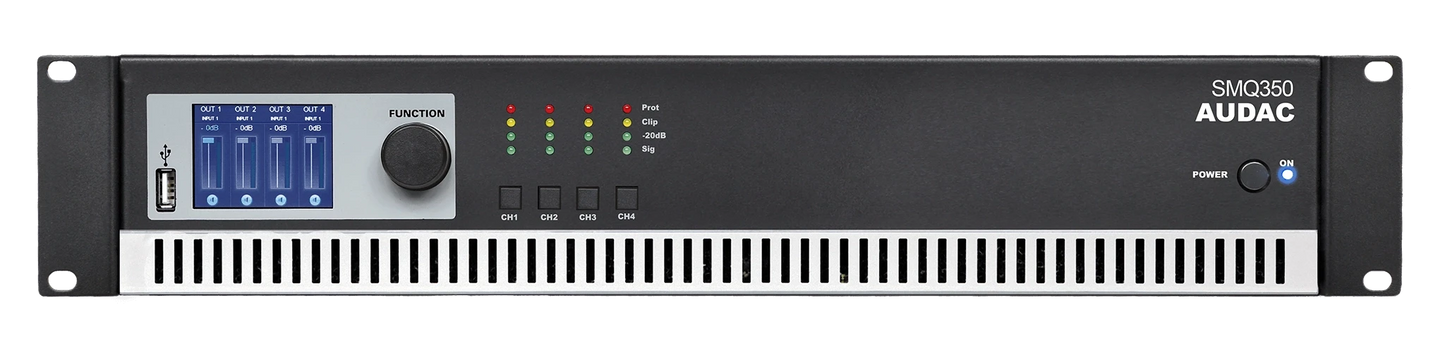

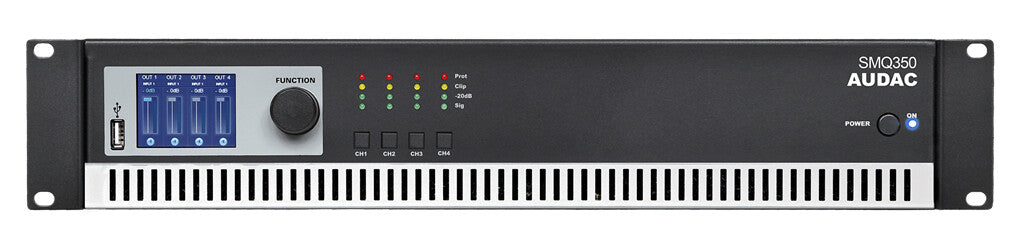

  • 2.5" LCD display with intuitive user interface
  • WaveDynamics™ speaker & set configurations
  • SKU:SMQ350
  • MPN:SMQ350

You need to login to view the price.

Add To Favorite
View full details

AUDAC SMQ350. Amplifier class: D, Total Harmonic Distortion (THD): 0.05%, Signal-to-Noise Ratio (SNR): 95 dB. Speakers connectivity type: XLR. AC input voltage: 230-240 V, AC input frequency: 50 - 60 Hz, Power protection features: Overheating, Overload, Short circuit. Width: 482 mm, Depth: 420 mm, Height: 88 mm. Package weight: 11.1 kg

The SMQ series are quad channel power amplifiers providing a new standard for affordable audio amplification in both fixed and mobile audio installations. Their advanced features and availability in different output powers for 350 Watt, 500 Watt and 750 Watt provide an enormous flexibility for numerous applications. The WaveDynamics™ DSP processor in combination with the 2.5” LCD display gives an unmatched user experience with intuitive functions overview for easy configuration. Acoustics can be optimized using Butterworth, Bessel and Linkwitz-Riley filters with selectable rolloff which can be configured as Low / High & Band Pass and the 7-Band equalizer which has adjustable frequencies and Q-factor. Other provided functions are delay and dynamic bass boost. These settings can be custom configured using the front panel of the amplifier, whereby access can be given on two different levels (User & Administrator) using password or USB-key protection. Loudspeaker protection is provided by an output power limiter whereby the maximum output power for every channel (in Watt) can be configured. Configuration is made simple with loudspeaker presets and full system configurations which can be selected from a library and uploaded with an USB flash drive. This ensures the best acoustical performance with a bullet-proof loudspeaker protection. A great input flexibility and source compatibility is provided by the input selection matrix in combination with the XLR and terminal block signal connections. The outputs are made using Speaker and Terminal block connections. System integration is made easy using the RS-232 control port. An optional Dante™ interface is available for the WaveDynamics™ amplifiers. The installation of this network interface allows receiving and sending of low latency, high quality audio over a standard Ethernet network.

Frequency range
20 - 20000 Hz
Input impedance
10000 Ω
Crosstalk (1kHz)
70 dB
RMS power output per channel (8 Ohm)
700 W
RMS power output per channel (4 Ohm)
350 W
Damping factor
Signal-to-Noise Ratio (SNR)
95 dB
Total Harmonic Distortion (THD)
Amplifier class
Ports & interfaces
AC (power) in
XLR in
Speakon ports quantity
Speakers connectivity type
Technical details
Cooling type
Product colour
Connectivity technology
Built-in display
Power protection features
Overheating, Overload, Short circuit
AC input frequency
50 - 60 Hz
AC input voltage
230-240 V
Weight & dimensions
8.1 kg
88 mm
420 mm
482 mm
Operational conditions
Operating relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 40 °C
Packaging data
Package weight
11.1 kg
