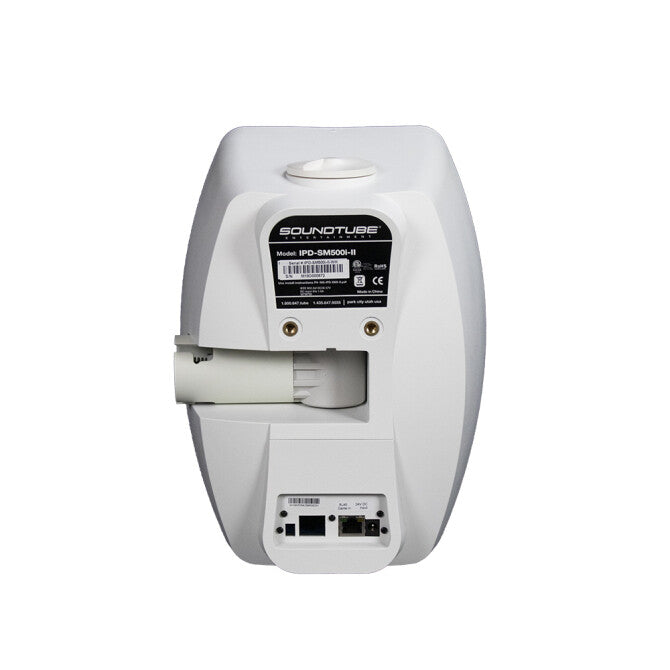

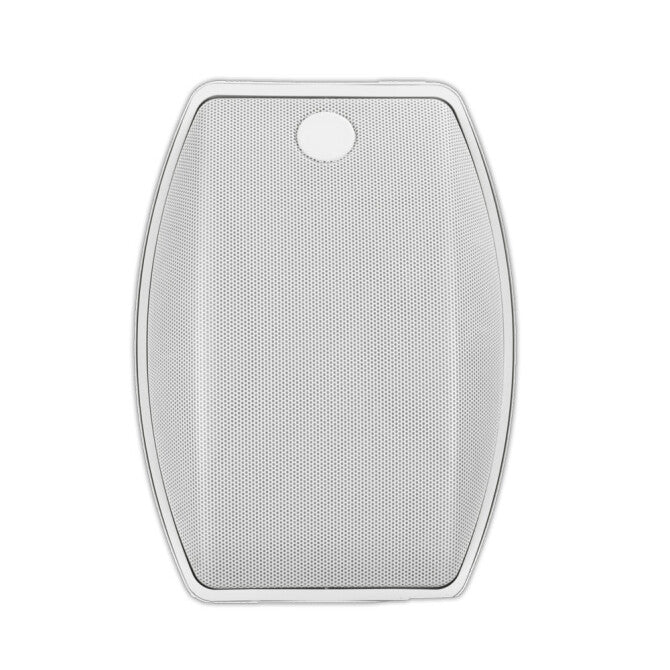

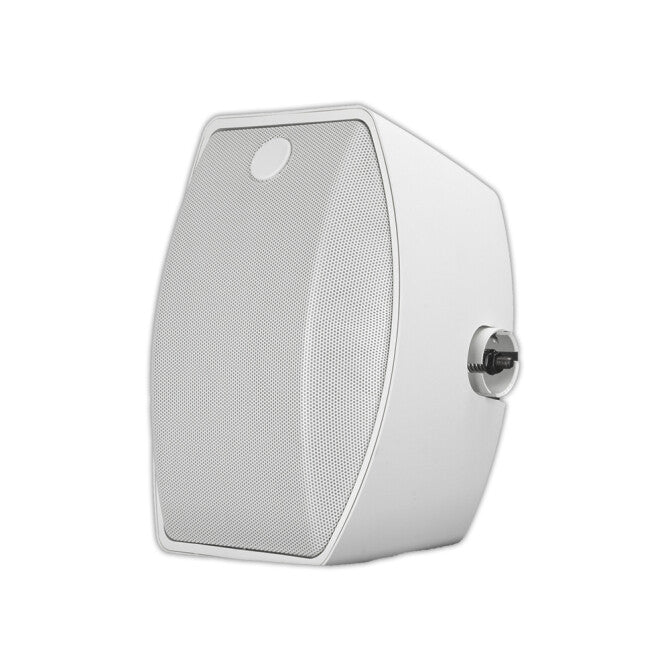

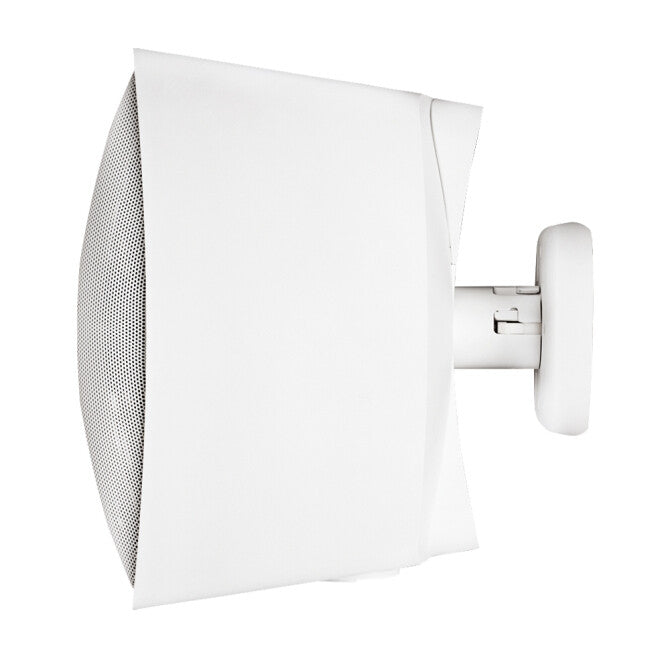

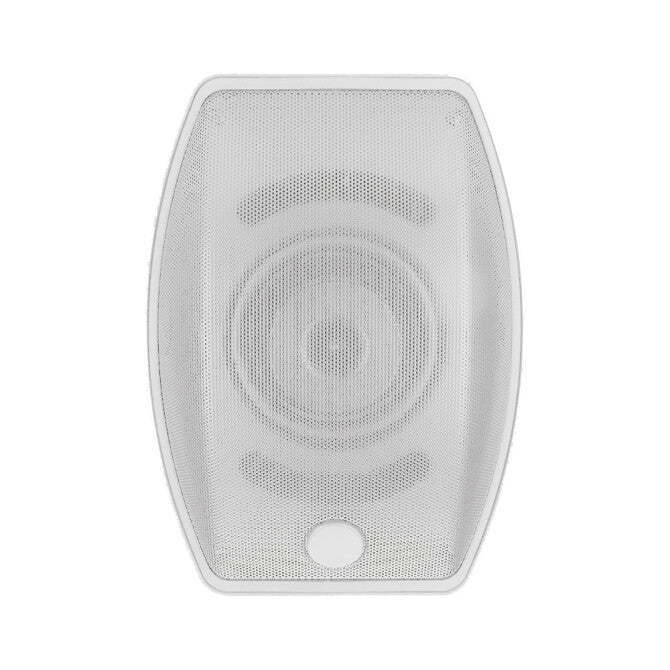

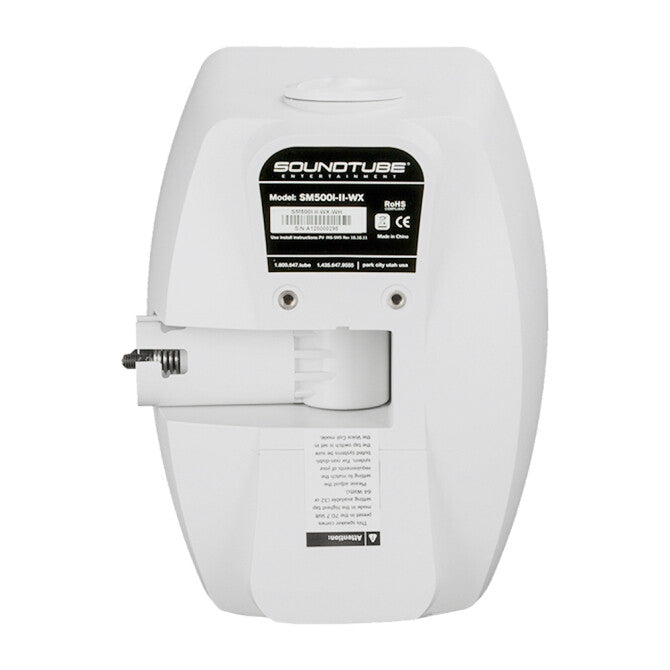

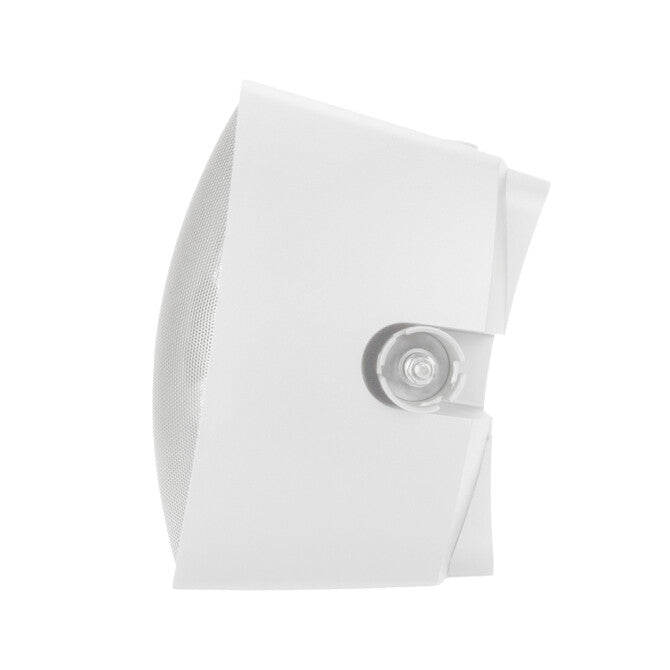

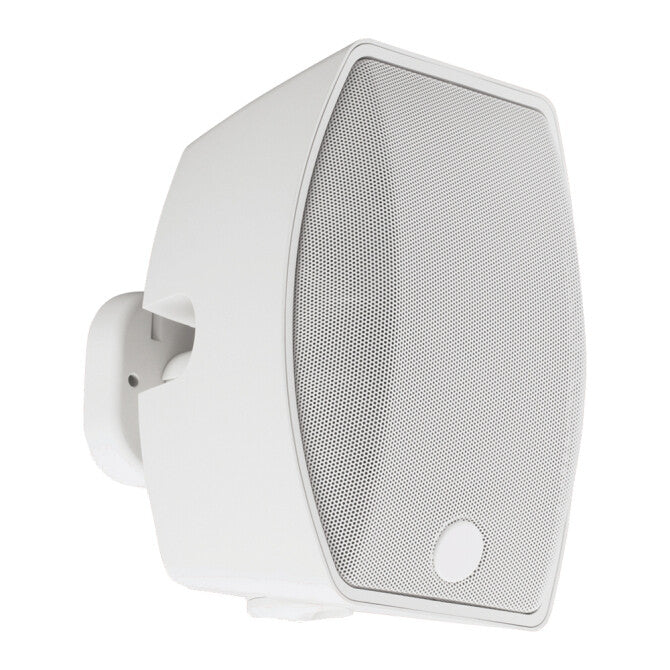

IPD-SM500I-II-WH Dante®-enabled surface-mount speaker

IPD-SM500I-II-WH Dante®-enabled surface-mount speaker

SoundTube 5.25" IP-Addressable, Dante-enabled, Surface Mount Speaker in White

  • 86 - 22000 Hz
  • Acrylonitrile butadiene styrene (ABS)
  • White
  • SKU:AU/MSE/IP/IPD-SM500W
  • GTIN/EAN:748252172860
  • MPN:SM500i-II-WX-WH

You need to login to view the price.

Add To Favorite
View full details

SoundTube Entertainment IPD-SM500I-II-WH. Recommended usage: Universal. Connectivity technology: Wired. Frequency range: 86 - 22000 Hz, Sensitivity: 98 dB. Product colour: White

Dante®-enabled surface-mount speaker incorporating one 5.25-inch polypropylene woofer (134 mm) and one 1.0-inch (25.4 mm) convex titanium tweeter with BroadBeam® waveguide in an injection-molded, glass fiber reinforced ABS enclosure. Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. Mounting hardware for the IPD-SM500i-II is included and features SoundTube®'s proprietary Stealth™ bracket mounting system, providing unlimited directional aiming and a low profile, with a security knob to reduce tampering after placement. The system includes a detachable mounting plate designed for premounting in either wall or pole applications.

Loudspeakers
Woofer diameter (imperial)
13.3 cm (5.25")
Woofer diameter
13.3 cm
Woofer
Y
Tweeter diameter (imperial)
2.54 cm (1")
Tweeter
Y
Speaker placement
Wall-mountable
Audio
Crossover frequency
3000 Hz
Sensitivity
98 dB
Frequency range
86 - 22000 Hz
Performance
Certification
CE, RoHS, UL2043, UL60065
Housing material
Acrylonitrile butadiene styrene (ABS)
Recommended usage
Universal
Product colour
White
Amplifier
Amplifier
N
Ports & interfaces
Bluetooth
N
Connectivity technology
Wired
Weight & dimensions
Diameter
21.2 cm
Height
289.6 mm
Depth
266.3 mm
Packaging data
Package depth
336.6 mm
Package width
273.1 mm
Packaging data
Package weight
4.3 kg
Package height
311.1 mm
Package type
Box
Packaging content
Quantity per pack
1 pc(s)
Sustainability
Sustainability certificates
CE, RoHS
