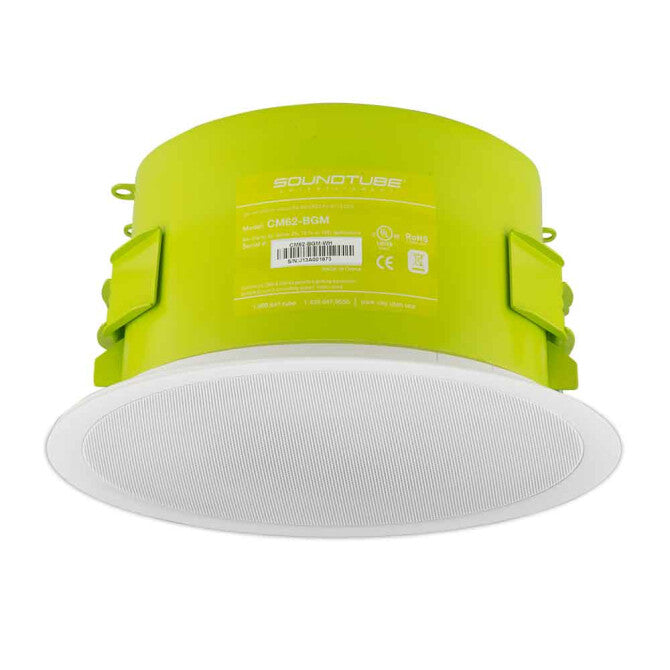

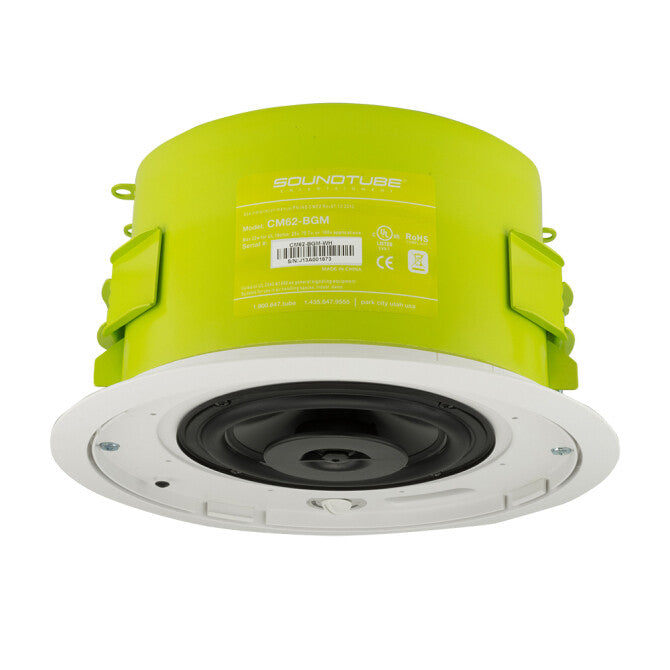

SoundTube CM62-BGM In Ceiling Speaker in White

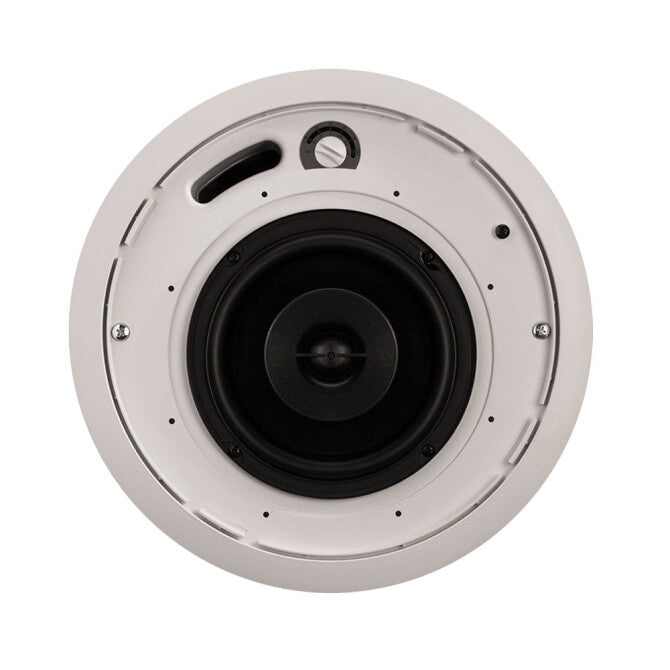

One 6.5 inch (165 mm) polypropylene woofer with rubber surround and one 1.0 inch (25.4 mm) silk dome tweeter. BroadBeam Ring™ technology for mid-range clarity and smooth off axis performance. Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation. Tuned port on baffle for added musicality and bass response down to 64 Hz (-10 dB). Reduced amplification costs and maximum efficiency of 85.0 dB sensitivity, 16 ohm impedance. Incorporates a painted steel grille for lasting durability. Adaptable to material thicknesses ranging from 0.035 inch (0.9 mm) to 1.6 inch (40.6 mm). UL 1480, UL 2043 and EN54-24 listed. IP-Rating: IPX3.
Included accessories: Choose between a tile bridge or a pre-construction bracket, UL listed 0.5 inch conduit clamp, paint shield.
Owner's Manual | Tech Sheet | Mechanical Drawing | A&E Specs | GLL | EN54 Certification | UL Certificate
Color | White |
---|---|
UPC | 752830440982 |
Manufacturer | SoundTube |
Manufacturer's Category | CM-BGM Background Music In-Ceiling |
Shipping Weight | 10.4 lbs / 4.72 kg |
Carton Height | 8 in / 203.2 mm |
Carton Length | 13.25 in / 336.55 mm |
Carton Width | 13.25 in / 336.55 mm |
Certifications | CE, EN54, RoHS, UL1480, UL2043 |

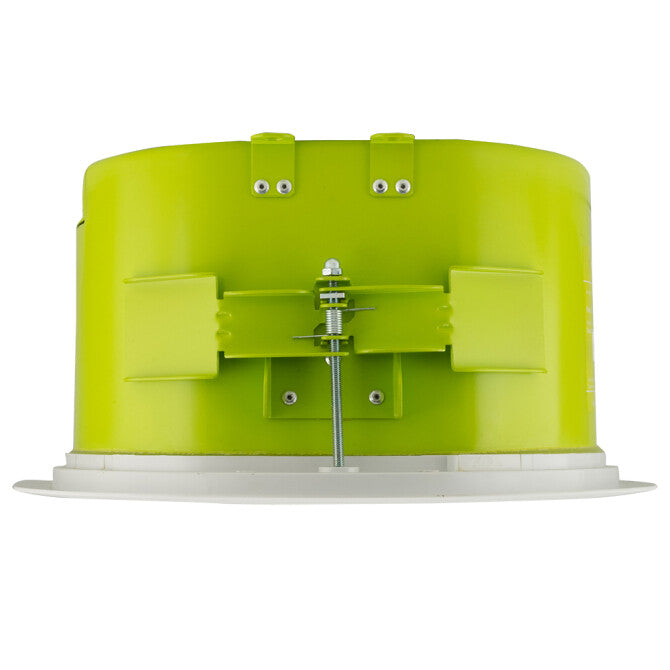

Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Ported |
Enclosure Volume | 350 cu in / 5735.47 cu cm |
Included Accessories | Conduit Clamp, Cover Plate, Grille, Paint Mask, Choose Between a Tile Bridge or Pre-Construction Bracket |
Optional Accessories | White Grille (GRL-CM6/8EZ-II-WH)|Tile Bridge (AC-CMEZ6/8-TB)|Pre-Construction Bracket (AC-CMEZ6/8-PCB)|Junction Box (AC-CM-EZ-JBOX) |
Source Inputs | 4 Pin Ceramic Terminal |
IP Rating | IPX3 |
Backcan Diameter | 9.67 in / 245.6 mm |
Backcan Height | 5.75 in / 146.1 mm |
Coverage Angle (±6dB @ 2kHz) | 100° |
Crossover Frequency | 4.0 kHz |
Cutout Width/Diameter | 10.5 in / 266.7 mm |
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 5.9 and 8.0 |
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 4.9dB and 6.3dB |
Frequency Response (± 10 dB) | 50 Hz - 22 kHz |
Frequency Response (± 3 dB) | 54 Hz - 20 kHz |

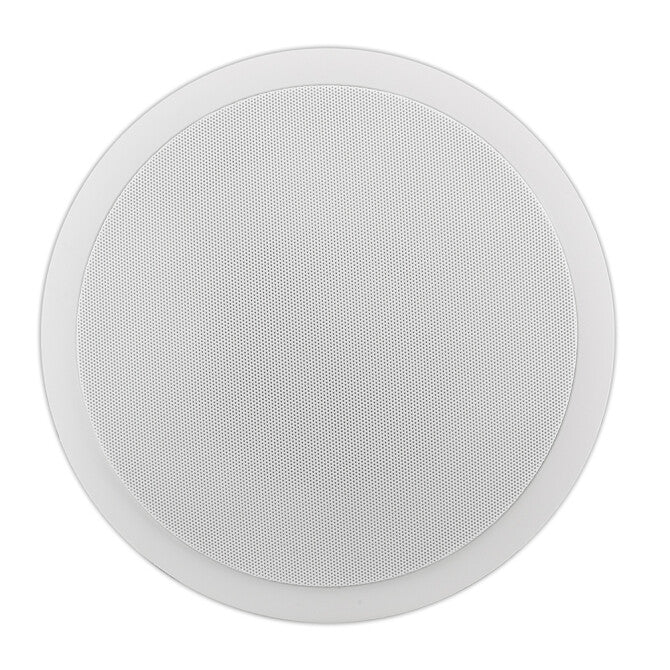

Grille Properties | Standard-Flange, Friction-Fit, White, Paintable, Painted, Steel |
Low Frequency Voice Coil | 1 in / 25.4 mm |
Low Pass Crossover | 12 dB per octave 2nd order |
Max. Ceiling Thickness | 1.6 in / 40.6 mm |
Max. Continuous Power RMS | 50W |
Max. Program Power | 100 W |
Minimum Impedance (Ω Ohms) | 16 Ω |
Minimum Ceiling Thickness | 0.04 in / 0.9 mm |
Network Type: High Pass | 6 dB per octave 1st order |
Nominal Impedance (Ω Ohms) | 16 Ω |
Tweeter Driver | 1" Silk Dome w/ BroadBeam Ring® |
Woofer Driver | 6.5" Polypropylene Cone w/ Butyl Rubber Surround |
Sensitivity dB @ 1W/1M | 84.5 dB |
Sensitivity dB @ 2.83V/1M | 81.4 dB |
Tap Selector | Rotary Switch |
Transformer Taps Max. Setting (25V/70.7V/100V) | 4W/32W/32W |
Visible Diameter | 11.75 in / 298.5 mm |
Visible Height | 0.34 in / 8.6 mm |
