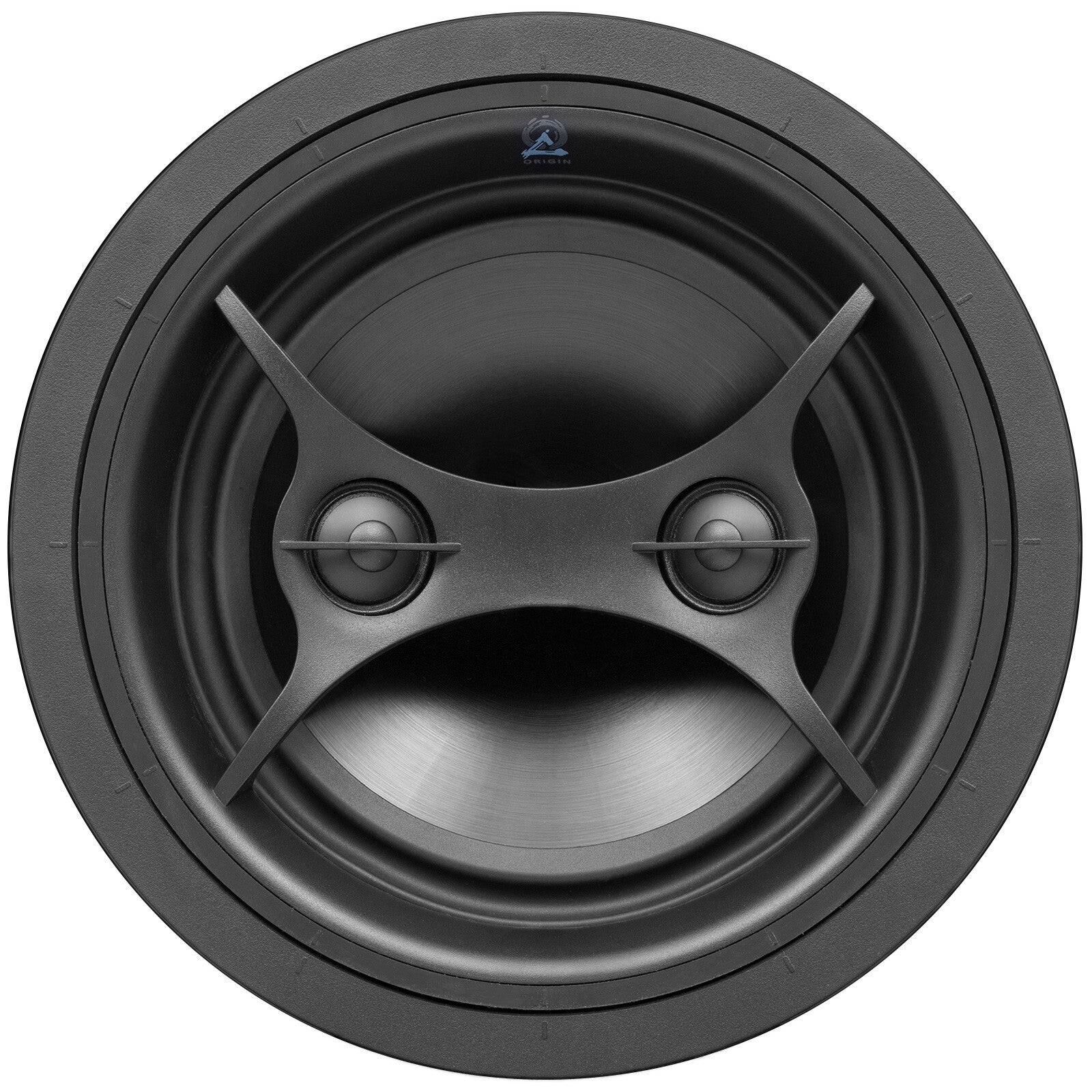

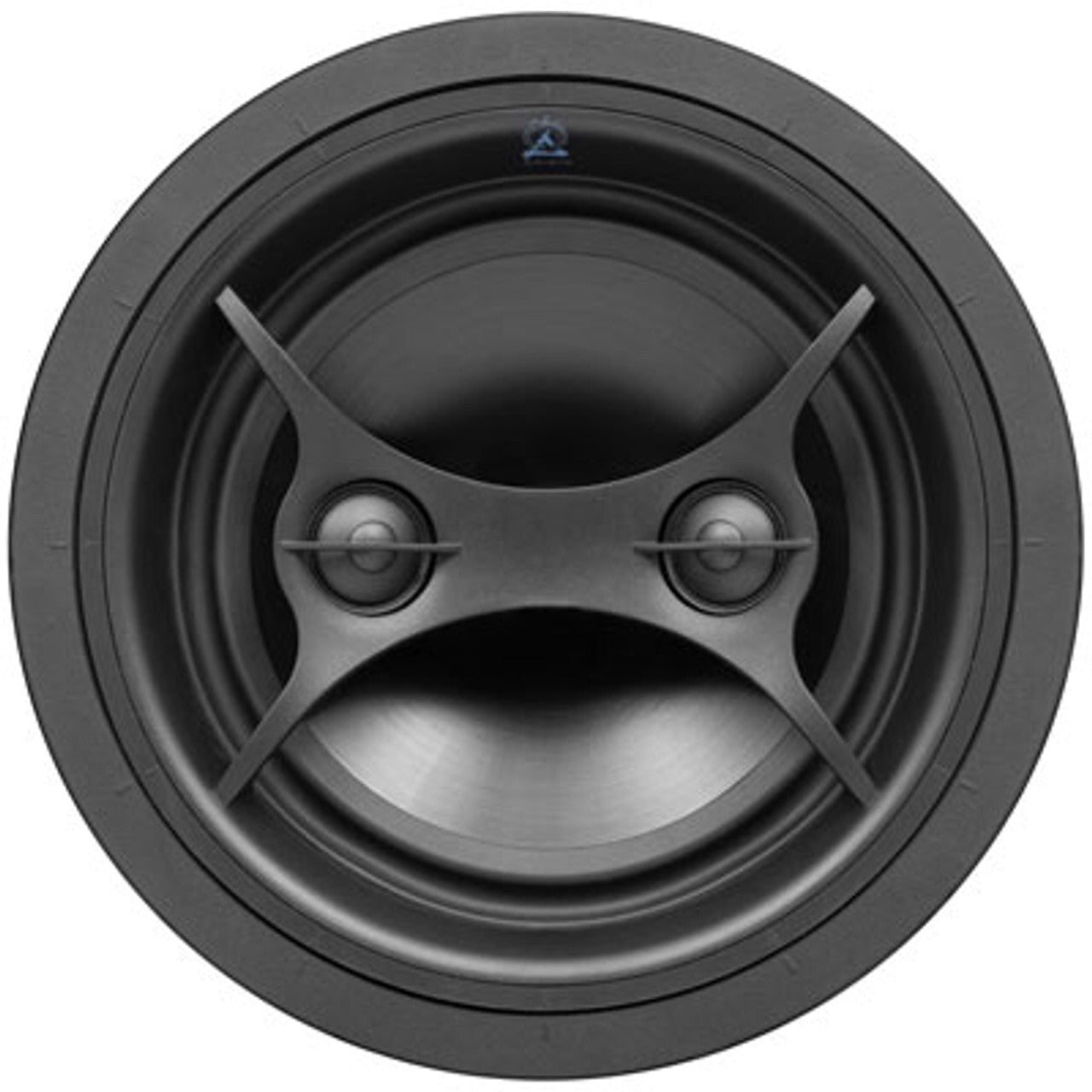

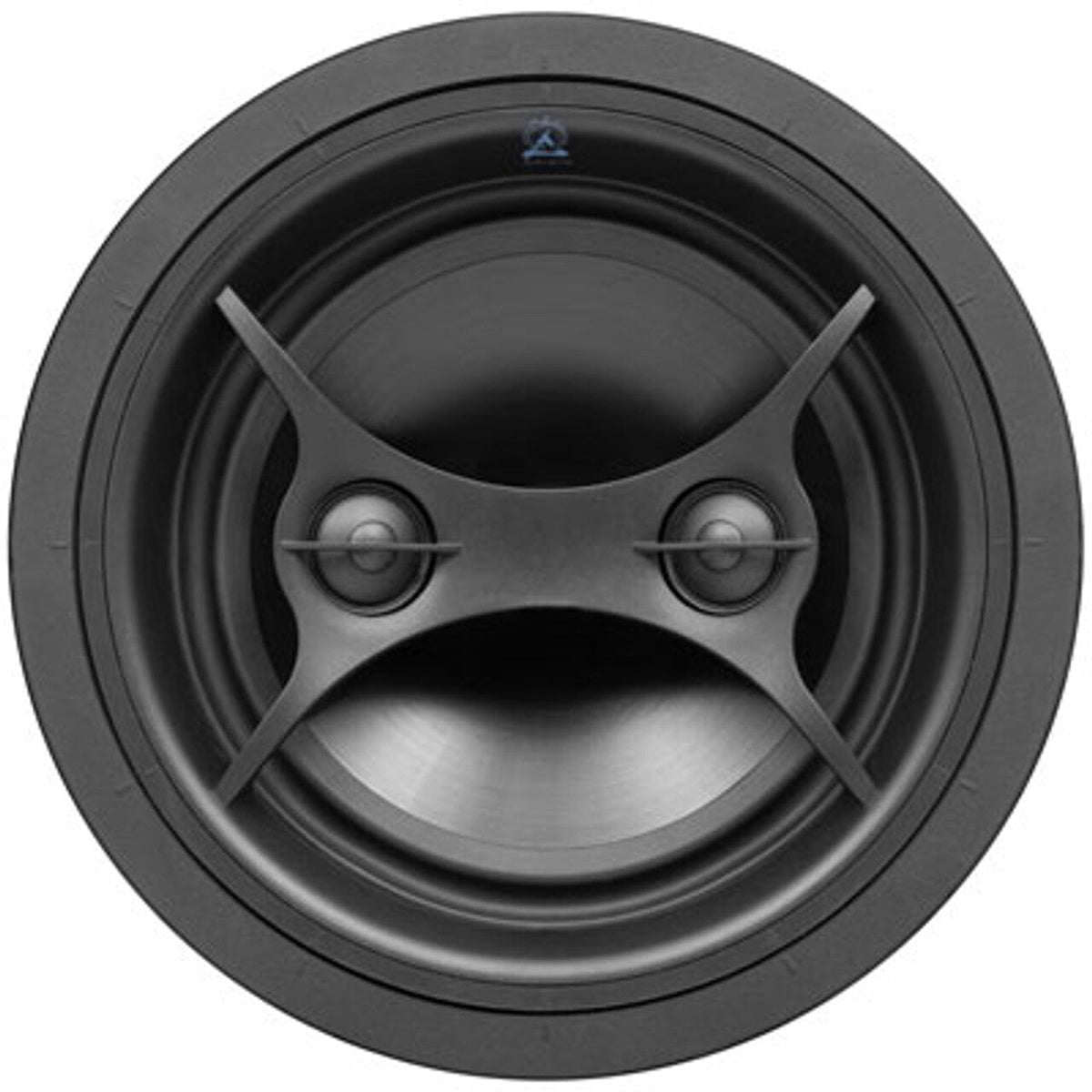

Origin Acoustics D83DT/SUR

The Origin Acoustics Director D83DT/SUR is a premium 8-inch in-ceiling loudspeaker engineered for custom residential and commercial audio installations. Designed for integrators who need flexibility without compromise, it combines deep, full-range sound with a compact footprint that fits an 8.75-inch cutout — the same as a standard 6-inch competitor speaker. The dual 1-inch aluminum tweeters, proprietary X-Wave woofer surround, and compression-molded IMG woofer basket together deliver exceptionally clean, low-distortion audio across the full 38 Hz–20 kHz range. A rear-panel switch lets a single speaker operate as a true stereo source or be reconfigured as a bipole surround channel, making it the go-to choice for distributed audio rooms, hallways, home cinemas, and any space where maximising acoustic versatility matters.

Stereo or Bipole Surround — One Speaker

A rear-panel switch lets the D83DT/SUR operate in two completely different modes without any rewiring. In stereo mode, the amplifier feeds a separate channel to each of the two 1-inch aluminum tweeters, turning a single ceiling speaker into a full left-right stereo source — ideal for bathrooms, walk-in closets, hallways, and other spaces where installing a pair is impractical. In surround (dipole) mode, one channel drives both tweeters simultaneously in a bipole configuration, spreading sound widely around the room and creating the diffuse, enveloping rear field that home-cinema standards require. This dual-mode capability means an integrator can specify one product for two very different roles across a project, reducing SKU count, simplifying ordering, and giving the end user a genuinely adaptable audio infrastructure that can evolve as the room's use changes.

8" Bass in a 6" Footprint

Most 8-inch in-ceiling speakers demand a substantially larger ceiling cut-out than their 6-inch counterparts — a real constraint in older homes or finished ceilings where cutting a bigger hole means patching drywall and repainting. The D83DT/SUR uses Origin Acoustics' proprietary basket geometry to deliver full 8-inch driver performance through a standard 8.75-inch (222 mm) cutout — the same diameter required by many competitors' smaller 6-inch models. The practical result for the end user is noticeably deeper, more impactful bass (frequency response reaches down to 38 Hz) without any extra construction work, and without the visual footprint of a large grille dominating the ceiling. For integrators, it means an 8-inch upgrade is a like-for-like retrofit wherever a 6-inch speaker already exists.

One speaker. Stereo today. Surround tomorrow.

Limited Lifetime Warranty · Available through authorised Origin Acoustics dealers only

Tool-Less Zip-Klip Installation (Patent #9591390)

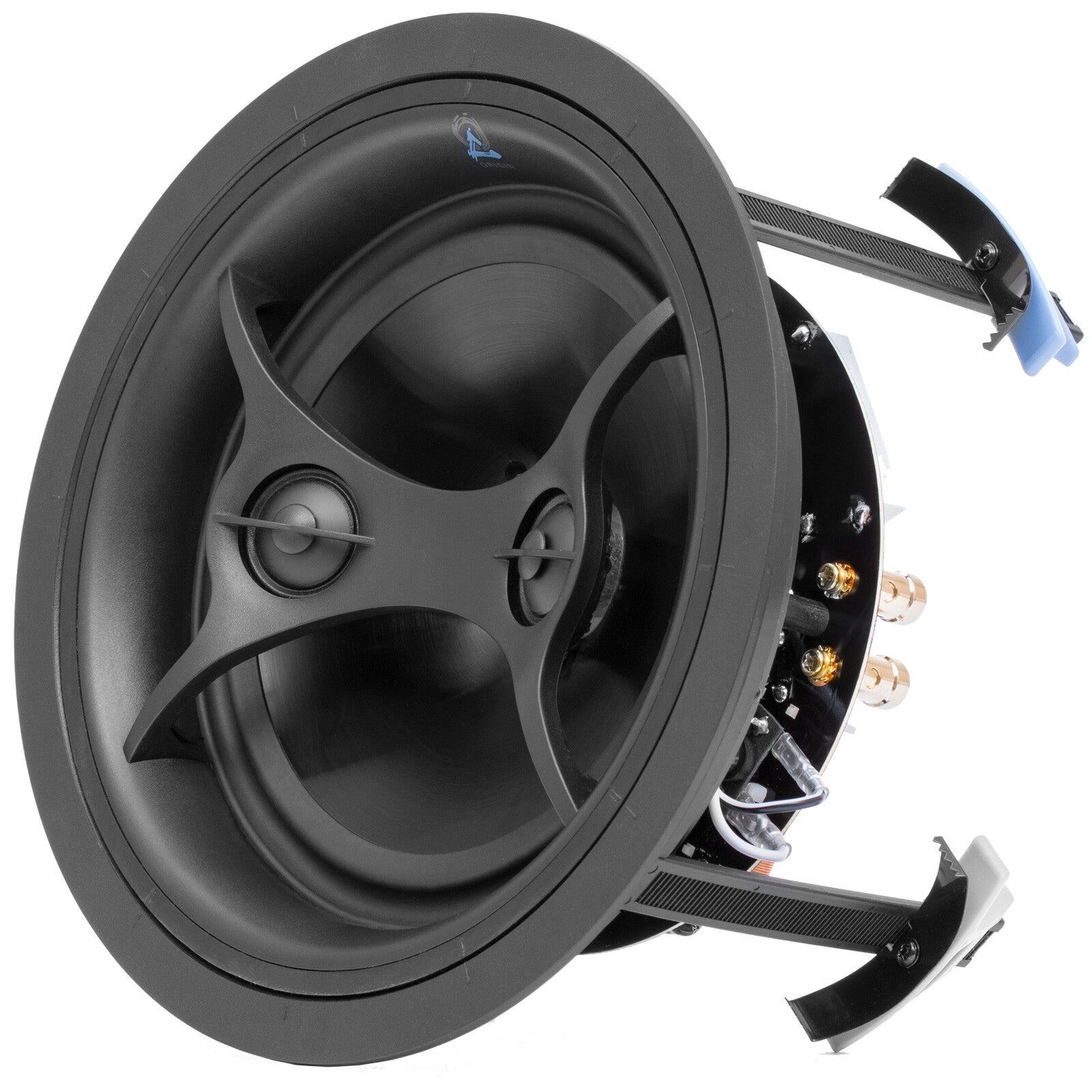

Origin Acoustics' patented Zip-Klip bayonet mounting system eliminates screwdrivers entirely from the installation process. The speaker ships pre-seated in its bayonet ring; the installer pushes the ring into the ceiling cut-out, pulls down the spring-loaded Zip-Klip grips by hand, and twists the speaker 15° clockwise to lock it in place. The weight is distributed across multiple contact points rather than concentrated at two traditional dog-leg clips, which reduces stress on the drywall and greatly lowers the risk of the speaker working loose over time — a common complaint with standard ceiling speaker mounts. For integrators working on multi-room projects where dozens of speakers need to go in within a tight schedule, the tool-free process translates directly into faster labour hours and a cleaner finish. The speaker can be removed and re-seated just as quickly, simplifying post-installation adjustments or future servicing.

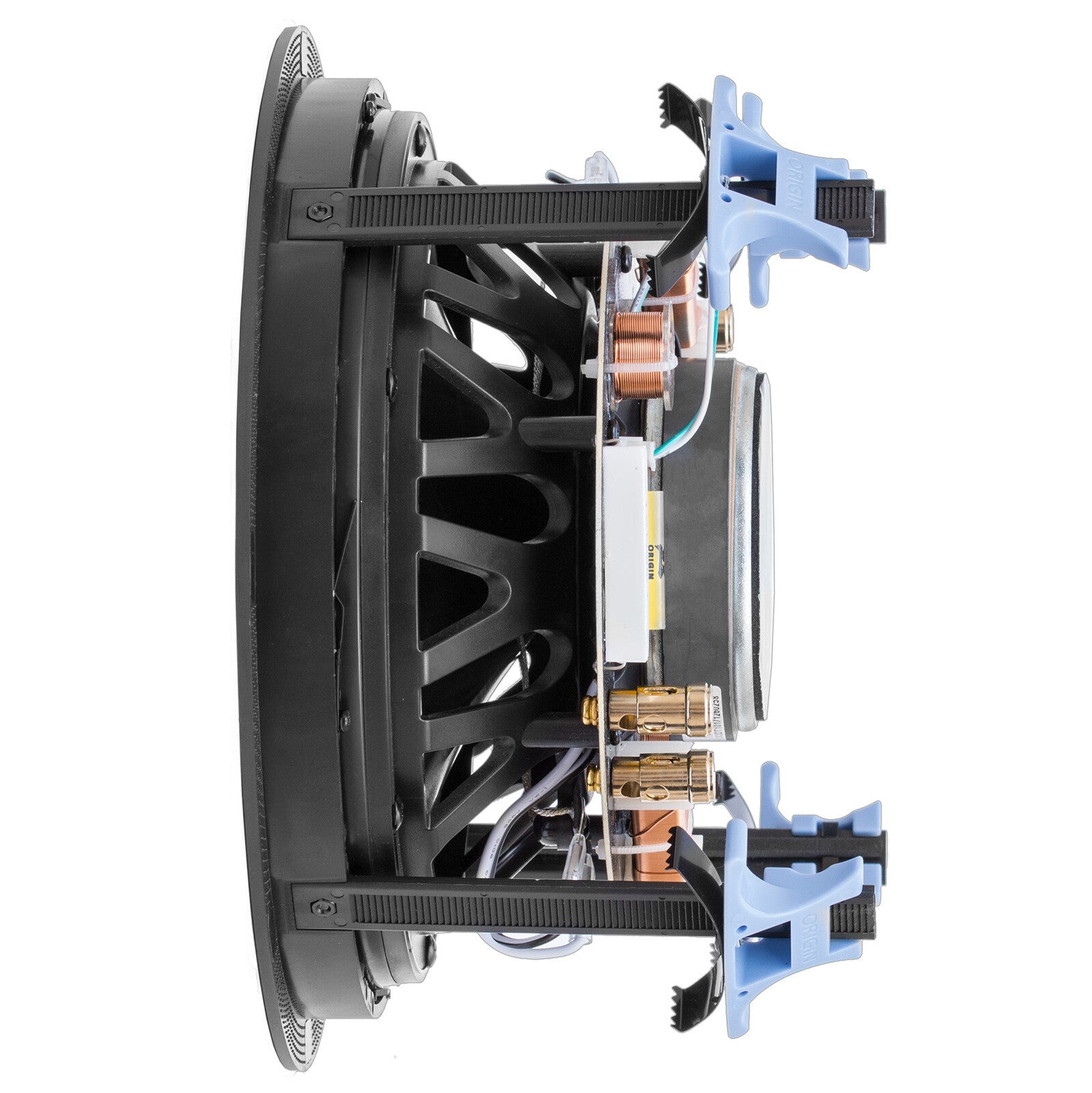

Compression-Molded Basket and X-Wave Surround

Two proprietary acoustic technologies work together to keep distortion exceptionally low. The woofer basket is compression-molded rather than stamped, producing a structure that is stiffer and more dimensionally consistent — this prevents the basket itself from flexing and adding coloration to the sound. The X-Wave woofer surround addresses a separate problem: when the cone reaches its travel limit and abruptly stops, a reflected wave travels back up the cone and creates harmonic distortion audible as a subtle harshness at higher volume levels. The X-Wave surround is profiled to progressively absorb that impact rather than bounce it, smoothing out dynamic peaks. Together these technologies mean the speaker maintains composure at the 50 W RMS (150 W peak) power handling its crossover allows, making it well-suited to enthusiast-level listening levels in living rooms and cinema spaces.

Paintable Magnetic Micro-Bezel Grille

The perforated grille attaches and detaches magnetically — no clips to break, no tools required, and no risk of scratching the ceiling surface during removal. The micro-bezel design keeps the visible frame as small as possible, so the speaker recedes visually into the ceiling rather than drawing attention to itself. The grille is fully paintable with spray paint to match any ceiling colour, and because the grille cloth on the underside is removable before painting, the perforations remain acoustically transparent after decoration. Square replacement grilles are also available separately for a more contemporary look. For interior designers and end users who prioritise a clean, uninterrupted ceiling aesthetic, this combination of small footprint, custom colour matching, and instant magnetic attachment is a significant practical advantage.
