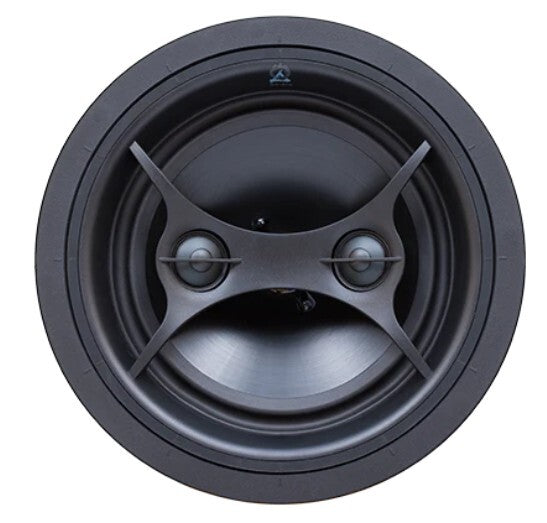

Origin Acoustics D83DT/SUR EX

The Origin Acoustics D83DT/SUR EX is part of the Explorer Collection — a range of architectural loudspeakers purpose-built to survive the harshest marine and wet-area environments, including saltwater exposure, extreme temperature swings, and airborne humidity. Expanding on Origin's acclaimed Director Collection platform, the D83DT/SUR EX features an 8" injection-molded graphite (IMG) woofer paired with dual 1" aluminum tweeters, and is switchable between full stereo dipole and surround dipole modes from a single enclosure. With an IPX6 weather rating, stainless steel hardware, water-sealed crossovers, and a tool-less Zip-Klip bayonet mounting system, it is equally suited to luxury yachts, waterfront patios, pool areas, wet rooms, and demanding residential installations where reliability and sonic performance must coexist.

Full Marine-Grade IPX6 Protection

The D83DT/SUR EX carries an IPX6 rating, meaning it is protected against powerful water jets from any direction — the minimum required for genuine marine and outdoor-wet-area use. Beyond the rating, Origin backs this up with all-stainless-steel hardware to resist corrosion, additional sealing gaskets, and a water-sealed crossover network that protects the electronics from moisture ingress over the long term. The installation manual explicitly recommends marine-grade silicone be applied at both the speaker-to-bayonet-ring joint and the bayonet-ring-to-ceiling joint to further exclude water and resist mechanical vibration from watercraft. In practice this means the speaker can be deployed in ship decks, pool enclosures, waterfront terraces, or steam-adjacent wet rooms with confidence — environments where standard architectural speakers degrade rapidly within one or two seasons.

Dual-Mode Dipole: Stereo or Surround from One Unit

A rear-panel switch allows the D83DT/SUR EX to operate in two fundamentally different modes. In stereo-dipole mode, each of the two 1-inch aluminum tweeters handles a separate channel (left and right), so a single speaker can cover a complete stereo image in compact spaces such as bathrooms, walk-in wardrobes, boat cabins, or hallways — eliminating the need for a speaker pair. In surround-dipole mode, both tweeters reproduce the same mono channel, making the speaker ideal as a rear surround unit in a home-theater ceiling layout. This flexibility matters for integrators quoting marine or residential projects: the same SKU can cover several roles in a system, reducing inventory and simplifying mid-project changes to the layout.

One speaker. Full stereo or surround. Salt, sea and sun proof.

IPX6 rated · Stainless steel hardware · Limited lifetime warranty

X-Wave Surround for Cleaner Bass at Limit

Origin's X-Wave woofer surround is a progressive-stiffness suspension design that becomes increasingly rigid as the cone approaches the limits of its travel. Standard surrounds allow uncontrolled overshoot at the cone boundary, producing harmonic distortion that becomes audible at moderate-to-high volumes. The X-Wave design absorbs the excess energy progressively rather than letting it reflect back through the cone, which measurably reduces distortion in the 700–1,400 Hz range where cone-edge reflections are most audible. For end users, this translates to a speaker that stays composed and clean when driven harder — relevant in outdoor or marine settings where ambient noise often encourages higher playback levels.

Tool-Less Zip-Klip Bayonet Mounting

The patented Zip-Klip mounting system (Patent #9591390) uses a bayonet ring that is inserted into the ceiling cutout first, followed by the speaker itself, which locks in place with a clockwise twist. The spring-loaded Zip-Klip grips secure against drywall without screws or a separate tightening tool. This significantly reduces installation time per unit on multi-speaker projects and makes repositioning or replacement equally straightforward — the speaker is released by pushing the tabs inward and twisting counter-clockwise. On marine installations, the bayonet method also distributes clamping force evenly around the cutout perimeter, which is more resistant to vibration-induced loosening than screw-mounted designs.

Paintable Magnetic Grille — Discreet Aesthetic

The perforated grille attaches via magnets and has no visible fasteners. It can be removed, spray-painted to match any ceiling colour, and reinstalled without tools — the cloth backing is removable before painting and replaced once dry. For resellers specifying high-end residential or marine interiors, this removes a common objection: the grille is not a visual compromise but a fully integrated finish element. Magnetic attachment also means the grille can be removed for periodic cleaning in poolside or marine installations where salt residue or moisture may accumulate, and snapped back without any special hardware.
