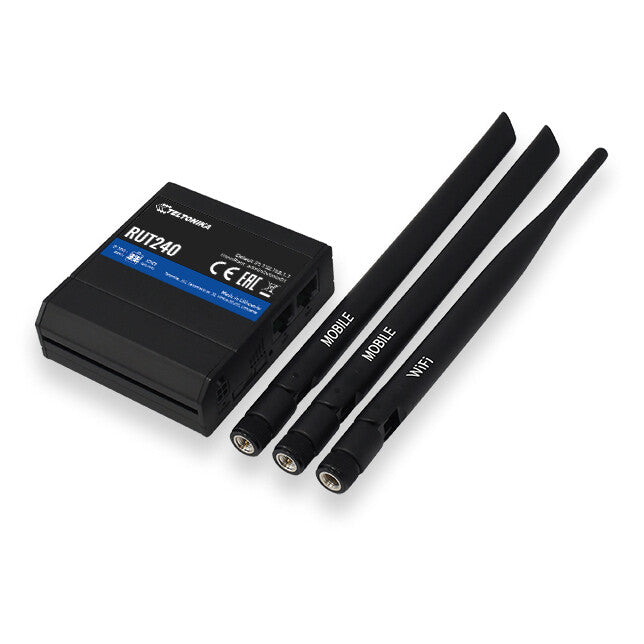

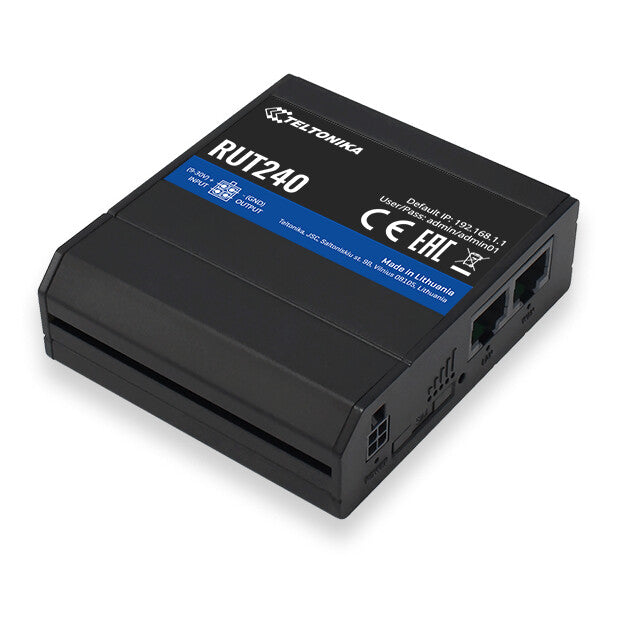

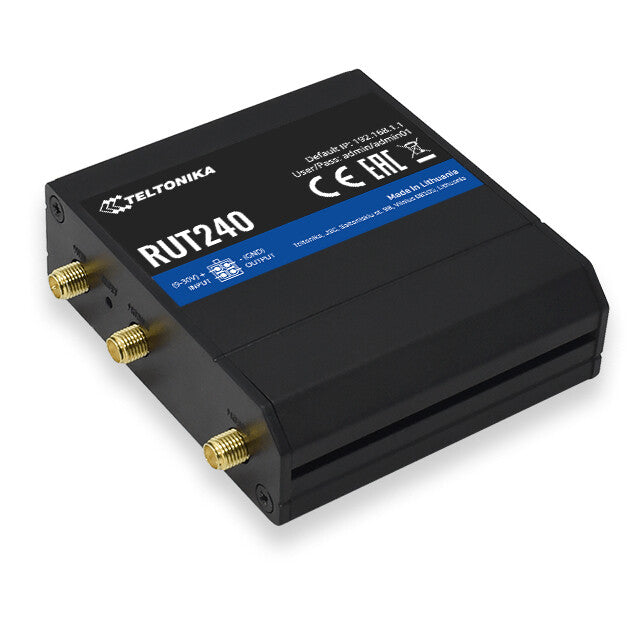

Teltonika RUT240

Teltonika RUT240

4G/LTE Wi-Fi router, 2 x RJ45, 1 x SIM slot, 2 x SMA for LTE, 1 x RP-SMA for WiFi, IP30, 125g

  • LTE Cat 4 up to 150 Mbps support
  • Automatic switch to available backup connection
  • Wireless Access Point with Hotspot functionality
  • Compact size, easy integration
  • Digital Input/Output for remote monitoring and control
  • Teltonika Remote Management System compatible
  • SKU:NET/TT/RUT240
  • GTIN/EAN:
  • MPN:RUT24006E000

You need to login to view the price.

Add To Favorite
View full details

Teltonika RUT240. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 150 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u. Mobile network generation: 4G, 2G standards: Edge, GPRS, GSM, 3G standards: DC-HSPA+, UMTS. Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, SNMP, SSH, WEP, WPA-PSK, WPA2, WPA2-PSK

RUT240 is a compact, cost-effective and secure industrial 4G/LTE Wi-Fi router for professional applications. Mobile router delivers high performance for mission-critical cellular communication in harsh and hazardous wide operating temperature environments. Equipped with external SIM holder, digital input/output and signal strength status LEDs, it ensures easy network management. External SMA antenna connectors make it possible to attach desired antennas and to easily find the best signal location.

Warranty: 2 year

WAN connection
WAN connection type
RJ-45
3G/4G USB modem compatibility
N
SIM card slot
Y
DSL WAN
N
Ethernet WAN
Y
Wireless LAN features
Number of WLAN connections (max)
50
Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)
150 Mbit/s
Top Wi-Fi standard
Wi-Fi 4 (802.11n)
Wi-Fi band
Single-band (2.4 GHz)
Network
VPN tunnels quantity
4
SSID-based VLAN assignment
Y
Dynamic DNS (DDNS)
Y
Load balancing system
Y
Auto MDI/MDI-X
Y
Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates
10,100 Mbit/s
Ethernet LAN interface type
Fast Ethernet
Ethernet LAN
Y
Mobile network
Short Message Service (SMS)
Y
GSM bands supported
900,1800 MHz
UMTS bands supported
850,900,2100 MHz
4G bands supported
800,900,1800,2100,2600 MHz
4G standard
LTE
3G standards
DC-HSPA+, UMTS
2G standards
Edge, GPRS, GSM
3G
Y
4G
Y
Mobile network generation
4G
Ports & interfaces
DC-in jack
Y
Memory card slot(s)
N
USB port
N
Ethernet LAN (RJ-45) ports
2
Management features
Reset button
Y
Quality of Service (QoS) support
Y
Web-based management
Y
Security
System event log
Y
MAC address filtering
Y
Filtering
Y
DoS attack prevention
Y
Firewall
Y
Security algorithms
3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, SNMP, SSH, WEP, WPA-PSK, WPA2, WPA2-PSK
Protocols
Supported network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT
Routing protocols
BGP, OSPF, RIP-1, RIP-2
Design
Indication light
Y
Product colour
Black
Product type
Tabletop router
Packaging content
Quick start guide
Y
AC adapter included
Y
Cables included
LAN (RJ-45)
Antenna
Detachable antenna(s)
Y
Antennas quantity
3
Antenna design
External
Features
Certification
CE/RED, FCC, ISED (IC), EAC, RCM, PTCRB, RoHS, WEEE
Firmware upgradeable
Y
Mean time between failures (MTBF)
310000 h
Processor frequency
400 MHz
Built-in processor
Y
Power
Suitable for use in country/location
Europe
Power consumption (typical)
5 W
Output voltage
9 - 30 V
AC input voltage
100 - 240 V
Power source type
AC, DC
Operational conditions
Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-45 - 80 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
83 mm
Depth
74 mm
Height
25 mm
Weight
125 g
Logistics data
Harmonized System (HS) code
85176990
