Chief TS525TU

The Chief TS525TU is a large-format, full-motion wall display mount from the Thinstall series, designed for commercial and professional AV environments where a clean, architecturally discreet installation is essential. Built for screens from 42 to 75 inches and loads up to 56,7 kg, the dual swing arm system extends up to 63,5 cm from the wall while collapsing to just 5,1 cm when closed. It is equally suited for conference rooms, hospitality settings, retail installations, and control rooms where flexible viewing angles and a tidy cable setup are non-negotiable. Chief's Centris technology and Centerless Lateral Shift system make post-installation adjustments quick and tool-free, saving time on site and reducing return visits.

Centris Fingertip Tilt Technology

Centris is Chief's counterbalanced tilt mechanism that lets a single person reposition a large, heavy display with minimal effort — no tools, no jerky adjustments. The mount provides up to 15° of downward tilt, which is enough to eliminate glare from overhead lighting in conference rooms and meeting spaces. For end users, this means the screen angle can be fine-tuned quickly after installation, even as room layouts or seating arrangements change, without ever touching a wrench or calling a technician back to site.

Centerless Lateral Shift for Perfect Post-Install Alignment

Once the mount is on the wall and the display is hung, the Centerless Lateral Shift system allows the screen to be slid horizontally up to 40,6 cm without unmounting anything. This is a significant practical advantage in commercial environments where wall studs or conduit dictate where the wall plate goes — the display can still be centred precisely over a table, a doorway, or a reception desk after the fact. Combined with 2,5 cm of post-installation height adjustment, the system effectively decouples structural mounting constraints from visual placement requirements.

Extends 63,5 cm. Collapses to 5,1 cm. Fingertip precise.

UL Listed · 10-year Chief manufacturer warranty

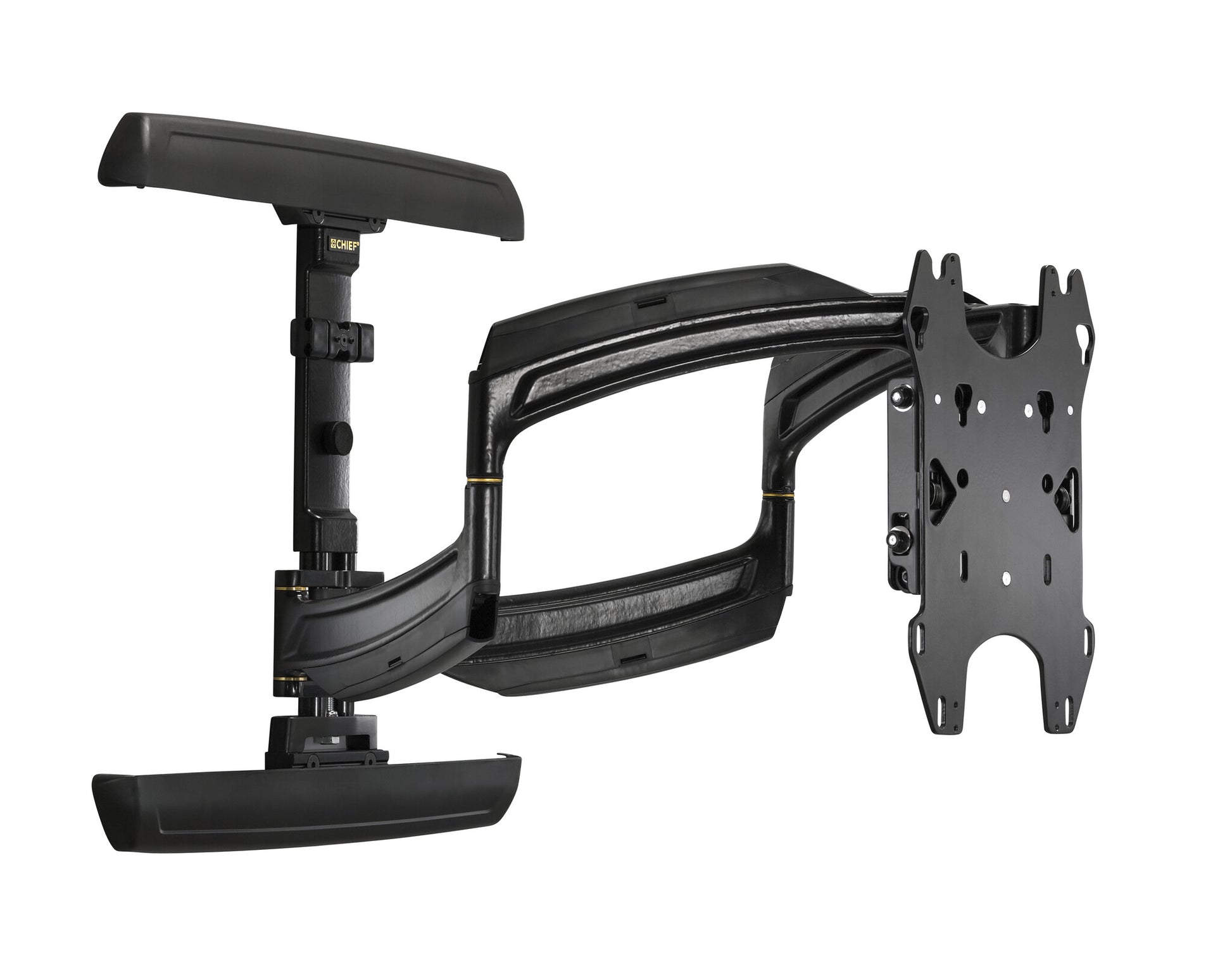

Dual Swing Arms with 63,5 cm Extension

The TS525TU's dual-arm mechanism extends the display up to 63,5 cm from the wall and provides ±45° of pivot, enabling viewers positioned at an angle to the wall to see the screen without compromise. The dual-arm configuration — rather than a single articulating arm — delivers greater rigidity at full extension, which matters when a large 56,7 kg display needs to hold a consistent tilt without drift. When not in use, the arms fold back to a depth of just 5,1 cm, keeping corridors and rooms unobstructed. This makes the TS525TU equally practical in narrow hallways, bar areas, or any space where projection into the room must be minimised when the display is idle.

Integrated Cable Management for Clean, Professional Installs

Cable management is built directly into the arm structure, with enclosed tool-free cable covers and an open wall plate that makes initial routing of power and signal cables straightforward. Cables stay hidden along the full range of the arm's motion, so the installation looks equally tidy whether the arm is collapsed against the wall or fully extended. In client-facing environments — hotel lobbies, boardrooms, retail showrooms — this detail directly affects the perceived quality of the AV installation and avoids the unsightly cable loops that occur with afterthought cable management.

One-Person Rail Installation System

The TS525TU uses a top-rail mounting method: the wall plate and top rail go up first, and the display assembly slides onto it and locks in place. This lets a single installer hang the wall components, step back to verify level and position, and then attach the display without needing a second person to hold the screen. In commercial rollouts across multiple rooms or floors, this directly reduces labour time and installation cost per unit.

Broad VESA Compatibility and UL Listing

The mount accepts VESA hole patterns from 100×100 mm up to 800×400 mm, covering the vast majority of large-format commercial displays and consumer TVs from 42 to 75 inches. UL listing confirms that the mount has been independently tested to relevant safety standards for load and structural integrity — an important credential for commercial projects where liability and insurance requirements apply. The 10-year manufacturer warranty from Chief further supports total cost of ownership in installations expected to run for many years.
