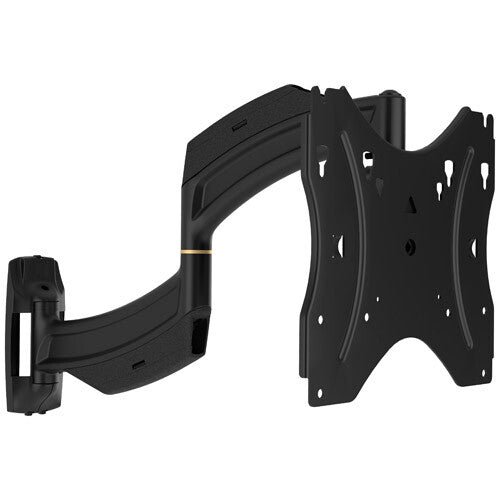

Chief TS118SU

The Chief TS118SU is a lightweight, low-profile full-motion swing arm wall mount from the THINSTALL series, designed for small displays from 10 to 40 inches in residential and commercial AV installations. It mounts to a single wall stud, making it ideal for spaces where dual-stud alignment isn't possible. The arm extends up to 45,7 cm for flexible positioning and collapses to just 3,8 cm when not in use, keeping the display almost flush with the wall. Built for professional installers who need speed, reliability and a clean finish, the TS118SU includes tool-free integrated cable management and supports both landscape and portrait orientations.

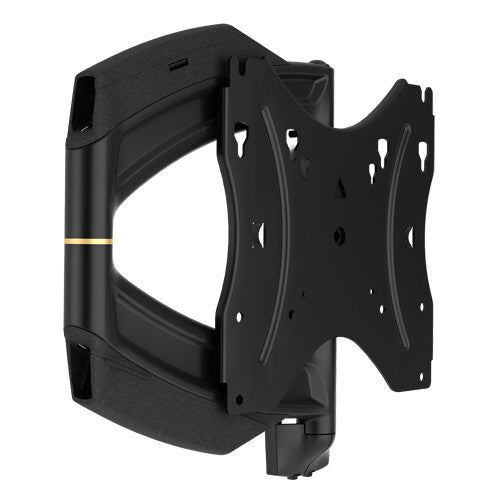

Ultra-Low Profile When Retracted

When fully collapsed against the wall, the TS118SU sits just 3,8 cm deep — barely thicker than the display itself. This makes a real difference in narrow corridors, retail spaces, or any environment where a bulky mount arm would be an obstruction or an eyesore. The slim retracted profile also means the display can be pushed flush against the wall when not actively positioned, maintaining a clean, professional appearance between use. Paired with the enclosed cable routing, there are no visible wires or protruding hardware when the mount is in its home position.

Single-Stud Installation

The TS118SU is engineered to mount to a single wall stud, which significantly widens the range of viable installation locations. In many rooms — particularly in residential settings, hotel rooms, or older commercial spaces — stud spacing makes it difficult or impossible to align a mount to two studs simultaneously. By requiring only one stud, installers can choose the optimal display position based on viewing angle and room layout rather than being constrained by wall construction. This simplifies site surveys and reduces the risk of on-site surprises during install.

Extends 45,7 cm. Retracts to 3,8 cm. One stud.

UL Listed · 10-year limited warranty

Centris Low-Profile Tilt System

The proprietary Centris tilt mechanism delivers up to 12° of downward tilt using light fingertip pressure — no tools required. Unlike standard tilt mounts that require loosening and re-tightening bolts, Centris allows the end user to quickly fine-tune the viewing angle on the fly. This is particularly valuable in rooms with variable seating heights, such as conference rooms, classrooms or hospitality suites, where the optimal tilt differs depending on whether the audience is seated or standing. The mechanism maintains its set position without drift.

Integrated Tool-Free Cable Management

Enclosed cable covers are built directly into the swing arms, allowing power and signal cables to be routed inside the mount from the display down to the wall connection point. The covers snap on without tools, speeding up the finishing step of any installation. Hidden cables reduce visual clutter for the end user and also protect cables from accidental snagging when the arm is extended or retracted. For integrators, this removes the need for aftermarket cable sleeves or conduit on the wall surface, keeping the bill of materials tight.

Portrait and Landscape Flexibility

The TS118SU supports both landscape and portrait display orientations, with ±90° pivot capability depending on the screen's physical width. This makes it suitable for digital signage applications — such as menu boards, wayfinding displays or retail point-of-sale screens — where a portrait orientation is often preferred. The ability to switch orientation without changing hardware simplifies inventory management for integrators handling varied project requirements, and gives end customers the option to repurpose or reorient the display as their needs evolve.

UL Listed and 10-Year Warranty

The TS118SU carries UL listing, confirming it has been independently tested to meet North American safety standards — a requirement for many commercial, educational and hospitality projects where building codes mandate certified hardware. Chief backs the mount with a 10-year limited warranty (excluding electrical components), which reflects the build quality and gives end customers long-term confidence. For integrators, a decade-long warranty substantially reduces the risk of callback costs or warranty disputes well after project handover.
