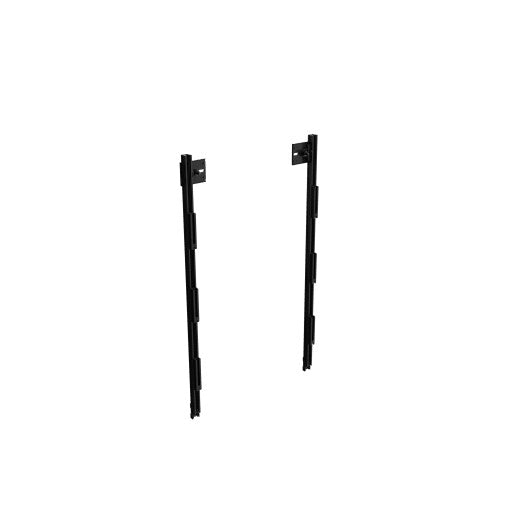

Chief DVM27U3E

The Chief DVM27U3E is a TiLED dvLED Universal Wall Mount Extender designed to expand existing video wall installations upward by adding a 3-high row of 27" interlocking dvLED panels. Engineered for professional AV integrators, it pairs with Chief TiLED Starter mounts to enable scalable, modular LED video walls. The floating button-capture technology provides broad compatibility with panels from leading manufacturers including Samsung, LG, Sony, Barco, and Christie. Manufactured in the USA and backed by a 10-year warranty, the DVM27U3E delivers the precision alignment and installation confidence required for mission-critical commercial display environments.

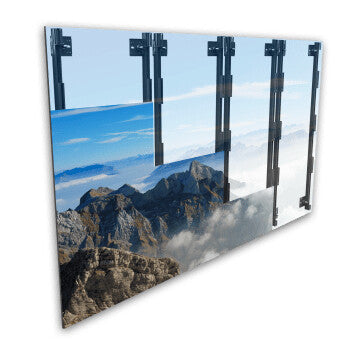

Modular Extender for Scalable Video Walls

The DVM27U3E is an extender mount — not a standalone solution, but the component that lets an existing TiLED Starter installation grow upward. By pairing one or more extender units with a Starter mount (DVM27U2, DVM27U3, or DVM27U4), integrators can build video walls row by row from the bottom up, without any onsite rail cutting. This modular approach means a video wall can be quoted and installed in phases, and expanded later as budgets allow — a genuine advantage in staged rollouts or projects where final wall size is still being decided at time of installation.

Full X-Y-Z Axis Precision Alignment

Seamless dvLED video walls live or die by pixel-accurate alignment, and the DVM27U3E addresses this with three independent axes of adjustment after mounting. The X-axis provides ±0.86 cm of lateral shift for horizontal fine-tuning, the Y-axis allows up to 5.1 cm of height adjustment to compensate for uneven floors or wall surfaces, and the Z-axis offers both a macro adjustment (up to 1.6 cm) for coarse depth alignment and a micro adjustment (up to 0.64 cm) for fine depth precision. Together, these adjustments make it possible to achieve a perfectly flush, uniform video wall surface even on imperfect walls — eliminating the visible seams or depth inconsistencies that would otherwise break the image.

Extend up. Align perfectly. No cutting required.

Made in USA · 10-year warranty · Compatible with 20+ dvLED panel brands

Broad dvLED Panel Compatibility

The floating button-capture technology is designed to accept both M8 and M6 mounting buttons, which are the two most common fastener standards used across the dvLED panel industry. The DVM27U3E is confirmed compatible with panels from Absen, Barco, Christie, Hikvision, Infiled, Just Video Walls, Leyard/Planar, LG, Liantronics, Pensar, Philips, PixelFlex, Planar, Samsung, Sharp NEC, Siliconcore, SNA, and Sony. This broad compatibility reduces specification risk significantly: integrators can confidently propose the Chief TiLED system before the exact panel brand is finalised, and adapt to last-minute panel substitutions without changing the mounting infrastructure.

High Load Capacity — 113.4 kg Per Column

Each column in the TiLED system is rated to carry up to 113.4 kg (250 lbs). For a 3-high extender, this load rating applies per upright column, so multi-column configurations scale proportionally. This capacity comfortably accommodates the weight of full-pitch commercial dvLED cabinets, including their power supplies and internal components. Knowing the per-column rating allows integrators to calculate total structural load precisely and specify appropriate wall anchor points — one less variable in the structural sign-off process.

10-Year Warranty, Made in USA

The DVM27U3E carries a 10-year warranty and is manufactured in the USA. For video wall installations in control rooms, broadcast studios, corporate lobbies, or other high-visibility environments, the warranty horizon directly reduces long-term ownership risk. A decade of coverage is meaningfully longer than the typical 1–3 year warranty seen on commodity mounting hardware, and it signals product quality confidence from Chief that translates into reduced maintenance budget exposure for the end customer over the life of the installation.
