Chief DVM27U3

The Chief DVM27U3 is a patent-pending TiLED Universal dvLED Wall Mount starter set designed to anchor a 3-panel-high column of 27" interlocking direct-view LED panels. Built for AV integrators tackling large-format video wall installations, it forms the structural base of the wall and scales horizontally by adding additional starter sets, and vertically by stacking compatible extender mounts. Thanks to floating button-capture technology, the system is compatible with 90% of interlocking dvLED panels on the market — from Absen and Barco to LG, Samsung and Sony — eliminating the need to source brand-specific hardware for every project. The result is a single, globally stockable SKU that simplifies specifying, ordering and installation across a wide range of client sites and panel brands.

90% Universal Panel Compatibility

The DVM27U3 uses floating button-capture technology combined with universal mounting hardware that accommodates both M8 and M6 mounting buttons — the two dominant fastener standards used across the dvLED industry. This means a single set of hardware works with panels from Absen, Barco, Christie, Hikvision, INFiLED, LG, LianTronics, Philips, Planar, Samsung, Sharp-NEC, Sony, Unilumin and many more. For integrators, this eliminates the need to research and stock brand-specific mounting solutions for each project, dramatically simplifying procurement and reducing the risk of ordering errors. On site, installers can follow one consistent process regardless of which panel brand the end customer has selected.

Full X-Y-Z Adjustability on Uneven Walls

Many installation sites — arenas, retail units, corporate lobbies — have walls that are not perfectly plumb or flat. The DVM27U3 addresses this directly with three-axis adjustability: lateral X-axis shift (0,82 cm), manual height Y-axis adjustment (5,1 cm), and dual-depth Z-axis adjustment that combines macro and micro stages. The independent Y-axis adjustment at each panel edge is particularly valuable: it allows individual panel positions to be tuned independently rather than adjusting the entire column together. The practical outcome is that even sub-millimetre pixel-pitch panels align without gaps or misalignment — a critical standard for premium fine-pitch dvLED walls where any deviation is immediately visible.

One SKU. Any brand. Flawless 27" dvLED video walls.

10-year warranty · Compatible with 90% of interlocking dvLED panels on the market

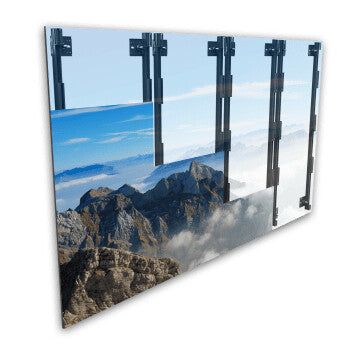

Modular Starter-Extender Build System

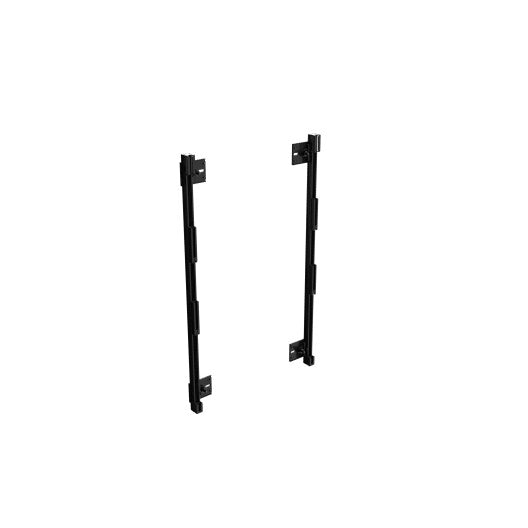

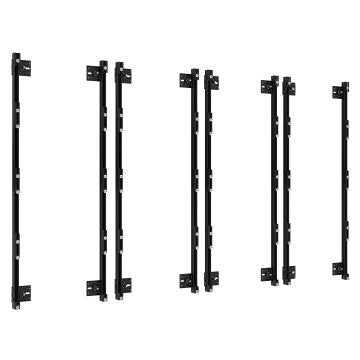

The TiLED system uses a logical two-part structure: starter mounts (like the DVM27U3) anchor to the wall and form the base of each column, while extender mounts stack on top to reach the required wall height. The DVM27U3 is a 3-panel-high starter and ships as a pair of rails (left and right uprights), ready to receive panels. To build a 5-panel-high wall, for example, pair each DVM27U3 starter with a DVM27U2E 2-panel extender. The part number logic is intuitive — the last digit always indicates how many panels the mount accommodates — so specifying a complete wall is straightforward. This modularity also means the system can be reconfigured or expanded if a customer's display grows after initial installation.

Reduced Installation Time — Days to Hours

Traditional dvLED mounting systems require extensive shimming, repeated panel removal and reinstallation, and lengthy fine-tuning — often stretching large installations over multiple days. The DVM27U3's combination of on-mount adjustability (no panel removal needed for most corrections), a consistent installation process across panel brands, and the floating button-capture system means technicians can set and fine-tune positions quickly. According to Chief, installation time can be reduced from days to hours. For integrators, this directly lowers labour costs per project and reduces the disruption caused to end customers during installation in live environments such as retail stores, stadiums or corporate headquarters.
