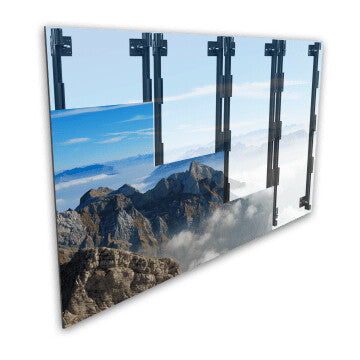

Chief DVM27U4E

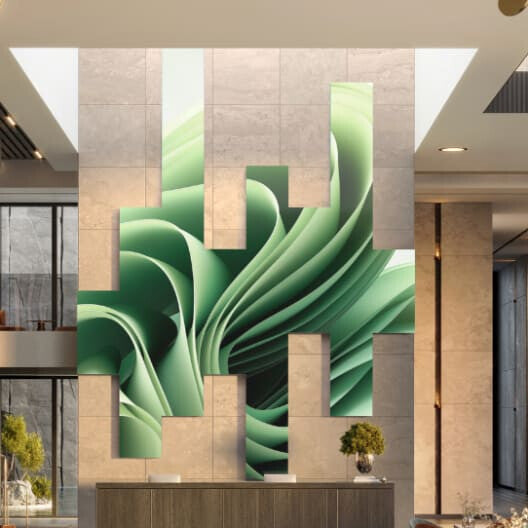

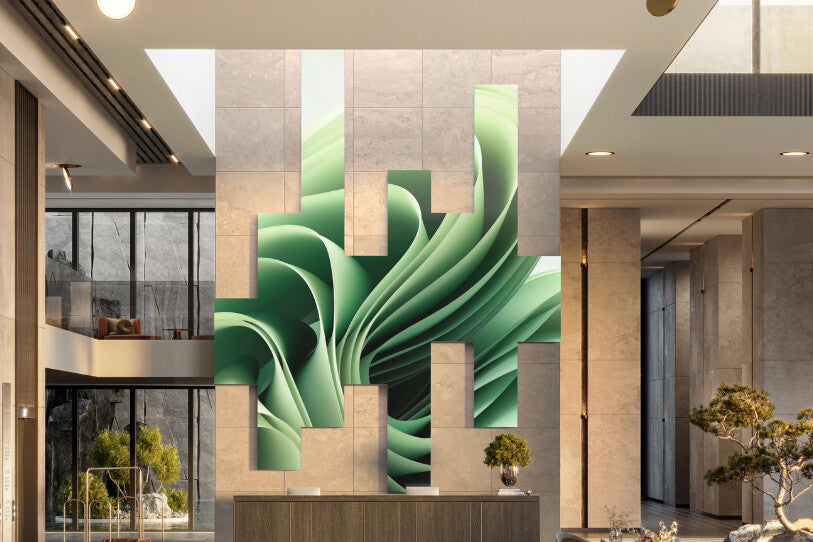

The Chief DVM27U4E is a 4-high extender module for the TiLED dvLED Universal Wall Mount system, designed to scale modular direct-view LED video walls to greater heights without requiring onsite rail cutting. It works alongside TiLED starter mounts, allowing integrators to build vertically from an established base row. The mount is universally compatible with 27" interlocking dvLED panels from a broad range of leading manufacturers, including Absen, Barco, Christie, Samsung, Sony, LG, Sharp NEC, and many more. Precise full X-Y-Z axis adjustability compensates for uneven surfaces, ensuring pixel-perfect alignment across the entire video wall. Engineered and manufactured in the USA, with a 10-year warranty, this system is a reliable, low-risk choice for mission-critical corporate, broadcast, and large-venue installations.

Universal dvLED Panel Compatibility

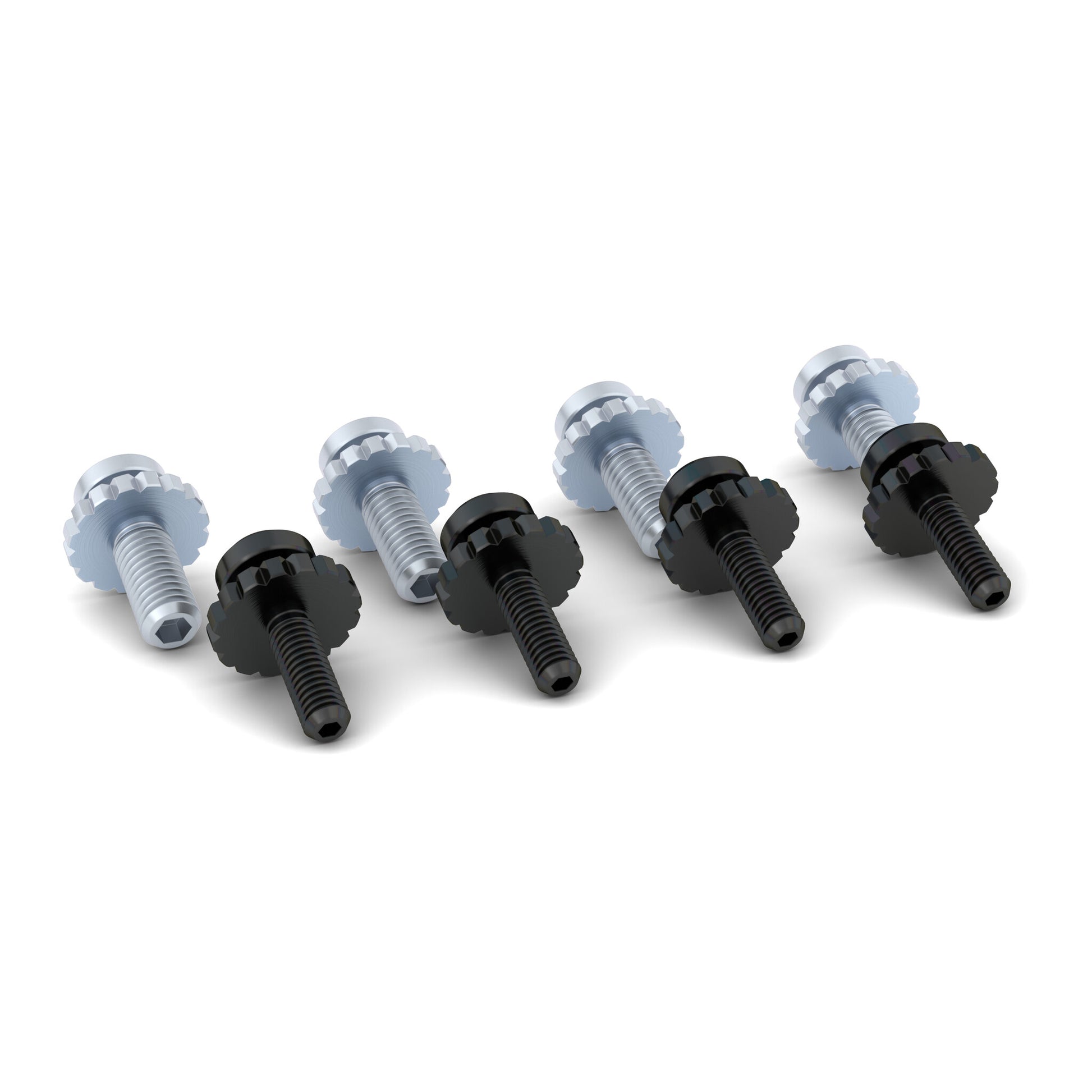

The DVM27U4E uses Chief's patent-pending floating button-capture technology, which accepts both M8 and M6 mounting buttons. This means a single mount works across dvLED panels from Absen, Barco, Christie, Hikvision, INFiLED, Just Video Walls, Leyard/Planar, LG, Liantronics, Pensar, Philips, PixelFlex, Samsung, Sharp NEC, Siliconcore, SNA, Sony and more. In practice, specifiers can order and stock one part number globally to serve a wide variety of client environments — reducing procurement complexity and lead-time risk when panel choices change late in a project.

Full X-Y-Z Axis Precision Alignment

Three independent adjustment axes allow installers to correct for real-world wall imperfections without shimming or improvising. Lateral (X-axis) shift of ±8,6 mm handles side-to-side misalignment between columns. Height (Y-axis) adjustment of up to 5,1 cm sets a perfectly level baseline across each row. Macro depth (Z-axis) adjustment of up to 1,6 cm plus a further 0,64 cm of micro-depth fine-tuning create a flush, flat surface even on bowed or uneven walls. The result is a video wall with no visible pixel gaps or depth discontinuities — particularly valuable with fine-pitch panels below 1 mm pitch, where even small misalignments are immediately visible during operation.

One extender. Four panels high. Zero rail cutting.

Made in the USA · 10-year warranty · Compatible with 15+ leading dvLED brands

Modular, Bottom-Up Build System

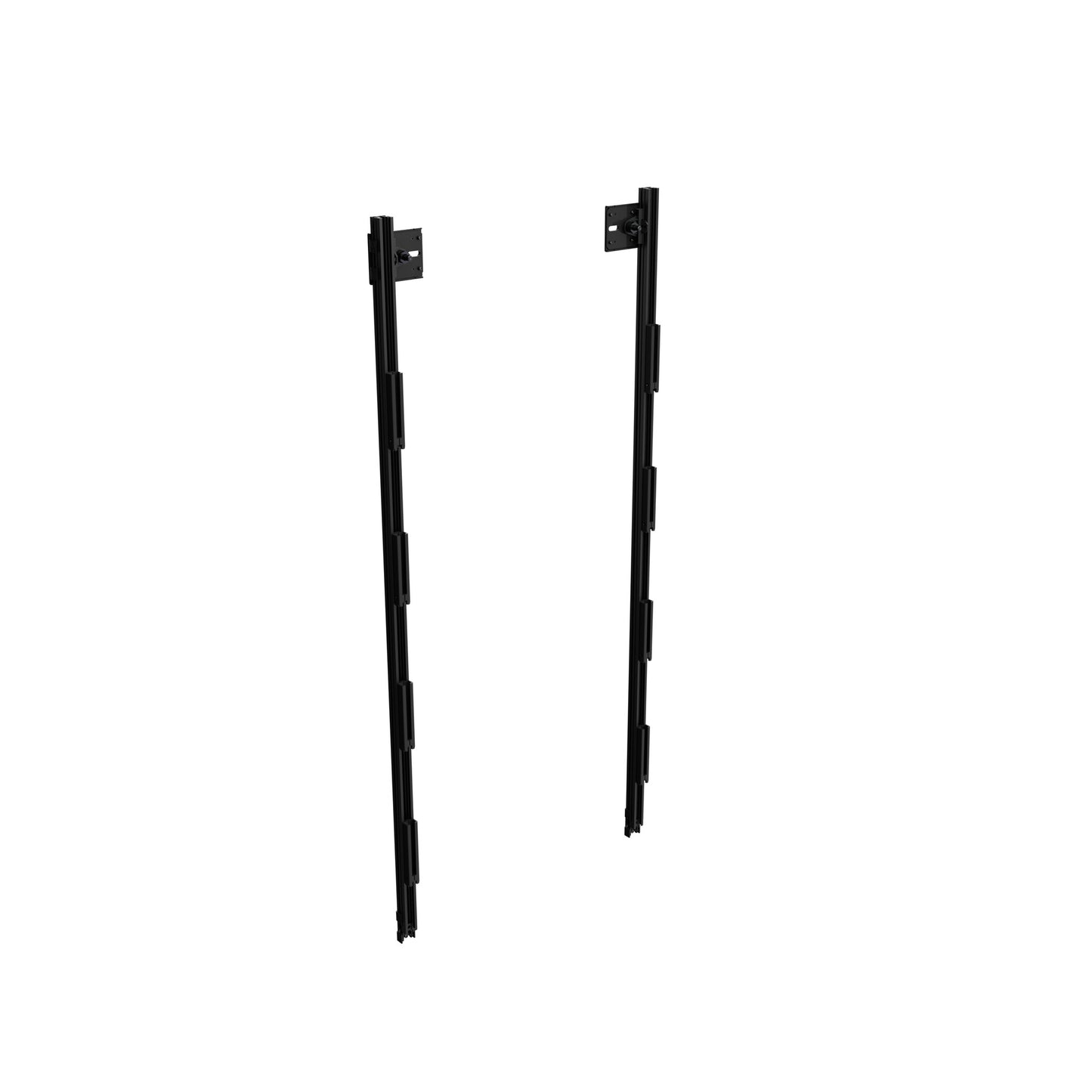

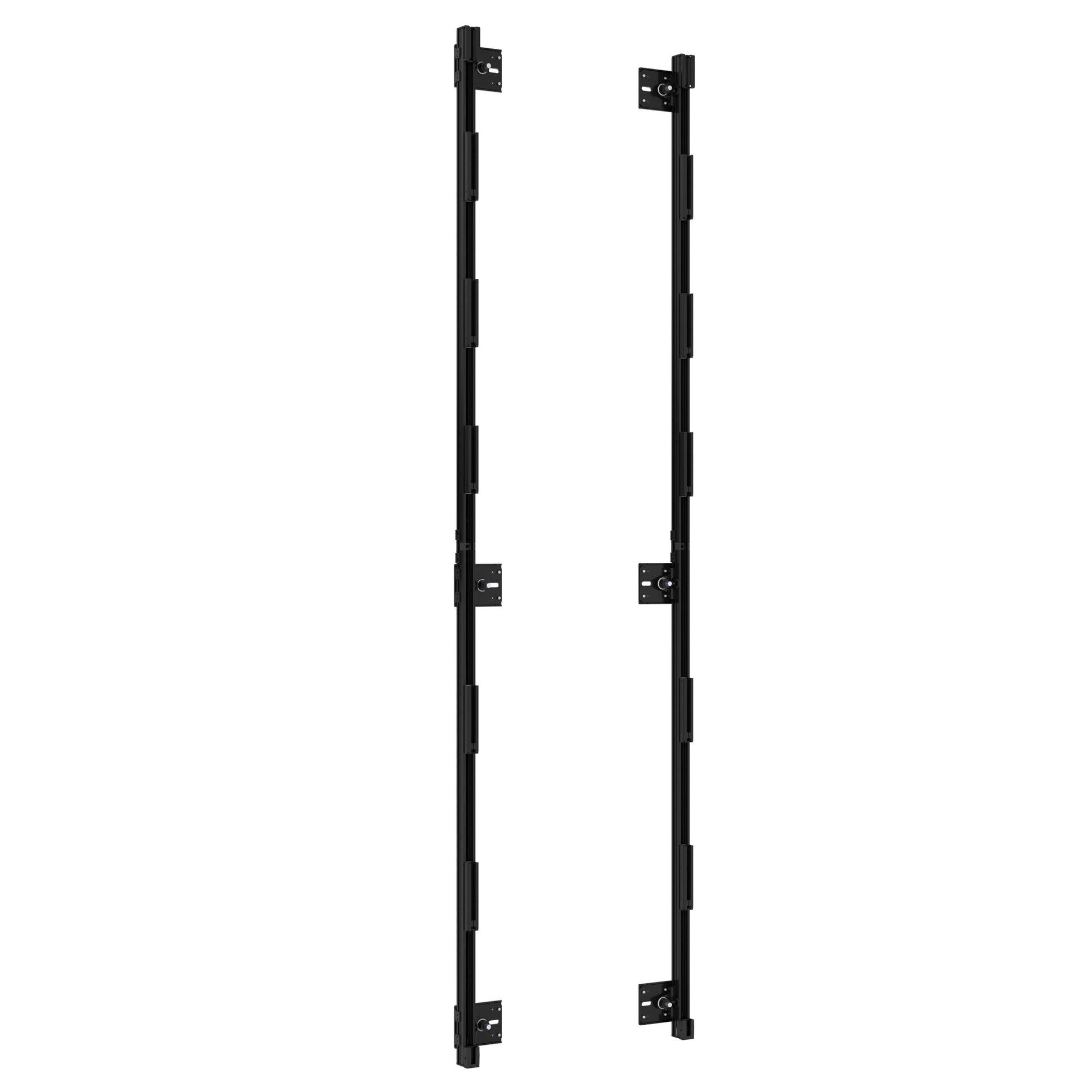

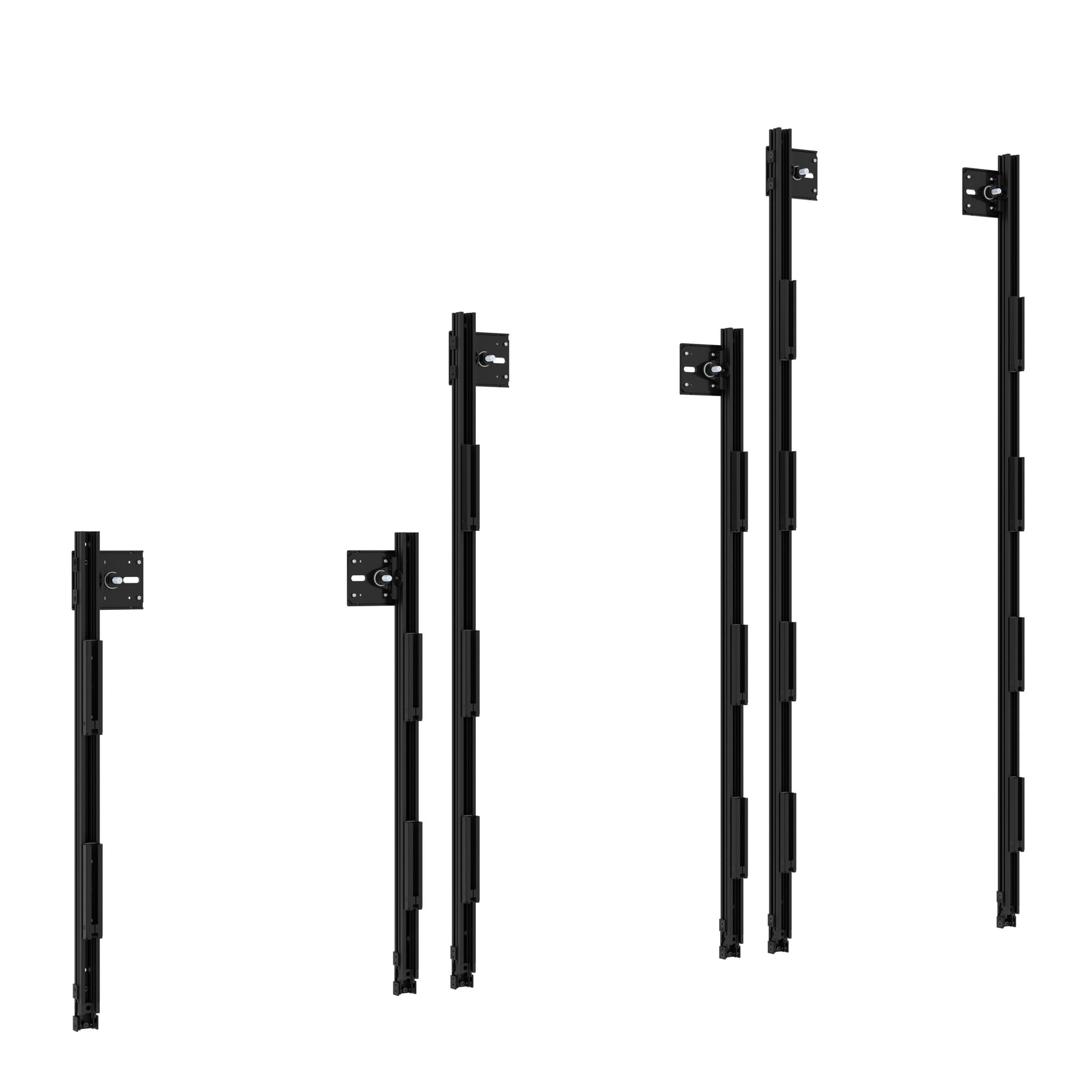

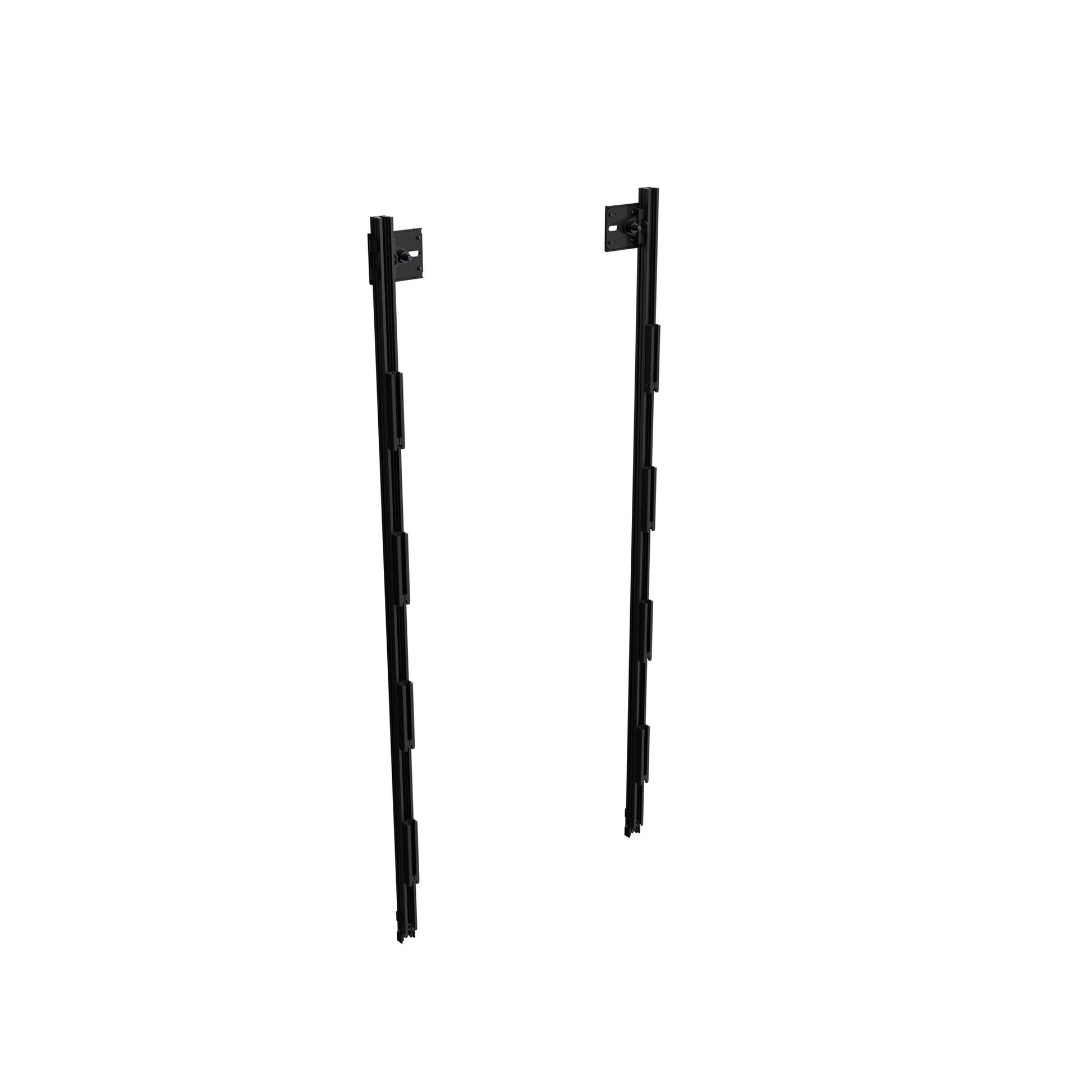

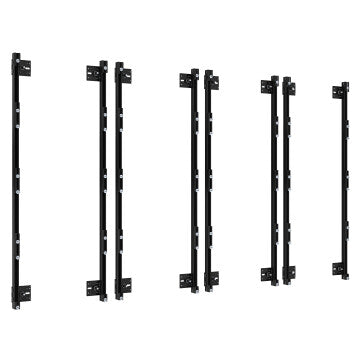

TiLED is designed as a scalable starter-plus-extender system. Starter mounts anchor the bottom row; extender units like the DVM27U4E stack above them to build the wall upward. No onsite cutting of mounting rails is required — the extrusions arrive ready to install. This modular approach means a video wall can be designed, ordered and commissioned in stages, or expanded later if a client's display grows in scope. The DVM27U4E specifically adds a 4-panel-high column segment with a product height of 137,4 cm, making it the right choice where taller single-column runs are needed in one shipment.

Made in the USA — 10-Year Warranty

The entire TiLED series, including the DVM27U4E, is manufactured in the USA and covered by Chief's 10-year warranty. For end users in corporate headquarters, broadcast studios, control rooms, or high-profile retail environments, this combination of domestic production quality and long-term warranty coverage means substantially lower risk of unplanned maintenance costs over the display's operational life. Integrators can also use the warranty as a differentiator when presenting the total cost of ownership versus lower-cost mounting alternatives.
