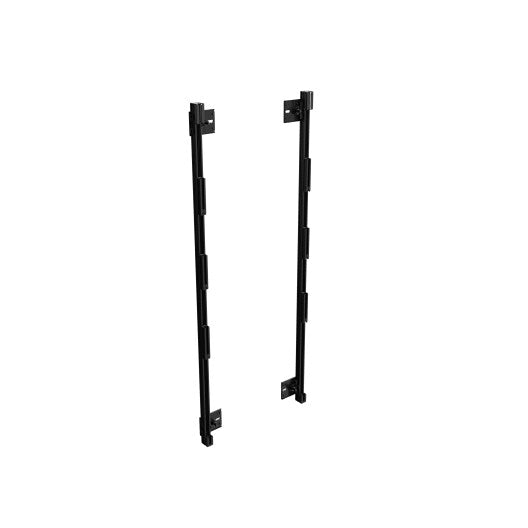

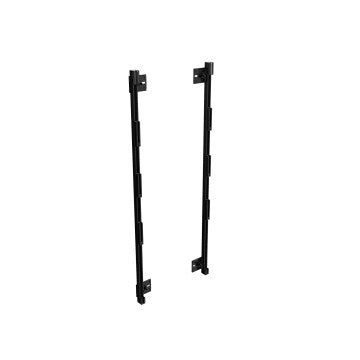

Chief DVM27U4

The Chief DVM27U4 TiLED dvLED Universal Wall Mount is a starter set designed for integrators building direct-view LED video walls with 68,6 cm (27") interlocking panels. As the foundation of the TiLED modular system, this 4-panel-high starter kit pairs with extender mounts to scale to virtually any wall size. Universal floating button-capture technology ensures compatibility with dvLED panels from the vast majority of leading manufacturers — including Absen, Barco, LG, Samsung, Sony, Sharp/NEC and many others — making it the go-to choice for installers who stock a single mount solution for multiple projects. Built for demanding commercial environments, the DVM27U4 carries a 10-year warranty.

Universal dvLED Panel Compatibility

The DVM27U4 uses Chief's patent-pending floating button-capture technology combined with universal mounting hardware to achieve compatibility with approximately 90% of interlocking dvLED panels on the market today. Confirmed compatible brands include Absen, Barco, Christie, Hikvision, INFiLED, Leyard/Planar, LG, LianTronics, Philips, Samsung, Sharp/NEC, SiliconCore, Sony and more. For integrators, this means a single part number can be ordered and held in stock to cover a wide range of client projects — eliminating the risk of buying brand-specific mounts that become obsolete when a client changes panel vendor mid-project. End customers benefit from a cleaner procurement process and the confidence that future panel upgrades won't require replacing the entire mounting infrastructure.

Full 3-Axis Adjustment for Flawless Alignment

The DVM27U4 provides X, Y and Z axis adjustability to absorb the imperfections of real-world installation surfaces. Lateral (X-axis) shift of 0,81 cm and manual height (Y-axis) adjustment of 5,1 cm accommodate misaligned wall structures, while Chief's independent Y-axis adjustment at each individual panel edge is a particular strength: it allows the installer to set a flat, level base row before stacking additional panels, avoiding error accumulation across the height of the wall. The double-depth Z-axis mechanism offers both macro and micro adjustment, so even sub-1 mm pixel-pitch panels — where any depth deviation produces a visible ridge — can be aligned to a consistently flat plane. The practical result is a video wall that reads as a single seamless display, with no visible gaps, steps or misaligned pixels, regardless of how uneven the substrate is.

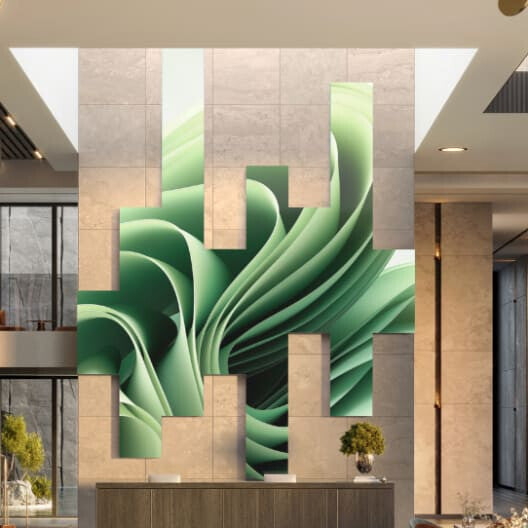

One mount system. Any 27" dvLED panel. Any wall size.

Patent-pending floating button-capture technology · 10-year warranty

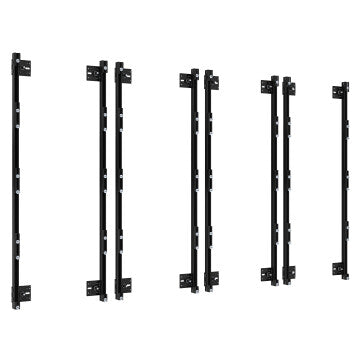

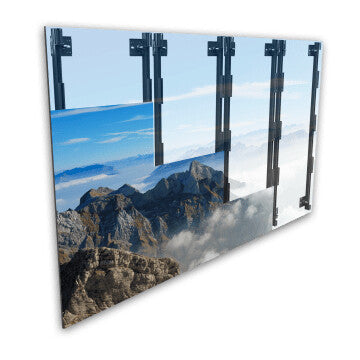

Scalable Modular System — Build Any Wall Size

The TiLED universal series is a purpose-built modular system: DVM27U4 starter sets form the base columns, and extender mounts (DVM27U2E, DVM27U3E, DVM27U4E) are stacked on top to reach the required height. The last digit of the part number always indicates how many panels the unit holds, making configuration intuitive. A practical example: a 7-wide by 5-high wall uses 7 × DVM27U3 starters plus 7 × DVM27U2E extenders. This predictable logic makes BOMs straightforward to build and reduces specification errors. Because one global set of part numbers covers all configurations, integrators can consolidate purchasing, reduce warehouse SKU count, and ship a single kit to cover multiple project variants — a real advantage when managing multi-site rollouts.

Reinforced Wall Requirement — Critical for Specification

Chief specifies that the DVM27U4 is intended for plywood-reinforced walls. This is a decisive installation requirement that must be confirmed during site survey: standard drywall without backing is not adequate for the 113,4 kg rated load. Integrators quoting this mount need to include a wall-reinforcement scope in their installation plan, or verify that the client's wall structure already meets the requirement. Addressing this upfront avoids costly on-site surprises and ensures the structural safety of the installation — which is particularly important in public-facing environments where the video wall may be at eye level with viewers.

Simplified Ordering, Stocking and Global Deployment

The TiLED Universal series was explicitly designed so that one set of part numbers can be ordered and stocked globally, regardless of which dvLED panel brand a specific project uses. For resellers and integrators managing multiple simultaneous projects across different sites or regions, this dramatically simplifies inventory management: a single DVM27U4 SKU covers a broad range of 68,6 cm panel installations without the need for brand-specific variants. Each starter kit ships with two uprights, two hardware bags, 16 M8 and 16 M6 mounting buttons — everything needed to mount one column of four panels. This completeness-in-the-box approach further reduces on-site sourcing time.
