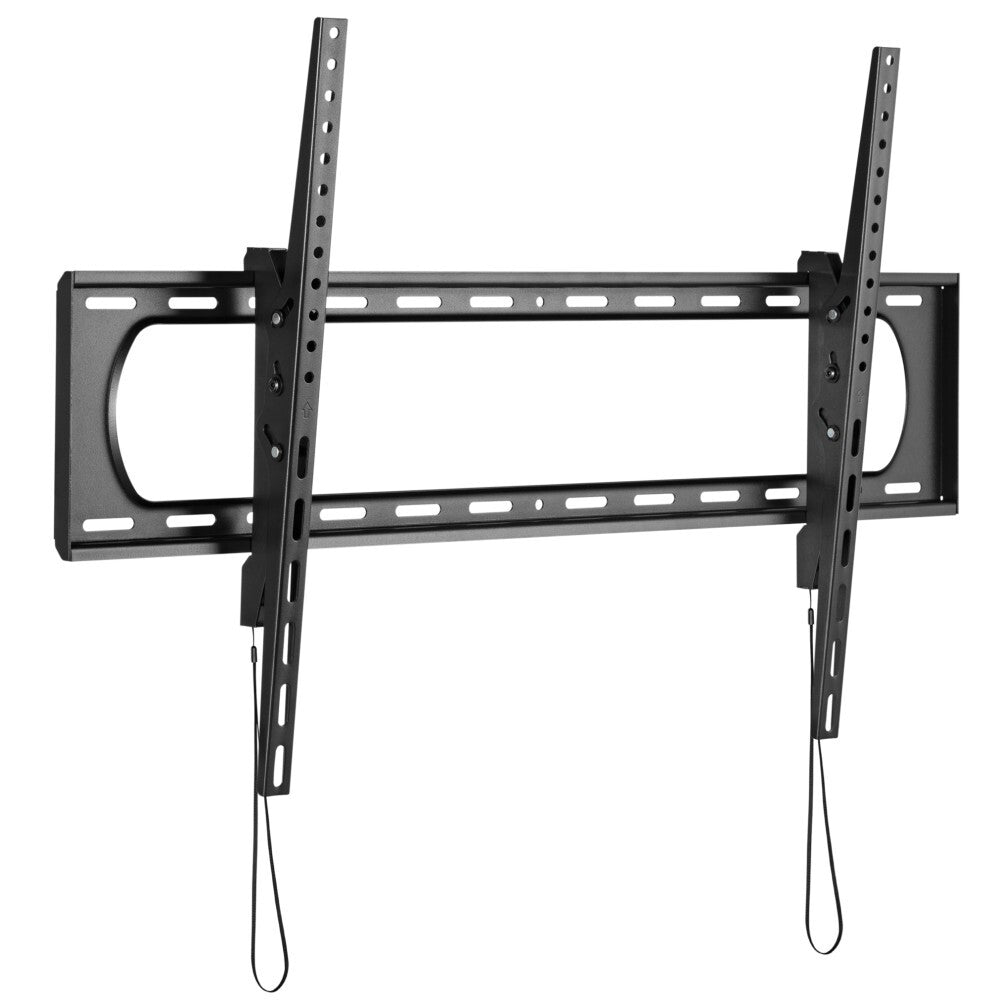

Tilting Wall Bracket, VESA 900x600, 60-120", 120kg

To fill the gap in the niche market of heavy duty large TV wall mounts, ICA-PLB 369T is a reasonable solution. A stiffening structure levels the weight capacity up to 120kg to firmly support 60"~120" TVs. The large space in the center is perfect for installing the socket and hiding all the messy cables.

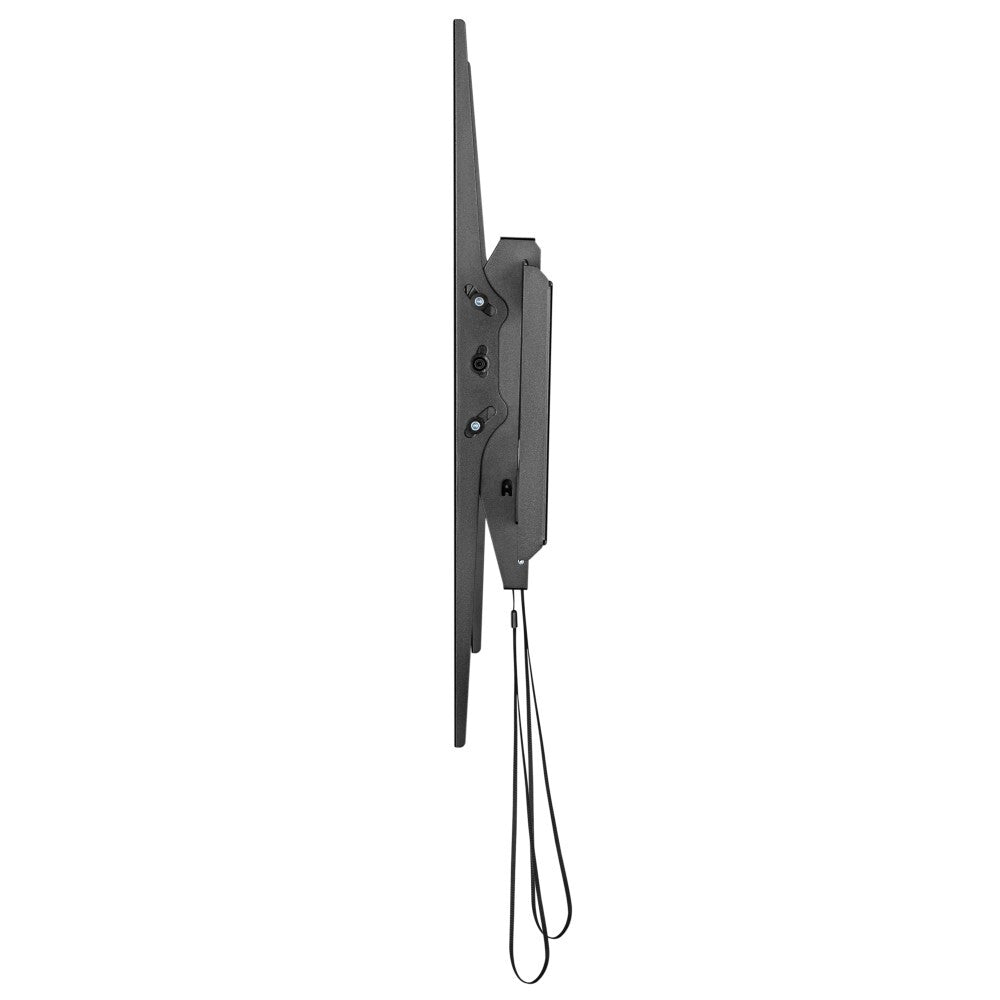

Tool-less +10°~-10° tilt mechanism provides the perfect viewing angle. A quick release spring lock allows for quick and easy removal of the TV and takes only seconds to install.

Features

• Heavy-Duty Steel Construction: Provides increased strength and durability
• Tool-less tilt – allows for effortless positioning
• Small package size: Relatively lower transportation costs and storage expenses

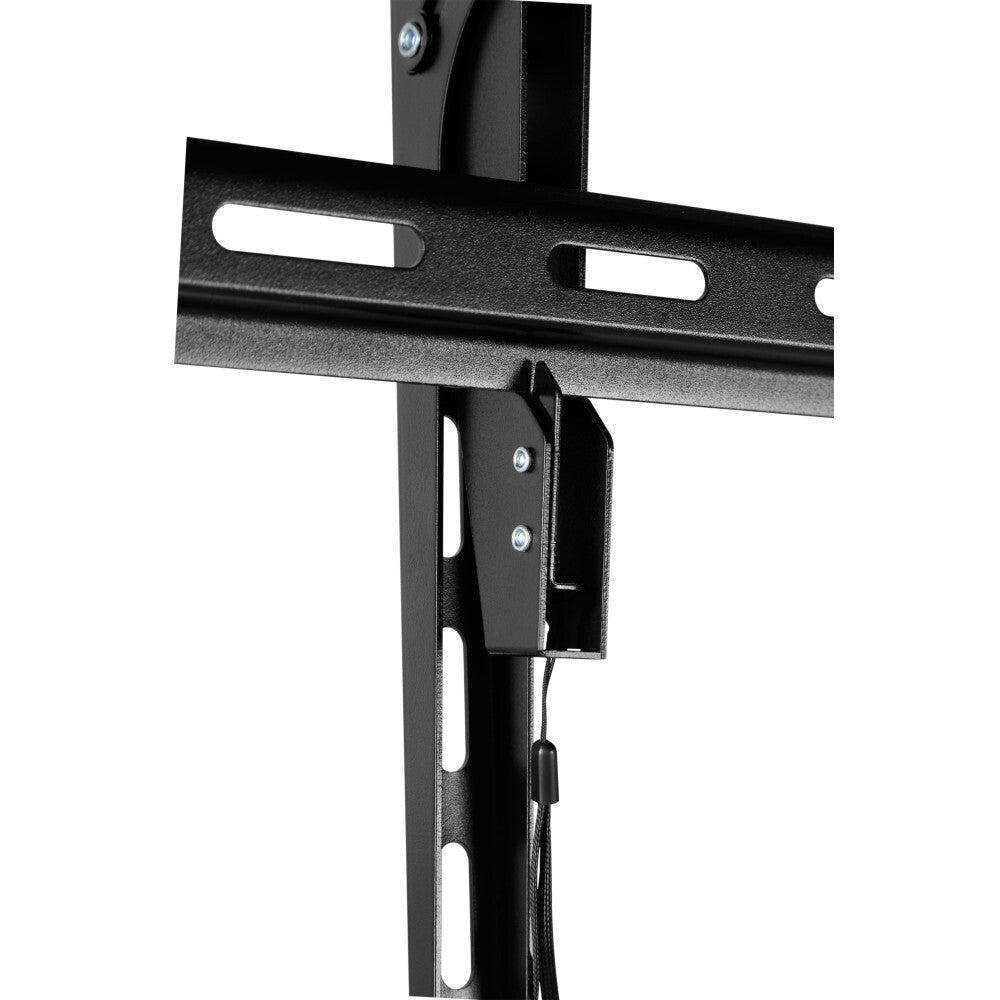

• Automatic spring latches with quick release cables - allow for quick and easy removal of the TV
• Open Architecture: Provides increased ventilation and easier cable access

Technical specifications

• Tiltable TV bracket
• Tilt range: +10°~-10°
• Material: steel
• Made of 2 mm cold rolled sheet
• Powder coating
• Fits 60"-120" TVs
• Fits curved TVs
• VESA compatible:

50x50,75x75,100x100,100x150,150x100,100x200,200x100,150x150,200x200,200x300,300x200,200x400,400x200,300x300,300x400,400x3 00,600x200,400x400,600x300,400x600,600x400,700x400,800x400,600x600,800x500, 800x600,900x600

• Max mounting hole: 965x602 mm
• Maximum weight supported: 120 kg
• Detachable panel
• Attachable spirit level (included in the component package)

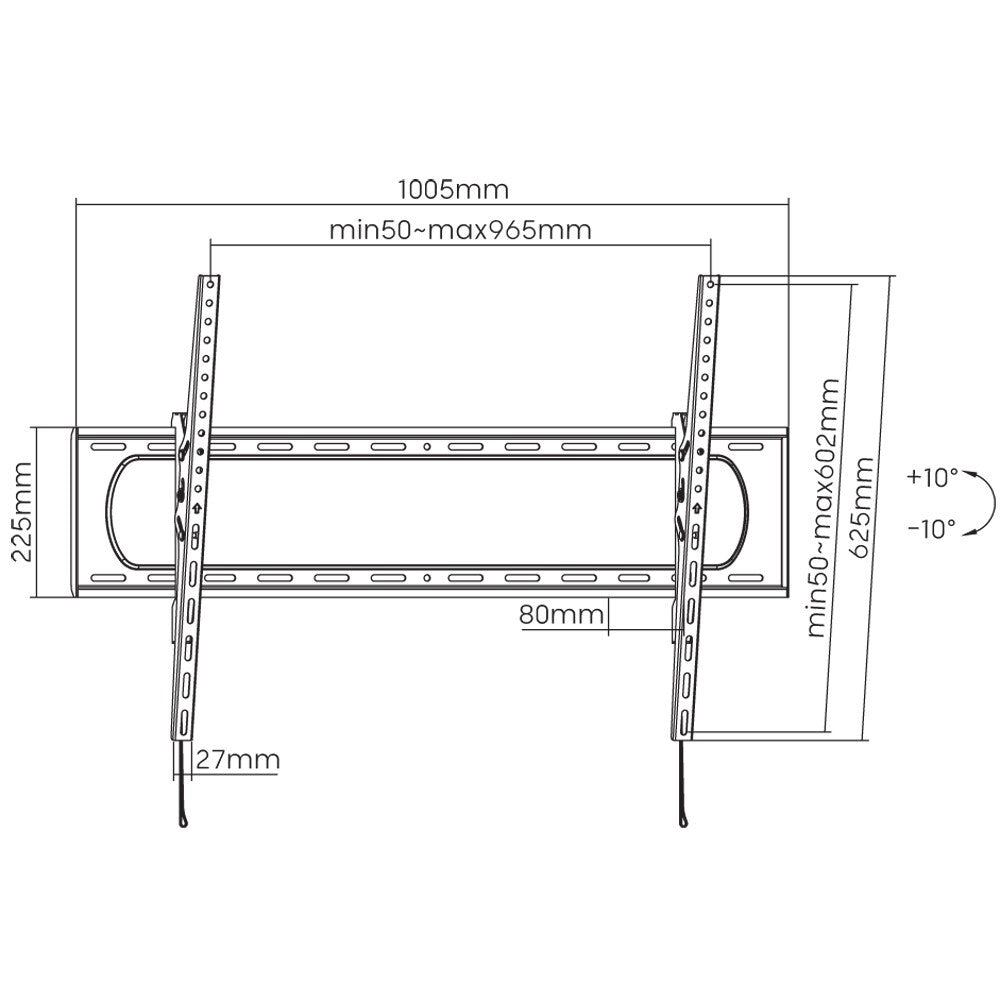

Size

• Thickness: 80 mm
• Width: 1005 mm
• Height: 602 mm

Box Contents

• Wall bracket for TV
• Attachable spirit level
• User Manual
