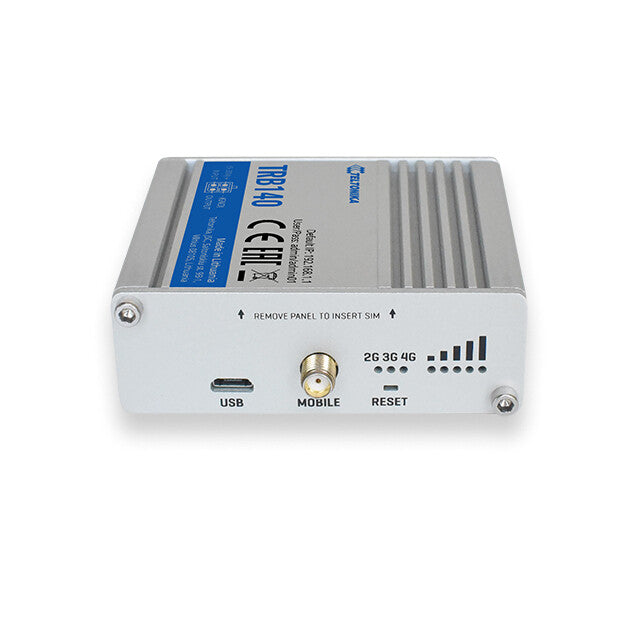

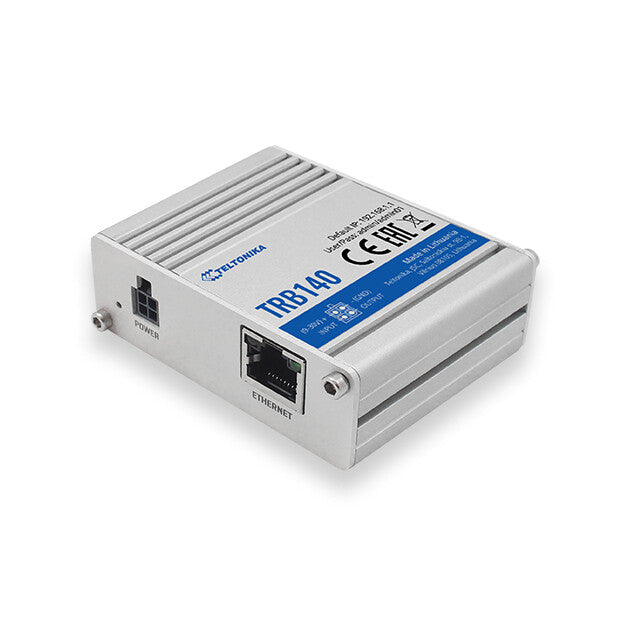

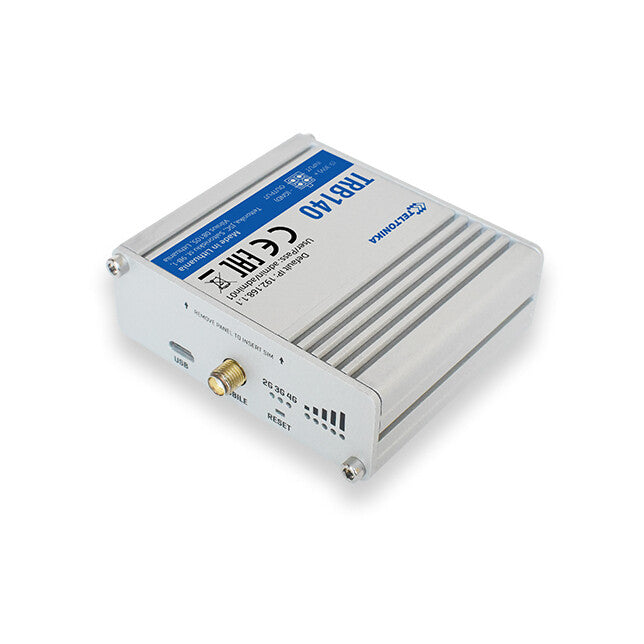

Teltonika TRB140

Teltonika TRB140

ARM Cortex-A7 1.2 GHz CPU, 128 MBytes RAM, 512 MBytes Flash, LTE (Cat4)/3G/2G, Mini SIM, Ethernet

  • 10,100,1000 Mbit/s
  • Built-in processor 1200 MHz 128 MB 512 MB
  • Antenna type: External SMA
  • IP30
  • Grey
  • SKU:TRB140003000
  • GTIN/EAN:
  • MPN:TRB140003000
Add To Favorite

You need to login to view the price.

View full details

Teltonika TRB140. Product colour: Grey, International Protection (IP) code: IP30. Antenna type: External, Antenna connector type: SMA. Processor frequency: 1200 MHz, Internal memory: 128 MB, Flash memory: 512 MB. Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, SSH, DHCP, SNMP, MQTT, Wake on LAN.... Ethernet LAN data rates: 10,100,1000 Mbit/s, Cable types supported: Cat4

Industrial LTE Cat 4 Gateway Board TRB140 is equipped with a single Ethernet port, Digital Inputs/Outputs and micro-USB port. TRB140 compact design makes this Gateway perfect for an application where a sole gadget must be granted reliable Internet connectivity. TRB140 is engineered to be used in an Industrial application therefore it has a wide range of software features such as SMS control, Firewall, Open VPN, IPsec, RMS and FOTA support.

2 year

Design
International Protection (IP) code
IP30
LED indicators
Yes
Product colour
Grey
Features
Antenna connector type
SMA
Antenna type
External
Performance
Flash memory
512 MB
Internal memory
128 MB
Number of processors installed
1
Processor frequency
1200 MHz
Built-in processor
Yes
Protocols
Supported network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL)
Network
Dynamic DNS (DDNS)
Yes
Cable types supported
Cat4
Ethernet LAN data rates
10,100,1000 Mbit/s
Security
Firewall security
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
SIM card slot
Yes
SIM card type
MiniSIM
USB 2.0 ports quantity
1
Management features
Reset button
Yes
Power
DC input voltage
9 - 30 V
Power consumption (typical)
5 W
Weight & dimensions
Weight
155.8 g
Width
60 mm
Depth
70 mm
Height
18 mm
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-40 - 75 °C
Logistics data
Harmonized System (HS) code
85176990
