Chief CMA365

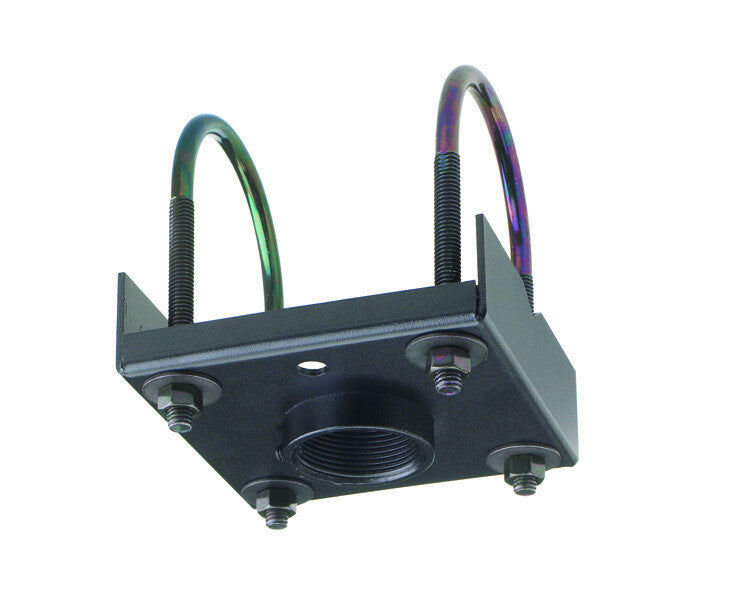

The Chief CMA365 Truss Ceiling Adapter is designed for installers who need to suspend projectors or other AV equipment from structural truss systems rather than a solid ceiling. It bridges the gap between a standard 1.5" NPT-threaded extension column and virtually any truss profile — square, round, rectangular, or I-beam — up to 7,6 cm in diameter. With a generous weight capacity of 113,4 kg and a wide clamp range, it is equally at home in fixed-installation conference rooms, houses of worship, and temporary rental-and-staging environments where truss rigs serve as the primary structural anchor. UL Listed and TV Certified, the CMA365 integrates seamlessly into the broader Chief column and projector-mount ecosystem.

Universal Truss Compatibility

The CMA365 clamps onto square, round, rectangular, and I-beam truss profiles with an OD of 1,9–7,6 cm, covering the overwhelming majority of truss systems found in events, houses of worship, auditoriums, and trade-show venues. This single adapter eliminates the need to source profile-specific hardware, which simplifies procurement and means an integrator can keep one SKU in stock to handle multiple job types. On site, equipment can be positioned precisely along the truss run before the clamp is tightened — a practical advantage when exact drop-point coordinates are only determined during rigging.

High Capacity for Heavy Projector Rigs

Rated at 113,4 kg (250 lbs), the CMA365 comfortably exceeds the weight of virtually any single projector-plus-mount combination, including large-venue laser projectors that can approach 40–50 kg. This headroom matters in practice: it gives the installation team a safe margin if the mount configuration changes mid-project, or if a heavier projector is substituted later without requiring a hardware swap. The high rating also satisfies structural sign-off requirements more easily, as inspectors typically require demonstrated capacity well above the actual suspended load.

Any truss. Any column length. One adapter.

UL Listed · TV Certified · Limited 5-year manufacturer warranty

Standard 1.5" NPT Thread — Accepts Any Column Length

The adapter's 1.5" NPT female thread accepts any length of standard NPT pipe threaded on both ends, so the drop distance is not fixed at purchase time. Installers can cut a pipe to the exact length needed on site, or choose from Chief's own CMS-series extension columns for a fully integrated system. This flexibility avoids the cost of stocking multiple fixed-length drop tubes and prevents the common problem of a pre-ordered column arriving slightly too long or too short for the actual ceiling-to-screen distance measured on the day.

UL Listed and TV Certified

The CMA365 carries UL Listing and TV Certification, satisfying the safety compliance requirements that many venues, insurers, and AHJs (authorities having jurisdiction) mandate before overhead equipment may be installed above an audience or occupied space. For integrators, this removes a common obstacle to sign-off and reduces liability exposure. For end users, it provides documented assurance that the suspension hardware has been independently tested to the relevant structural safety standards.

Suited for Both Fixed and Rental-Staging Installations

While the CMA365 works well in permanent installations — auditoriums, boardrooms, houses of worship — its clamp-on design is equally practical for rental-and-staging contexts where truss structures are erected and struck repeatedly. The adapter can be repositioned along a truss run without specialist tools, and the included Allen set screw provides a secure lock once the drop position is confirmed. This dual-use nature lets AV rental companies standardise on a single adapter across their inventory rather than maintaining separate permanent and temporary hardware.
