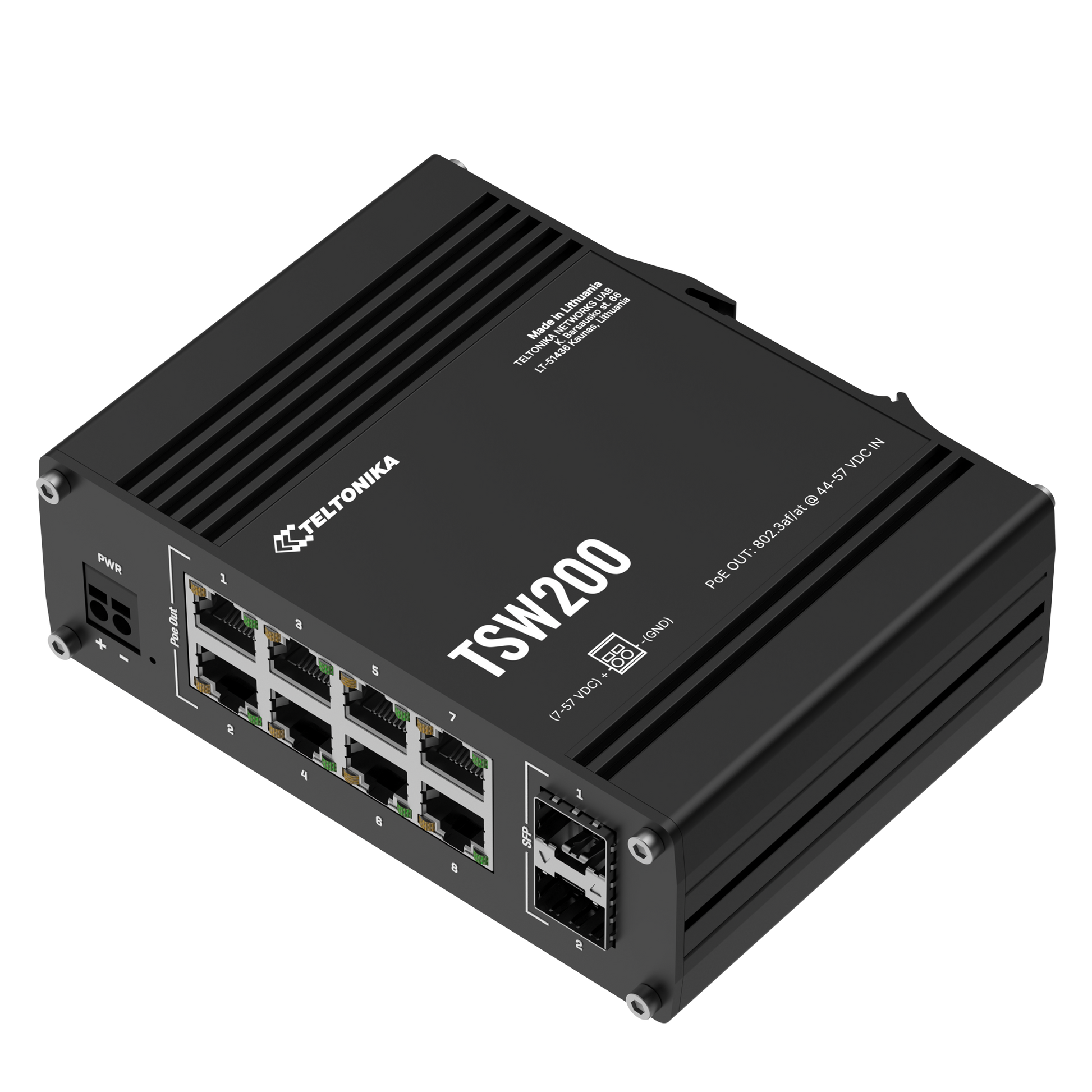

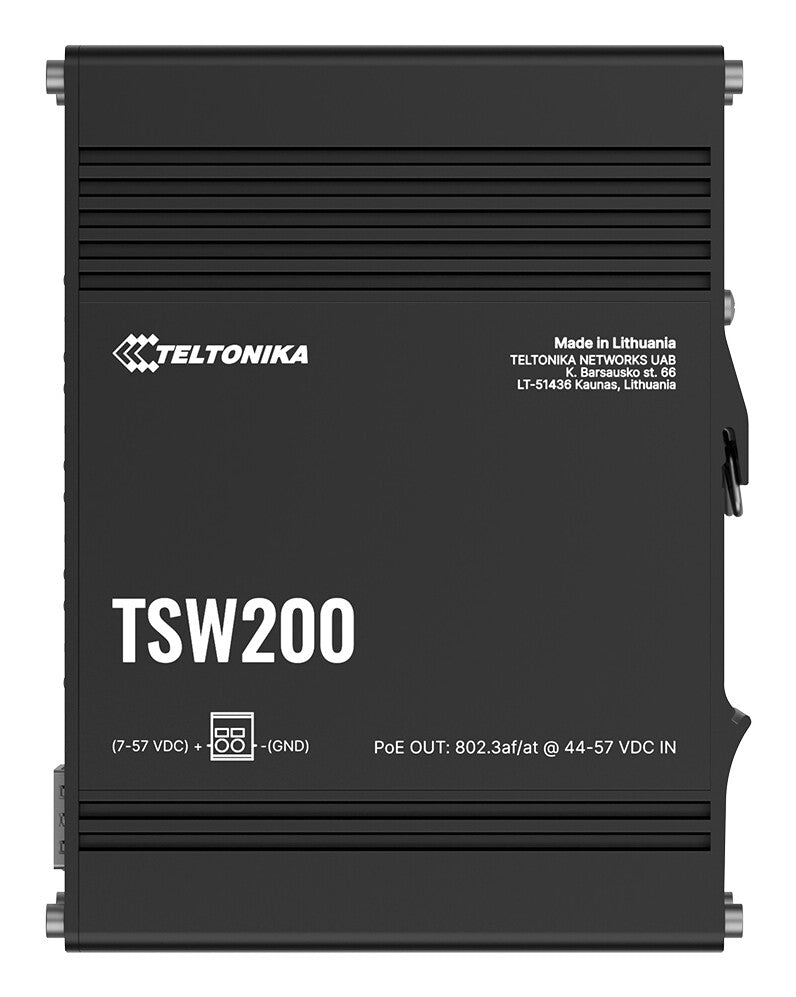

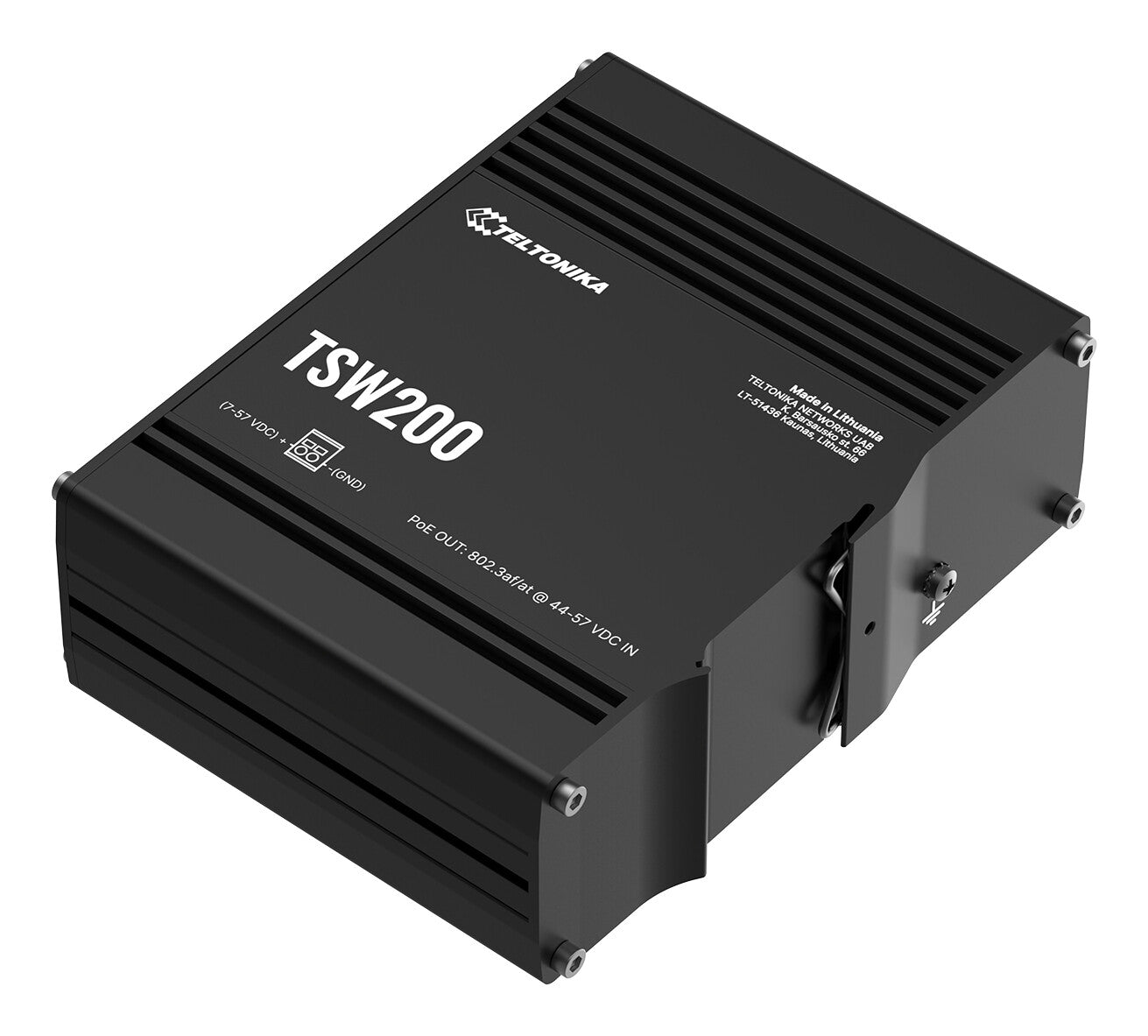

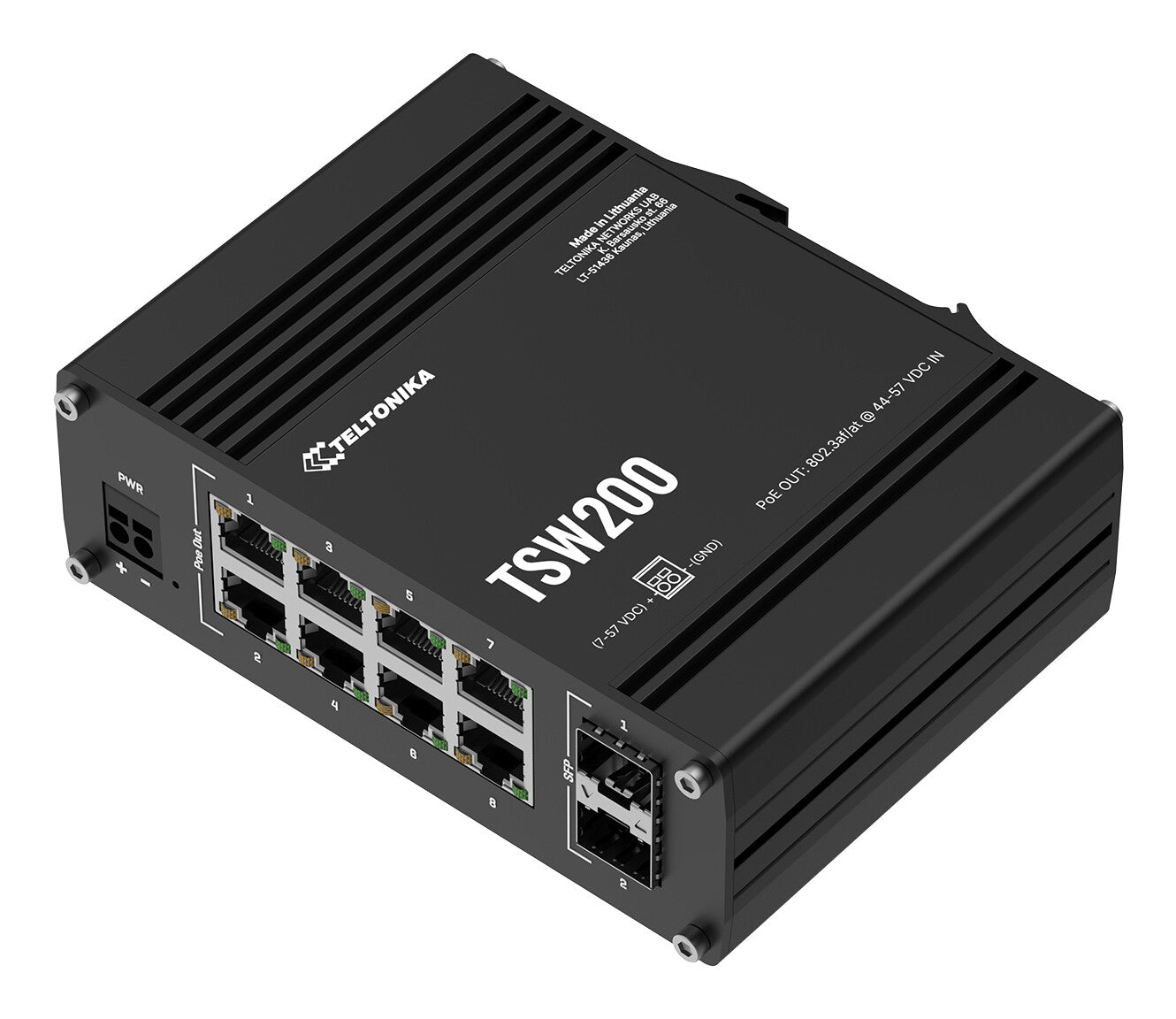

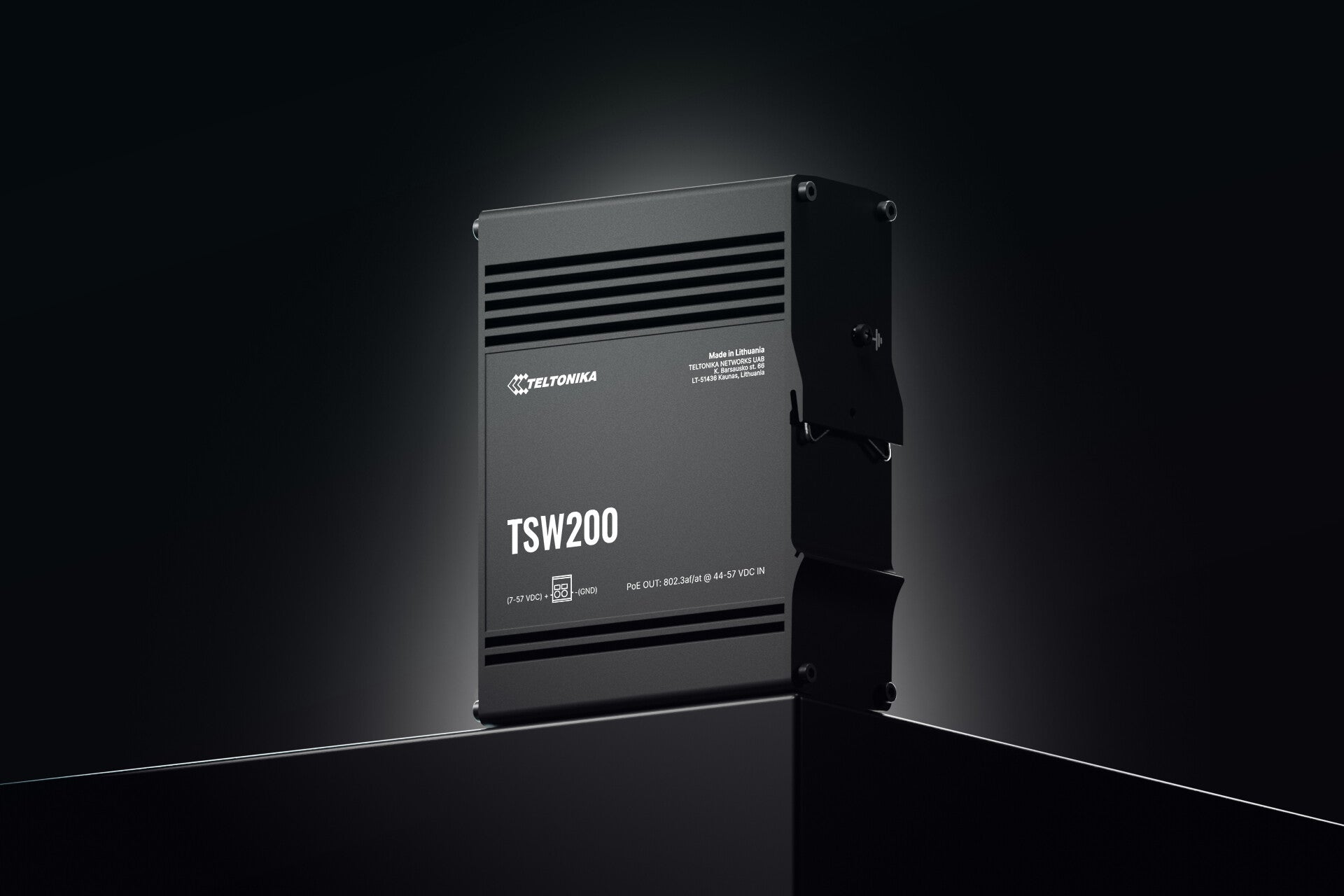

Teltonika TSW200 Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Teltonika TSW200 Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Unmanaged, 8x RJ-45, 2x SFP, PoE+, IP30

  • Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • MAC address table: 2000 entries Switching capacity: 20 Gbit/s
  • DC Power over Ethernet (PoE)
  • SKU:TSW2000000B0
  • GTIN/EAN:
  • MPN:TSW2000000B0

You need to login to view the price.

View full details

Teltonika TSW200. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at. DC input voltage: 7 - 57 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable

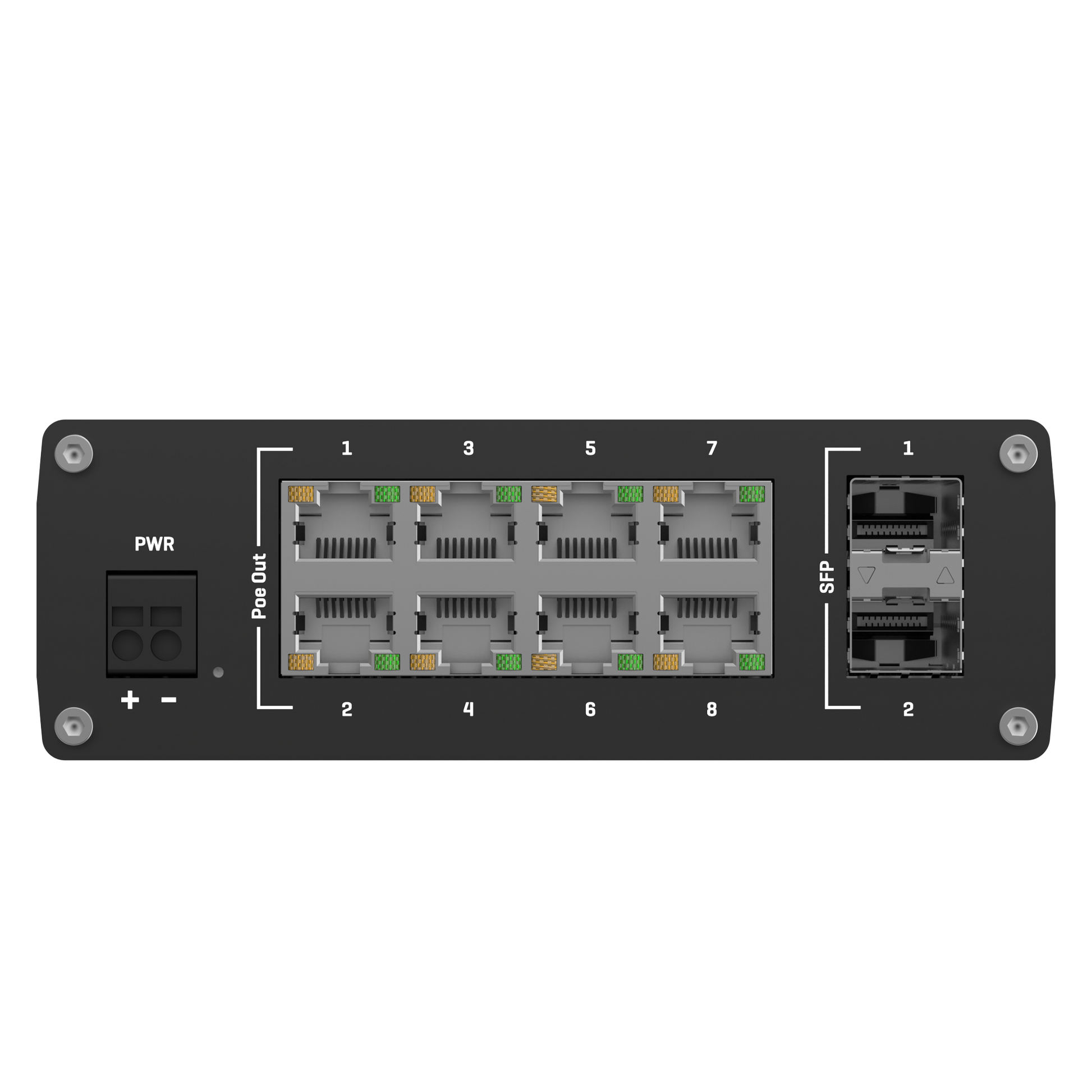

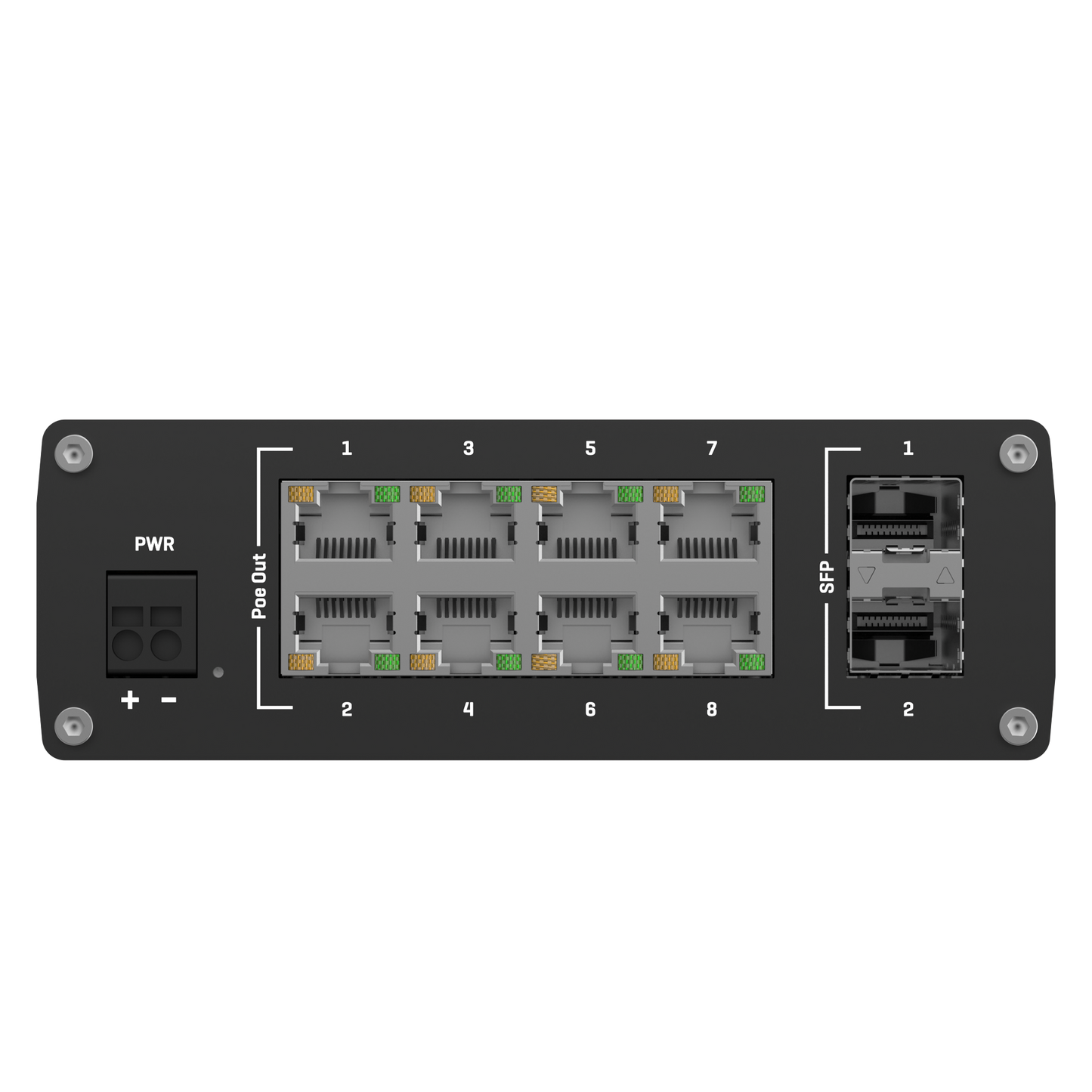

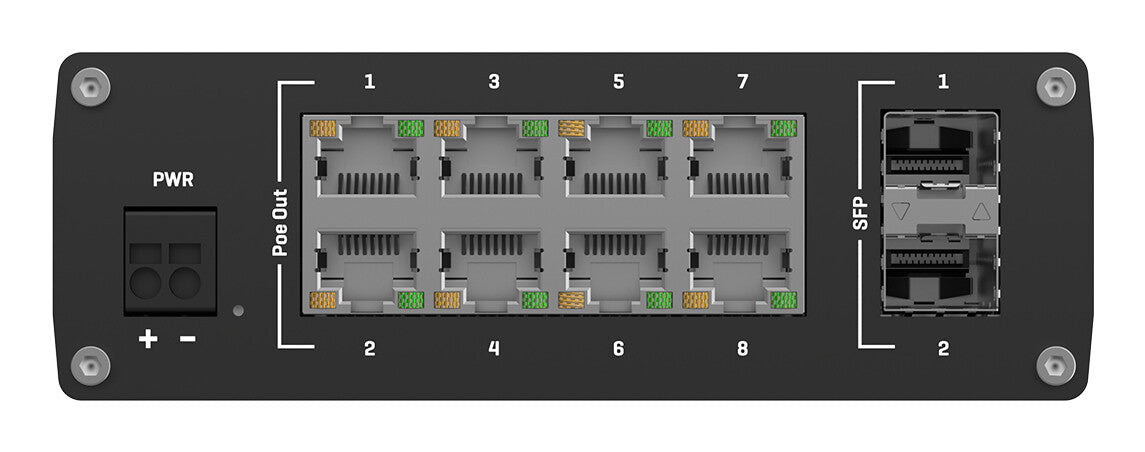

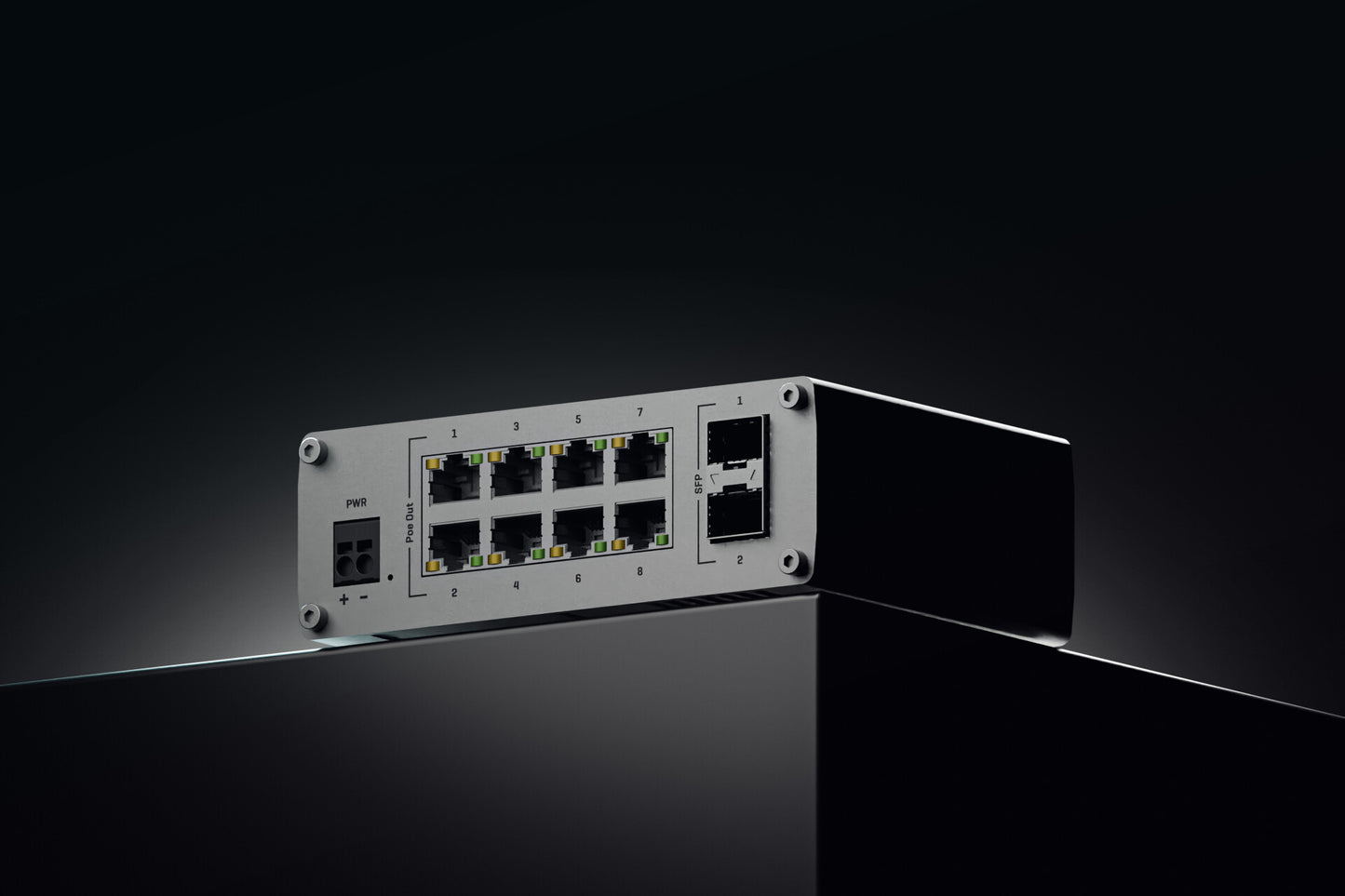

TSW200 is an industrial Ethernet switch with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables the centralization of the power supply, providing up to 30 watts per port and reducing the effort to install power.

Management features
Switch type
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2
Power connector
DC-in jack
Network
Networking standards
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at
10G support
No
Auto MDI/MDI-X
Yes
Data transmission
MAC address table
2000 entries
Switching capacity
20 Gbit/s
Jumbo frames support
Yes
Jumbo frames
9216
Packet buffer memory
0.128 MB
Design
Product colour
Black
Housing material
Aluminium
LED indicators
Yes
Wall mountable
Yes

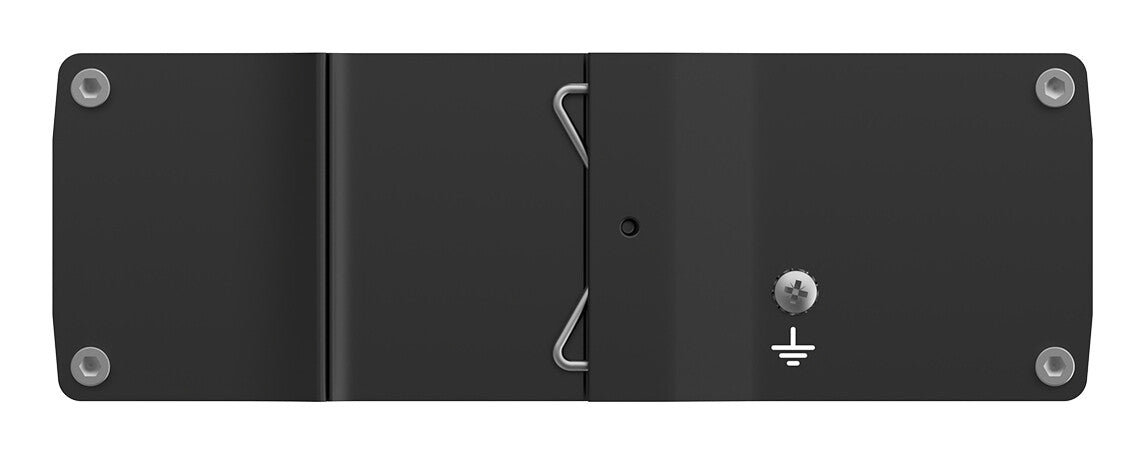

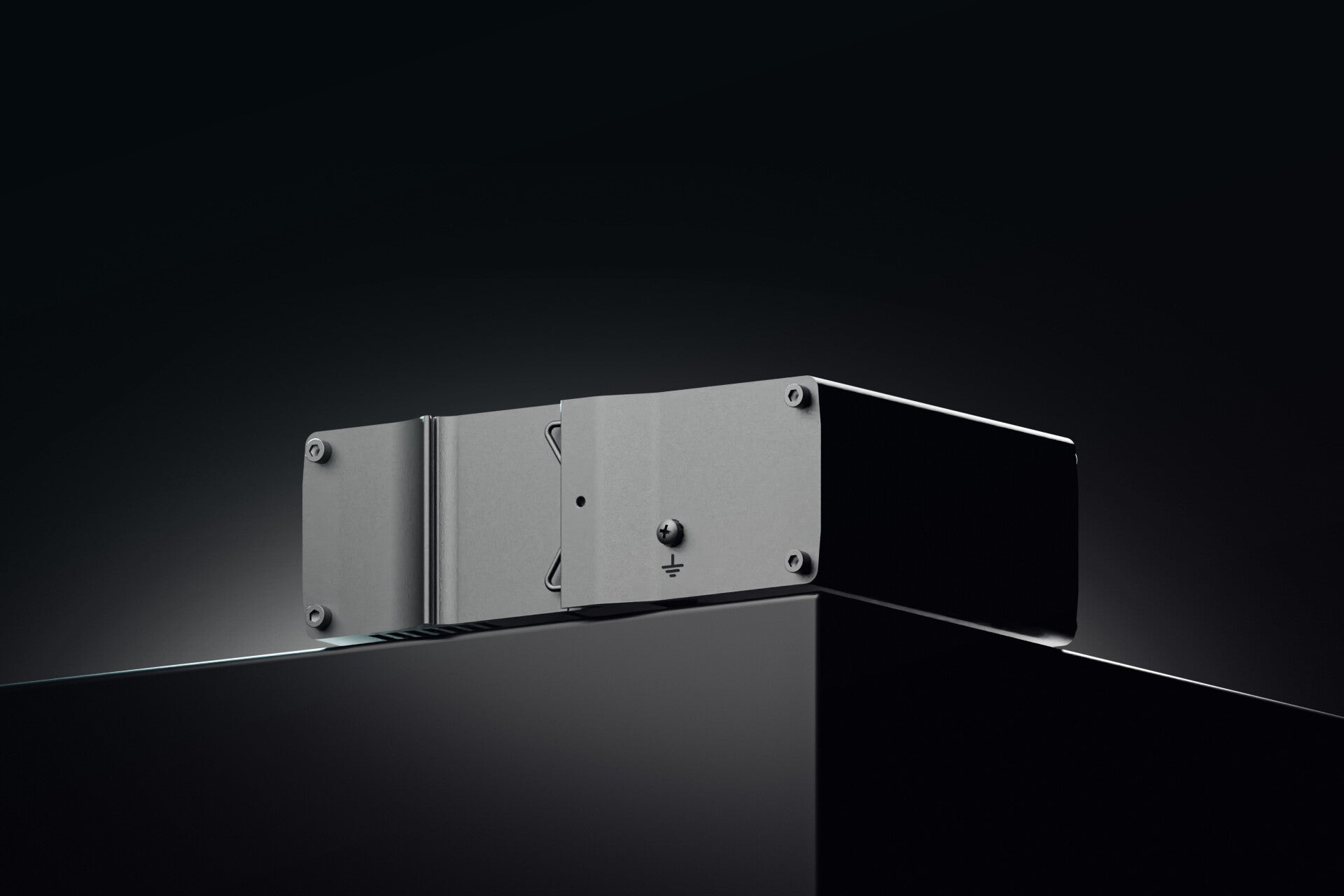

DIN rail mounting
Yes
International Protection (IP) code
IP30
Power
Power source
DC
Power supply included
No
DC input voltage
7 - 57 V
Power consumption (max)
5.5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
Active PoE, PoE+
Power over Ethernet (PoE) modes
Alternative A, Alternative B
Power over Ethernet plus (PoE+) ports quantity
8
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
240 W
Operational conditions
Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
132 mm
Depth
95.1 mm
Height
44.2 mm
Weight
517 g
Packaging content
Quick start guide
Yes
Packaging data
Package type
Box
Certificates
Compliance certificates
CE, UKCA, Federal Communications Commission (FCC), Industry Canada (IC), CB
