Chief KITXWXSM1UP

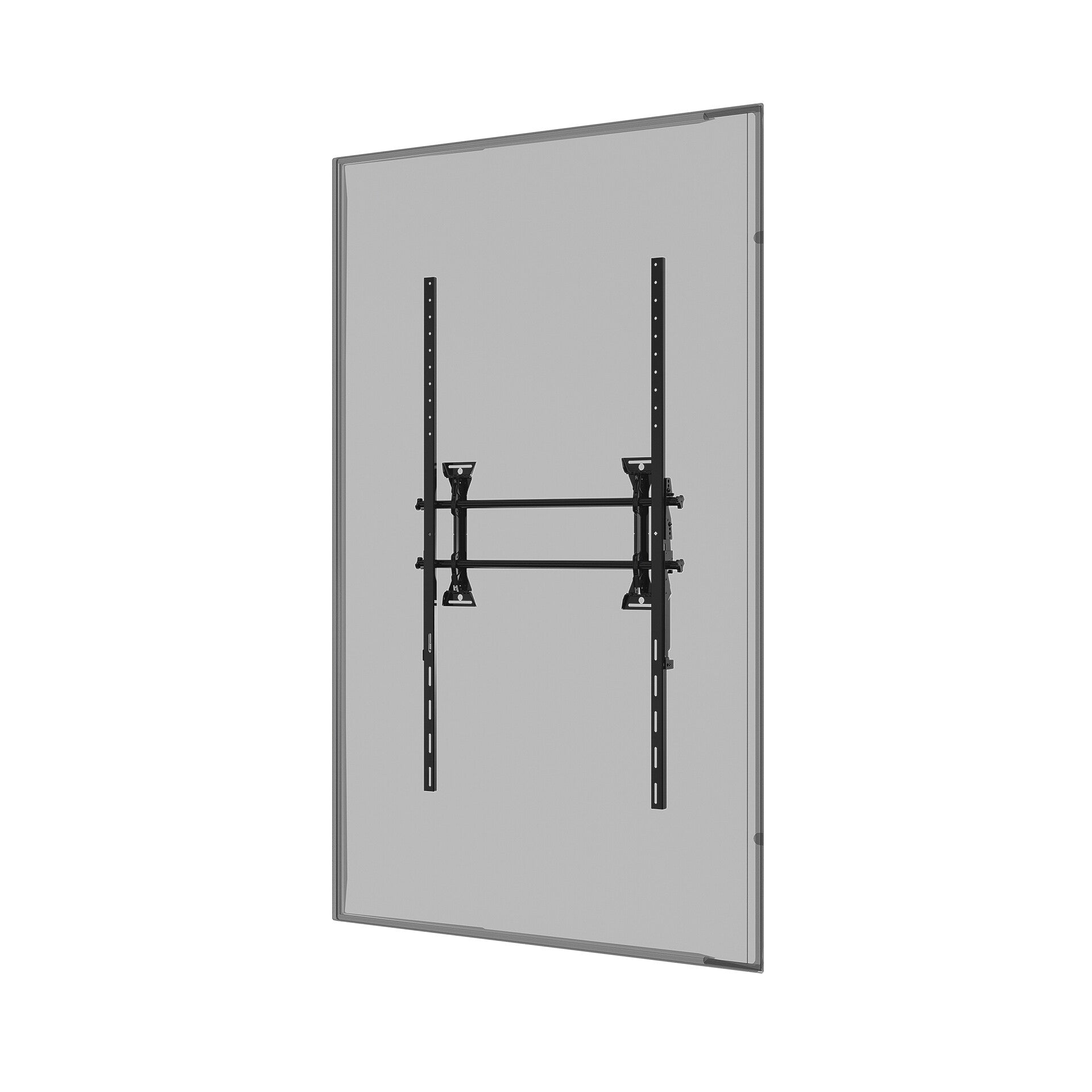

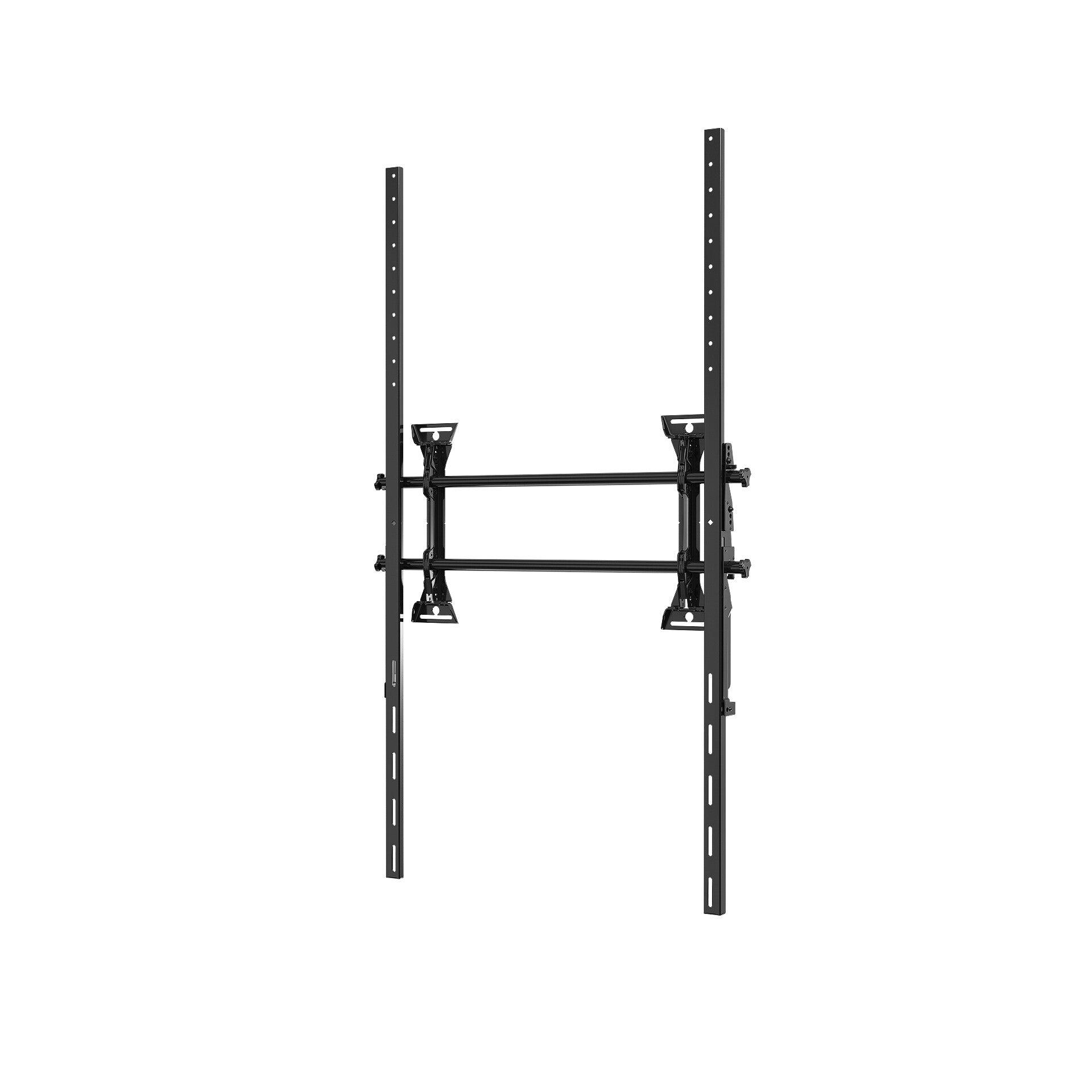

The Chief KITXWXSM1UP is a purpose-built portrait wall mount kit designed for extra-large 21:9 ultrawide flat panel displays in the 80–120 inch class. Built on Chief's proven Fusion platform, it combines a fixed, static profile with an extensive suite of post-installation micro-adjustment features — making it the go-to solution for integrators who need precision alignment on demanding ultrawide display projects. Typical applications include immersive digital signage columns, portrait-oriented video canvases, and high-impact retail or lobby installations where a 21:9 panel is mounted vertically. The kit ships with all hardware required for a complete installation, including nesting spacers, Quick-Store pull cords, and a hanging hardware kit for staged installs.

Centerless Shift for Post-Install Centering

Centerless Shift provides up to 57.5 cm (575 mm) of lateral adjustment that can be made after the display is fully mounted on the wall. Unlike traditional mounts where lateral position is fixed at installation, this system lets the installer slide the screen left or right across its full range without removing it — and then lock the position with set screws for a permanent, rattle-free hold. In practice, this means a display can be positioned to precise centre even when wall studs or mounting surfaces do not align with the intended screen centre. This eliminates the most common cause of costly re-installs and is especially valuable for portrait-oriented ultrawide panels, where even small off-centre placement is visually obvious.

Portrait-Specific Ultrawide VESA Coverage

The KITXWXSM1UP is engineered specifically for 21:9 ultrawide displays mounted in portrait orientation, covering VESA patterns from 100×600 mm up to 891×1500 mm. This is a decisive specification: standard large-format mounts top out well below the 1500 mm vertical span required by many ultrawide panels in portrait mode, making this kit one of the few solutions that natively fits without adapters or custom fabrication. Compatible screens typically run from 80 to 120 inches diagonal. For integrators specifying portrait ultrawide video columns — retail, hospitality lobbies, museum installations — this kit eliminates compatibility guesswork and simplifies the Bill of Materials.

Portrait ultrawide. Precision micro-adjust. One complete kit.

Chief 10-Year Limited Warranty · For indoor non-electrical use

Fusion Platform: Teardrop Design and ControlZone Leveling

Chief's Fusion platform brings two practical installation advantages together in one kit. The integrated teardrop wall plate slots allow bolts to be pre-installed into the wall before the mount arrives, so the plate drops onto the bolts and tightens in seconds — significantly reducing the two-person wall-work phase of a large, heavy-panel install. ControlZone Leveling then provides fine-grained height and level adjustment after the screen is on the mount, without needing to disturb the wall plate or re-torque hardware. Together these features compress install time and reduce the risk of cosmetic wall damage during adjustment — a real benefit for finished interior environments such as retail fit-outs or corporate reception areas.

ClickConnect Safety Engagement

ClickConnect is Chief's audible engagement system: the display adapter bracket produces an unmistakable click the moment the screen locks securely onto the wall plate. On a panel weighing up to 113.4 kg, the difference between 'almost seated' and 'fully engaged' is not always visible, particularly during overhead or elevated installs. The audible confirmation removes ambiguity and gives installers a clear signal to stop applying force — reducing the risk of panel drops and installation damage. For end users, this means the display stays secure throughout its operational life, and service technicians re-seating the panel after maintenance benefit from the same assurance.

Nesting Spacers and Multi-Stud Compatibility

The kit includes exclusive nesting spacers that stack to achieve any required stand-off depth from the wall, accommodating variations in wall construction, conduit runs, or receptacle boxes behind the mounting surface. Multiple built-in installation options support various stud distances, so the same kit works across wood-stud, metal-stud, and concrete wall types without additional adapters. This broad structural compatibility is especially useful for integrators working across multiple sites with differing wall construction, as a single kit SKU covers the majority of installation scenarios without custom hardware orders.

Integrated Security and Staged-Install Hardware Kit

Integrated security features protect the display from unauthorised removal once installed — an important consideration in public-facing or semi-public environments such as lobbies, retail floors, and exhibition spaces. The kit also ships with a custom hardware kit that can be hung directly from the mount rails during a staged installation — keeping screws, bolts, and brackets organised and immediately to hand at the point of installation rather than in a separate parts bag. Quick-Store Cords use embedded magnets to store pull cords neatly out of sight, and updated end caps finish the cable management for a clean, professional appearance.
