Chief KITXWXSM1U

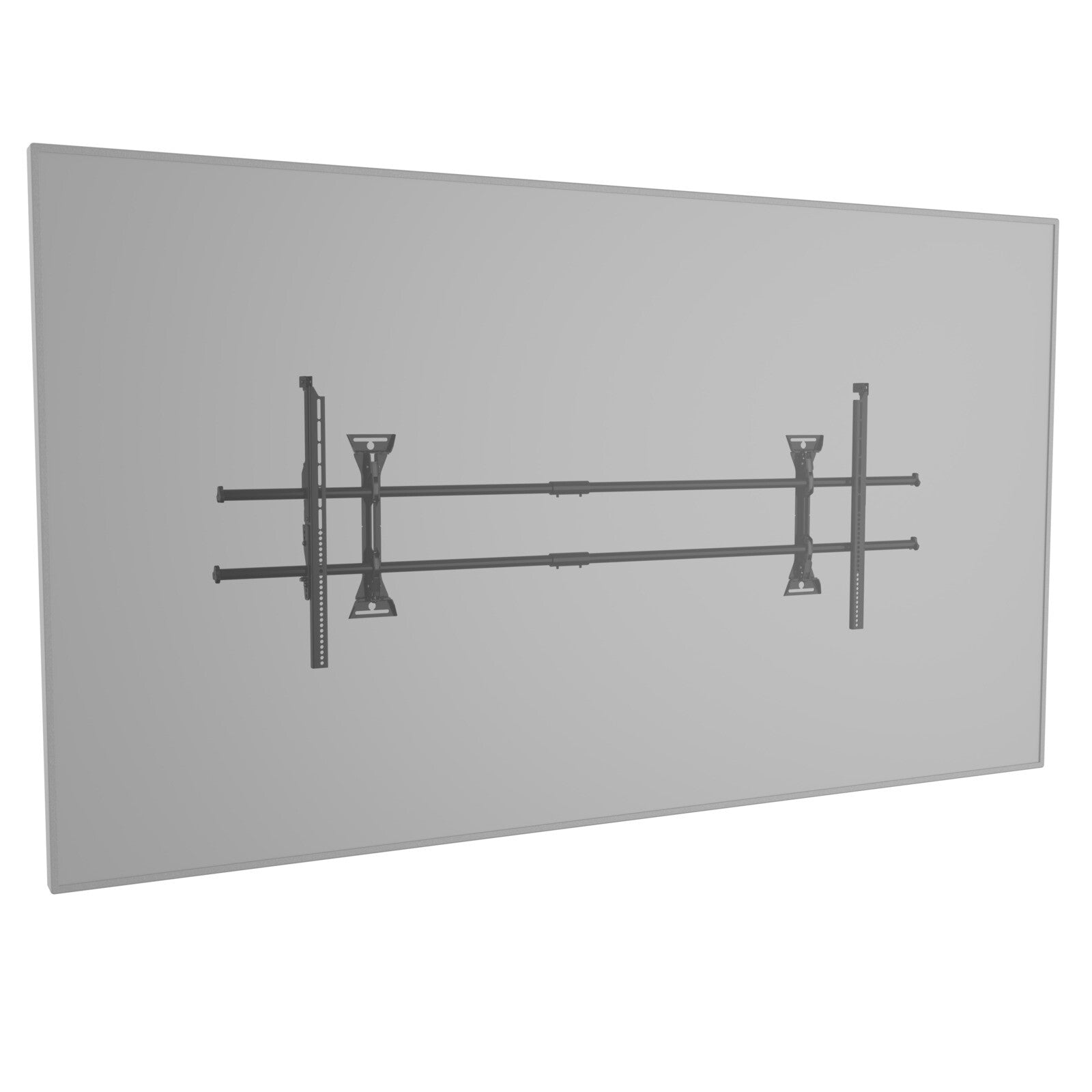

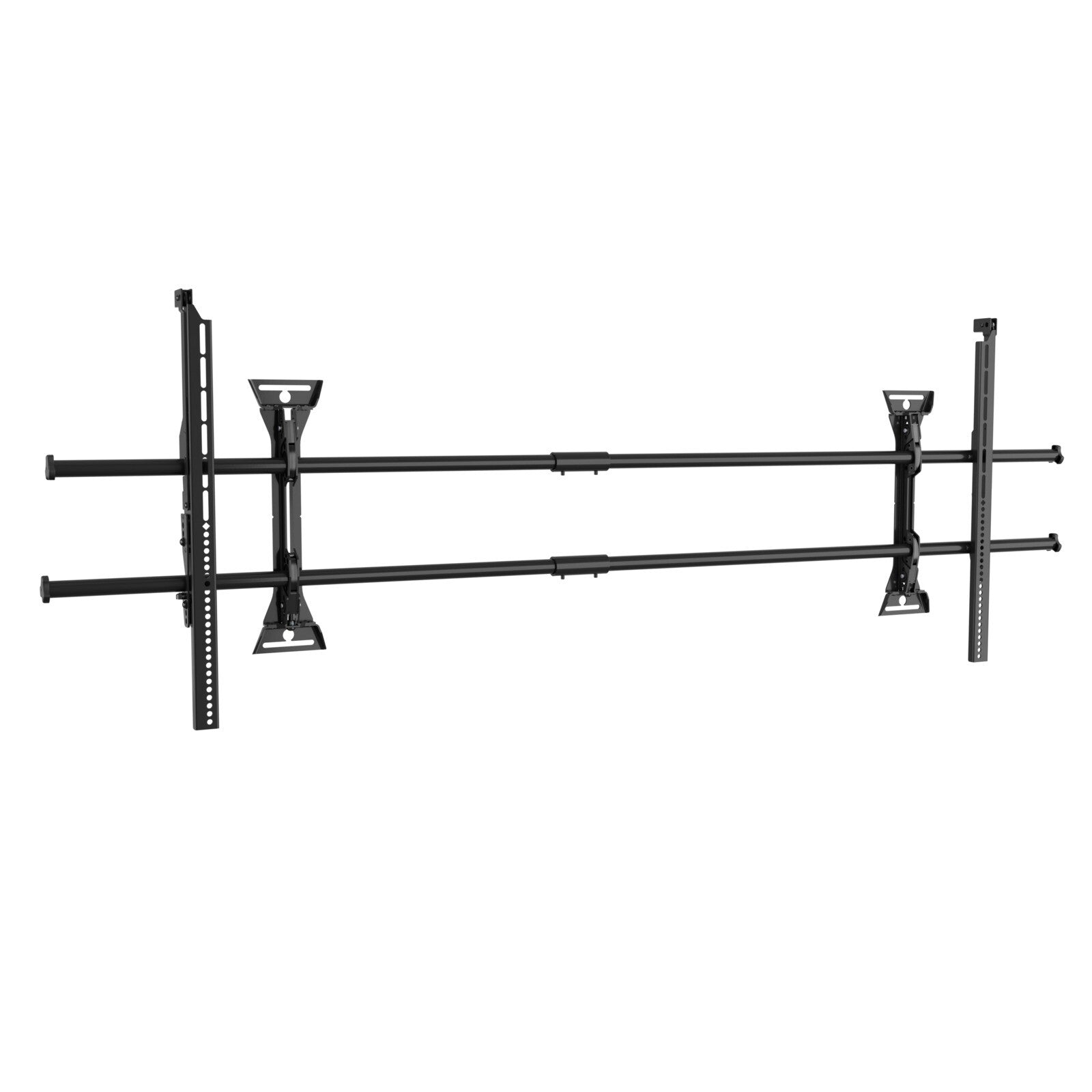

The Chief KITXWXSM1U Ultrawide Micro-Adjustable Static Wall Mount, Extra-Large Kit is engineered specifically for the growing category of 21:9 ultra-wide large-format displays, such as the Jupiter Pana 105. Built on Chief's proven Fusion® platform, it accommodates landscape-only mounting patterns from 130,0 × 10,0 cm up to 195,4 × 60,0 cm and handles displays from 203 cm (80") to 305 cm (120") weighing up to 113,4 kg. Purpose-designed for professional AV environments such as corporate boardrooms, control rooms, and high-end collaboration spaces, the kit combines precision post-installation micro-adjustment with integrated security and cable management for a clean, dependable installation.

Purpose-Built for 21:9 Ultrawide Displays

Standard large-format wall mounts max out at conventional VESA patterns, leaving ultrawide 21:9 displays — like the Jupiter Pana 105 — without a compatible solution. The KITXWXSM1U is designed from the ground up to handle mounting patterns from 130,0 × 10,0 cm up to 195,4 × 60,0 cm, far beyond the reach of any standard XL mount. For end users deploying ultra-wide collaboration or command-and-control displays, this means no improvised adapters, no compromised structural integrity, and no risk of voiding the display manufacturer's warranty. The kit ships with a dedicated hardware set matched to this pattern range, so installation is straightforward even for very large, heavy screens.

Post-Installation Micro-Adjustment via ControlZone and Centerless Shift

Once a large ultrawide display is on the wall, repositioning it is a major undertaking — unless the mount is designed for it. The KITXWXSM1U combines two independent post-installation adjustment systems: ControlZone Leveling for fine-tuning height and level after the screen is hung, and Centerless Shift for up to 57,4 cm of horizontal travel without touching the wall plate. In practice, this means the display can be perfectly aligned to furniture, architectural features, or a video wall grid long after the heaviest lifting is done. For installers, it dramatically reduces the risk of costly re-drilling; for the end user, the result is a pixel-perfect installation that stays true over time.

Built for ultrawide 21:9. 113 kg capacity. 57 cm lateral shift.

10-year limited manufacturer warranty · Compatible with Fusion pull-out accessories

ClickConnect — Audible Lock Confirmation

Mounting a 113 kg ultrawide display is a multi-person job, and confirming that the screen has fully engaged the wall bracket is critical for safety. Chief's ClickConnect mechanism produces an audible click the moment the display locks into the mount, giving installers clear physical and acoustic confirmation — no guessing, no second-guessing. This is especially valuable during installation in large spaces where visual inspection of the engagement point may be difficult. For the end user, it means the display is positively secured from day one, reducing the long-term risk of loosening under vibration or accidental impact.

Integrated Teardrop Wall Plate — Faster, Cleaner Installation

The integrated teardrop design on the wall plate allows installers to pre-drive all bolts into the wall studs before the plate is hung. The plate then drops over the bolt heads and locks in place — eliminating the need to hold a heavy steel plate flush against the wall while simultaneously tightening fasteners. For large-format installs where every extra set of hands matters, this significantly speeds up the wall-plate stage of the job. The result for the end user is a more reliable structural connection, since fasteners can be torqued correctly without the plate shifting under load.

Integrated Cable Management and Built-In Cable Stand

Cable management is often an afterthought on heavy-duty mounts, but the KITXWXSM1U integrates it directly into the mount body. Optimised end caps route cables cleanly along the frame, magnetic Quick-Store Cords keep pull cords accessible but tidy, and a built-in cable stand lifts cables clear of the wall for easy access beneath the screen during servicing. For ultrawide displays used in boardrooms or control rooms, where cabling is extensive and service access is needed periodically, this means a clean installation from day one that remains serviceable without pulling the display off the wall.

Fusion Accessory Compatibility — Expandable After Installation

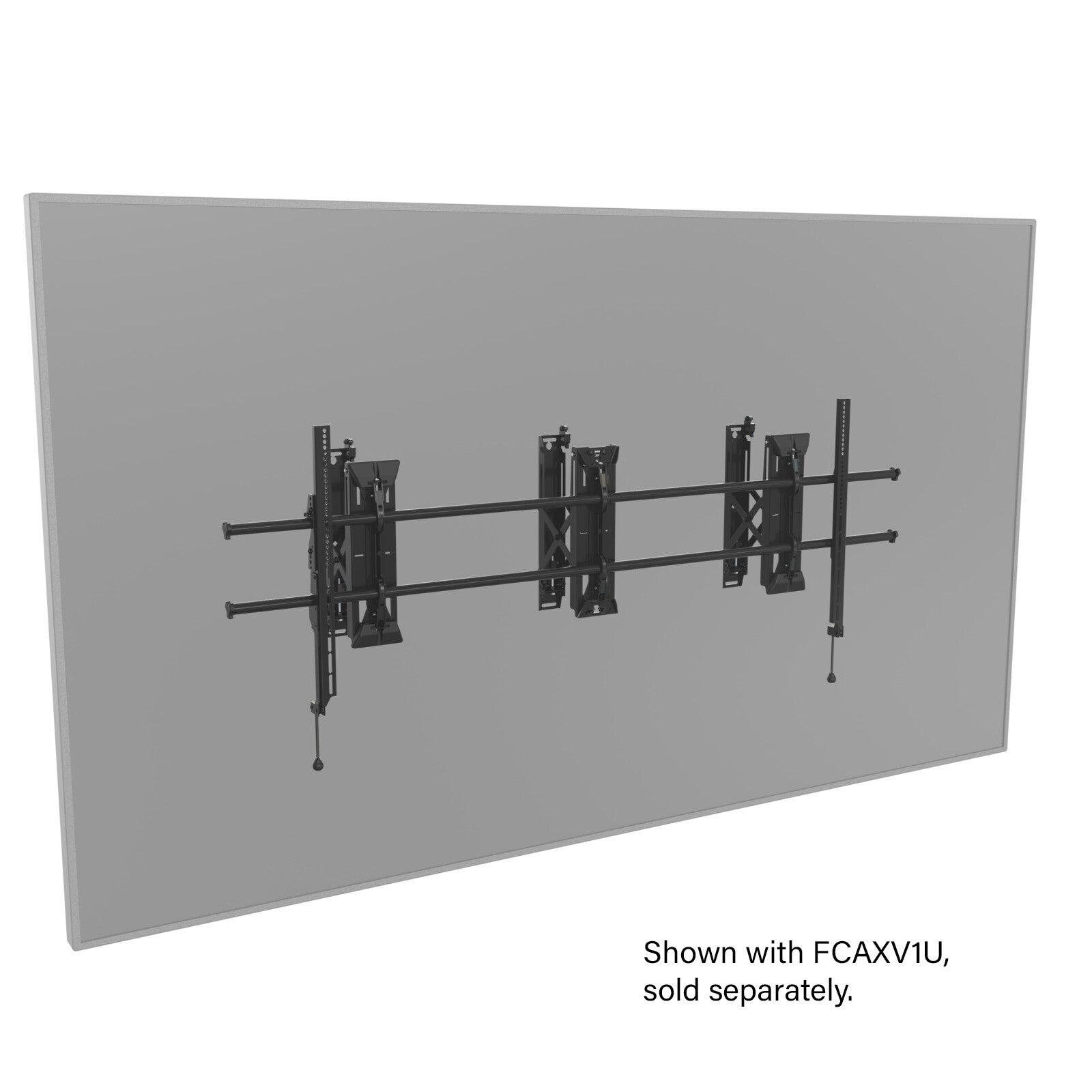

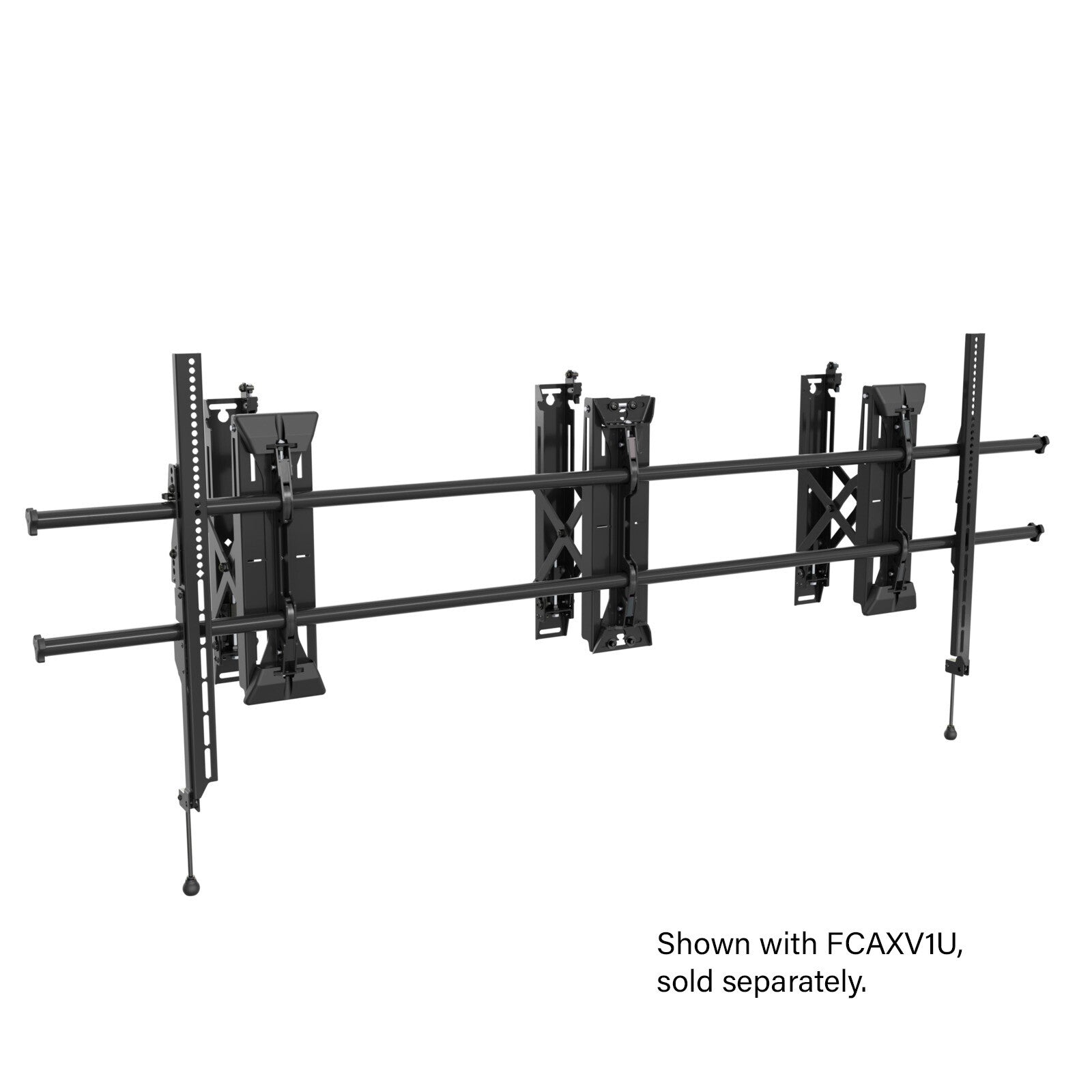

The KITXWXSM1U is compatible with Chief's UL-listed FCAXV1U Fusion pull-out accessory, enabling the display to be pulled away from the wall for cable access or maintenance without dismounting the screen. The combined weight limit of 113,4 kg is maintained when the pull-out accessory is fitted. Stackable nesting spacers allow the mount depth to be adjusted for different installation depths or in-wall box configurations. This ecosystem approach means that as requirements change — for example if a pull-out function is added later — the base mount does not need to be replaced, protecting the original installation investment.
