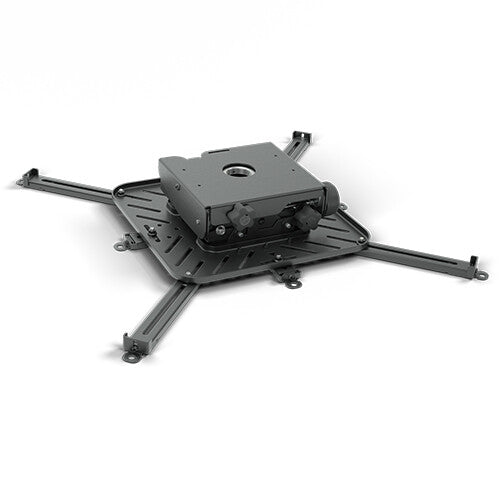

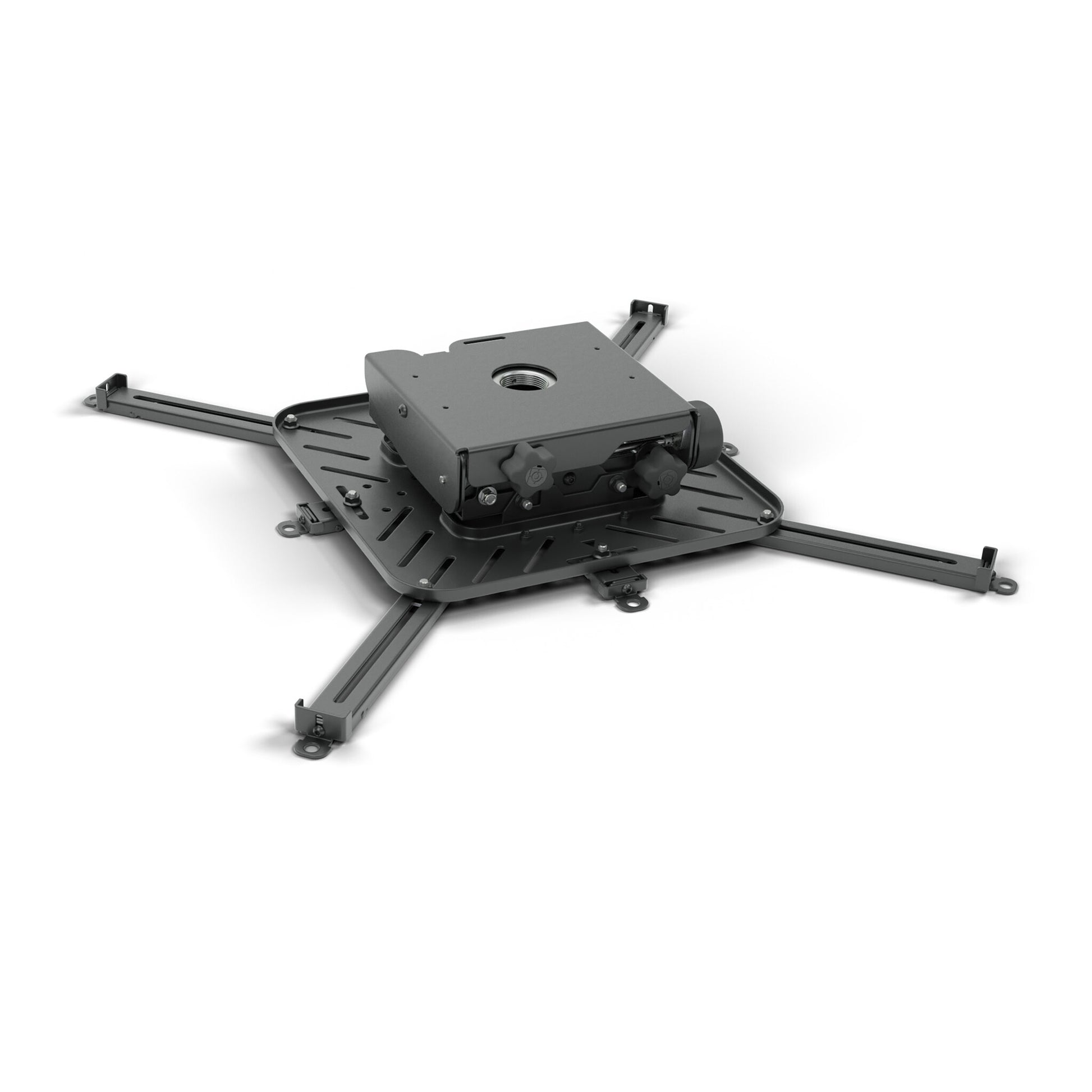

Chief VCTUB — XL universal tool-free ceiling projector mount
The Chief VCTUB is an extra-large universal tool-free ceiling projector mount designed for heavy laser and lamp projectors weighing between 22,7 and 68 kg. Built as a leaner, lighter successor to the VCM series — 30% slimmer and 25% lighter — it suits corporate auditoriums, lecture theatres, houses of worship and large-venue AV installations where both aesthetics and long-term reliability matter. The mount ships with the HCUB universal interface and delivers precise image alignment through its tool-free MicroZone+ adjustment system, making installation faster and post-installation fine-tuning straightforward without specialist tooling. A 10-year limited warranty and TÜV Rheinland Green Product certification round out the package.
MicroZone+ Pitch: Precision Without Tools

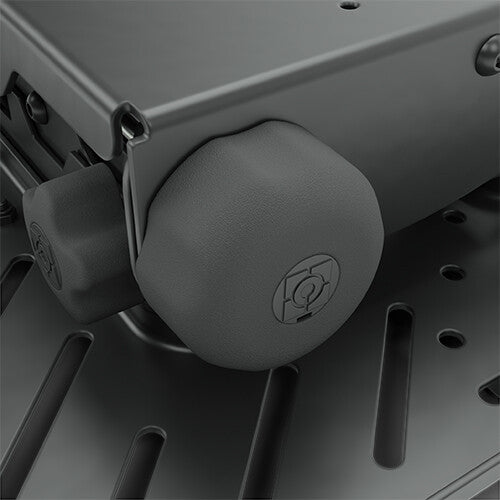

The MicroZone+ pitch mechanism uses a 100:1 gear ratio, meaning every full turn of the knob moves the projector only a tiny fraction of a degree. This level of precision is unusual in projector mounts and is especially valuable in large rooms where even a small misalignment translates to a noticeably off-centre image. Adjustment can be made by hand using the tool-free knob or driven with a standard 1/2" (13 mm) socket and drill for coarser initial positioning — then fine-tuned by hand. PrecisionSet technology locks the pitch in place once the correct angle is found, preventing drift over time. For users in education or corporate environments, this means the projected image stays where it was set, even after years of vibration from HVAC systems or foot traffic above a suspended ceiling.
Tool-Free Roll & Yaw with Positive Lockout
Roll and yaw are both adjusted via gear-driven knobs requiring no spanners or hex keys on site — an important practical advantage during first-fit installation and when making seasonal adjustments to projector alignment. Once the correct position is found, dedicated lockout nuts can be tightened to physically prevent the mount from shifting. This matters in high-traffic venues such as houses of worship or university lecture theatres, where the projector may be bumped during cleaning or maintenance. The combination of easy adjustment and positive mechanical lock means less reliance on the installer returning for re-alignment calls.
Universal Interface Fits Most Projector Patterns

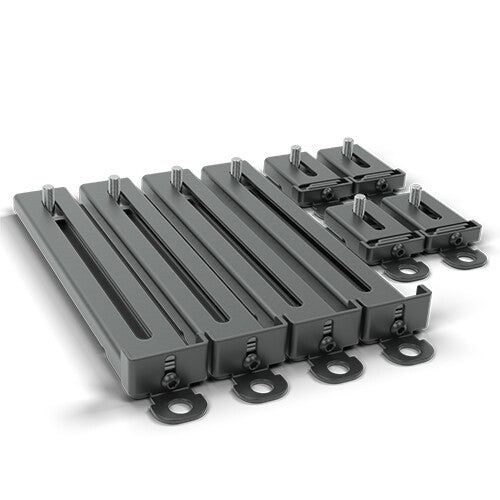

The included HCUB Universal Interface ships with both short and long attachment legs, accommodating a wide range of projector mounting-hole patterns within a single adapter plate. Short legs reduce visual clutter for compact projectors with closely spaced mounting points, while long legs extend the reach for larger models with wide-set patterns. Custom Chief HC-series interfaces are also available for projector models outside the universal plate's coverage. In practice, this means a single VCTUB SKU covers the vast majority of large-format projectors without requiring a separate interface bracket order — simplifying pre-project planning and reducing the risk of a missing component on installation day.
68 kg Capacity for Heavy Laser Projectors
Rated to 68 kg, the VCTUB is sized for the current generation of large-venue laser projectors, which are significantly heavier than their lamp-based predecessors. The mount attaches to a standard 1-1/2" NPT or NPSM Schedule 40 extension column (sold separately), a widely available pipe standard that gives integrators flexibility in ceiling-to-projector drop height. Installers should ensure the supporting structure is rated to at least five times the combined equipment weight — a requirement stated in the installation instructions. The clear capacity rating makes project compliance documentation straightforward for venues that require structural sign-off.
10-Year Warranty and Green Certification
Chief backs the VCTUB with a 10-year limited warranty, which is notably long for a projector mount and reflects confidence in the product's durability. For AV installations in education, government or corporate facilities with long equipment lifecycles, this aligns the mount's warranty with the typical useful life of the installation — reducing the likelihood of warranty gaps between mount and projector replacement cycles. The TÜV Rheinland Green Product certification additionally satisfies sustainability procurement requirements that are increasingly common in public-sector and corporate tenders.
