Vaddio USB 3 Extenders

Vaddio USB 3 Extenders

USB 3.0, 100 m, CAT6a/7, 5 Gbps, 4 x RJ-45, 4 x USB 3.0 Type A, 1 x USB 3.0 Type B, 100-240V, 990 g, EU/UK

  • Up to 328 ft (100 m) of extension
  • Supports USB 3.1 Gen 1, USB 2.0, and USB 1.1
  • Plenum-rated cabling solution
  • Plug and play - no software drivers needed
  • SKU:0840077500825
  • GTIN/EAN:0840077500825
  • MPN:999-1005-132

You need to login to view the price.

View full details

Vaddio USB 3 Extenders. Width: 232.1 mm, Depth: 137.3 mm, Height: 33 mm. Cables included: AC, USB. Input voltage: 100 - 240 V, Output voltage: 24 V, Output current: 2.71 A

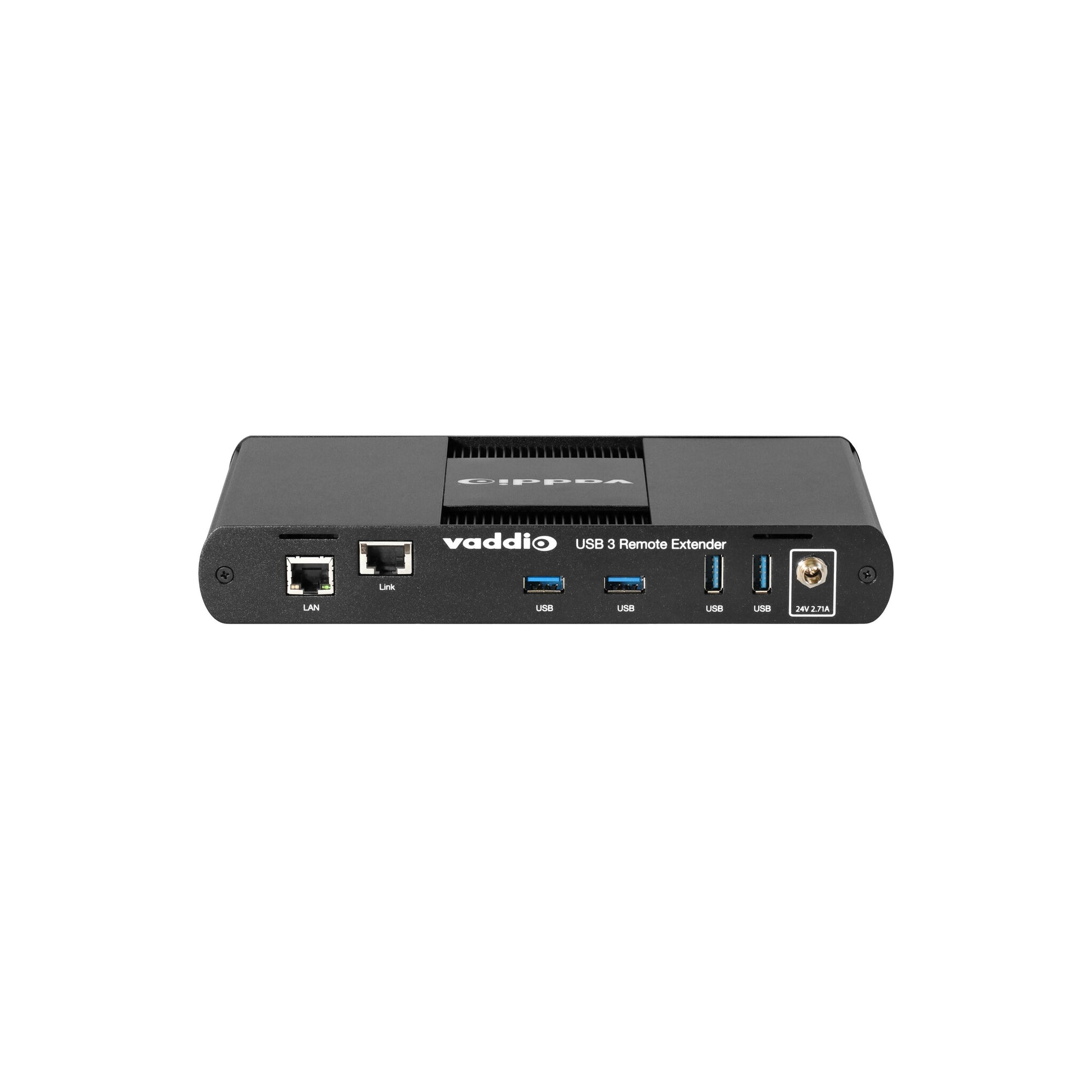

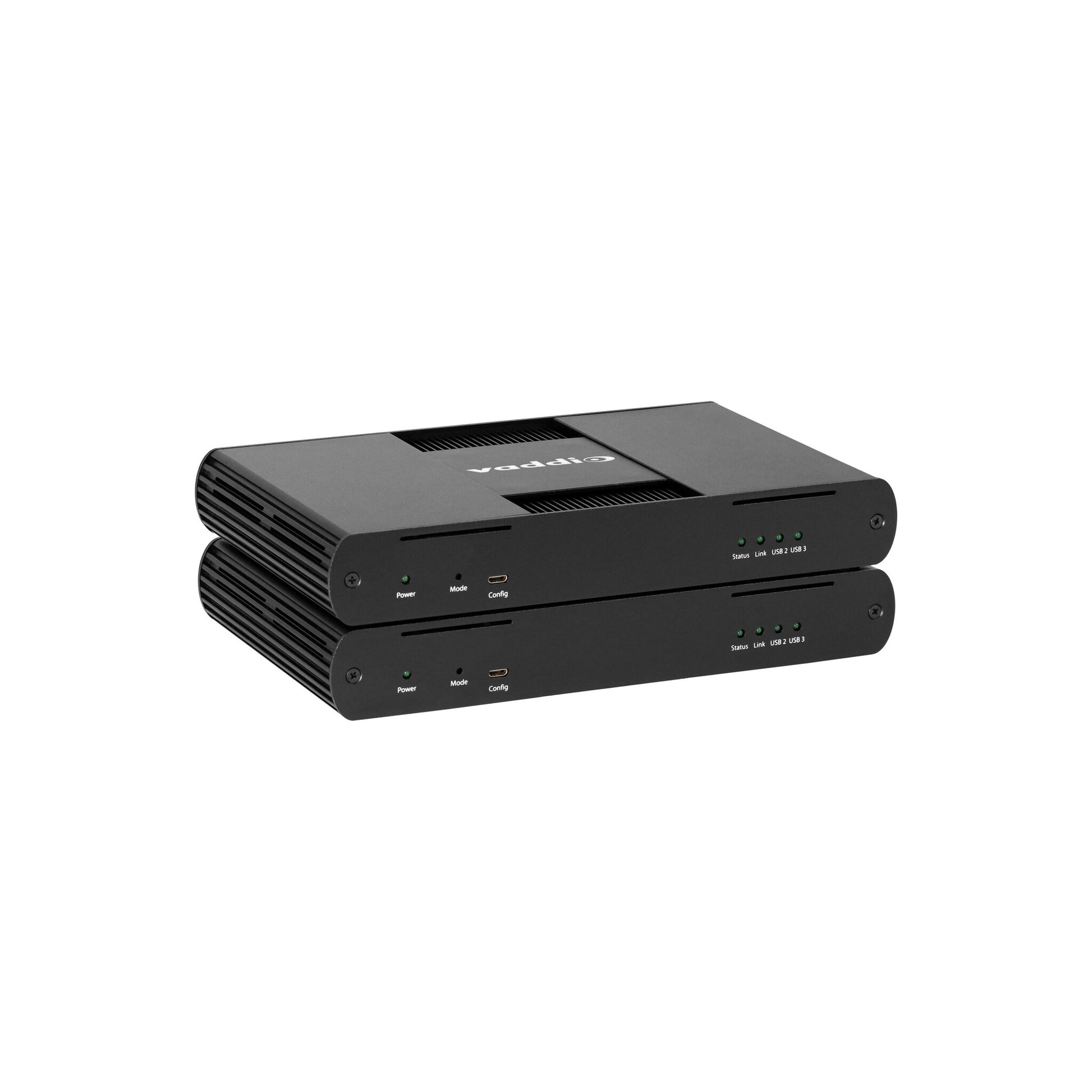

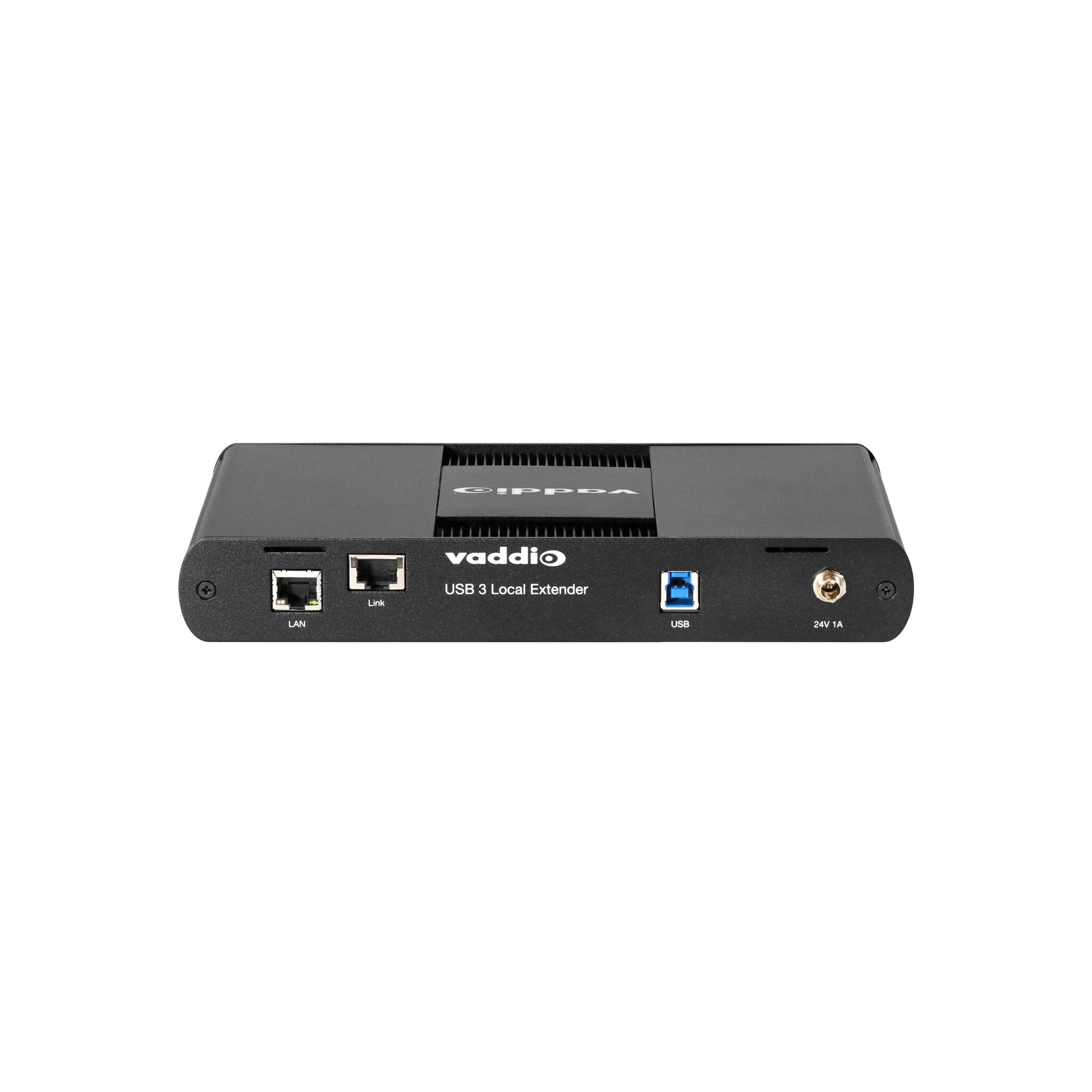

USB 3 Extenders enable you to extend USB 3.1 beyond the standard 3m cable limit for USB 3.1 peripheral devices (like a camera or other AV source). This extender system is composed of two individual units, the Local Extender and the Remote Extender, and has the following key features:
- Up to 328 ft (100 m) of extension when directly connected over CAT 6a/7 cable
- USB 3.1 Gen 1 data rate up to 5Gbps
- Supports up to four remote USB devices simultaneously at full bandwidth (5Gbps)
- True plug and play; no software drivers required
- Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™
- 100/1000 Ethernet channel; LAN pass-through

2 years

Technical details
Type
Console transmitter & receiver
Data transfer rate
5000 Mbit/s
Maximum transfer distance
100 m
Number of devices supported
30
Product colour
Black
Compliance certificates
RoHS
Cable types supported
Cat6a, Cat7
LED indicators
Yes
Housing material
Aluminium
Certification
FCC (Class B), CE (Class B)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
1
RJ-45 ports quantity
4
DC-in jack
Yes
Weight & dimensions
Width
232.1 mm
Depth
137.3 mm
Height
33 mm
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 90%
Packaging content
AC adapter included
Yes
Quick start guide
Yes
Cables included
AC, USB
Power
Input voltage
100 - 240 V
Output voltage
24 V
Output current
2.71 A
Logistics data
Harmonized System (HS) code
84733020
