Atlona AT-VKP-8E-EU
Atlona AT-VKP-8E-EU
Velocity 8 Button Keypad Controller – EU / UK Faceplate

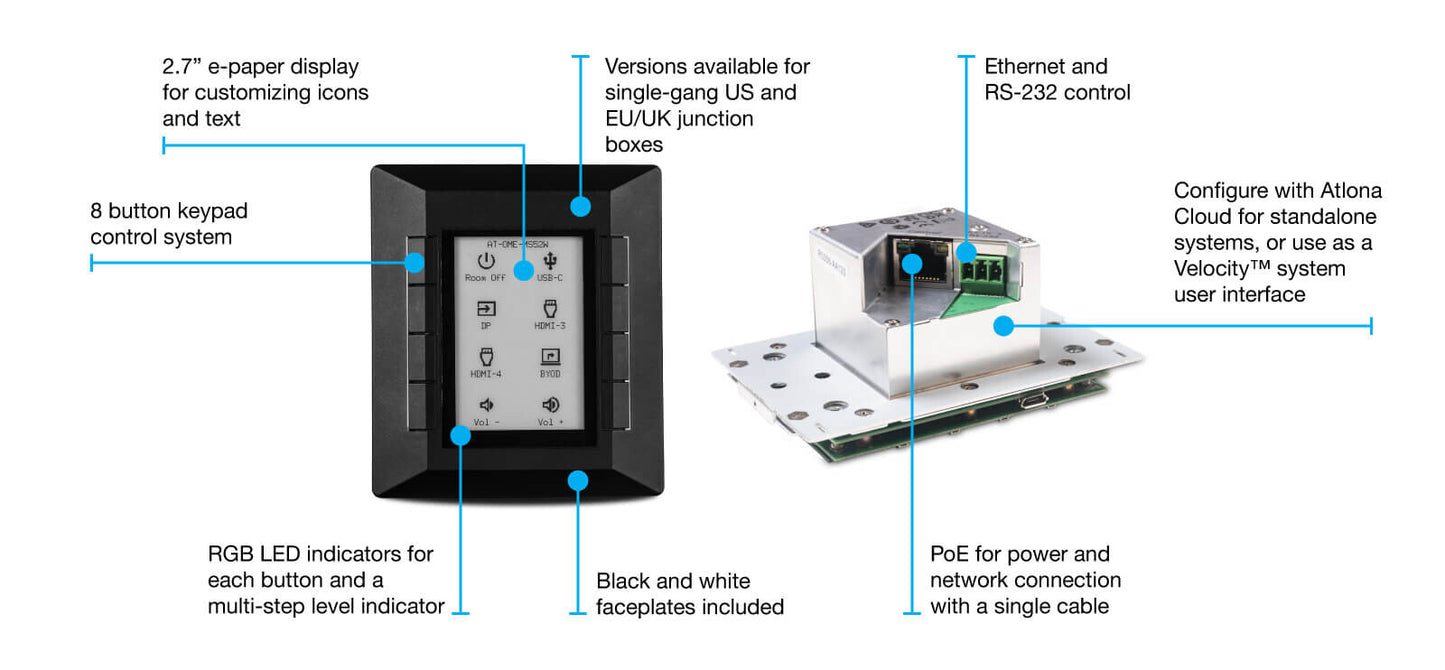

- Simple yet powerful keypad control system for one room of up to 10 devices
- 8 buttons for controlling display power, source input, volume levels, and other system functions
- RGB LED indicators for each button and a multi-step LED level indicator provide user feedback
- 2.7” high contrast e-paper display with 264 x 172 resolution allows custom icons and text to be associated with each button and dynamically change with different pages
- IP-based for controlling system devices over the network
- Bi-directional RS-232 port for controlling projectors, switchers, and other legacy devices
- Configure with Atlona Cloud for standalone systems, or use as a supplemental user interface in Velocity systems
- Pre-configured control files available for our most popular switchers
- Power over Ethernet (PoE) for remote power and network connection with a single cable
- Designed to mount in one-gang EU / UK junction boxes

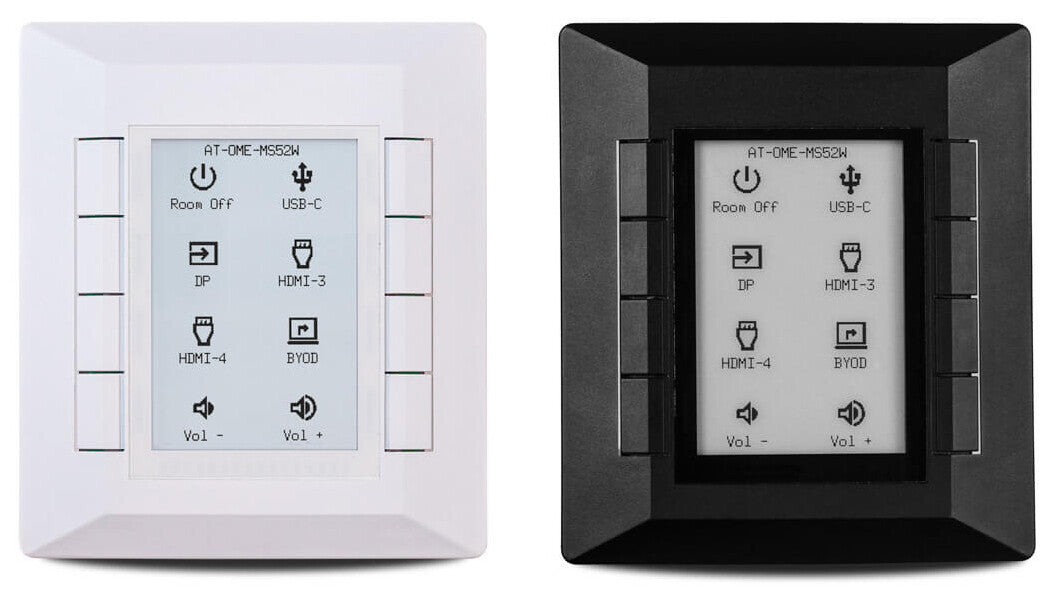

- Black and white faceplates included
- Included accessories – black and white faceplates, captive screw connector, mounting screws, faceplate screws, installation guide
- SKU:846352007621
- GTIN/EAN:846352007621
- MPN:AT-VKP-8E-EU
Atlona AT-VKP-8E-EU. Brand compatibility: Atlona, Product colour: Black, White, Display diagonal: 6.86 cm (2.7"). Width: 88 mm, Depth: 43.8 mm, Height: 100 mm. Compliance certificates: CE, China RoHS, Federal Communications Commission (FCC), ICES, RCM, UKCA
Keypad Control System
The AT-VKP-8E-EU is a simple yet powerful IP-based keypad controller for one room of up to 10 devices. It is ideal for lower complexity classrooms and meeting rooms that include only a few source selections and a single display.
Button Customization and Feedback
The e-paper display supports custom text and icons for each button, and can dynamically change with page flips. RGB LEDs for each button and a multistep level indicator can be used for system status.

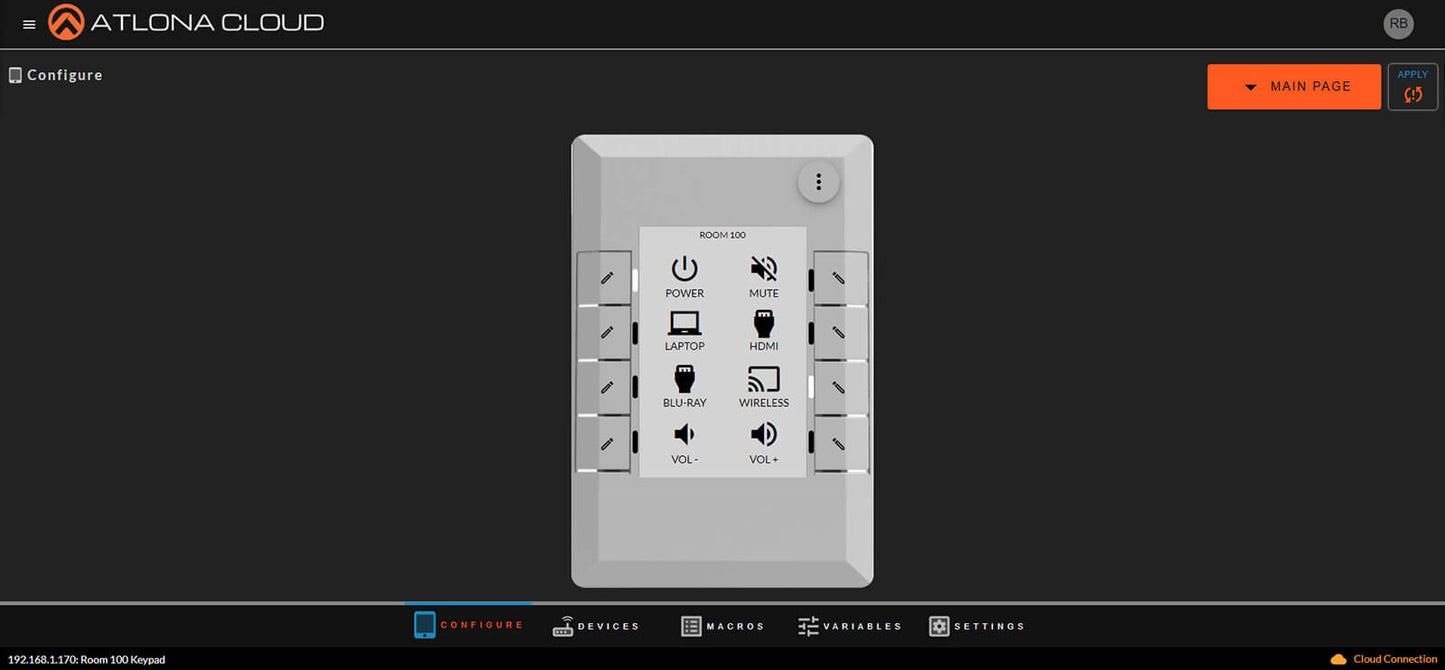

Atlona Cloud Configuration
Atlona Cloud is an online configuration and management platform for the AT-VKP-8E-EU. Use it’s intuitive interface to define the label, icon, and LED behavior for each button as well as macros for controlling room technology. The embedded file management system can be used to organize projects and share them with colleagues.
