Atlona AT-VTPG-1000VL-BL

Atlona AT-VTPG-1000VL-BL

Velocity All-In-One 10” Touch Panel with Gateway

  • Complete AV control system
  • 10” touch panel with contemporary styling and bezel lighting
  • Integrated Velocity gateway supports one room of control for up to 24 devices and two scheduling panels
  • Intuitive browser-based setup for fast system configuration
  • Dual purpose glass and wall mount included
  • SKU:846352007102
  • GTIN/EAN:846352007102
  • MPN:AT-VTPG-1000VL-BL
Add To Favorite

You need to login to view the price.

View full details

Atlona AT-VTPG-1000VL-BL. Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels, Aspect ratio: 16:10. Certification: CE, FCC, RCM, China RoHS. Speaker power: 2 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.1x, IEEE 802.3at. Power source type: PoE

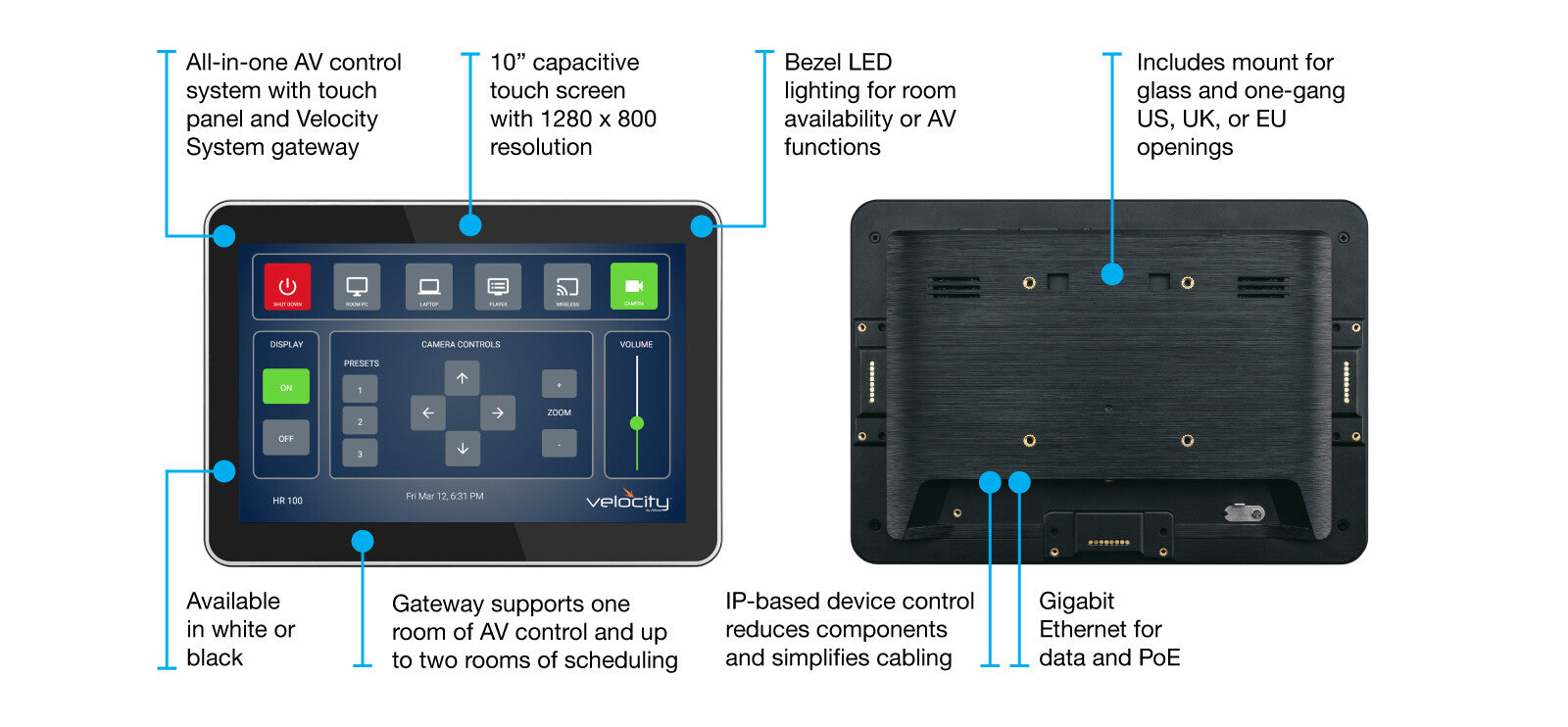

Complete AV Control System
The AT-VTPG-1000VL combines a 10″ touch panel and Velocity™ gateway into a single device making it an all-in-one AV control system for single room environments.

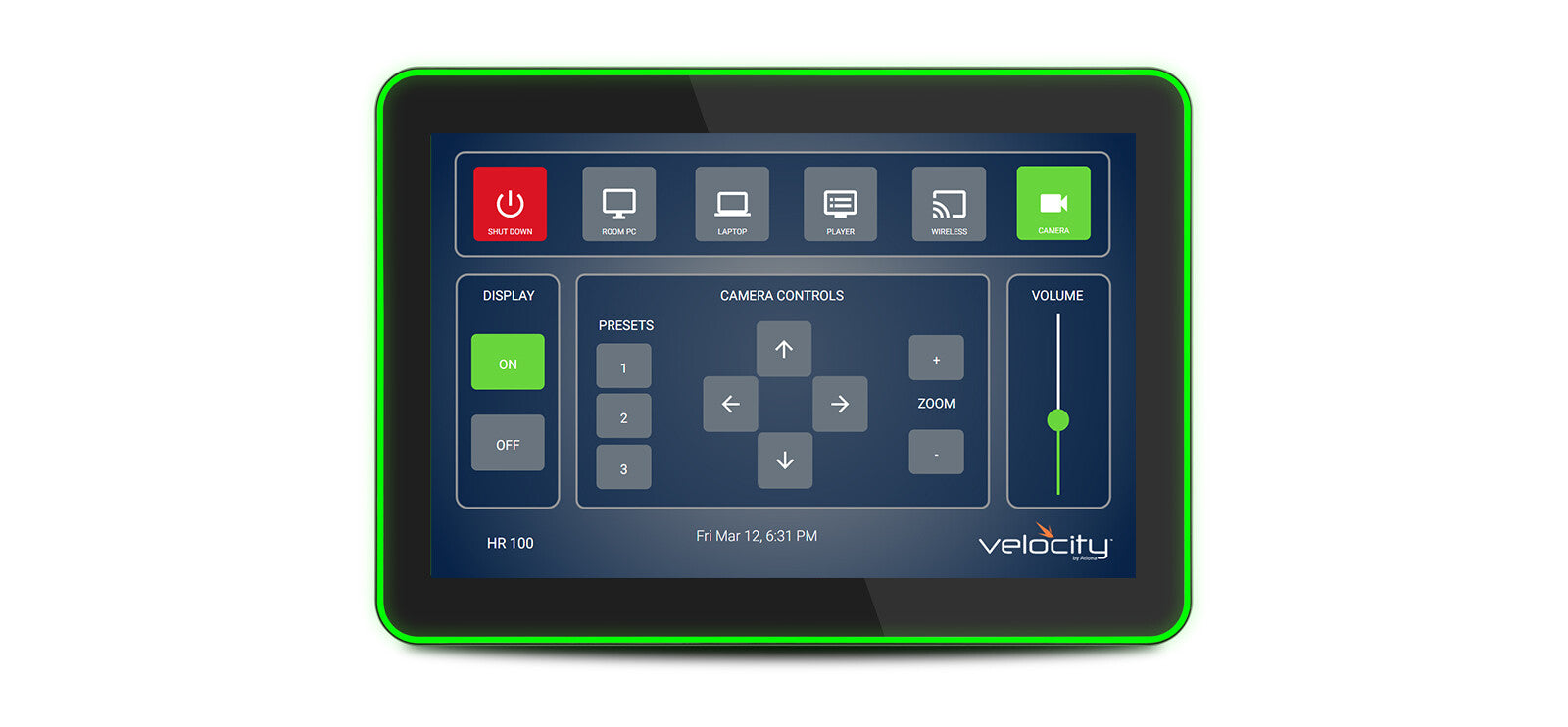

10″ touch panel with bezel lighting
Large capacitive touch control surface suits a variety of control applications and surround LED lighting adds emphasis to control functions or indicates room status for scheduling.

Integrated Velocity gateway
Supports one room of control for up to 24 devices and two scehduling panels. The IP-based platform utilizes Ethernet connections for device control, reducing components and simplifying cabling.

Display
Number of simultaneous touchpoints
5
Touchscreen technology
Projected capacitive system
Display brightness
500 cd/m²
Aspect ratio
16:10
Display resolution
1280 x 800 pixels
Display diagonal
25.6 cm (10.1")
Design
Certification
CE, FCC, RCM, China RoHS
VESA mounting
Yes
Audio
Speaker power
2 W
Number of speakers
2
Built-in speaker(s)
Yes
Network
Networking standards
IEEE 802.1x, IEEE 802.3at
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet LAN
Yes
Ports & interfaces
RJ-45 ports quantity
1
Power
Power source type
PoE
Weight & dimensions
Weight
650 g
Height
255 mm
Depth
25 mm
Width
181 mm
Operational conditions
Storage temperature (T-T)
-15 - 65 °C
Operating temperature (T-T)
-10 - 50 °C
Operating relative humidity (H-H)
10 - 90%
