Velocity All-In-One 10", LCD, 1280 x 800, 16:10 wide, 500 cd/m2, 2 x 2 W, 1 x RJ45, 802.3at PoE+, white
Atlona AT-VTPG-1000VL-WH. Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels, Display technology: LCD. Housing colour: White. Speaker power: 2 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Security algorithms: HTTPS, SNMP, SSH, Networking standards: IEEE 802.1x, IEEE 802.3at. Power source type: PoE

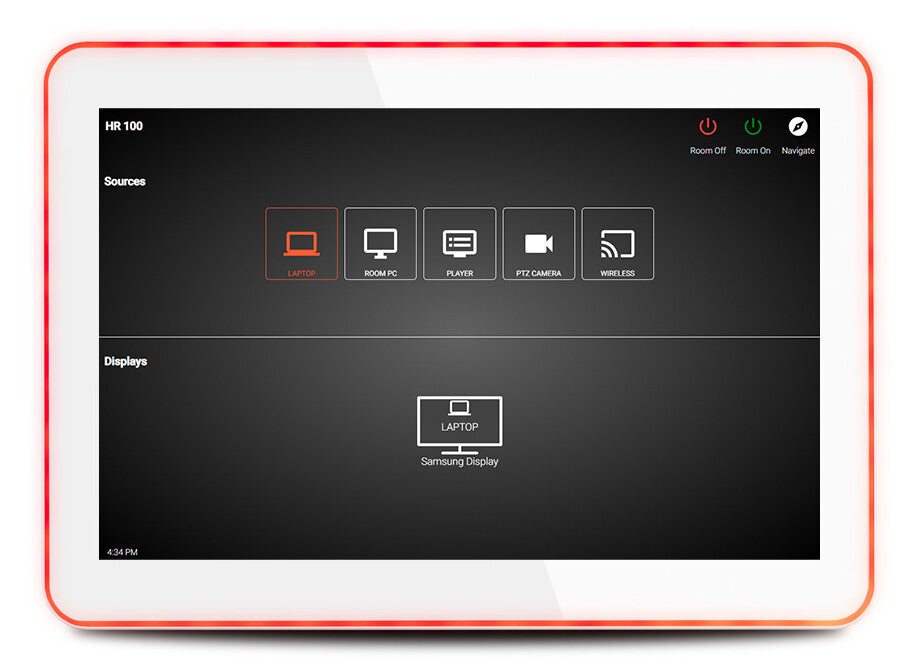

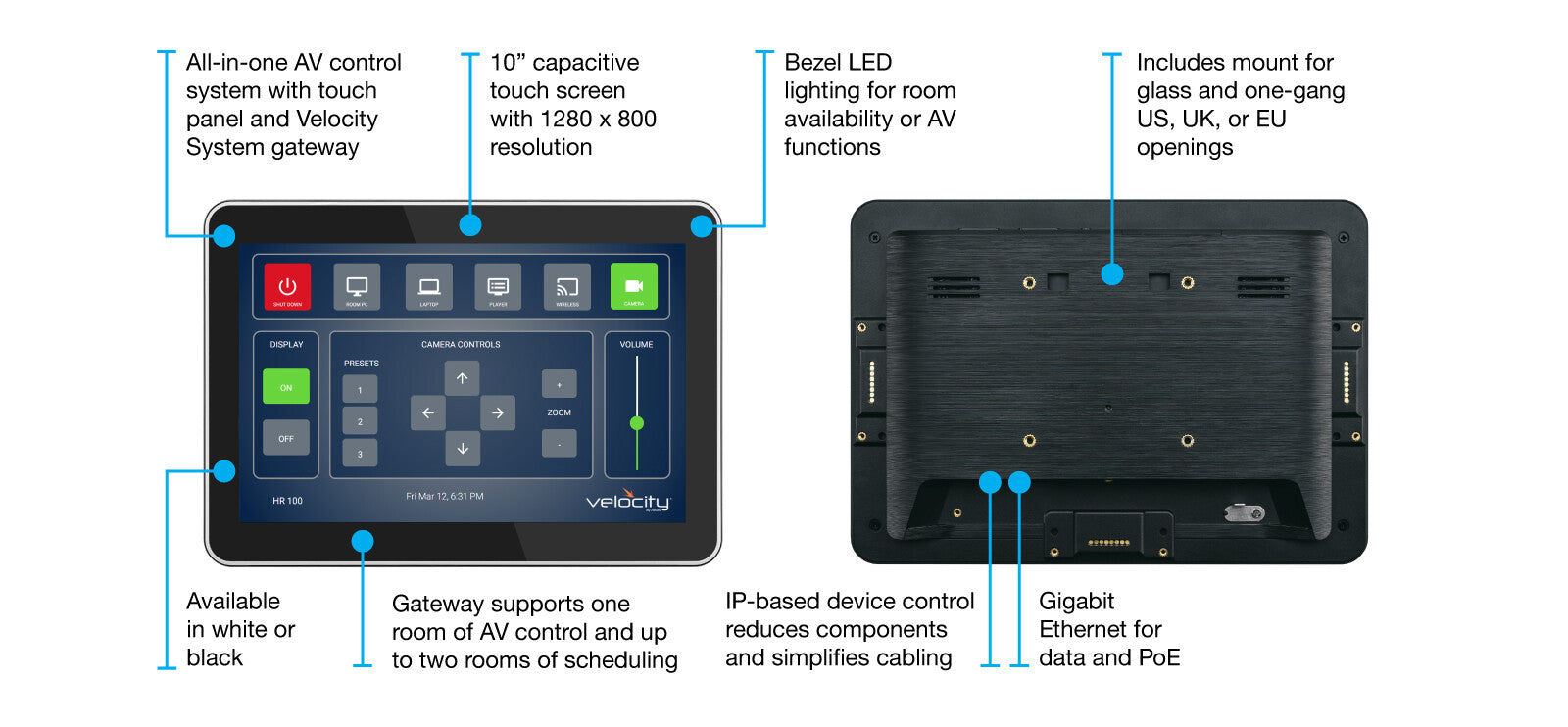

The Atlona AT-VTPG-1000VL is a Velocity™ 10” touch panel with integrated Velocity gateway. This all-in-one touch panel solution simplifies configuration and deployment for installations that only require control of a single room or AV system. Setup of the VTPG-1000VL is easy. The intuitive, browser-based configuration guides you through adding AV equipment to the room, creating user interfaces, and specifying control macros. The large 10” touch panel features contemporary, refined styling with 1280×800 native resolution, and a capacitive glass surface. Bright LED lighting surrounding the edge of the panel is ideal for providing a visual representation of room status or for adding emphasis to AV control functions.
The VTPG-1000VL features Power over Ethernet (PoE+), enabling a single network connection for data and power. This connection also allows the Velocity gateway to directly control devices over the network, reducing components and simplifying cabling. For devices that require more traditional forms of control, Atlona’s IP command converters provide compatibility with RS-232 (AT-VCC-RS232-KIT), IR (AT-VCC-IR3-KIT), and relays / sensors (AT-VCC-RELAY-KIT).
Supports Velocity Premier Services – Remote Gateway (AT-VPS-RG) for remote configuration, management, and control over the internet. Remote access to the gateway creates an opportunity to provide enhanced support and customer service by allowing system and device configuration, troubleshooting, credential and firmware updates, and more from any device with a browser and internet connection.
