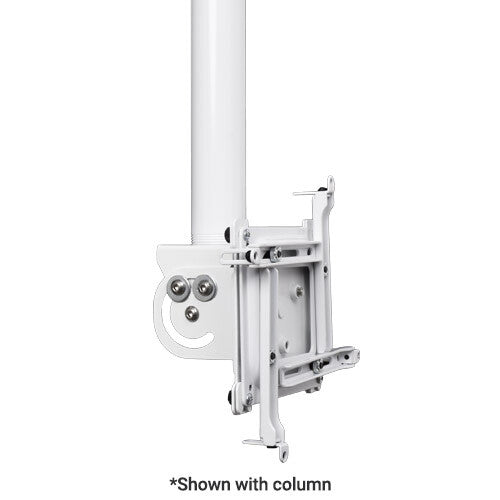

Chief VPAUW — Universal vertical and portrait ceiling projector mount
The Chief VPAUW is a universal ceiling projector mount designed for installations where standard horizontal projection is not possible or desired. It is particularly suited for digital signage and retail environments where projectors must be oriented vertically or in portrait mode. The mount accommodates most invertible projectors through a universal interface with up to six attachment points, and its independent roll, pitch, and yaw adjustments enable precise alignment without requiring repeated disassembly. The quick connect/disconnect mechanism simplifies both initial installation and ongoing servicing. Built from solid steel and finished in white, the VPAUW is a robust, long-lasting solution for AV integrators seeking flexibility in challenging ceiling projection scenarios.
Multi-Orientation Flexibility for Signage

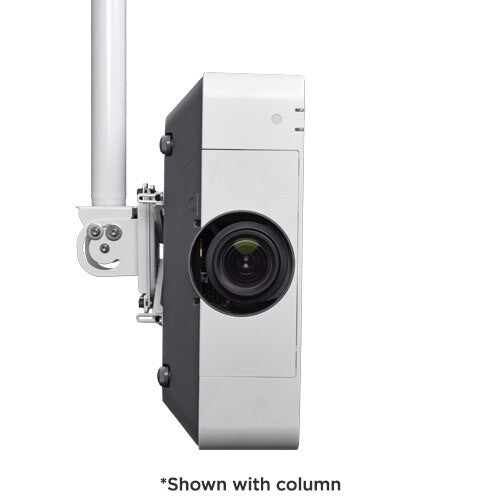

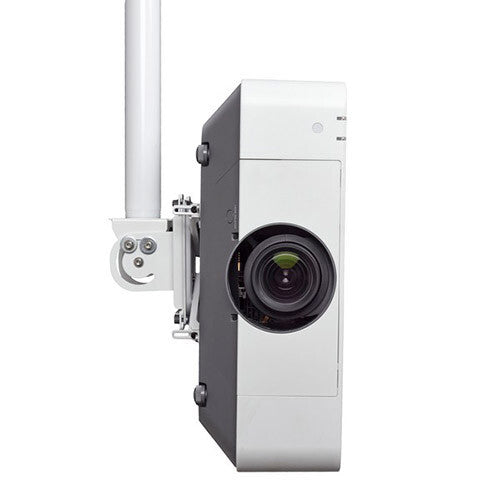

The VPAUW allows projectors to be mounted and operated not just horizontally but also vertically and in portrait mode — something most standard ceiling mounts cannot accommodate. This opens up a range of digital signage and event applications where a projector must throw an image sideways or downward onto a vertical surface, floor, or non-standard screen layout. For end users this means a single, purpose-designed mount covers scenarios that would otherwise require custom fabrication or compromise on image geometry. It is particularly relevant for retail environments, museums, and themed installations where portrait-format projected content is the brief.
Independent 3-Axis Adjustment with Preset Retention
Roll (±95°), pitch (360°), and yaw (360°) can each be set independently, allowing very fine-grained projector alignment. Crucially, the quick connect/disconnect mechanism preserves these preset adjustments when the projector head is removed — for example during lamp replacement or servicing. This means the projector can be taken down and re-hung without re-doing the alignment, which is a meaningful time-saver in commercial settings where projectors require periodic maintenance. For the end user operating the installation, it translates directly into less downtime and more consistent image registration.
Broad Projector Compatibility via Universal Interface
The mount's universal interface supports up to six projector attachment points with adjustable mounting legs and feet, making it compatible with the majority of invertible projectors on the market. This reduces the need for model-specific adapter plates in most projects. Note that the VPAUW is not compatible with Chief's own SLB/SLM/SSB/SSM projector interface brackets, so compatibility should be verified if those accessories are already part of an existing installation. For new installations the broad baseline compatibility significantly shortens pre-project planning time.
Certified Steel Construction and 10-Year Warranty
The VPAUW is built entirely from solid steel and carries both TÜV and UL certifications, confirming independent safety verification for ceiling-suspended loads up to 34 kg. Chief backs the hardware with a 10-year manufacturer warranty (electrical mechanisms excluded), which is among the longest in the category. For integrators, this reduces after-sales liability risk and gives end users confidence in a permanent, overhead installation. The white finish matches most commercial ceiling environments without requiring additional paint or finishing work.
