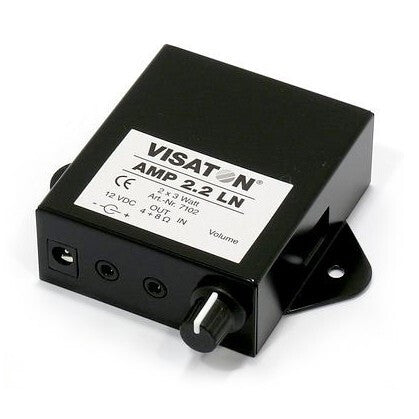

Visaton AMP 2.2 LN

Visaton AMP 2.2 LN

Visaton AMP 2.2 LN. Audio output channels: 2.0 channels, Total Harmonic Distortion (THD): 10%, Signal-to-Noise Ratio (SNR): 81 dB. Headphone connectivity: 3.5 mm. Weight: 178 g

Stereo amplifier with level controls, e.g. for multimedia applications. Suitable for use with small loudspeakers with impedances of 4 to 8 ohms.

Robust metal housing with two fixing lugs. Can be connected directly to the line out or headphones socket of a PC audio card, while the input sensitivity is regulated via the level control. Power supply (12 V) is via a mains adapter (not supplied) or the computer's on-board power supply. Short-circuit proof.

High signal-to-noise ratio.

Typical applications:
- Info terminals
- Computer displays
- Showcases

  • SKU:AU/VI/AMP/2.2LN
  • GTIN/EAN:
  • MPN:7102

You need to login to view the price.

Add To Favorite
View full details

Visaton AMP 2.2 LN. Audio output channels: 2.0 channels, Total Harmonic Distortion (THD): 10%, Signal-to-Noise Ratio (SNR): 81 dB. Headphone connectivity: 3.5 mm. Weight: 178 g

Stereo amplifier with level controls, e.g. for multimedia applications. Suitable for use with small loudspeakers with impedances of 4 to 8 ohms.

Robust metal housing with two fixing lugs. Can be connected directly to the line out or headphones socket of a PC audio card, while the input sensitivity is regulated via the level control. Power supply (12 V) is via a mains adapter (not supplied) or the computer's on-board power supply. Short-circuit proof.

High signal-to-noise ratio.

Typical applications:
- Info terminals
- Computer displays
- Showcases

Audio
Frequency range
40 - 40000 Hz
Signal-to-Noise Ratio (SNR)
81 dB
Total Harmonic Distortion (THD)
10%
Audio output channels
2.0 channels
Ports & interfaces
DC-in jack
Y
Headphone connectivity
3.5 mm
Headphone outputs
1
Technical details
Maximum input level
0.7 V
Impedance
4 Ω
Channels quantity
2 channels
Power requirements
12 V DC
Product colour
Black
Connectivity technology
Wired
Purpose
Home
Weight & dimensions
Weight
178 g
Operational conditions
Operating temperature (T-T)
-10 - 50 °C
Indication
LED indicators
Y
