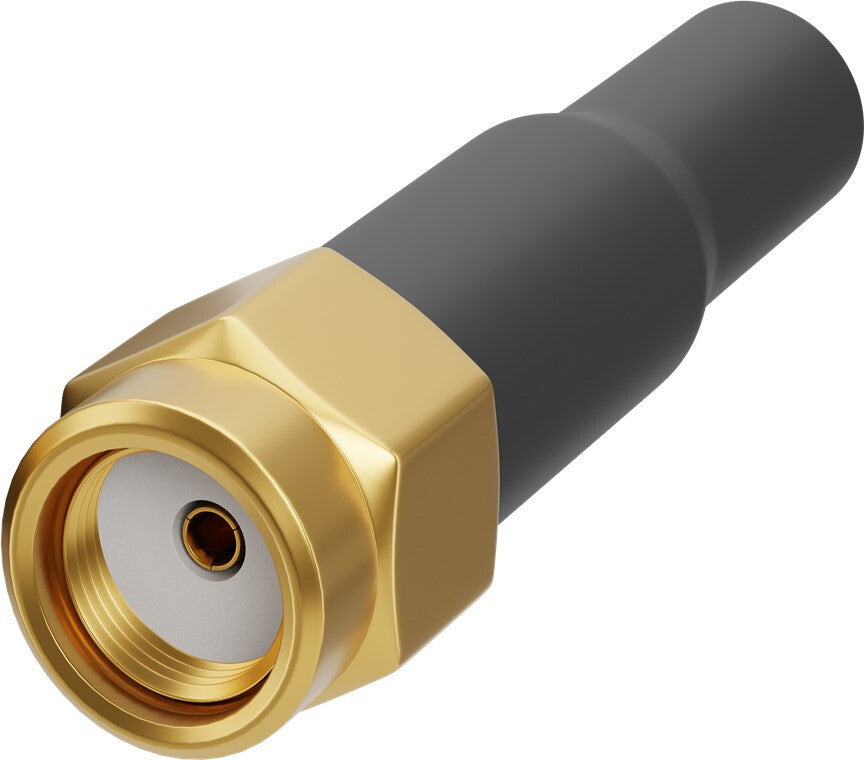

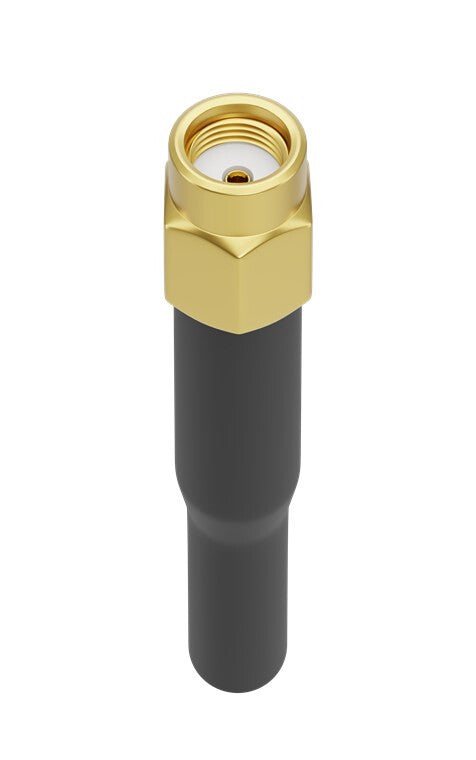

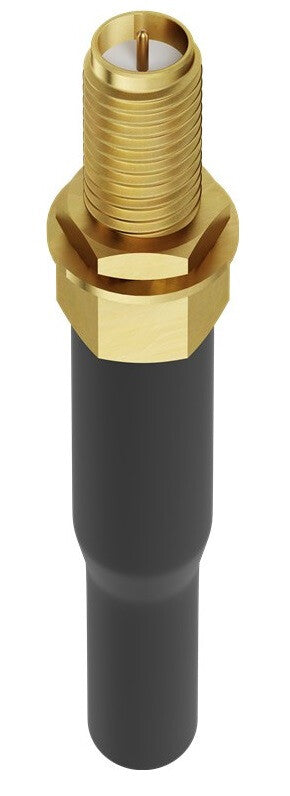

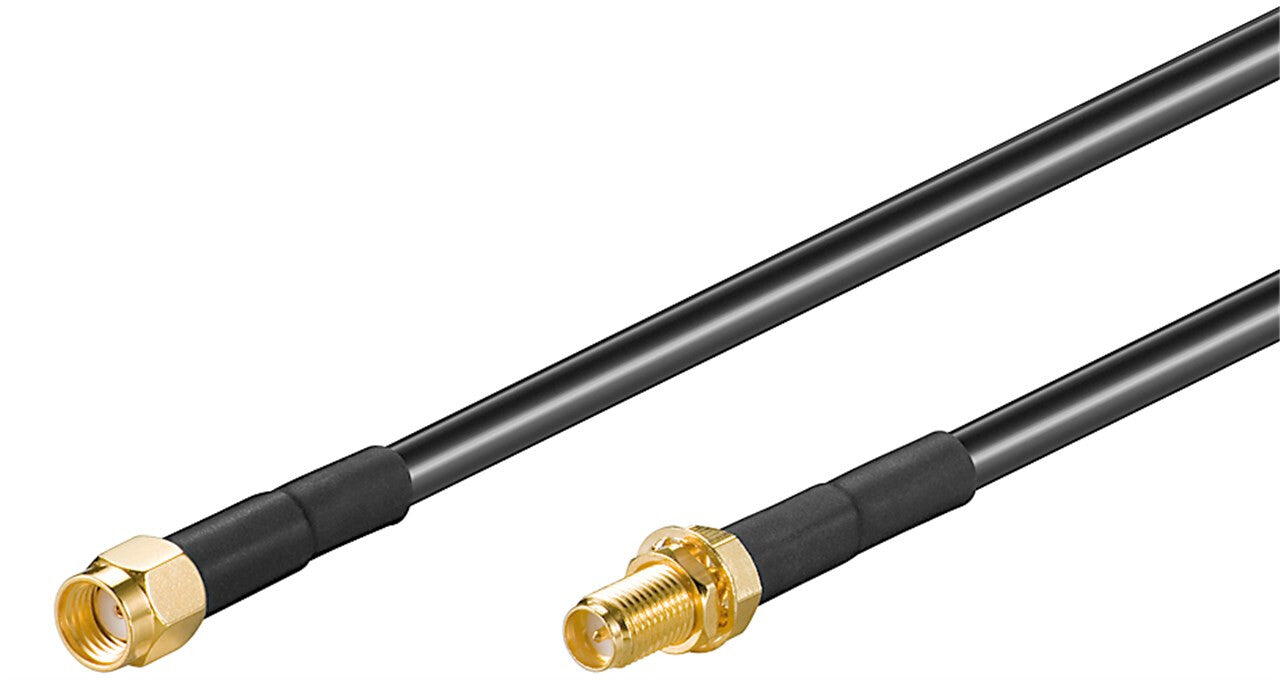

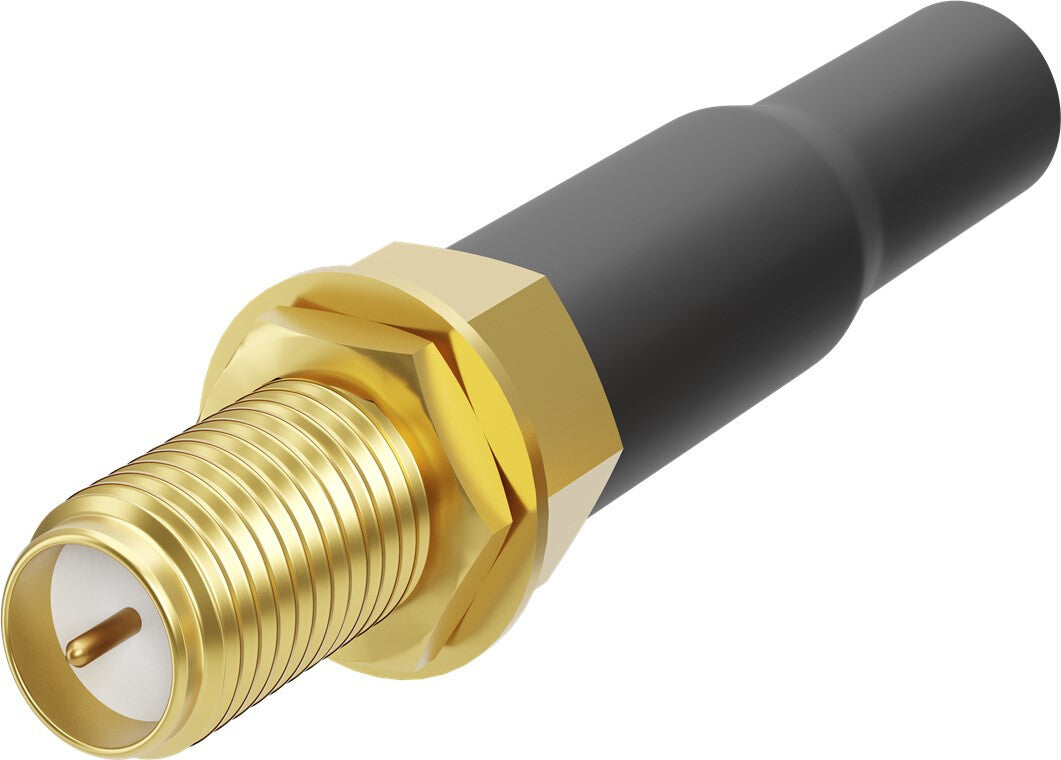

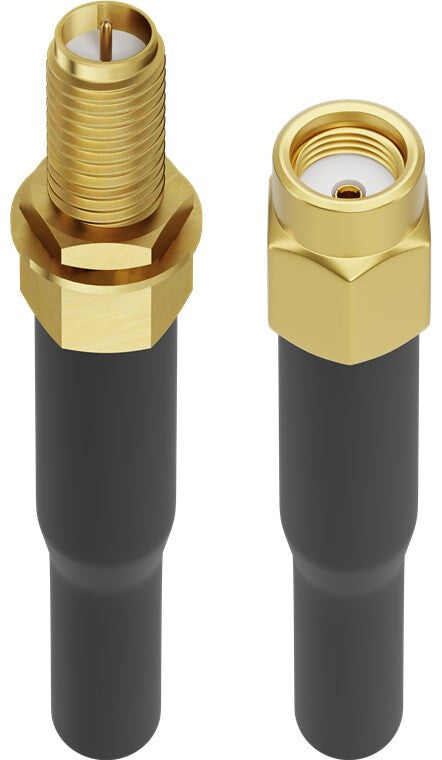

WLAN Antenna Extension Cable, 1m

WLAN Antenna Extension Cable, 1m

WLAN Antenna Extension Cable, 1m

  • Antenna extension cable provides flexibility for antenna relocation to optimise Wi-Fi range and improve reception
  • Ideal for all common Wi-Fi routers and Wi-Fi antennas with RP-SMA connectors
  • Shielded coaxial cable (LMR 195) with high-quality copper conductor (CU) and optimised impedance of 50 Ohm
  • Standardised, gold-plated aerial connectors for minimum transmission resistance
  • Robust PVC cable sheathing (Ø 4,95) and high-quality SMA plugs guarantee durability
  • The Wi-Fi antenna extension cable consists of a low-loss high-frequency cable (HF cable) with low, optimised attenuation in the 2.4 GHz and 5 GHz range
  • Max. operating frequency of the aerial cable is 5.8 GHz
  • SKU:51675
  • GTIN/EAN:4040849516757
  • MPN:51675

You need to login to view the price.

View full details

Goobay WLAN Antenna Extension Cable, 1m. Cable length: 1 m, Connector 1: RP-SMA, Connector 2: RP-SMA. Quantity per pack: 1 pc(s). Package type: Bulk. Certification: Directive 2011/65/EU [OJEU L174/88-110, EN IEC 63000:2018, Compliance certificates: REACH, RoHS

Our antenna cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Goobay always provides the perfect products for your network needs. Simply. All. You need!

Features
Cable type
LMR195
Cable length
1 m
Connector 1
RP-SMA
Connector 2
RP-SMA
Connector 1 gender
Male
Connector 2 gender
Female
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
Gold
Product colour
Black
Frequency band
5.8 GHz
Impedance
50 Ω
Jacket material
Polyvinyl chloride (PVC)
Conductor material
Copper
Operational conditions
Operating temperature (T-T)
-20 - 80 °C
Packaging content
Quantity per pack
1 pc(s)
Sustainability
Sustainability compliance
Yes
Certificates
Compliance certificates
REACH, RoHS
Certification
Directive 2011/65/EU [OJEU L174/88-110, EN IEC 63000:2018
Packaging data
Package type
Bulk
