WLL-RX1P-II Wireless Receiver

WLL-RX1P-II Wireless Receiver

  • Wireless receiver for WLL-TX1
  • SKU:WLL-RX1P-II
  • GTIN/EAN:
  • MPN:WLL-RX1P-II
Add To Favorite

You need to login to view the price.

View full details

SoundTube WLL Tri-band Uncompressed Wireless Receiver System

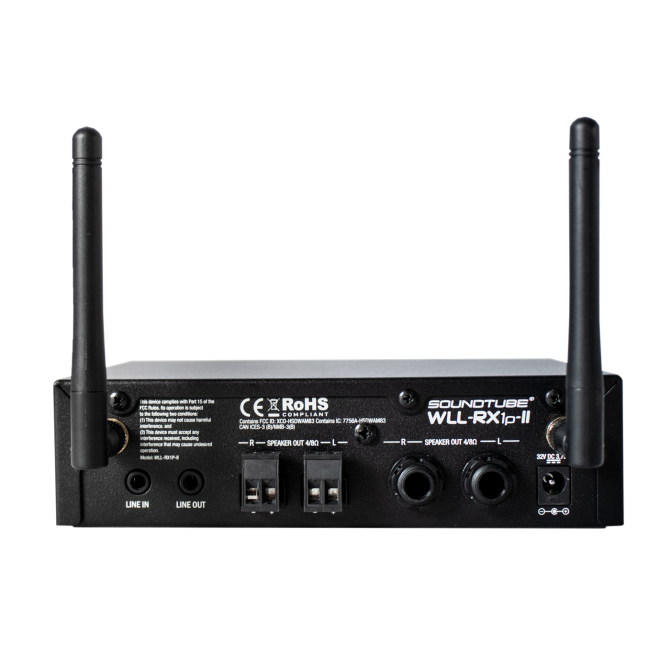

The WLL-RX1p wireless receiver unit contains a 2-channel 50W/ch Class D amplifier which will power up to two speakers. An additional 5 receivers (for a total of 6) may be ordered to accompany a single transmitter. Two additional transmitters can be used with separate frequencies with a total of up to 18 receiver units. Each transmitter/receiver contains 3 RF channels to minimize interference from other devices. Each channel contains 3 bands, alternating between them to preemptively counteract interference, keeping the signal clear and latency less than 20ms. Receiver output options include Push-On phoenix connectors or 1/4" connections. The WLL-RX1P also includes stereo line output for connecting auxiliary audio components. A Local Audio source may also be used at the receiver via stereo mini which mutes the wireless signal when connected.

Owner's Manual | Tech Sheet

Technical details
Connectivity technology
Wireless 2.4 GHz
