Chief WM120AUS

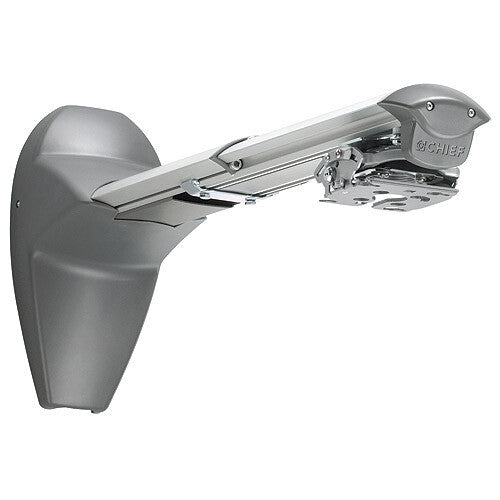

The Chief WM120AUS is a medium short throw projector wall mount kit designed for AV installers who need a precise, secure and clean mounting solution for compact short throw projectors in classrooms, boardrooms and auditoriums. The kit combines the WM120S single-stud extension arm with the RSMAUS Universal Mini RPA Elite projector mount, delivering the flexibility to accommodate different projector brands and future replacements. The arm attaches to a single wall stud, keeping the installation clean and the projector positioned above the audience. Its micro height, pitch and leveling adjustment system enables exact image alignment once installed, reducing on-site setup time significantly.

Quick-Connect Single-Stud Installation

The WM120AUS mounts via a single wall stud using an innovative quick-connect system that accepts wood stud, steel stud and concrete anchor hardware — all included in the box. Avoiding a double-stud requirement dramatically increases the number of viable mounting locations on a given wall, which is particularly valuable in classrooms or conference rooms where structural studs do not always align with the ideal projector position. The quick-connect design also means the arm can be removed and reinstalled without specialist tools, making future projector swaps or moves straightforward for the end-user's facilities team.

Precise MicroZone Image Alignment

Chief's MicroZone adjustment system provides independent micro roll, pitch (±3°) and height control without requiring the projector to be repositioned on the mount. Once the arm is on the wall, the installer can dial in a perfectly squared, level image in minutes rather than the repeated remove-and-reposition cycle that older mounts required. This is especially relevant with short throw projectors, where even a small angular deviation produces a noticeably skewed image at close range. Paired with the included RSMAUS Mini RPA Elite mount, which also offers Centris Technology for fingertip repositioning, the combined system gives the end-user a stable, precisely aligned picture throughout the projector's service life.

One stud. Full alignment control. Zero cable clutter.

10-year limited warranty (excluding electrical mechanisms) · Made for professional AV installation

Integrated Cable Management

Cables route through the top of the mount arm itself, concealed from view and protected from accidental snagging — without requiring any additional cable tray accessories. In education and corporate environments where displays and cabling are frequently inspected for safety and tidiness, this built-in channel means the finished installation looks professional and audit-ready from day one. It also reduces the risk of cables being inadvertently disconnected when the projector is adjusted or serviced, contributing to fewer support calls.

Multi-Level Security for Shared Spaces

The WM120AUS incorporates All-Points locking hardware that secures the arm at every adjustment point, preventing accidental movement in high-traffic environments. In addition, the included RSMAUS projector mount supports four keyed locking options (A, B, C and D), allowing institutions to match locks across a campus while still keeping different zones independently keyed. For schools, museums or hospitality venues where projector theft or tampering is a realistic concern, this layered security approach is a strong selling argument that competitors in the same price range rarely match.

Universal Projector Compatibility and Future-Proofing

The bundled RSMAUS Universal Mini RPA Elite mount uses a universal interface that accommodates a wide range of projector mounting hole patterns. It is compatible with Chief RPA standard, RPA Elite, RPA Mini and RPA Mini Elite mounts, while being 33% smaller than the standard RPA yet retaining a full 11.3 kg weight capacity. This makes the WM120AUS a sound long-term investment: when the end-user upgrades or replaces their projector, the wall arm and mount can typically be retained, avoiding the cost of a full reinstallation. Centris Technology automatically adjusts tension to match the specific projector's weight, maintaining consistent resistance across brands and models.
