WP205/W ARES5A wall panel - Microphone & line input - 80 x 80 mm, White

WP205/W ARES5A wall panel - Microphone & line input - 80 x 80 mm, White

  • Elegant design to blend in with any environment
  • Compatible with EU (80x80 mm) installation materials
  • Signal transmission over twisted pair (CAT5E) or better cabling
  • Signal transmission insensitive for interference and noise
  • SKU:WP205/W
  • MPN:WP205/W

You need to login to view the price.

Add To Favorite
View full details

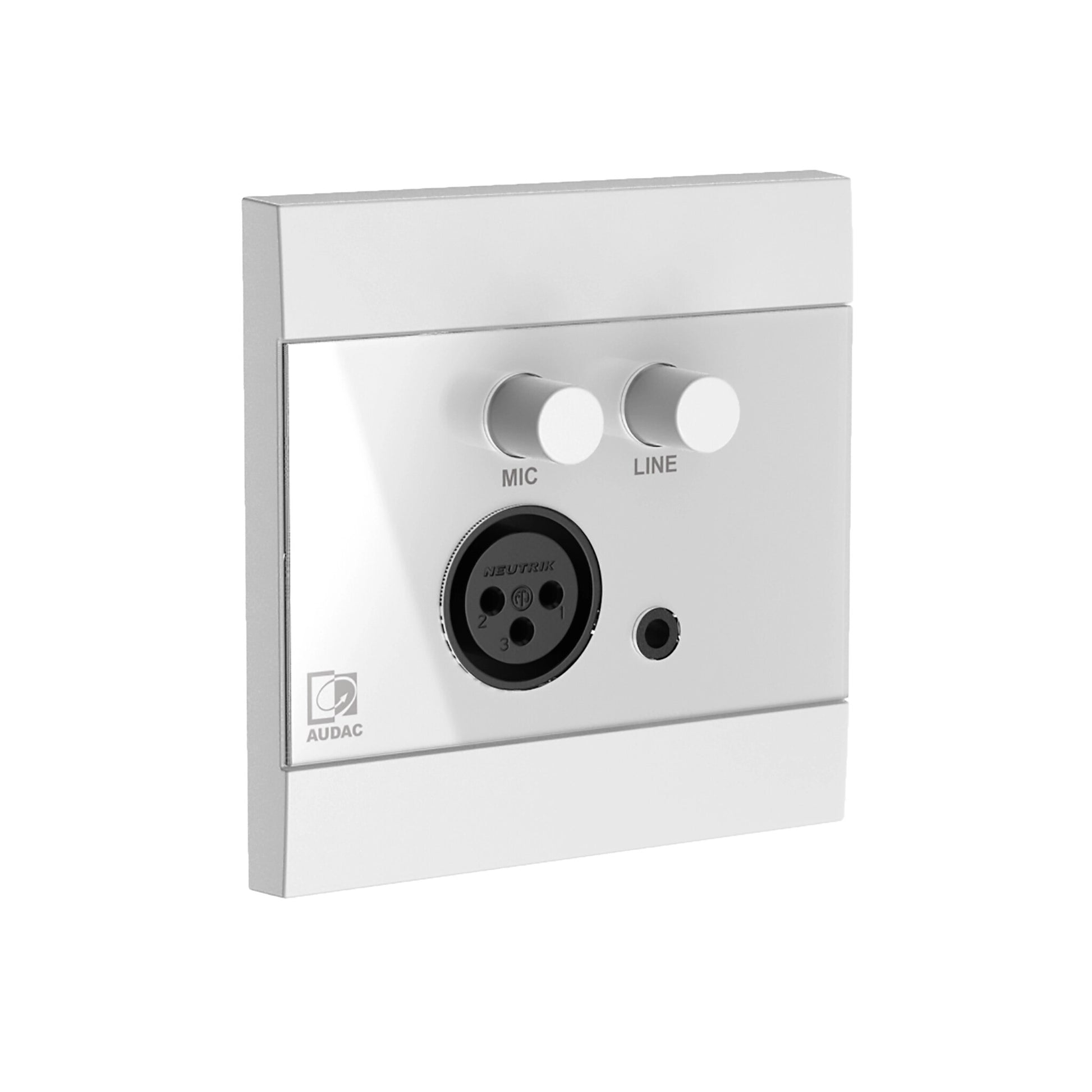

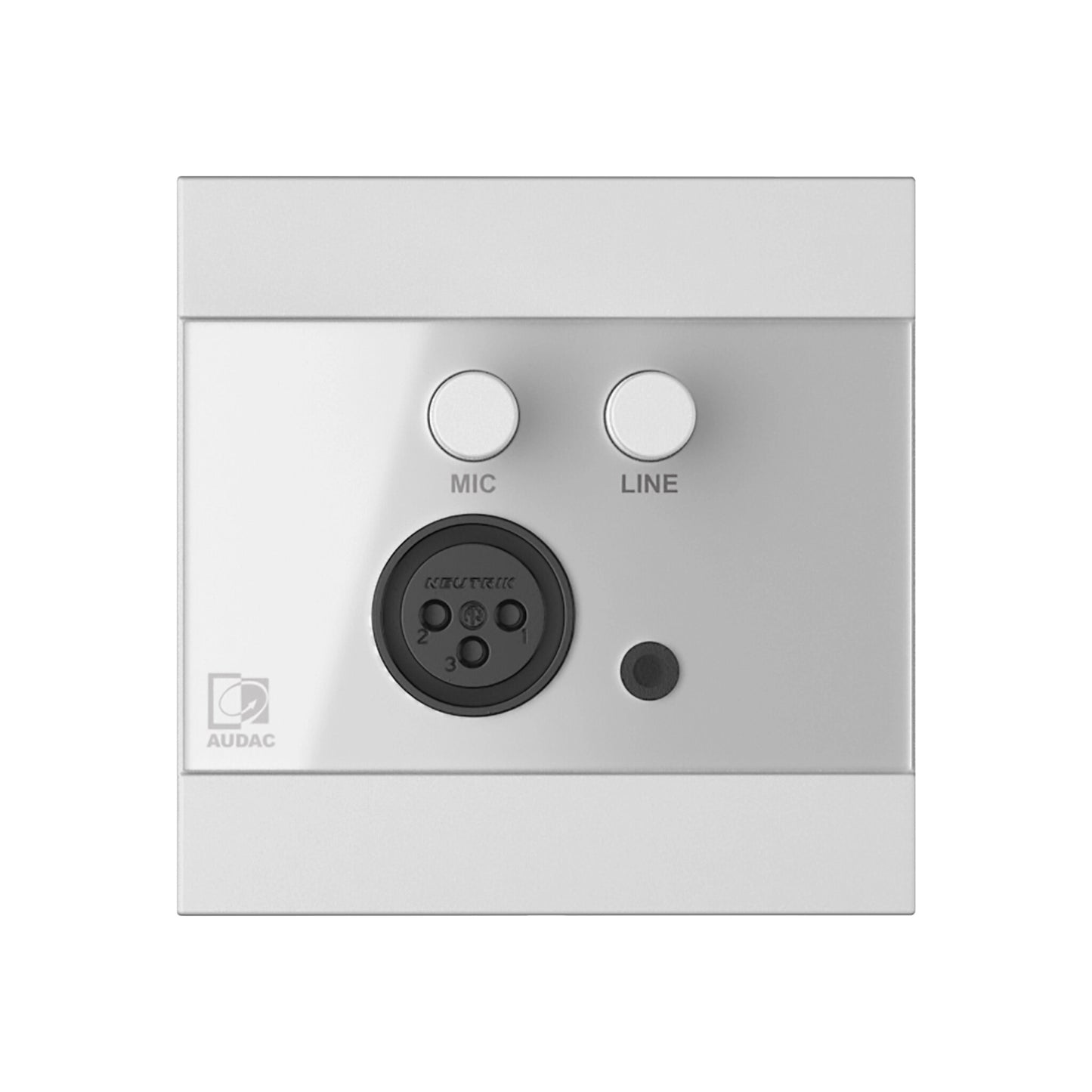

The WP205 is a remote wall mixer that is meant to be used in combination with the ARES5A active speaker system. It converts the signal coming from a stereo line-level audio source (such as a tuner, mobile devices, ... ) or balanced microphone to the level corresponding to the differential signal input on the ARES5A (RJ45) making it possible to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling. On the front side of the wall panel, there is a 3.5 mm jack stereo line input connection available together with a balanced XLR microphone input, both provided with their own knob which allows the signals to be mixed together.

The WP205 is available in 2 colours (White - RAL9003 & Black - RAL9005) and is compatible with most standard EU (80x80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with Acrylic (PMMA) glass finish, it will blend into any environment.

System specifications
3.5 mm jack stereo line input connection, XLR microphone input connection

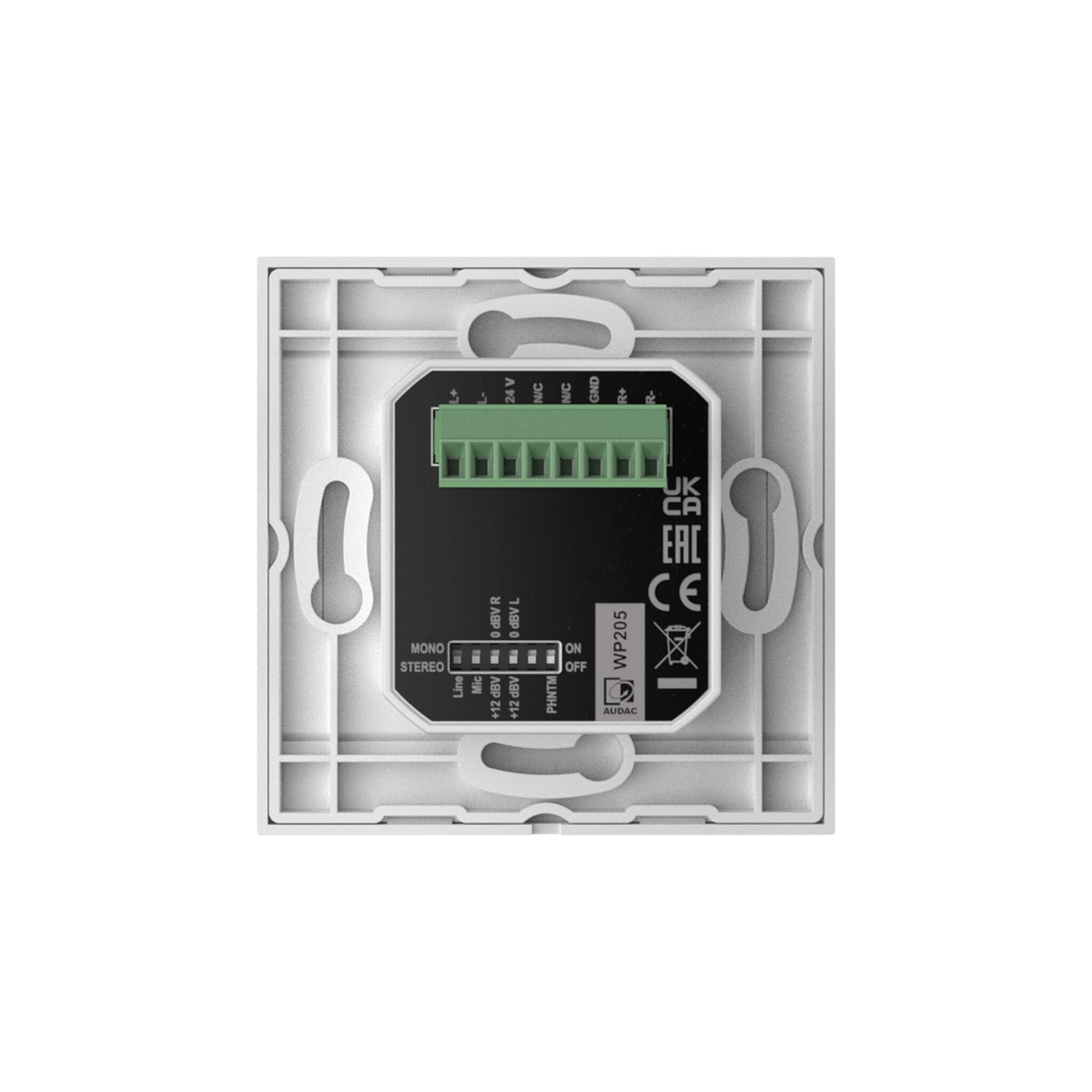

Individual input level control for Mic & Line Phantom power (DIP switch on rear) Low-cut (Mic) enable / disable (DIP switch on rear) Mono / Stereo (DIP switch on rear)
3.5 mm jack input (Stereo line input) Female XLR input connector (Microphone input)
Product Features
Front finish
Elegant ABS front panel with Acrylic (PMMA) glass finish
White (RAL9003)
80 x 80 mm (W x H) (Remote wall panel)
Installation standard
Compatible with EU installation materials
